Сигнальная башня Onn 24 В/220 В M4C предупреждающая светодиодная сигнальная лампа с мигающим

Описание и отзывы

Трекер стоимости

Характеристики

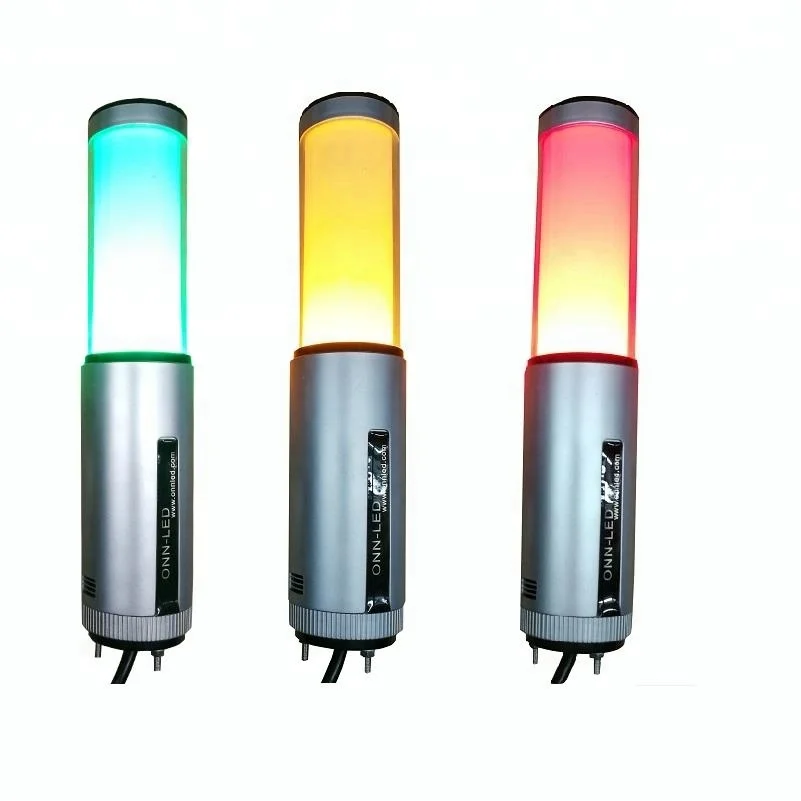

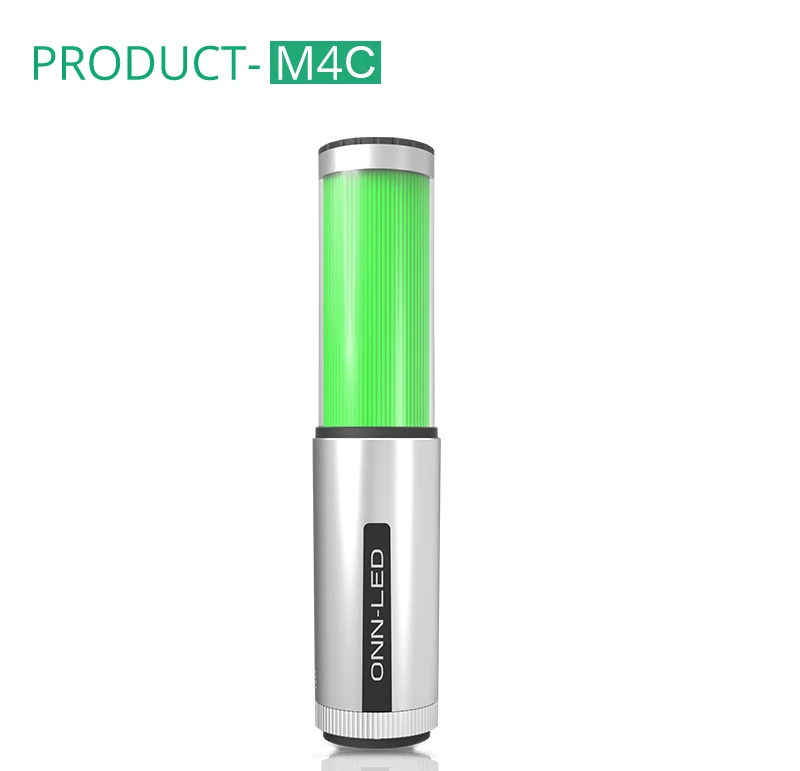

Onn brand 24V/220V M4C Signal tower warning led alarm light with buzzer flashing



Features:

1. Innovative design, three colors on a single layer.

2. Buzzer optional, volume louder than 95dB.

3. Double PC lens, soft light, better visual effect.

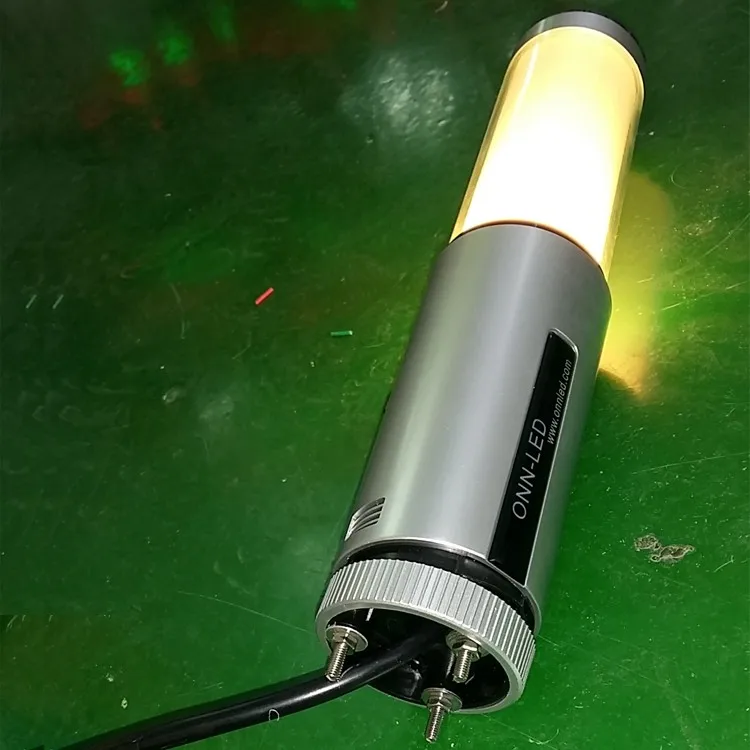

4. Easy to install, the installation part is hidden in the lamp body, it seems integrated with machine

5. Foldable, very convenient when moving and packing machine.



Applications:

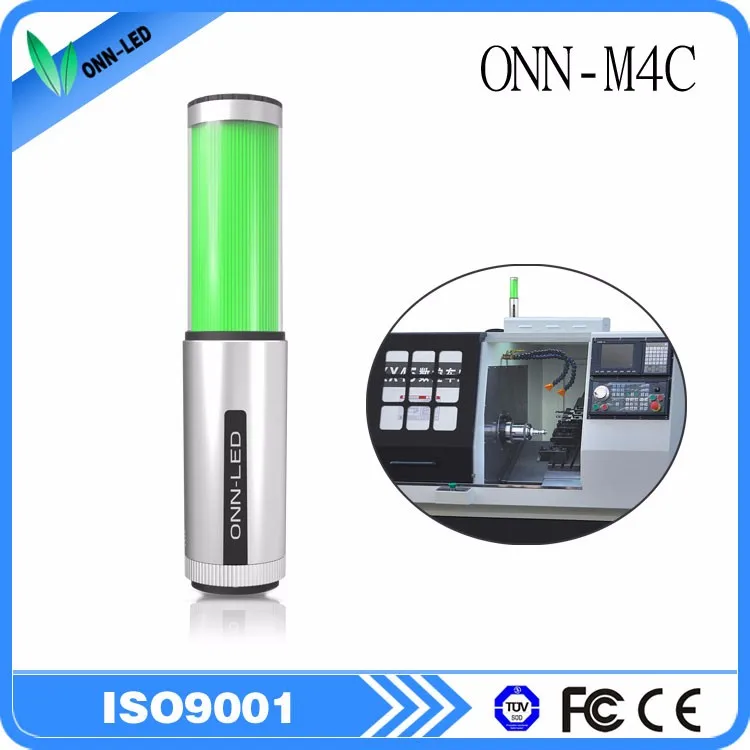

CNC machine,Automatic equipment, SMT equipment etc.







Parameter:

Brand	ONN	Working Temperature	-20~45℃
Buzzer volume	>95dB	Mounting	Fixed by screw
Lifespan	50000 hours	Voltage	DC24V/AC100-240V
Diameter	φ60mm	Rated Current	60-200mA
Color	RYG	IP grade	IP53













ONN M4C  - 1   A  B  B  T  RYG - 60
1      2   3  4   5  6     7      8
1	Model No.: M4C
2	Layer: 1. one layer
3	Mounting: A. Foldable type
4	Voltage:  B. DC24V
5	Function:  B. Continous light    F. With buzzer no flash    S. Red flash no buzzer   C. Red flash with buzzer     D. All flash   E. All flash with buzzer

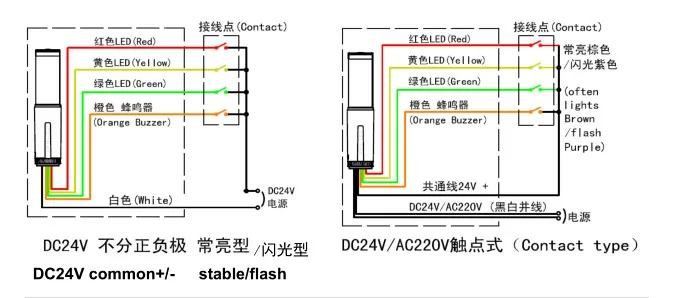

6	Connect type: T. PNP&NPN    C. Contact type
7	Color: R. Red  Y. Yellow  G. Green
8	Diameter: 60mm



Product Size Drawing :

more details:



Related Products:



Company Information :

ONN Semiconductor (Shenzhen) Co., Ltd. was established in August 2005, which is located

in Bao'an District Shenzhen LED industry gathering. The company is focusing on LED Industrial

Lighting (especially "machine lights","warning lights"),LED Cleanroom Lights(Including LED panel

lights)and LED Freezer Lights.



Since the products launched market for nearly 8 years,ONN has experienced 45 trade fairs,created

8 new pratical patents,22 appearance patents and a series of related certification like CE,RoHS,IP

level authentication and so on.At the same time,ONN also passed ISO9001,with professional R&D team

which is the backbone for technology and quality, was identified National High-tech Enterprise.



Our service:

1. Produce and supply high quality led industrial lights, including led machine lights, led machine

warning signal lights, led cleanroom lights, led freezer lights and so on.

2. After-sale service. We make sure every lights from us are strictly tested before delivery. If any

quality failure, we have 18-36 months warranty based on different types of lights.

3. OEM and ODM service. We focus on led industrial lights for 13 years. We are professional and experienced.



Packaging and Shipping:

1. Our Standard Export Packing. Customized packing is avaible for MOQ order.

2. Delivery time: samples 3-5 days, mass order 5-10 days.

3. Shipping: by international express, by air or by ship.
