Электрическая тросовая лебедка TOYO Mini портативная электрическая для
- Категория: Material Handling Equipment >>>
- Поставщик: Tianjin,Kunda,Hoisting,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-15-2025 | 34980.26 $* | 35680.20 $* |
| Jul-15-2025 | 28369.57 $* | 28936.44 $* |
| Jun-15-2025 | 34429.19 $* | 35118.49 $* |
| May-15-2025 | 34153.37 $* | 34836.61 $* |
| Apr-15-2025 | 27268.31 $* | 27813.73 $* |
| Mar-15-2025 | 33602.26 $* | 34274.45 $* |
| Feb-15-2025 | 33327.66 $* | 33994.59 $* |
| Jan-15-2025 | 33052.2 $* | 33713.33 $* |
Характеристики

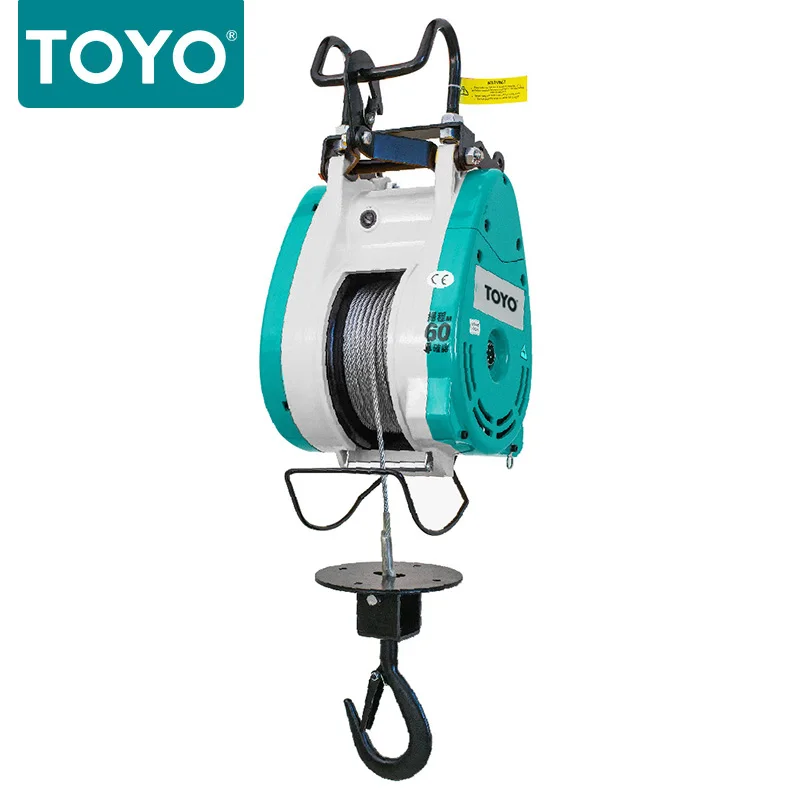

TOYO Mini Electric Wire Rope Hoist/ Portable Electric Winch building
 |

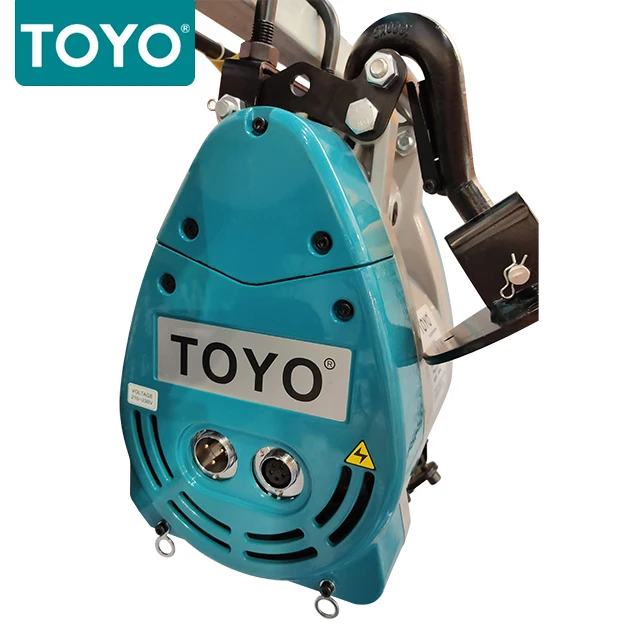

Motor System
Using brushless motor series excited of high-efficiency industrial grade; there are two selected configurations of single-phase voltage (110V / 220V); its enameled heat levels up to 200 degrees. |
|
Brake System Dual brake system with ratchet gear brakes and the other brake resistor short circuit controller. |
|
|
Cable Specifications
Japan steel wire with 3- fold safety
|

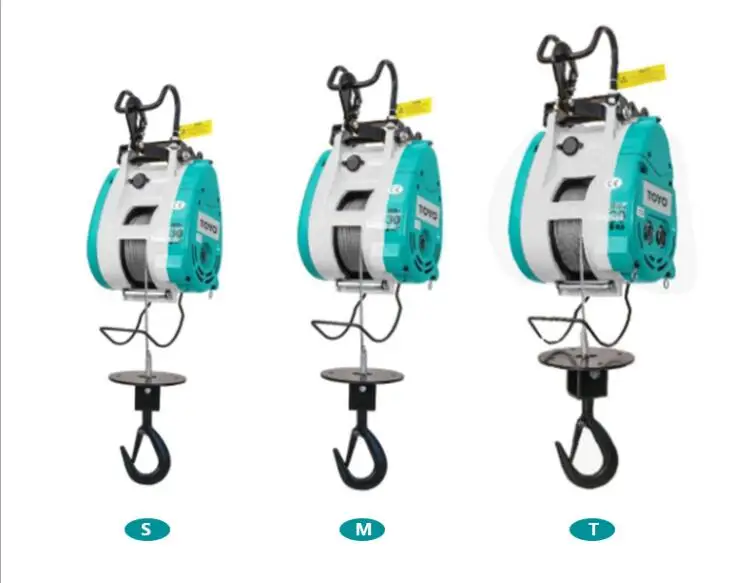

| Model | Capacity (kg) | Power (Voltage) | Phase | Wire Rope (mm) | Wire Rope Lift(m) | Speed (M/min) | Motor (kW) | ||||
| 50Hz | 60Hz | ||||||||||
| TY-S160 | 160 | 100-120 | 200-240 | 1 | 5 | 4 | 28 | 43 | 19 | 23 | 1.2 |
| TY-S180 | 180 | 100-120 | 200-240 | 1 | 5 | 4 | 28 | 43 | 19 | 23 | 1.3 |
| TY-S230 | 230 | 100-120 | 200-240 | 1 | 5 | 4 | 28 | 43 | 19 | 23 | 1.3 |
| TY-S250 | 250 | 100-120 | 200-240 | 1 | 5 | 4 | 28 | 43 | 19 | 23 | 1.5 |
| TY-S300 | 300 | 100-120 | 200-240 | 1 | 5 | 4 | 28 | 43 | 19 | 23 | 1.5 |
| TY-S280 | 280 | 100-120 | 200-240 | 1 | 5 | - | 58 | - | 12 | 19 | 1.3 |
| TY-S360 | 360 | 100-120 | 200-240 | 1 | 5 | - | 58 | - | 12 | 19 | 1.5 |
| TY-S500 | 500 | 100-120 | 200-240 | 1 | 6 | - | 30 | - | 13 | 20 | 1.6 |
 |
Motor System Using brushless motor series excited of high-efficiency industrial grade;
There are two selected configurations of single-phase voltage (110V / 220V);
Its enameled heat levels up to 200 degrees, specifically designed for the long crane. |
|

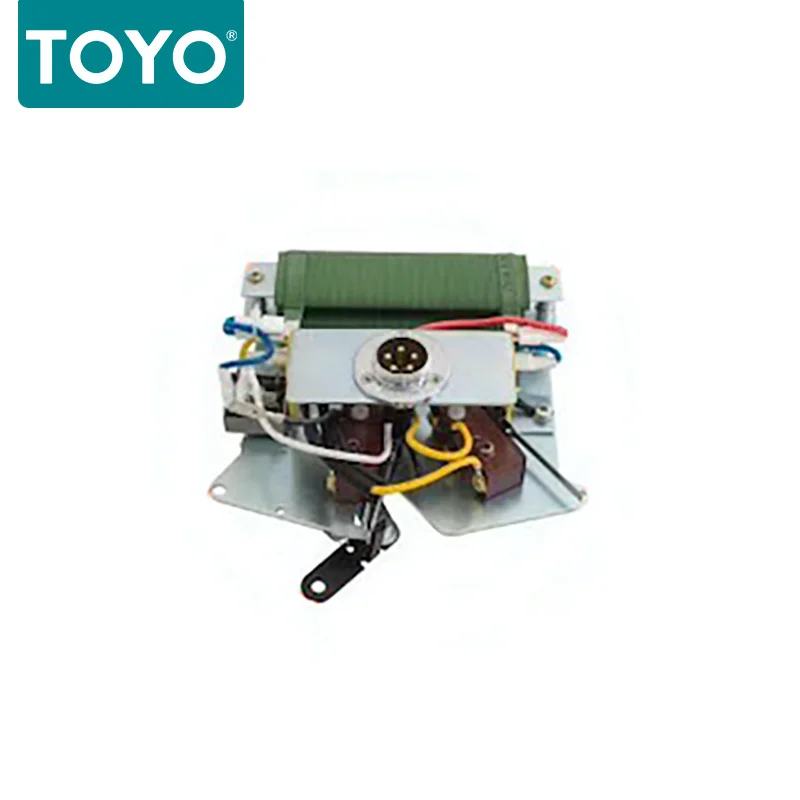

Brake System Dual brake system with one mechanical ratchet
Brake resistor short circuit controller; formula oiled copper disc brakes with
High friction coefficient, which needs no adjustment; immediately brake in
Power outage or malfunction, great safety, and long life. |
|
 |
Cable Specifications Japan imported steel wire from large manufacturing firms with 3-fold safety factor. |
