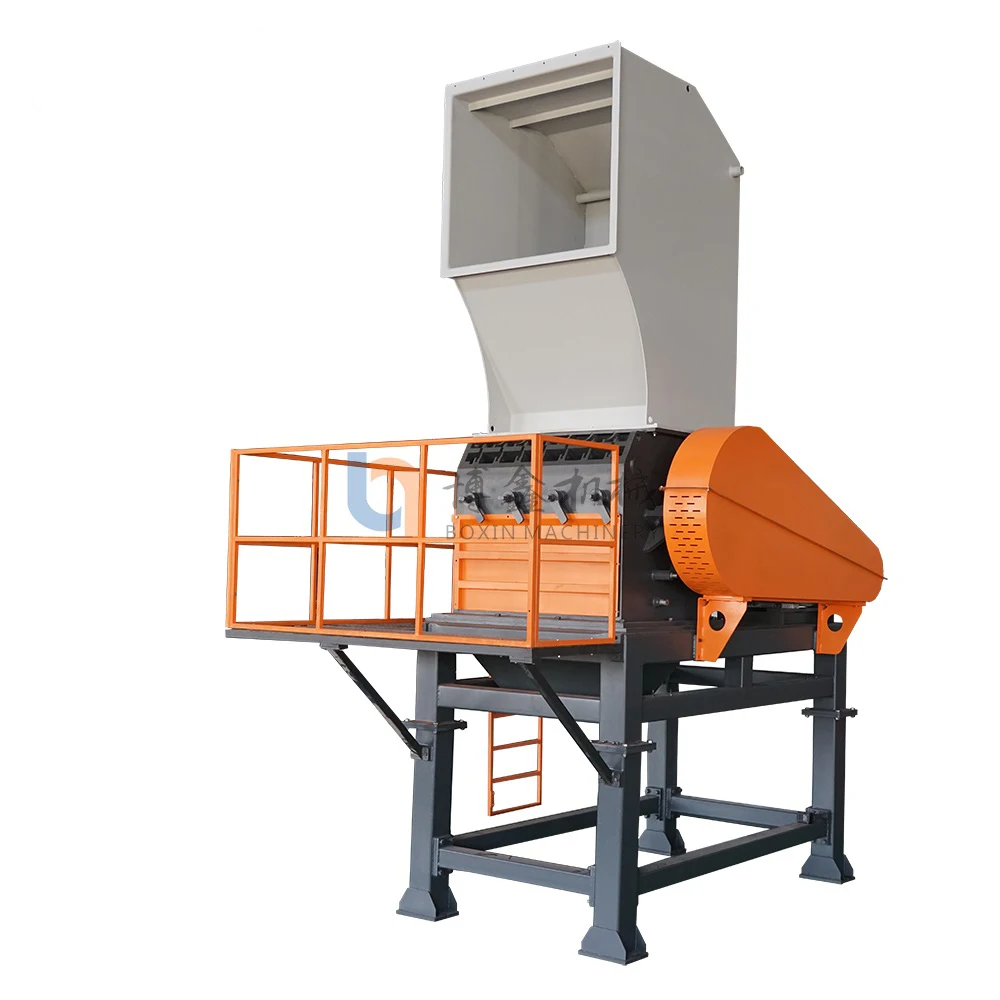

Boxin Machinery Crusher Machine is mainly used for crushing wasted plastics like plastic pipes, profile, bottles, baskets, drums, film, sheet and so on.
1. The rotary blade of this plastic crusher is one step design to make cutting force resolve and increase the cutting force times.
2. Applied to Plastics factories, electronic factories, plastic container factories, lighting factories, shoes factories, electrical appliances factories, automotive components factories, bags factories, granulation factories, waste recycling factories, plastic furniture factories, plastic cabinet factories. 3. Claw-knife crusher is capable of crushing the soft or hard plastic materials such as PP, PE, PET, PVC sheets, mineral water bottles, film, leather soles and so on. 4. Blade-knife crusher is capable of crushing PVC sheets, packing tapes, hard rubber materials, polyethylene, horns, wood, ceramics, nylon, materials with fiber involved, and other kinds of soft or hard plastics.
Specification
Model
BX-800
BX-1000
BX-1200
BX-1400
Main motor power
37kw
55kw
90kw
110kw-132kw
Rotation diameter
450mm
630mm
750mm
750mm
Spindle length
800mm
1000mm
1200mm
1400mm
Number of rotating blades
6 pieces
6 pieces
10 pieces
10 pieces
Number of fixed blades
4 pieces
4 pieces
4 pieces
4 pieces
Blade material
D2
D2
D2
D2
Spindle speed
500rpm
500rpm
500rpm
500rpm
Screen aperture
￠16mm
￠16mm
￠16mm
￠16mm
Hopper opening method
screw
hydraulic
hydraulic
hydraulic
Voltage
3 phase 380V 50HZ
3 phase 380V 50HZ
3 phase 380V 50HZ
3 phase 415V 50HZ
Machine weight
3700kg
5800kg
7600kg
8900kg
Dimensions
2700mm×3300mm×4200mm
3000mm×3800mm×4600mm
3100mm×4200mm×4800mm
3300mm×4500mm×4800mm
Auxiliary feeding motor power
4kw
4kw
BOXIN TECHNOLOGY ADVANTAGES1. Boxin ultra-thick spindle blade design increases the stability of the machine operation and is more in line with customers' increasing demand for machine quality.
2. The shaft is a heavy duty paddle type design with knife cover plates to protect the blades when processing abrasive applications. The blades are adjusted outside of the machine, cutter can be adjusted independently ,also can be sharpened with repeated use.
3.Shaft made of special material processing like SKD-11 ,9 SiCr , its hard to deformed.
4.The screen plate is processed with high strength material. It can be installed easily with hydraulic system and changed conveniently.
5.The base frame has a solid welded construction with anti-vibration rubber feet to reduce vibration and noise.
6.Specially designed hopper with curtains to prevent material flybacks.
Integrated rundown safety device prevents access to the rotor until it has come to a complete stop. A safety switch prevent machine startup when the front panel is open and the machine features emergency stop buttons on the machine body and control panel.
