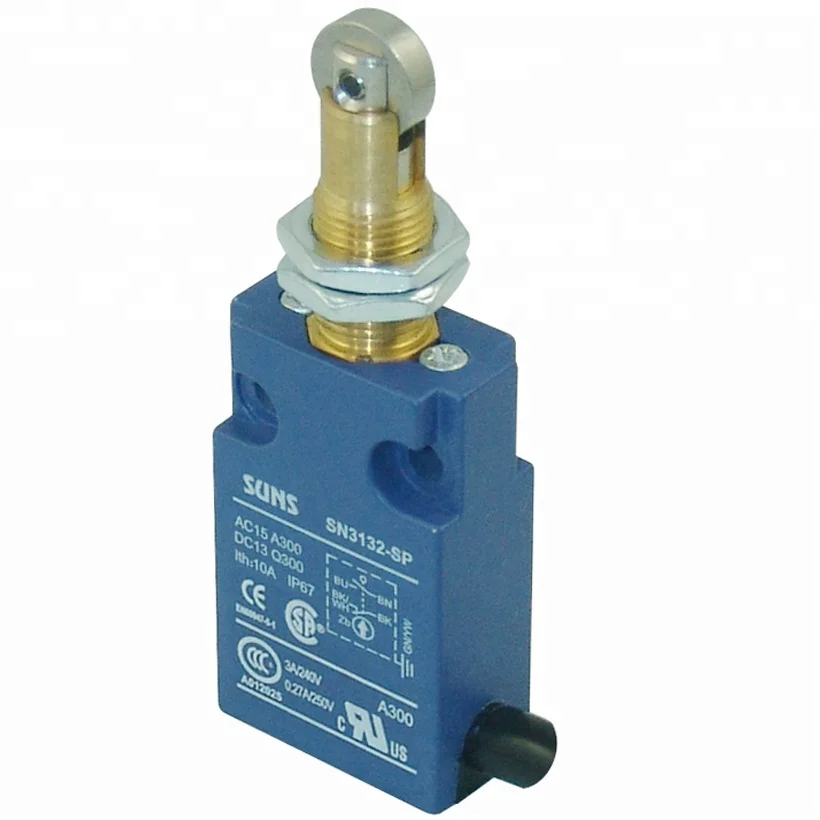

IP67 мини концевые
- Категория: Концевые переключатели >>>
- Поставщик: Suns,Electric,(Zhangzhou),Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-19-2025 | 57.11 $* | 58.82 $* |
| Jul-19-2025 | 46.86 $* | 47.28 $* |
| Jun-19-2025 | 56.16 $* | 57.69 $* |
| May-19-2025 | 56.13 $* | 57.17 $* |
| Apr-19-2025 | 45.36 $* | 46.15 $* |
| Mar-19-2025 | 55.88 $* | 56.17 $* |
| Feb-19-2025 | 54.87 $* | 55.98 $* |
| Jan-19-2025 | 54.37 $* | 55.31 $* |
Характеристики
Product Description
| Specifications: | |
| Operating Speed: | 0.05mm-2m/sec |
| Operating Frequency: | Mechanical:120ops/min Electrical: 30ops/min |
| Insulation Resistance: | >100mΩ@500V DC |
| Contact Resistance: | <25mΩ |
| Rated Voltage: | 300V AC(EN60947-5-1) |
| Rated Current: | 10A |
| Electrical Rating: | AC15 A300 DC13 Q300 |
| Dielectric Strength: | 1000VAC for 1 min between non-continuous terminals |
| 2500VAC for 1 min between each terminal and ground | |
| Service Life: | Mechanically 1×107 (operations) |
| Electrically 5×105 (operations) | |
| Operating Temperature: | -25~+85 ℃without formation of ice |
| Humidity: | <95%RH |
| Weight: | ~300g |
| Cable: | 5 cores, 0.75mm2 |
| Contact Form | zb |
| Degree of Protection: | IP67 |
