Характеристики
4~20ma water level rs 485 water pressure transmitter
Product Description
Pressure range: -100~ 20Kpa~ 100Mpa
Power supply: 12~24VDC or 9~12VDC
Pressure type: Gauge pressure, absolute pressure, Top secret pressure
Output signal: 4-20mA, 0-5V, 0-10V
Accuracy class: ≤±0.5%F.S, ≤0.2%F.S(customized)
Loading: 150% F.S.
Loading: 150% F.S.
Operating temperature: -20~ 80℃
Protection class: IP65
Material: 316L stainless steel
Media compatible: Various fluid media compatible with 316L stainless steel
Insulation: 100MΩ/250VDC
Explosion-proof grade: ExiaⅡCT6
Long-term stability: ≤0.2%FS/year
Pressure range | -100~ 20Kpa~ 100Mpa |
Accuracy | 0.5% FS (default) 0.2% FS (customized) |
Power supply | 12~ 24VDC or 9~ 12VDC |
Output signal | 4-20mA , 0-5V , 0-10V |
Compensation temperature | -10~ 70℃ |
Operating temperature | -20~ 80℃ |
Zero temperature drift | 0.5%FS（max） |
Sensitivity temperature drift | 0.5%FS（max） |
Pressure overload | 150%FS |
Mechanical vibration | 20g(20-5000HZ) |
Long-term stability | ≤0.2%FS/year |
Insulation | 100MΩ/250VDC |
Protection class | IP65 |
Explosion-proof grade | ExiaⅡCT6 |
Media compatibility | various fluid media compatible with 316L stainless steel |

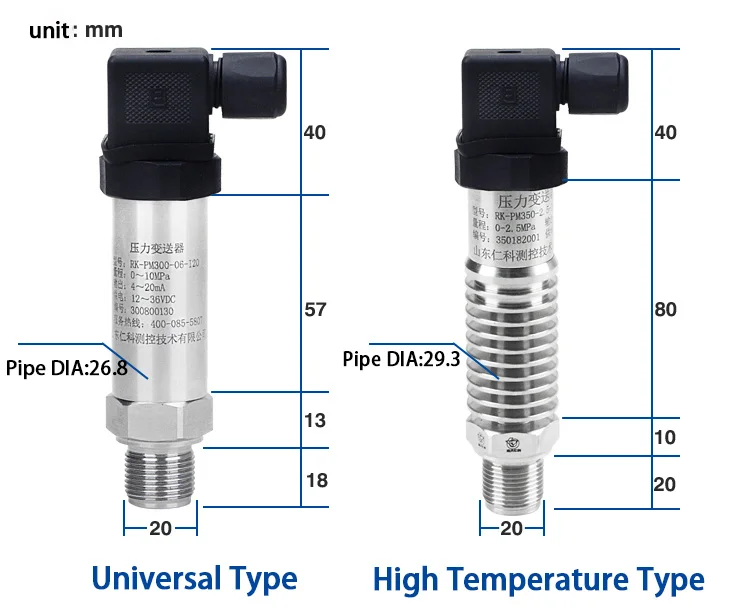

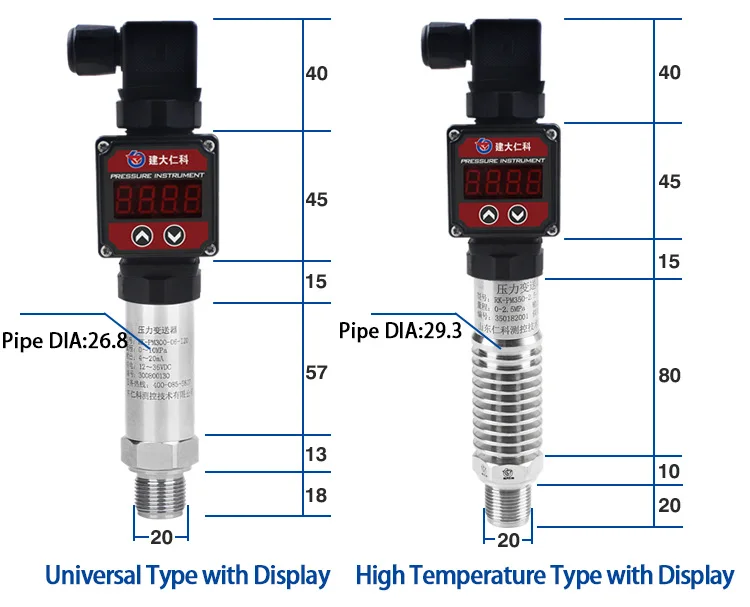

Detailed Images
FEATURES:
■ Reverse polarity protection and transient over current and over voltage protection to meet EMI protection requirements ■ Using laser-regulated temperature compensation process, the measured value is more stable
■ Wide range coverage, -0.1~100MPa optional
■ Automatic temperature compensation, automatic temperature correction
■ Strong overload and anti-interference ability, economical and practical
■ Compact structure and easy installation
Electrical Wiring
Application
Viscous and easily clogged places such as medicine and health, wine making, beverage, paper making, glue, etc.
Company Introduction
Shandong Renke Control Technology Co.,Ltd. is a leading environmental monitoring high technology enterprise in China.
Renke is engaged in industrial sensor, communication gateway, industrial data platform, cloud computing service,and measurement control technology solution. We have won good reputation for high quality products and sincere service.Renke insists on the policy that"technology first, exquisite design, customer satisfied" we are careful with every detail. Every drawing has to be considered and revised repeatedly. Every products is the thought of designer.
Renke is engaged in industrial sensor, communication gateway, industrial data platform, cloud computing service,and measurement control technology solution. We have won good reputation for high quality products and sincere service.Renke insists on the policy that"technology first, exquisite design, customer satisfied" we are careful with every detail. Every drawing has to be considered and revised repeatedly. Every products is the thought of designer.
FAQ
Q: Are you manufacturer?
A: Yes, We are Tranmitter manufacturer and exporter in china over 10 years experience with CE, ROHS, FCC, ISO and 11patents.
4~20ma water level rs 485 water pressure transmitter
Q: Do you offer the OEM service?
A: Yes, we can offer OEM service and design the shell and logo for you.
4~20ma water level rs 485 water pressure transmitter
Q: Do you offer free samples?
A: Sorry , we do not offer free samples. After you bulk order, we will deduct the sample fee from second order.
4~20ma water level rs 485 water pressure transmitter
Q: What payment ways do you accept?
A: You can pay us by T/T , PayPal , and West Union .
4~20ma water level rs 485 water pressure transmitter
Q: What is your delivery time?
A: It is in 3-5 working days since the payment confirmed. If your order is over 3000pcs, we need 10 days.
4~20ma water level rs 485 water pressure transmitter
Q: How is your quality assurance service?
A: 24 months quality guarantee.
4~20ma water level rs 485 water pressure transmitter
Q: Could we make a visit to your factory?
A: Yes, you are welcomed .
A: Yes, We are Tranmitter manufacturer and exporter in china over 10 years experience with CE, ROHS, FCC, ISO and 11patents.
4~20ma water level rs 485 water pressure transmitter
Q: Do you offer the OEM service?
A: Yes, we can offer OEM service and design the shell and logo for you.
4~20ma water level rs 485 water pressure transmitter
Q: Do you offer free samples?
A: Sorry , we do not offer free samples. After you bulk order, we will deduct the sample fee from second order.
4~20ma water level rs 485 water pressure transmitter
Q: What payment ways do you accept?
A: You can pay us by T/T , PayPal , and West Union .
4~20ma water level rs 485 water pressure transmitter
Q: What is your delivery time?
A: It is in 3-5 working days since the payment confirmed. If your order is over 3000pcs, we need 10 days.
4~20ma water level rs 485 water pressure transmitter
Q: How is your quality assurance service?
A: 24 months quality guarantee.
4~20ma water level rs 485 water pressure transmitter
Q: Could we make a visit to your factory?
A: Yes, you are welcomed .
