Новый продукт CK6160Q китайский токарный станок для ремонта обода
- Категория: Токарный станок с ЧПУ >>>
- Поставщик: Taian,Haishu,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 8330.91 $* | 8747.59 $* |
| Aug-19-2025 | 8260.94 $* | 8673.83 $* |
| Jul-19-2025 | 6930.20 $* | 7277.34 $* |
| Jun-19-2025 | 8120.19 $* | 8526.61 $* |
| May-19-2025 | 7070.86 $* | 7424.74 $* |
| Apr-19-2025 | 7980.89 $* | 8379.39 $* |
| Mar-19-2025 | 7910.12 $* | 8306.43 $* |
| Feb-19-2025 | 7840.33 $* | 8232.86 $* |
| Jan-19-2025 | 7770.0 $* | 8159.62 $* |
Характеристики

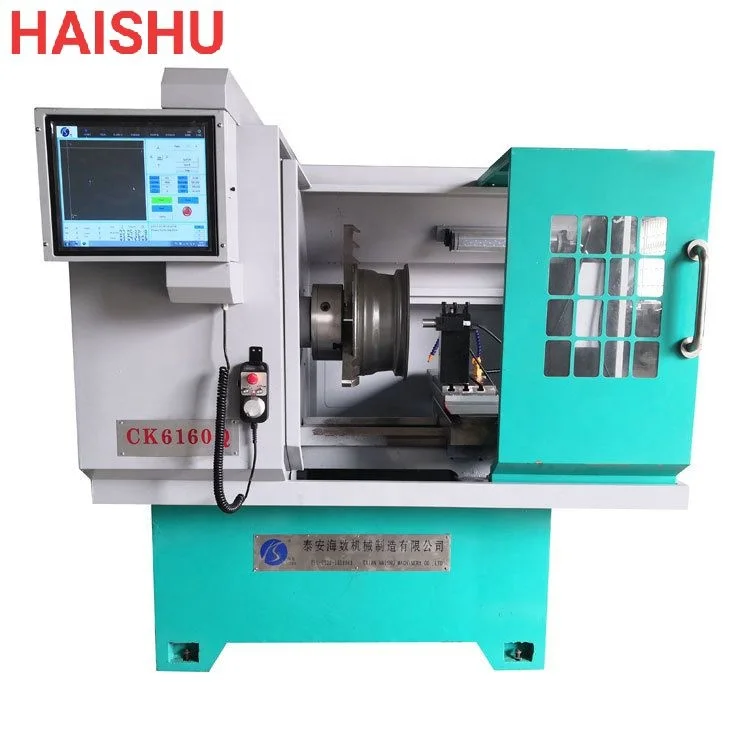

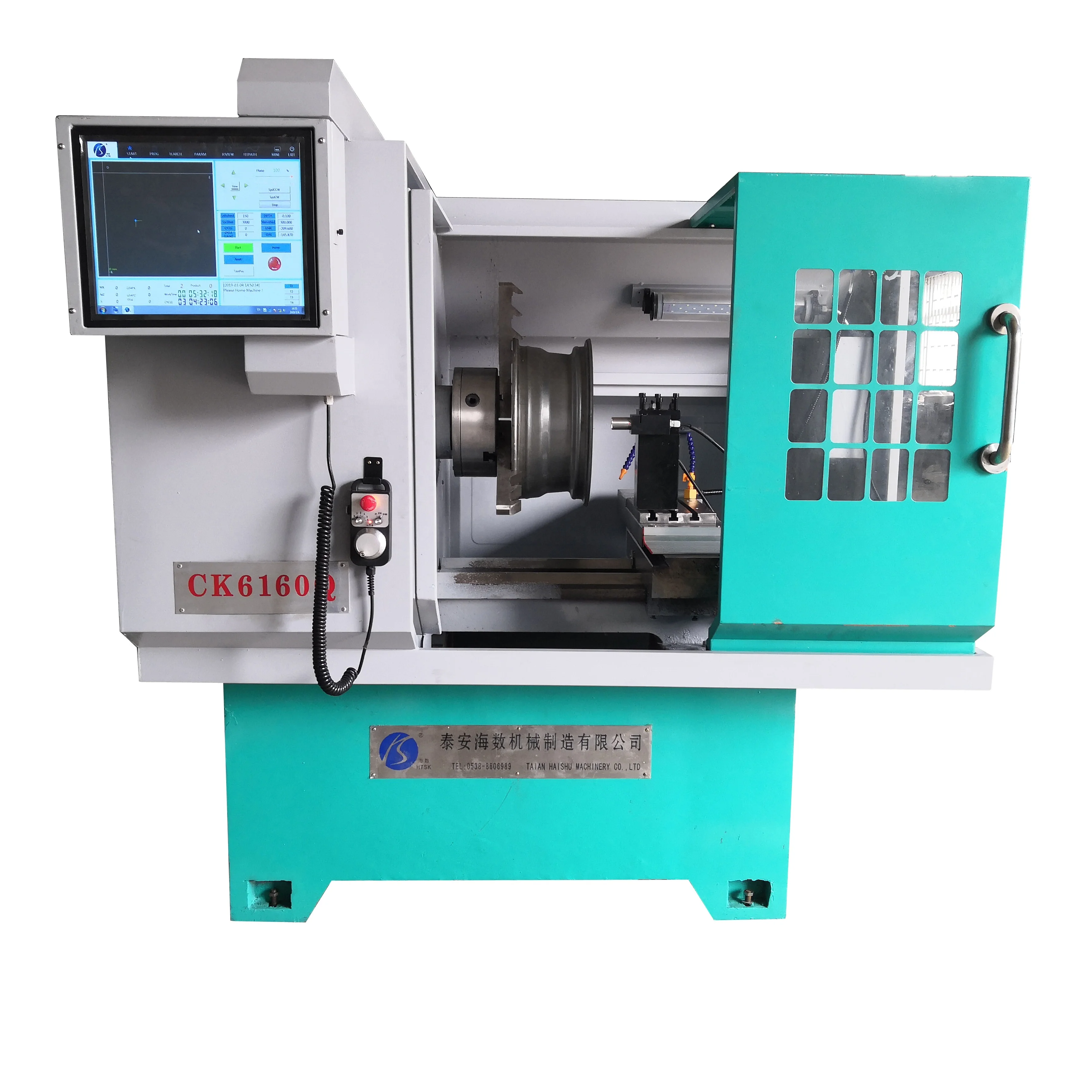

New Product CK6160Q Chinese Wheel Rim Repair Lathe
Project name | Unit | Technical parameters |
Max. turning diameter | mm | 720 |
Max. wheel machining diameter | mm | 24” |
Max. workpiece length | mm | 500 |
Probe measuring direction |
| X,Z |
Probe measure way |
| Laser probe or touch probe |
Machning accuracy |
| IT6~IT7 |
Surface roughness | um | Ra0.8~1.6 |
Main transmission form |
| Independent spindle; frequency conversion step-less |
Range of spindle speed | rpm | 150~2000 |
Main motor power | kw | 3 |
Fast-moving feed | mm/min | X - axis:5000 Z - axis:8000 |
Repeat positioning accuracy | mm | X - axis:0.01 Z - axis:0.015 |
Turret form |
| 2-position fixed tool holder |
Section of turning tool | mm | 25×25 |
The size of the machine (L×W×H) | mm | 2000×1500×1800 |
Net weight of the machine | 1500Kg | |
