Goter мощность 300KVA AC преобразователь частоты 50 Гц до 60 Трехфазный 220V 3 фазы 380V


Поделиться:


Цена:20 785,00 $ - 27 020,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Aug-16-2025 26397.15 $* 26925.77 $*
Jul-16-2025 21409.47 $* 21837.78 $*
Jun-16-2025 25981.68 $* 26501.10 $*
May-16-2025 25773.26 $* 26288.75 $*
Apr-16-2025 20577.12 $* 20989.31 $*
Mar-16-2025 25358.85 $* 25865.79 $*
Feb-16-2025 25150.8 $* 25653.11 $*
Jan-16-2025 24942.26 $* 25441.18 $*

Характеристики

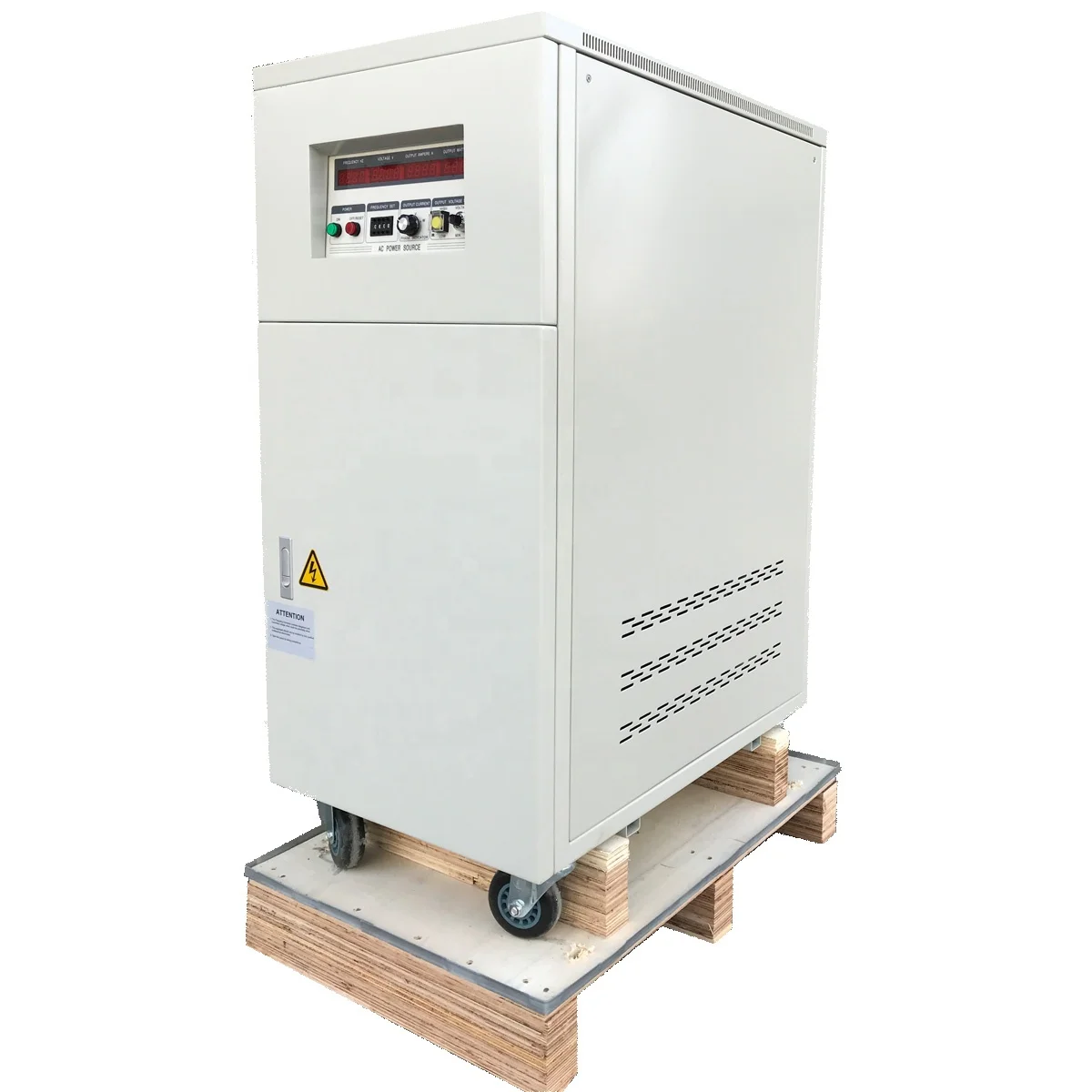

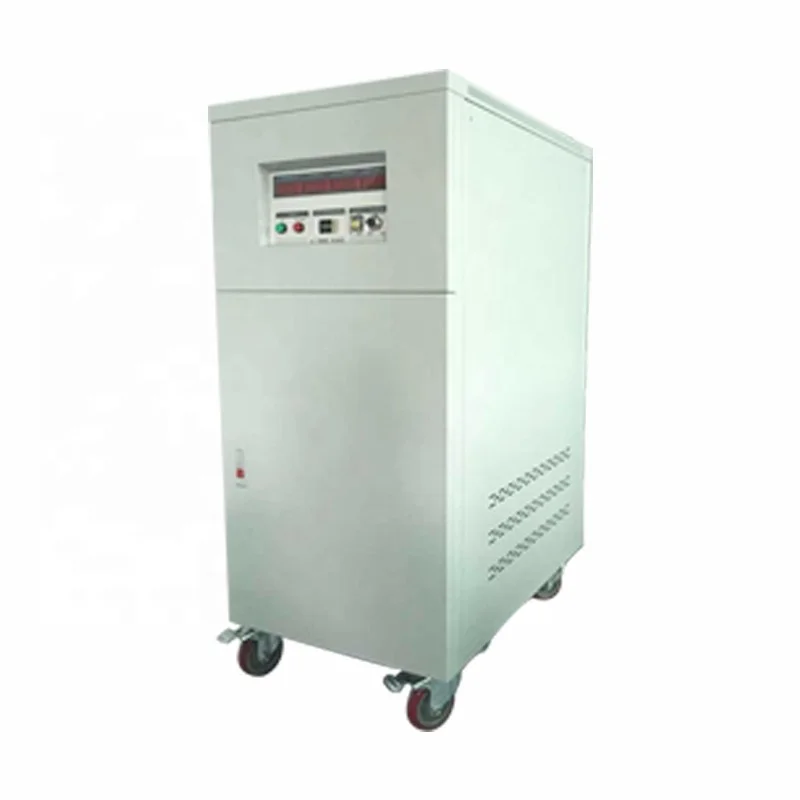

Three Phase Variable Voltage Frequency Converter AC Power Source



1. Products introduction

 This series product is adopt high frequency power electronic switch transformation technology, Specialized in 400 HZ, 60 HZ frequency static variable power supply aerospace and military electronics electrical equipment design and manufacture. It Can be used in the aircraft and the airborne equipment, radar, navigation and other military equipment, and other medium frequency power supply occasions which requires for 400 HZ, 60 HZ, is the alternatives of unit type variable frequency power supply.  The adjusting range of voltage and frequency is +/-20%, applicable to lab or production line, as a power supply debugging experiment.





 2. Technical Parametres (3KVA-300KVA)

Model

303

306

310

315

320

330

345

360

375

3100

3150

Capacity

3KVA

6KVA

10KVA

15KVA

20KVA

30KVA

45KVA

60KVA

75KVA

100KVA

150KVA

Phase current

High grade

8.4A

16.8A

27.6A

41.6A

56A

84A

126A

168A

208A

276A

333A

Low grade

4.2A

8.4A

13.8A

20.8A

28A

42A

63A

84A

109A

130A

166A

Circuit way

IGBT/SPWMPulse width modulation mode

 Input voltage

220V+/-10%

380V+/-10%

Phase

Single phase

phase4 wire

Output

Line voltage

0-256V(Medium frequency)/0-500V(Power frequency)

Phase voltage

Medium frequency:0-150V(Medium grade)/Low grade:0-150V,High grade:0-300V(Power frequency)

Frequency stability

≤+/-0.01%

Load stability

≤+/-1%

Waveform distortion

THD≤2%

Three-phase imbalance

Phase120°C+/-2°C,phase difference<3% rated value

Response time

2ms

Display Accuracy

The frequency table

 Resolution     0.1Hz

The 4 voltage table

 Resolution     0.1V

The 4 current table

 Resolution     0.01A

The 4 watt table

 Resolution     0.1W

Protection function

Over voltage protection, short circuit protection, over current protection, overload protection, overheating protection

Electric meter indicating

Four digital voltage, current, power, frequency and power factor meter

Insulation reactance

500Vdc 20MΩ

Withstand voltage insulation

1800Vac/5mA/1Min

Cooling way

Forced cooling fan

Working temperature

0°C~45°C

Relative humidity

0~90%(not curdle)

Altitude

1500 M







3.Certificates:

.jpg



Company Information

About us.png

Shenzhen Goter Power Technology Co., Ltd. is a wholly-owned subsidiary of Goter Power (Hong Kong) Co., Ltd. in mainland China, specializing on the high-end power systems of design, sales and manufacturing. We commit to provide high-quality, high-reliable power protection solutions for all critical electrical equipments and data processing processes to ensure the safe operation of electrical equipments, increase productivity and availability, also extend service life.

The main products of Goter Power include: contactless power supply, transformers, photovoltaic grid-connected inverters, UPS, variable frequency power supply, DC power supply, etc. The products sell well in more than forty countries and regions in Europe, America, Japan, Australia, Southeast Asia, Middle East and North Africa, and have won high recognition from customers in a wide range of industries from the world for Goter high quality products and excellent after-sales service.

Goter Power has passed ISO-9001 international quality system certification, European CE certification, SGS certification, Alibaba Onsitecheck field certification, AU SONCAP certification, Ministry of Information Industry telecom equipment network license and many other certifications.

At present, Goter Power has developed into a well-known professional power supply company with complete R&D, manufacturing, sales and technical support service systems in mainland China. While serving the employees, serving the customers and serving the society, the company achieves a win-win situation with all partners.

Factory Production Photos.pngWhy Choose Us.png
