Shenzhen poe network switch manufacturer 10G Uplink Managed poe fiber switch witch 24 sfp and 8 poe port

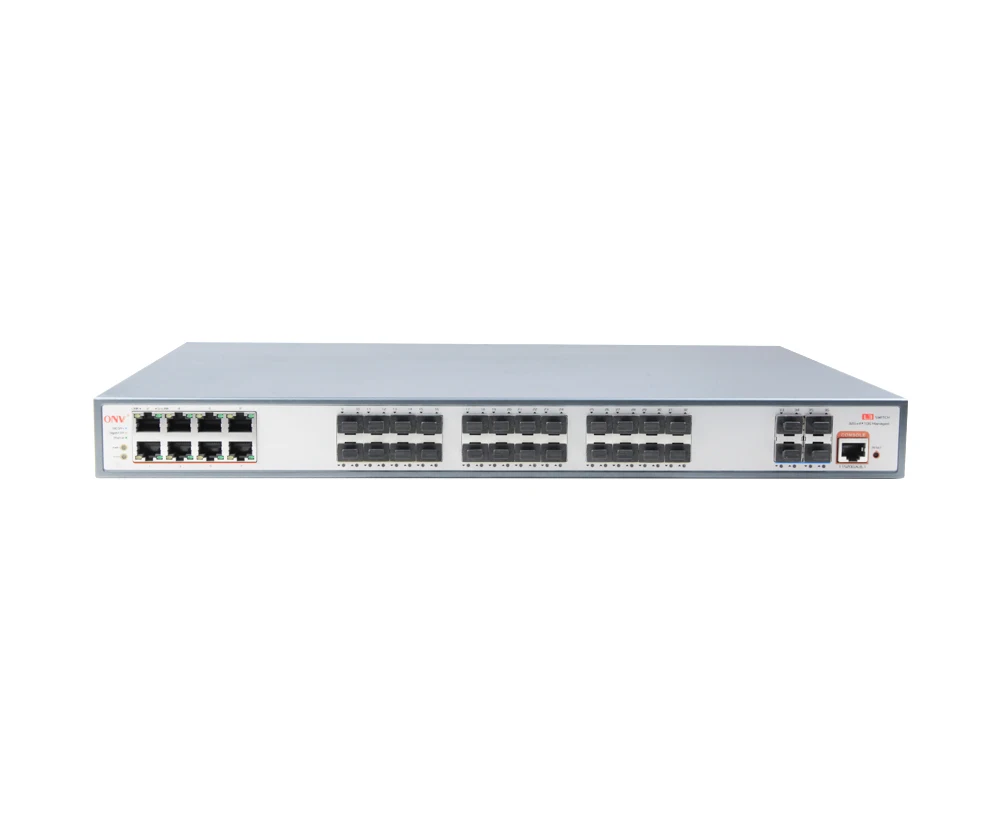

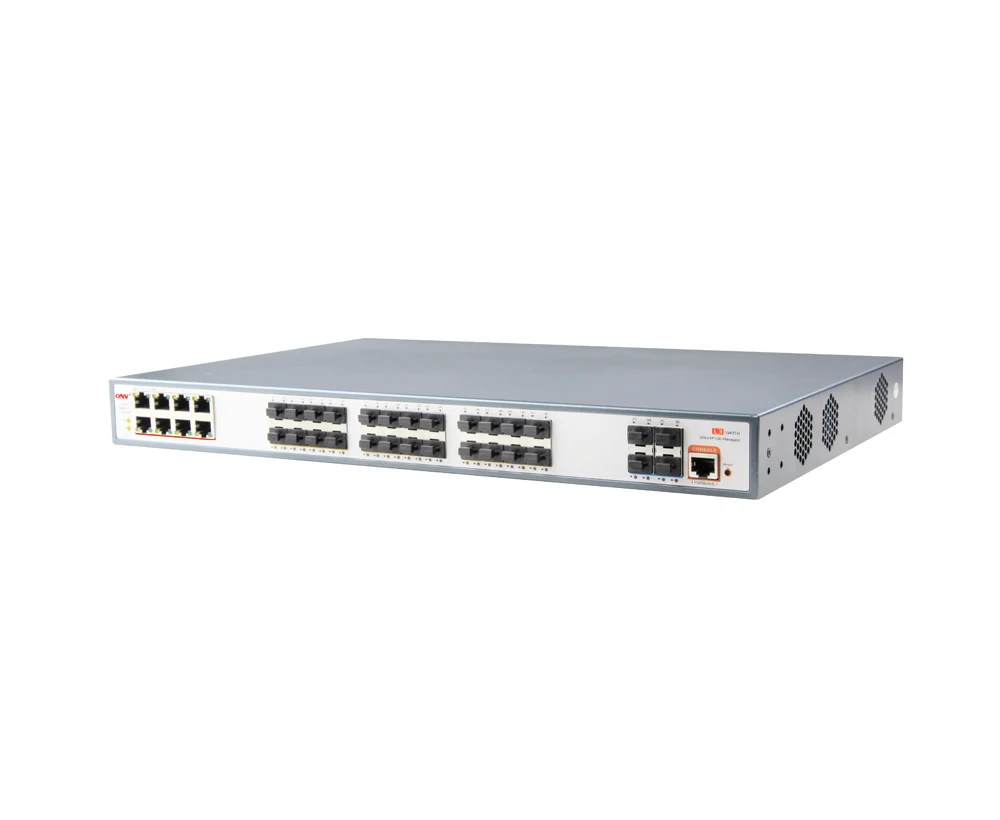

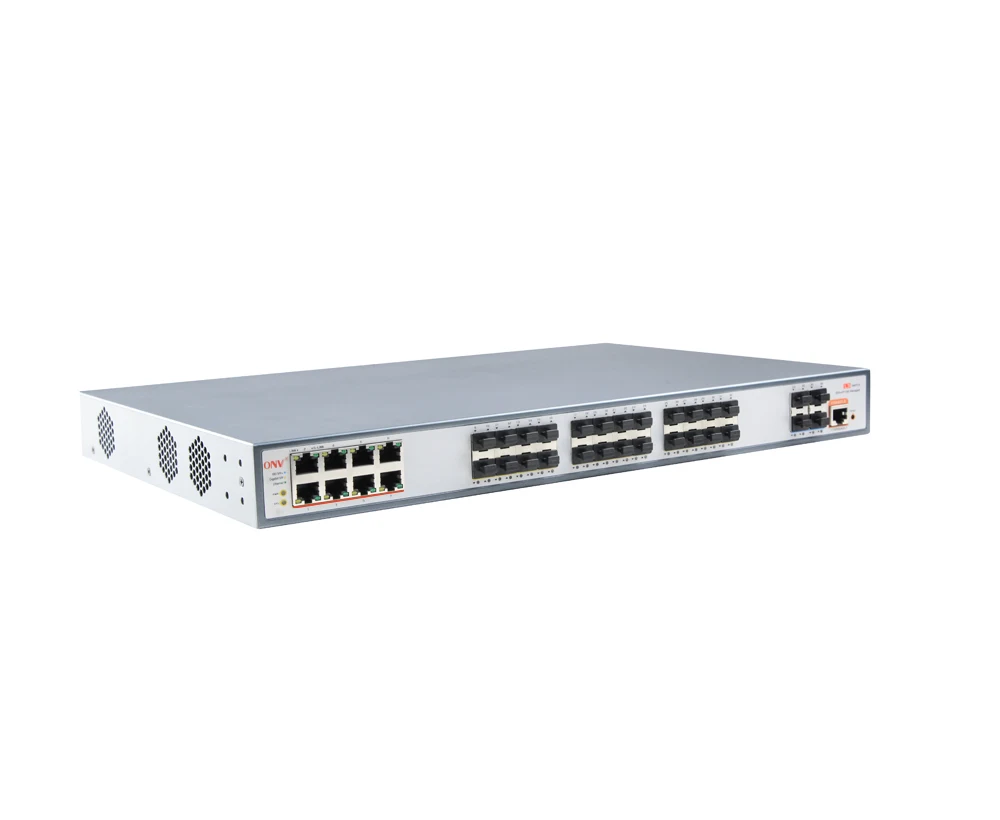

The ONV-POE36368PFM series is a 10G uplink layer two plus managed PoE fiber switch independently developed by ONV. It has 8*10/100/1000Base-T RJ45 ports and 24*100/1000M SFP fiber slot ports and 4*1/10G SFP+ fiber slot ports. Port 1-8 can support IEEE 802.3af/at standard PoE power supply. single port PoE power reaches 30W, and the maximum PoE output power is 130W(at-250W).
ERPS ring network function, the switching time is less than 20ms, supporting multi-ring networking.
The ONV-POE36368PFM has the layer two plus full network management function, supports IPV4/IPV6 management, supports static route full line rate forwarding, supports complete security protection mechanism, complete ACL/QoS policy and rich VLAN functions, and is easy to manage and maintain. Supports multiple network redundancy protocols STP/RSTP/MSTP (<50ms) and (ITU-T G.8032) ERPS to improve link backup and network reliability. When one-way network fails, communication can be quickly restored to ensure important Uninterrupted communication for applications. According to the actual application requirements, you can configure multiple application services such as PoE power management, port traffic control, VLAN division, and SNMP through the Web network management mode.
POE management function, monitor PD power, voltage, current, and other information, synchronize NTP network time, time switch PD.
Gigabit multi fiber port access, 10G uplink
◇ All series supports “Gigabit Ethernet port + Gigabit SFP port+10G SFP+ uplink port “combination, which enables users to flexibly build networking to meet the needs of various scenarios.
◇ Support non-blocking wire speed forwarding.
◇ Support full duplex based on IEEE802.3x and half duplex based on backpressure.
Intelligent PoE power supply function

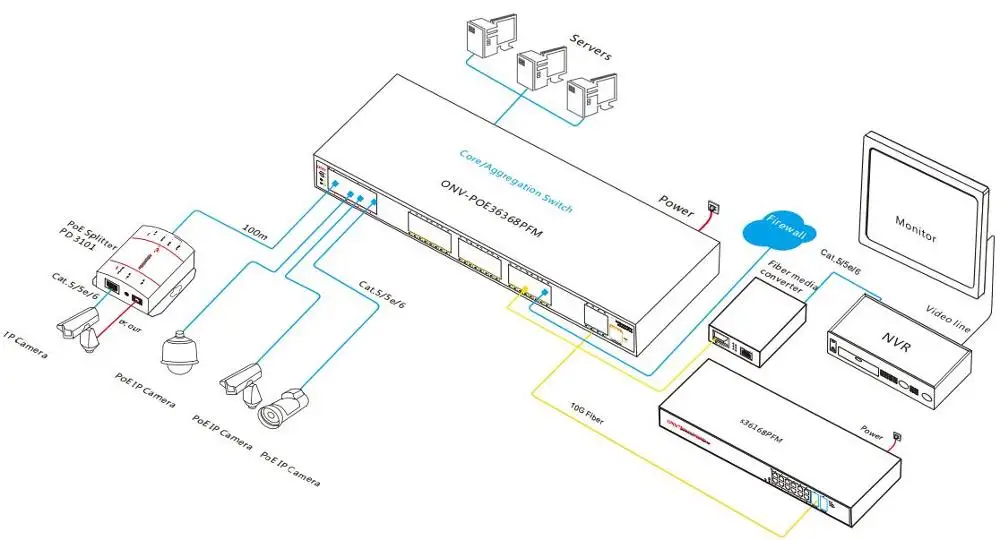

◇ 8*10/100/1000Base-T RJ45 ports support PoE power supply, which meets the requirements of PoE power supply in security monitoring, teleconferencing systems, and wireless coverage.
◇ It complies with the IEEE 802.3af/at PoE power supply standard and automatically recognizes PoE devices for power supply without damaging non-PoE devices. The maximum PoE output power is 130W(at-250W), and the maximum PoE output power of a single port is 30W.
◇ The PoE port supports the priority mechanism. When the remaining power is insufficient, the power supply of the high-priority port is preferentially guaranteed to prevent the device from being overloaded.
◇ Supports the POE network management function, which can be configured through the network management system to implement power allocation, priority setting, port power status check, and time scheduling of PoE ports.
The equipment is stable and reliable
The host has low power consumption, fanless mute design, aluminum alloy metal shell, excellent heat dissipation, and ensure stable operation of products.
The equipment fully meets the requirements of CCC, CE, FCC and RoHS safety regulations, and is safe and reliable.
The user can easily understand the working status of the device through the power indicator (PWR), port status indicator (Link,L/A), and PoE operation indicator.
Model | ONV-POE36368PFM | ONV-POE36368PFM-at |
Interface | 8*10/100/1000Base-T PoE ports (Data/Power) 24*100/1000Base-X uplink SFP fiber slot ports (Data) 4*1/10G uplink SFP+ fiber slot ports (Data) 1*Console RS232 port (115200,N,8,1) | |
POE Port | Port 1-8 can support IEEE 802.3af/at PoE standard | |
Network Protocol | IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u 100Base-TX; IEEE802.3ab 1000Base-T IEEE802.3z 1000Base-X IEEE802.3ae 10GBase-SR/LR IEEE802.3x | |
PoE Standard | IEEE802.3af/at international standard | |
Ethernet Port Feature | Port 1-8 can support 10/100/1000Base-T auto detect, full/half duplex MDI/MDI-X adaptive | |
Fiber Port Feature | Gigabit SFP /10G SFP+ fiber interface (Fiber module is not included, need to order separately, module options include single/multi mode, single/dual fiber, LC) | |
Forwarding Mode | Store and Forward(Full Wire Speed) | |
Switching Capacity | 598Gbps (non-blocking) | |
Forwarding Rate@64byte | 107.14Mpps | |
MAC | 32K | |
Buffer Memory | 32M | |
Twisted Pair Transmission | 10BASE-T:Cat3,4,5 UTP(≤100 meter) ; 100BASE-TX: Cat5 or later UTP(≤100 meter) 1000BASE-T:Cat5e or later UTP(≤100 meter) | |
Optical Fiber Cable | Multi-mode:850nm 0~300M(10G) ,850nm 0~500M (1.25G); Single-mode:1310nm 0~40KM,1550nm 0~120KM. | |
Power Supply Pin | Default: 1/2(+),3/6(-) | |
Max / Average Power Per Port | 30W/15.4W | 30W/30W |
Total PWR / Input Voltage | 130W (AC100-240V) | 250W (AC100-240V) |
Power Consumption | Standby<20W; Full Load<130W | Standby<25W;Full Load<250W |
Power Supply | Built-in power supply, AC 100~240V 50-60Hz 2.3A | Built-in power supply, AC 100~240V 50-60Hz 4.1A |
LED Indicator | Power indicator:PWR(yellow); system indicator:SYS(yellow); network indicator;Link(yellow); PoE indicator: PoE (green); Fiber port indicator L/A(green) | |
Reset Button | Support one key to restore factory settings | |
Operation TEMP/Humidity | -20~+55°C;5%~90% RH Non condensing | |
Storage TEMP /Humidity | -40~+80°C;5%~95% RH Non condensing | |
Dimension (L*W*H) | 440*290*44.5mm | |
Net /Gross Weight | <4.0kg / <4.8kg | <4.5kg / <5.2kg |
Installation | desktop type ,19 inch 1U cabinet installation | |
Lightning protection / Protection Level | Lightning protection :4KV 8/20us; Protection Level:IP30 | |
Certification | CCC;CE mark, commercial; CE/LVD EN60950; FCC Part 15 Class B; RoHS; | |
Warranty | 3 years , lifelong maintenance. | |
Model | Description |
ONV-POE36368PFM | Layer two plus managed PoE fiber switch with 8* 10/100/1000M RJ45 ports and 24*100/1000M SFP fiber slot ports and 4*1/10G SFP+ fiber slot ports , Port 1-8 can support IEEE 802.3af/at PoE standard, Built-in 130W power supply. Support 1U/19 inch rack installation. |
ONV-POE36368PFM-at | Layer two plus managed PoE fiber switch with 8* 10/100/1000M RJ45 ports and 24*100/1000M SFP fiber slot ports and 4*1/10G SFP+ fiber slot ports , Port 1-8 can support IEEE 802.3af/at PoE standard, Built-in 250W power supply. Support 1U/19 inch rack installation. |
Packing List | CONTENT | QTY | UNIT |
36-Port 10G uplink managed PoE fiber switch (ONV-POE36368PFM/at) | 1 | SET | |
Power Cable | 1 | PC | |
Mounting Kits | 1 | SET | |
User Guide | 1 | PC | |
Warranty Card | 1 | PC |
