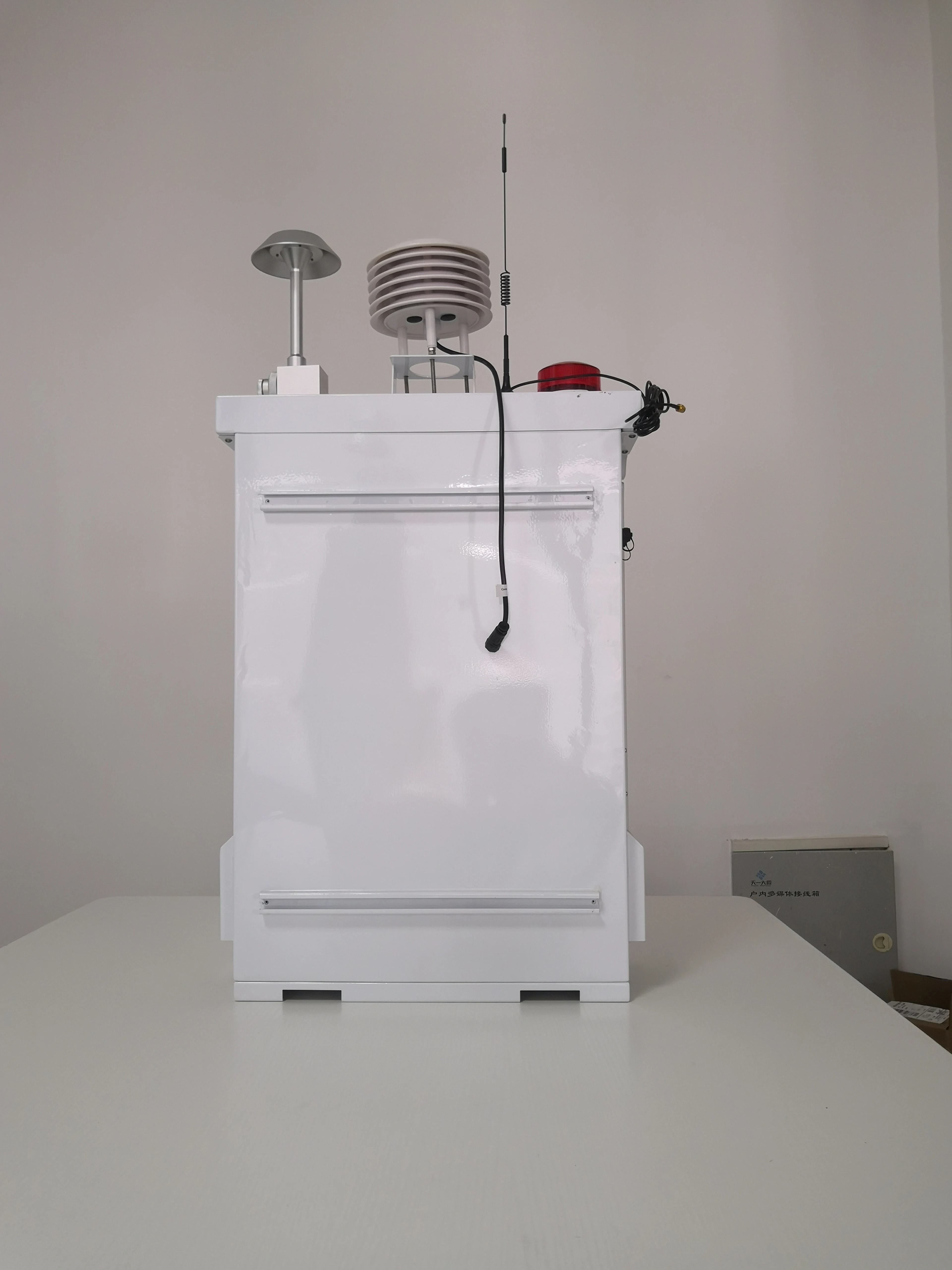

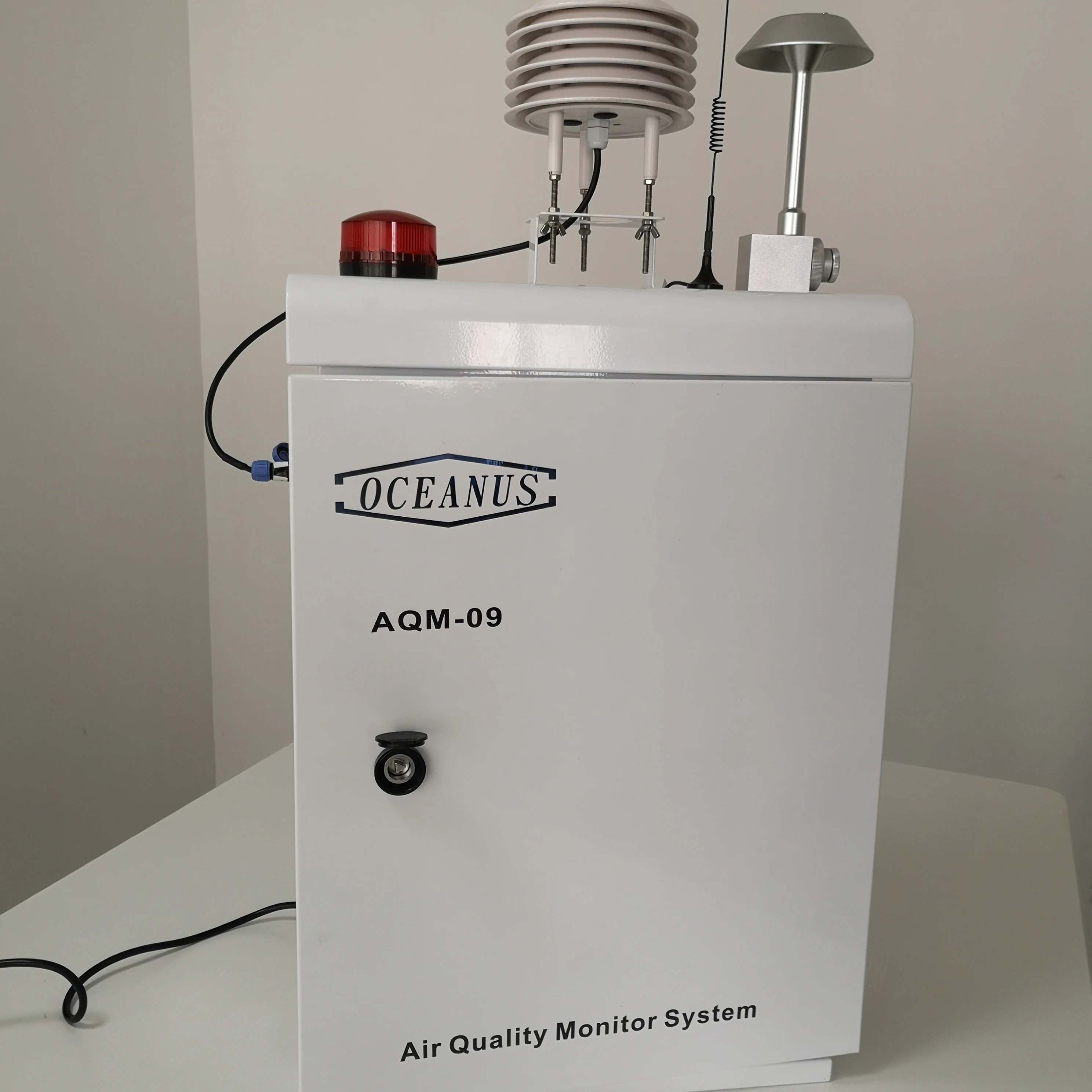

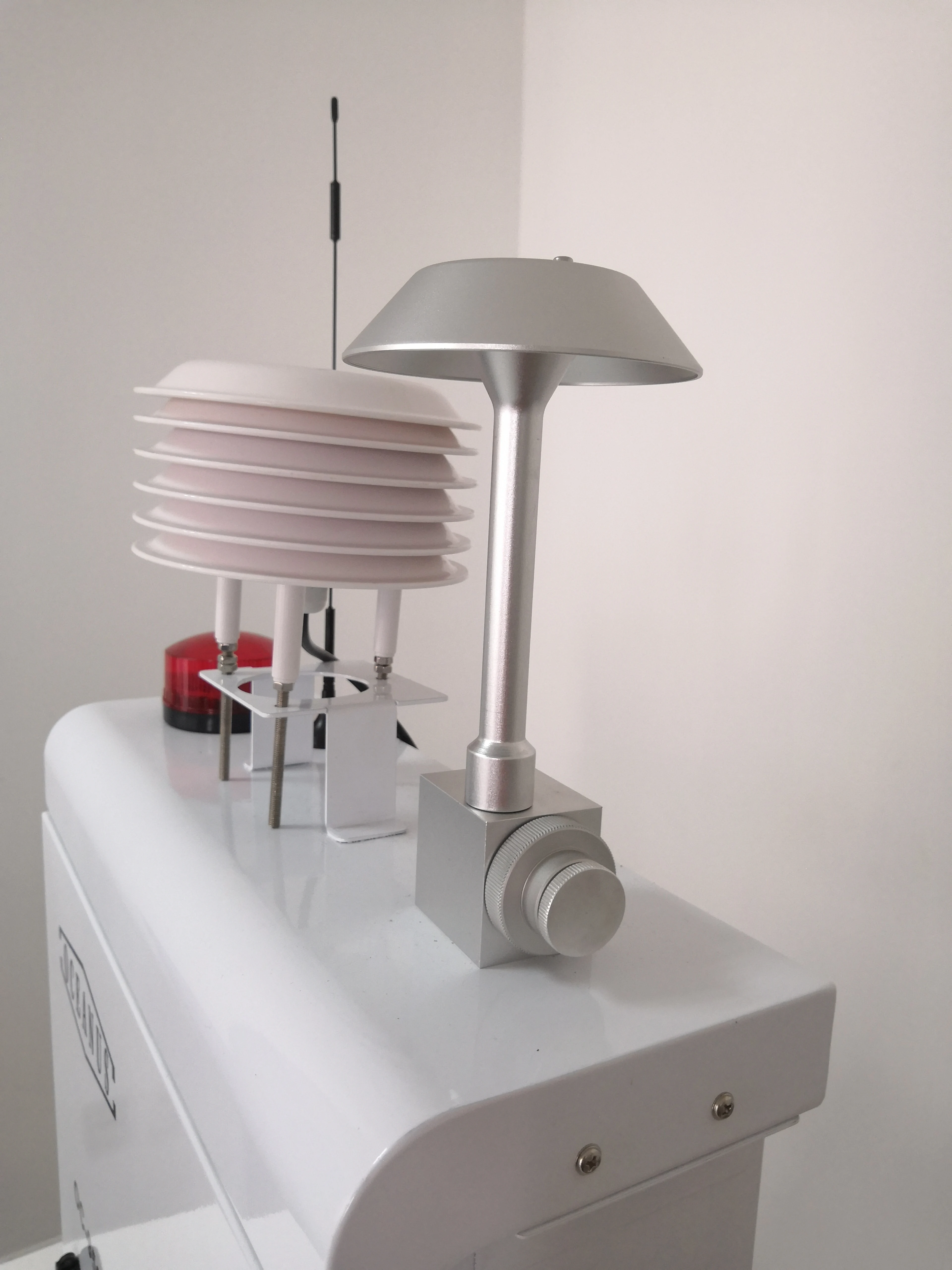

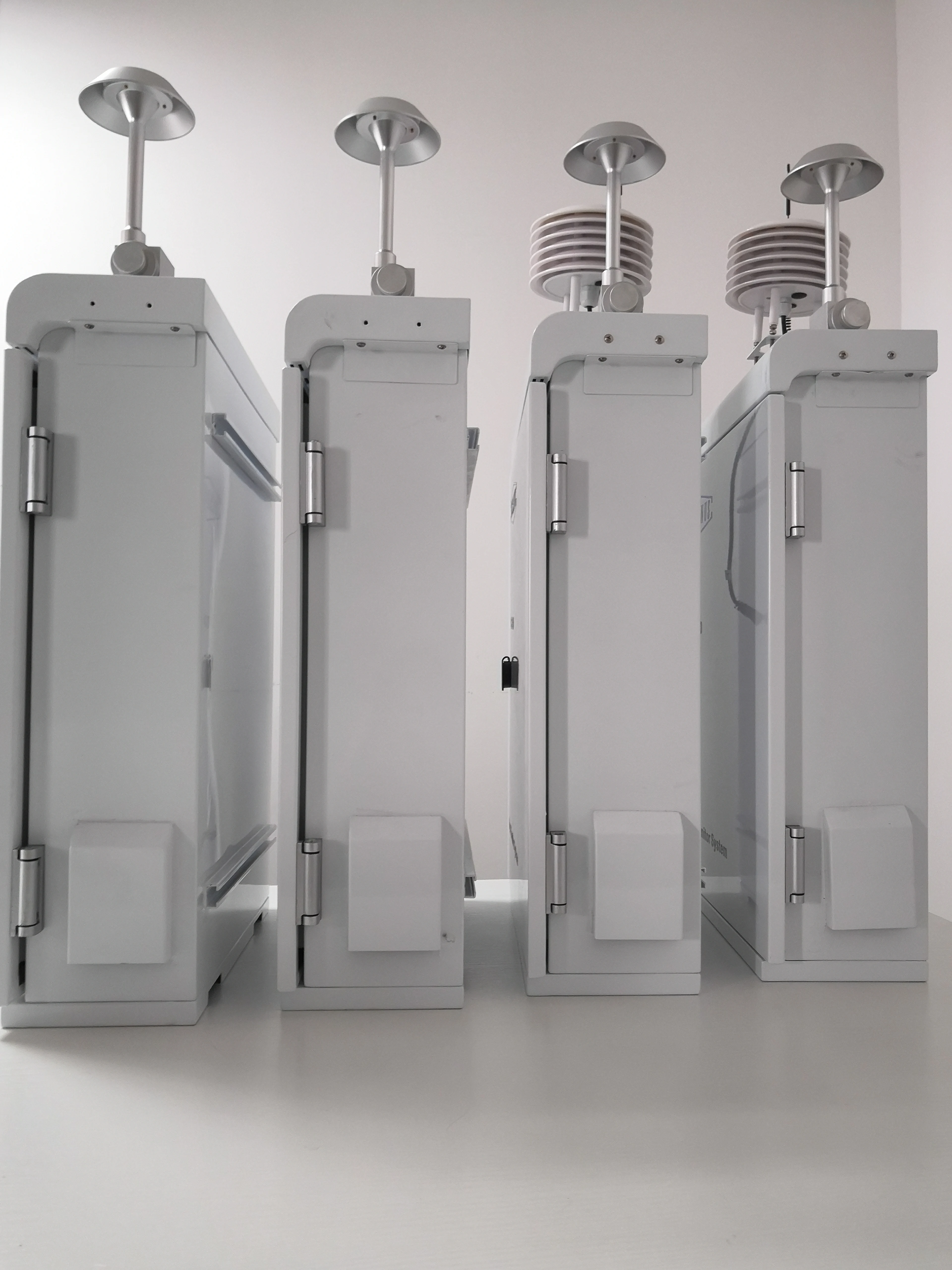

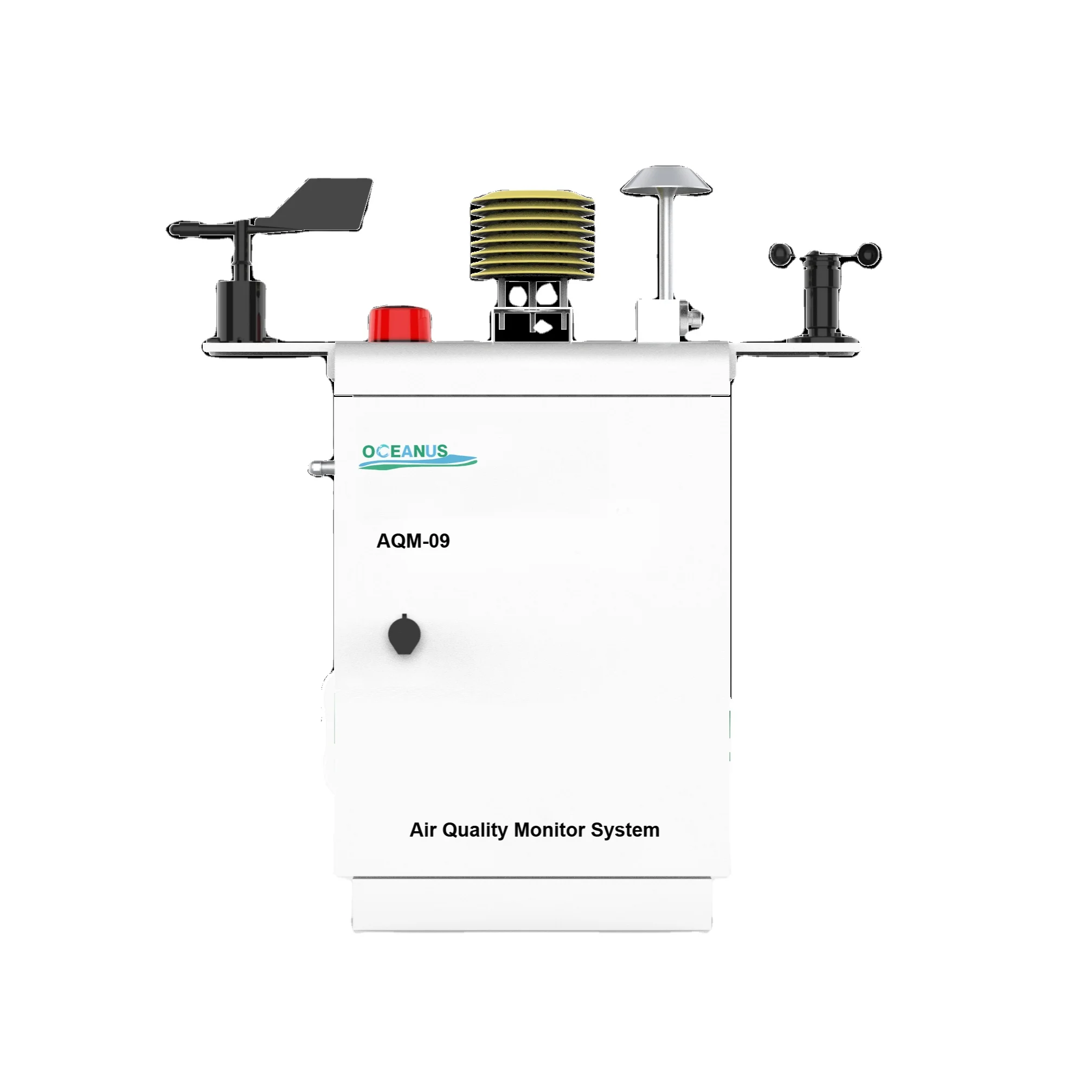

AQM-09 Air quality monitor outdoor monitoring system for PM2.5 PM10
Description LCD display portable Oxygen O2 gas leak detector analyzer
The AQM-09 Air Quality Monitoring Station can measure outdoor air pollutants in real-time, measuring data quickly and accurately. It can be customized for different applications demands, the measurement parameter can be choose from the following: the gas type Ozone(O3), Nitrogen Dioxide(NO2), Sulfur Dioxide(SO2), Carbon Monoxide(CO), Particulate matter PM2.5 and PM10, also the Noise, Meteorological parameters (including of Temperature, Humidity, Wind speed, Wind direction, Barometric pressure ), etc.
Technical Parameter:
Items | Description | Specification |
Particle Modules | Monitor method | Continuously, automatically and real-time |
Working principle | Light scattering technique | |
Measurement data | PM2.5, PM10 | |
Measuring range | 0~10mg/m3 | |
Response time | ≤60s | |
Measuring time | 0.1min (Shortest measurement time) 1min(Standard measurement time) | |
Minimum detection limit | ≤0.001 mg/m3 | |
Instrument parallelism | ≤±10% | |
Data validity | >75% | |
Dehumidification | With the automatic dehumidification function module | |
Alarm function | With high concentration alarm function, the platform can configure the alarm threshold | |
Gas modules | Monitor method | Continuously, automatically and real-time |
Working principle | High precision Electrochemical sensor | |
Gas monitor | SO2, NO2, CO, O3 | |
Sulfur Dioxide SO2 | Measuring range: 0~2000ppb Resolution: 1ppb Response time: <45s | |
Nitrogen Dioxide NO2 | Measuring range: 0~2000ppb Resolution: 1ppb Response time: <45s | |
Ozone O3 | Measuring range: 0~20000ppb Resolution: 5ppb Response time: <45s | |
Carbon Monoxide CO | Measuring range: 0~200ppm Resolution: 0.1ppm Response time: <45s | |
Noise monitor | Measuring range: 30~130dB (A) | |
Sampling frequency: <1s | ||
Dynamic analysis range: ≥100dB (A) | ||
Frequency weighting: A, C,Z | ||
Time weighting: F, S | ||
Meteorological parameters | Temperature: Measuring range: -40℃~60℃, Precision: ±0.3℃ (20℃) | |
Humidity: Measuring range: 0~100%RH, Precision: ±2%(5%RH~95%RH, 25℃) | ||
Wind direction: Measuring range: 0~360°, Precision: ±5° | ||
Wind speed: Measuring range: 0~30m/s, Precision: ±0.3m/s | ||
Barometric pressure: Measuring range: 30~110Kpa, Precision: ±2.5pa | ||
System specification:
Data efficient transmission rate | ≥95% |
Remote control | Support for remote setting |
Interface | RS485/RS232 port, Network port |
Transmission network | Automatically and real-time upload data, optional 3G/4G/VPN/WIFI |
Box material | Q235 spray, Stainless box optional |
Scaffold material | Q235 |
Scaffold height | Standard height is 4.5m, Flange connection(1m fixed underground, 2*1.5m+1*0.5m) |
Lightning arrester | Length 1m, Q235 Galvanized material |
Working environment | Temperature: -30~50℃ Humidity: 10%RH~90%RH Pressure: 65~108Kpa |
Protection grade | IP65 |
Power supply | DC12V, AC220V |
Applications:
Pollution control in traffic environment;
Road and tunnel pollution monitoring;
Urban air quality monitoring;
Emission monitoring of particulate and pollution sources;
Long-term air quality trends analysis;
Short-term atmospheric environmental impact assessment;
Environmental monitoring in residential areas, schools, Hospitals;
Park / forest environmental monitoring;
Industrial area air quality monitoring: Chemical plant, Power plant, Landfill, Incineration station, Port, Sewage treatment plant, Storage facilities, Underground facilities, etc.
Henan Oceanus Import & Export Co., Ltd.
Henan Oceanus Import & Export Co., Ltd. has been engaged in the marketing of the Gas detection system since the establishment. Our company own the R&D force and an excellent marketing team, also the strict quality testing standards. Gas detection system is our main products, including of the Portable gas detector, Fixed gas detector, Gas detection controller, we can provide the good quality and after-sell for agents in different countries, for the end users we can provide the whole solutions for different applications. With the development of our company, our engineer research the new products, Air quality monitor system, particle counter, hardness tester and other instruments. All of the products are widely applied to different industrial fields. With the advantage of technology, products, price, pre-sale and after-sale service, we believe we can successful set up favorable and close relationships with the partners in various fields, including petroleum, chemical, gas industry, electric power, environmental protection and energy saving, steel industry, metallurgy, water treatment, pharmaceuticals industry medical industry and food service industry.
Q: Is there an OEM service?
A: As the trusted and professional supplier, we accept the sample order, even for one piece. Also provide the OEM service, sample order is OK.
Q: Which payment methods are supported?
A: Usually we support the TT, Western Union, Paypal.
Q: Do you support after sales service?
A: Most products we provide warranty of 12months, some with the longer warranty of 24months.
