Трубосварочный станок
Орбитальный сварочный аппарат KHGK с открытой головкой представляет собой специализированную

Орбитальный сварочный аппарат KHGK с открытой головкой представляет собой специализированную

Категория: Трубосварочный станок >>>
Поставщик: Zhengzhou,Kehui,Technology,Co.,Ltd.

Цена:12 800,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-17-2025	15232.88 $*	15994.66 $*
Aug-17-2025	15104.57 $*	15859.9 $*
Jul-17-2025	12672.23 $*	13306.49 $*
Jun-17-2025	14848.1 $*	15590.91 $*
May-17-2025	12928.78 $*	13574.46 $*
Apr-17-2025	14592.99 $*	15322.91 $*
Mar-17-2025	14464.40 $*	15187.59 $*
Feb-17-2025	14336.39 $*	15053.94 $*
Jan-17-2025	14208.48 $*	14918.67 $*

Характеристики

Product Description

KHGK Open Head Tube Orbital Welder is is a specialized auto arc welding

KHGK automatic argon arc welding machine is specially designed for welding 16 ~ 300mm Pipe - Pipe, Pipe - Elbow, Pipe - Flange, Pipe - Valve body. It suitable for various slopes and accept filling/ not filling. Can be used for carbon steel, alloy steel, stainless steel, galvanized materials and so on.

It is always used for small capacity of singleton, especially to which have high welding quality requirements. The Welding product is wonderful. Suitable for welding the oil pipe, air pipe and other hydraulic pipe of machine.

Advantage:

1. PLC control system. The system store could have 100 different process specifications and each one can be divided into 6 sections. You can used it anytiome. .

2. Parameter setting flexibility. It could change it any time according your need. Any part such as welding current, welding speed, or pulse current etc all could be controlled by software.

3. Work normally in the field or on water. Our welding machine use forced air cooling and internal circulation water cooling. And the moder is easy to move.

4. Arc length tracking adjustment system. Automatically adjust the arc length anytime to protect the tungsten electrode.

Detailed Images

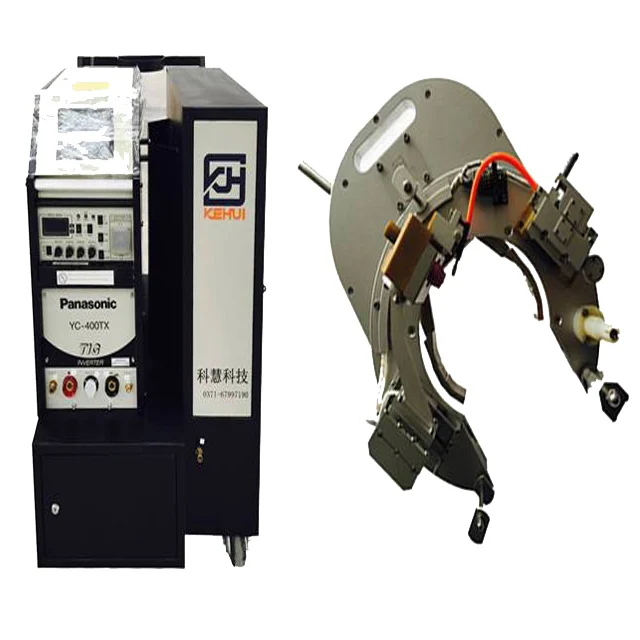

This is showed power supplier and Steel wire send machine.

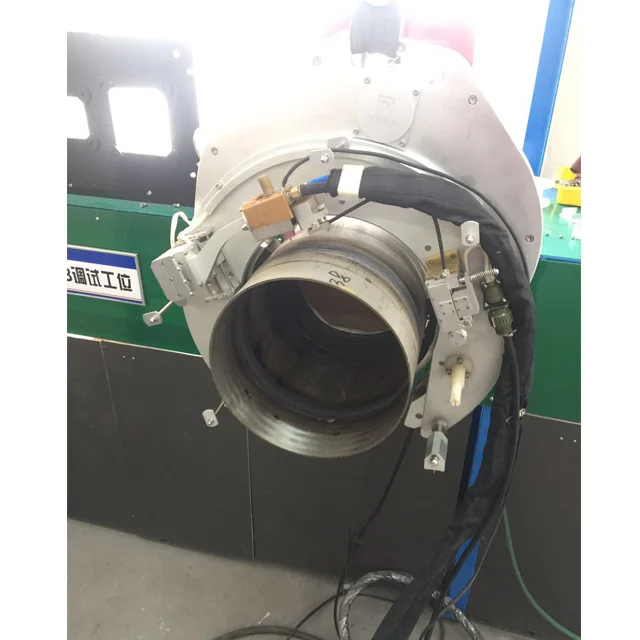

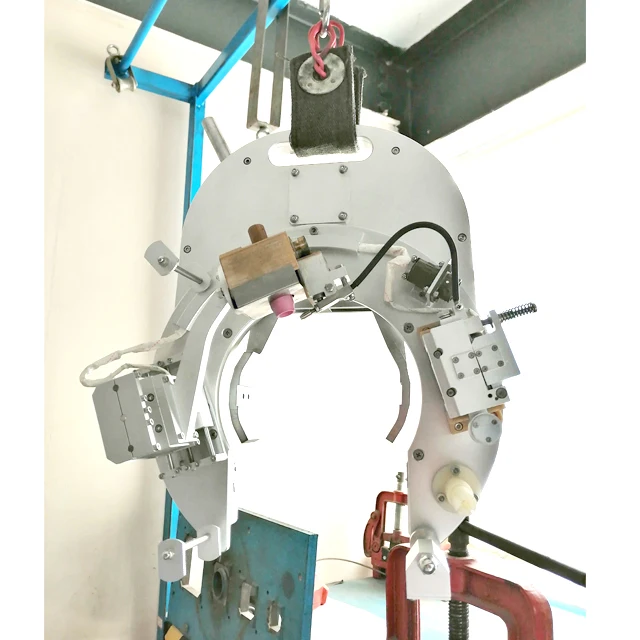

This is showed welding head and cooling system.

Technical Parameter Of Esab tig welding machine
Welding head	KHGK16-40	KHGK36-90	KHGK70-160	KHGK140-230	KHGK210-300
Welding Speed(r/min)	0.4~3	0.2~2	0.1~1	0.07~0.5	0.07~0.5
Suitable Dia.(mm)	16~40	36~90	70~160	140~230	210~300
Electrode Dia.(mm)	1.6/2.4	2.4	2.4	2.4	2.4

The KHGK have 5 types to suitable for welding different pipe diameters.

It's also could buy a set of control system and different welding head to used for different pipe.

Power and control system technical parameters
Rated input voltage	380v	Argon flow	8~12L/min
Rated welding voltage	TIG welding, 22.6V	Rated voltage no-load	70V
Phase number	three-phase	Frequency	50/60HZ
Rated power input	9.0KW	Welding current adjusting range	4~400A
Voltage allow fluctuating range	380V±10%	Built-in memory space	100 groups of welding code
Rated duty cycle	400A 60%	Each set can segments	1~12 section
Rated duty cycle		250A 100%	Pulse frequency	0.5~500HZ
Rated input capacity	11.5KVA	Preheating time	0.1~25S
Current decrease time	0.1~25S	Cooling water pressure	1.2kgf/㎡

Application

Application for chemical, boiler, heat exchanger, pressure vessel, pharmaceutical, construction machinery, military and nuclear power industries.

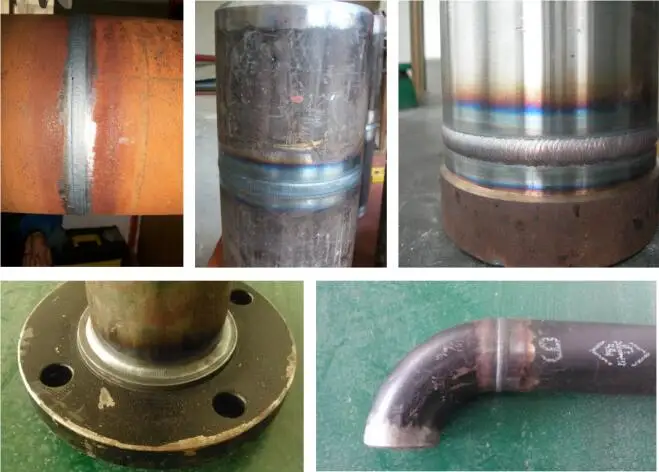

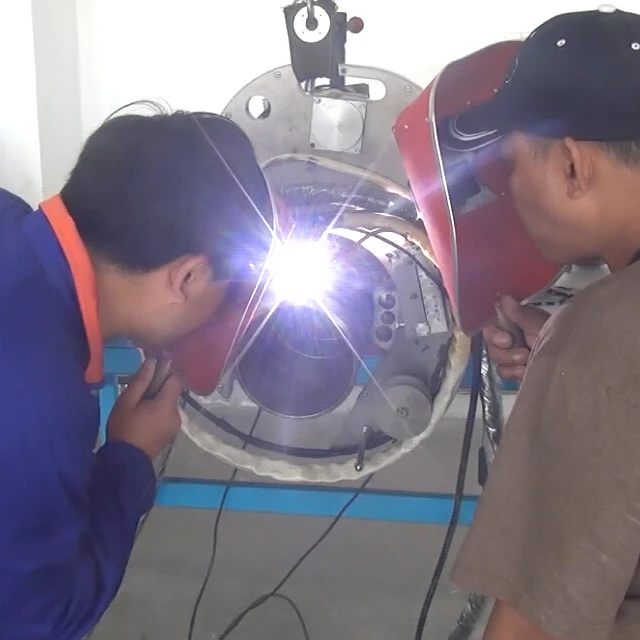

This is the reality effect show uesd of our Digital Welder.

Other Type Orbital Welding Machine

Packing & Delivery

Packed in wooden cases with shockproof foam up to about 30mm thick to ensure the safely. Professional logistics system to deliver the goods to port on time.

Certifications

Our Company

Zhengzhou Kehui Technology is a professional integrated welding project solution supplier. We located in zhengzhou - capital of henan province, and we have more than 300 employees.

We have four manufacture basements in China, total 26000 m2, Each basement has experienced workers, is capable of technical programming, site construction, manufacture, technical support, installation, commissioning and system integration. What is more, share resource and well cooperation could strongly support big project.

Some cooperation factory show
