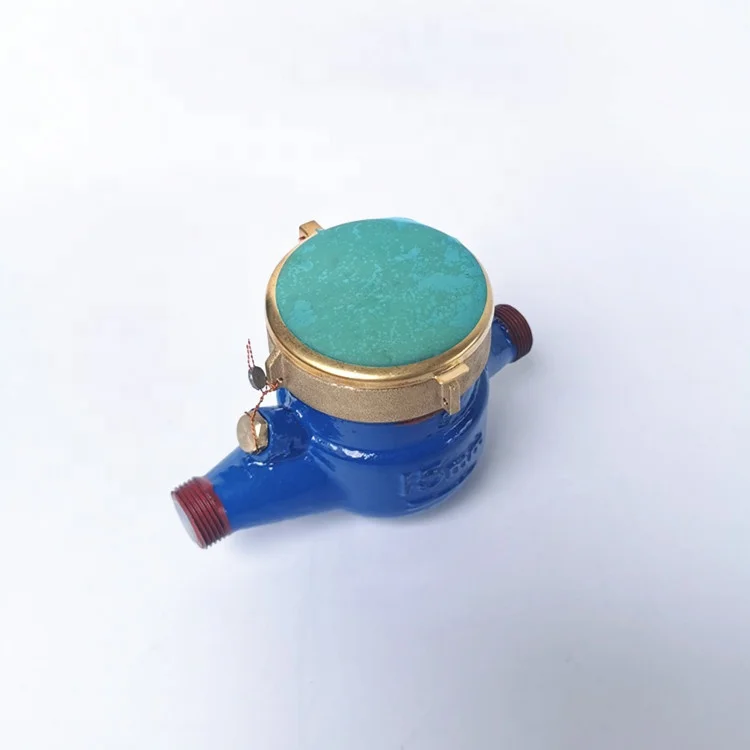

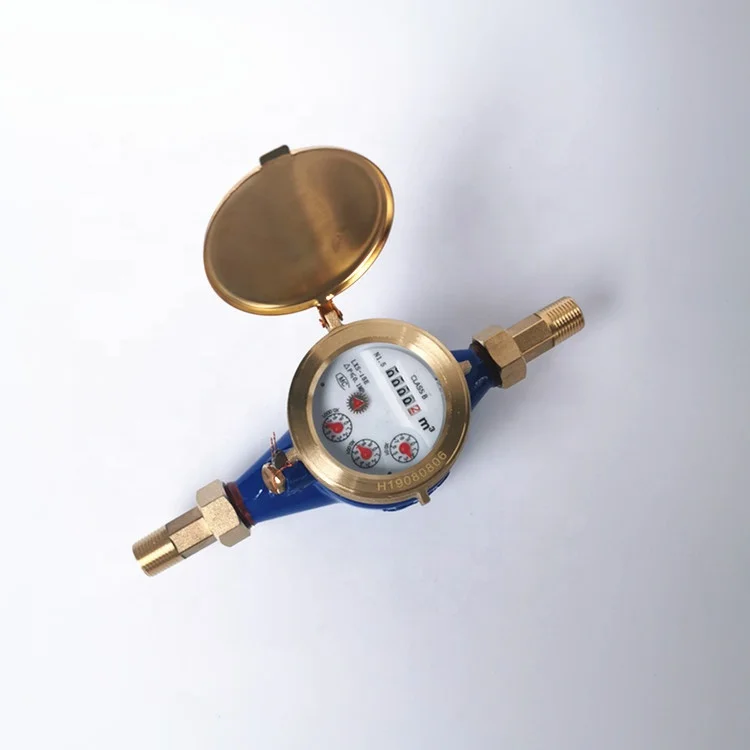

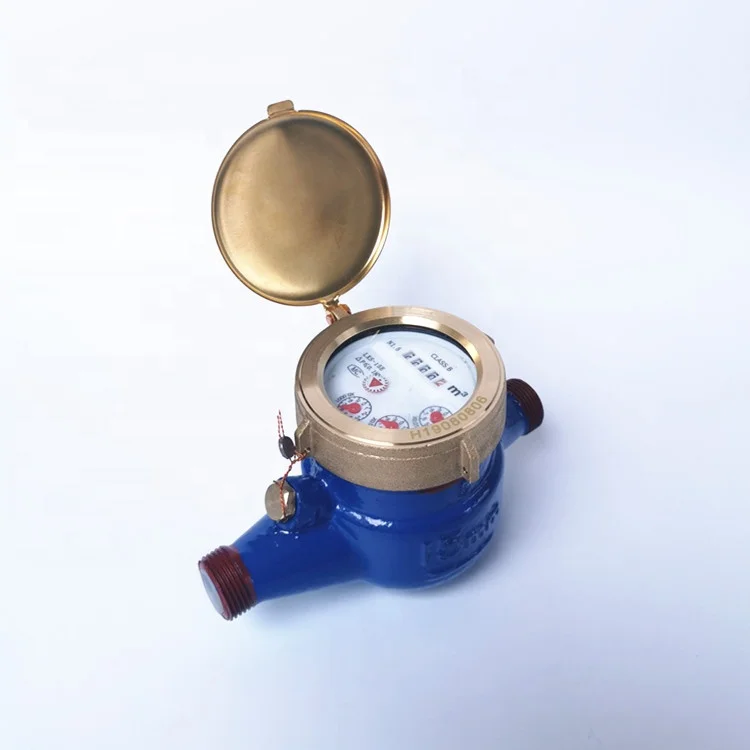

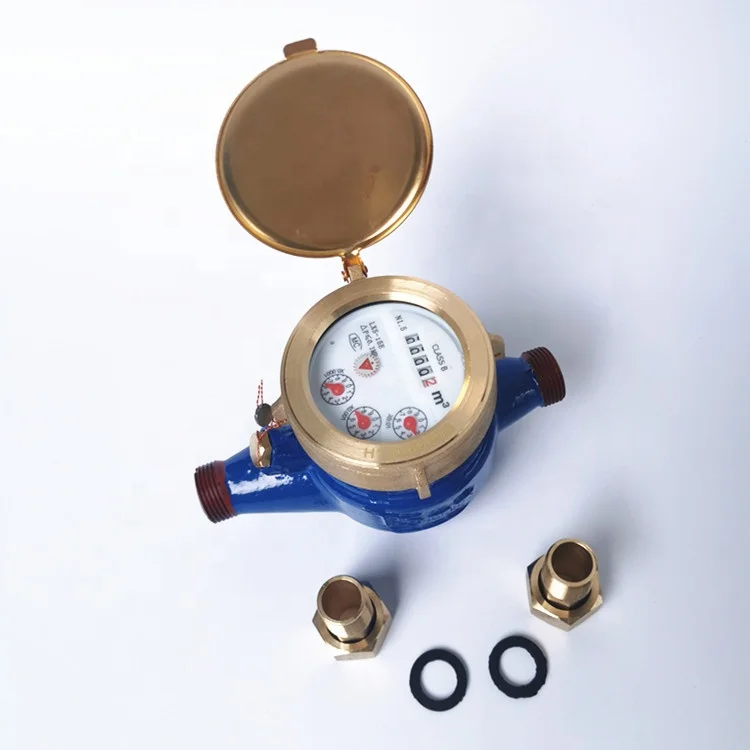

LXSG-15mm многоструйный влажный тип счетчик воды из латуни крышка
- Категория: Water Meters >>>
- Поставщик: Ningbo,Jiajie,Water,Meter,Manufacture,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 5.26 $* | 5.94 $* |
| Aug-18-2025 | 5.16 $* | 5.67 $* |
| Jul-18-2025 | 4.55 $* | 4.62 $* |
| Jun-18-2025 | 5.15 $* | 5.14 $* |
| May-18-2025 | 4.76 $* | 4.55 $* |
| Apr-18-2025 | 5.49 $* | 5.71 $* |
| Mar-18-2025 | 5.95 $* | 5.31 $* |
| Feb-18-2025 | 4.67 $* | 4.98 $* |
| Jan-18-2025 | 4.55 $* | 4.1 $* |
Характеристики
The series of water meters is used to measure the total quantity of hot potable water meter, consumed in household or a resident unit, passing through the pipeline.
Features:

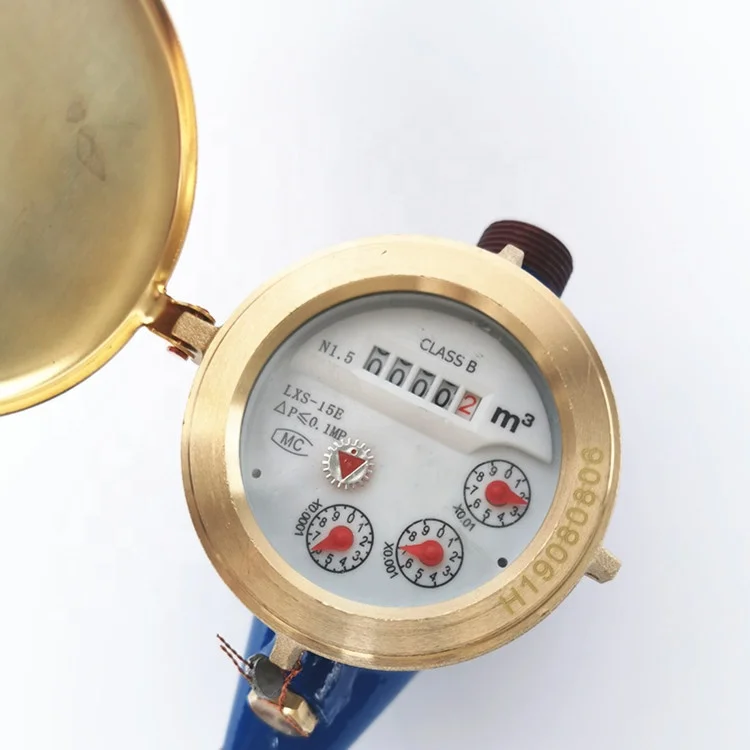

1. Wet-dial
2. Multi-jet
3. Antimagnetic construction
4. Measuring accuracy is up to class B of ISO4064 Standard.
5. Selected high quality materials: brass or iron
6. Steady & reliable characteristic.
7. Series universal use. Easy interchange & maintenance.
8. Size: 1/2"~2” (15mm~50mm)
9. Packing: carton
DEMENSIONS AND WEIGHT
| Meter Sizes | DN(mm) | 15 | 20 | 25 | 25 | 32 | 40 | 50 |
| Length | L(mm) | 259 | 294 | 310 | 310 | 384 | 375 | 280 |
| L1(mm) | 165 | 195 | 190 | 225 | 230 | 245 | ||
| Width | B(mm) | 98 | 98 | 103 | 103 | 103 | 125 | 160 |
| Height | H(mm) | 114 | 114 | 114 | 114 | 127 | 144 | 180 |
| connectting | d | R 1/2 | R3/4 | R1 | R1 | R1 1/4 | R1 1/4 | Flange |
| Thread | D | G 3/4 | G1 | G1 1/4 | G1 1/4 | G1 | G2 | |
| Weight | kg | 1.6 | 2.3 | 3 | 3 | 3.6 | 4.5 | 12 |
ERROR CURVE:
a. at low Zone is ±5 %from Qmin to Qt( not contain boundary)
b. at high zone is ±2 % from transitional flow(Qt)to maximum flow ( Qmax)
Working Conditions :
Water temperature≤35°c
Water pressure ≤1 Mpa
