MH-28T стальная кормовая башня для

Категория: Силос >>>
Поставщик: Shandong,Muhe,Machinery,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-16-2025	0.96 $*	0.20 $*
Aug-16-2025	0.33 $*	0.63 $*
Jul-16-2025	0.86 $*	0.44 $*
Jun-16-2025	0.64 $*	0.42 $*
May-16-2025	0.97 $*	0.44 $*
Apr-16-2025	0.1 $*	0.98 $*
Mar-16-2025	0.41 $*	0.47 $*
Feb-16-2025	0.81 $*	0.66 $*
Jan-16-2025	0.92 $*	0.18 $*

Характеристики

Product Description

Weifang Muhe Machinery Co., LTD.

--------------------------------------------------------------------------------------------------------------------------------------------------------------------

With the advanced numerical controlled equipment ,Muhe silos feature low product data error ,high precision and the

leading stability of international standard.We select dedicated outdoor galvanized plate,which has the advantage of corro

-sion resistant and long life span.The adoption of international advanced technology and the unique angle design ensure

feed drop more smoothly.

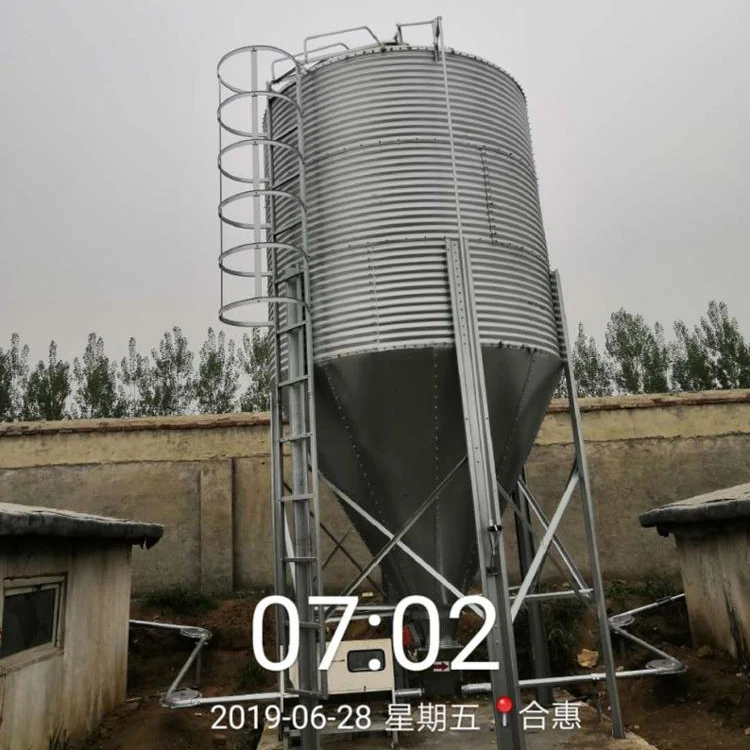

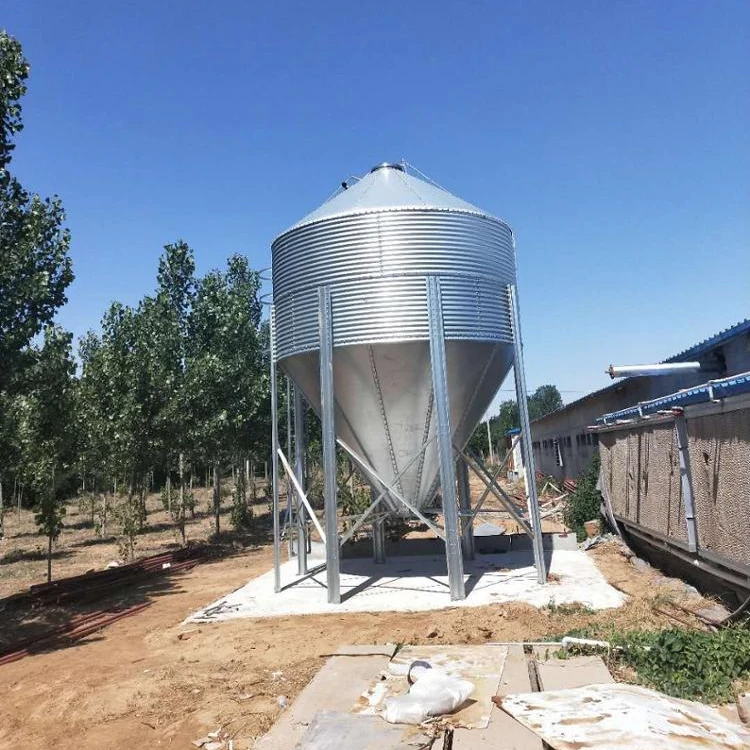

MH-Silo feed system is a complete set of automatic feeding system, included a material conveying

pipe, silo, auger, drive motor and a material level sensor. Main Feed line is mainly used to deliver feed from silo to the hopper in the poultry house. There is one feed sensor at the end of main

feed line,which can control the drive motor on and off to realize automatic delivery feed.

Silo feed line system structure chart:

3. Technical parameters:

NO	Volume/m^3	Capacity MT	Diameter/mm	Height/mm	Layers	Material	Stent Number
01	4.7	3T	1900	3700	1	Galvanized plate(275g/m^2)	4
02	7.5	5T	2160	4400	1		4
03	10.3	7T	2160	5600	2		6
04	16.5	10.5T	2680	5860	2		6
05	22.3	14T	2680	6800	3		6
06	25.4	16T	3180	6200	2		8
07	31	20T	3180	7100	3		8
08	34.6	23.5T	3670	6180	2		8
09	41.5	28T	3670	7200	3		8
