Характеристики
Mesh belt dryer Application
Mesh belt dryer is a kind of batch, continuous production drying equipment, mainly for better ventilation sheet, strip, granular materials, such as: cassava slice, fruits, vegetables, herb, pepper, potato chips, grain straw etc. It has the features of high efficiency, high-yield, high evaporation intensity, standardization of production and the capacity could be increased according to the number of segments. The main types of heating include electric heating, steam heating and hot air heating.
The main technical parameter
Models | YKBD600 | YKBD800 | YKBD1000 | YKBD1200 | YKBD1600 | YKBD2000 | YKBD2400 | YKBD3000 | |||||||
Belt Wldth （mm） | 600 | 800 | 1000 | 1200 | 1600 | 2000 | 2400 | 3000 | |||||||
Length of drying section（m） | 6-12 | 6-12 | 6-16 | 8-16 | 8-22 | 10-26 | 12-30 | 12-40 | |||||||
Length of feeding section（m） | 1 | 1 | 1 | 1 | 1 | 1.5 | 1.5 | 2 | |||||||
Length of driving section（m） | 1 | 1 | 1 | 1 | 1 | 1.5 | 1.5 | 2 | |||||||
Drying area（m²） | 3.6-36 | 4.8-48 | 6-80 | 7.2-96 | 12.8-105.6 | 20-260 | 28.8-360 | 36-600 | |||||||
Layer No. | 1-5 | ||||||||||||||
Space between layers （mm） | 400-600 | ||||||||||||||
Loading capacity（kg/m²） | 90-200 | ||||||||||||||
Operating temperature（℃） | Carbon steel≤400 | ||||||||||||||
Stainless Stell≤600 | |||||||||||||||
Evaporation intensity（kg/㎡*h） | 5-20 | ||||||||||||||
Heat source | Hot air，electricity and steam | ||||||||||||||
Operating speed（m/min） | 0.06-1 | ||||||||||||||
Power（kw） | 1.1-2.2 | 1.1-2.2 | 1.1-2.2 | 1.1-3 | 1.5-3 | 1.5-4 | 3-7.5 | 5-11 | |||||||
Auxiliary equipment | Conveyor，air heater，dust collector，induced draft fan，etc. | ||||||||||||||
Main Features
Belt dryer is also used for drying different kinds of briquettes such as coal briquettes, mineral briquettes etc. It is also one of the most important equipment in the briquette production line. It has better drying effect; it could meet the demands of the customers who need to dry the briquettes to a lower moisture level and it could be designed according to the customer requirements.
Detailed Images
Machine Parts

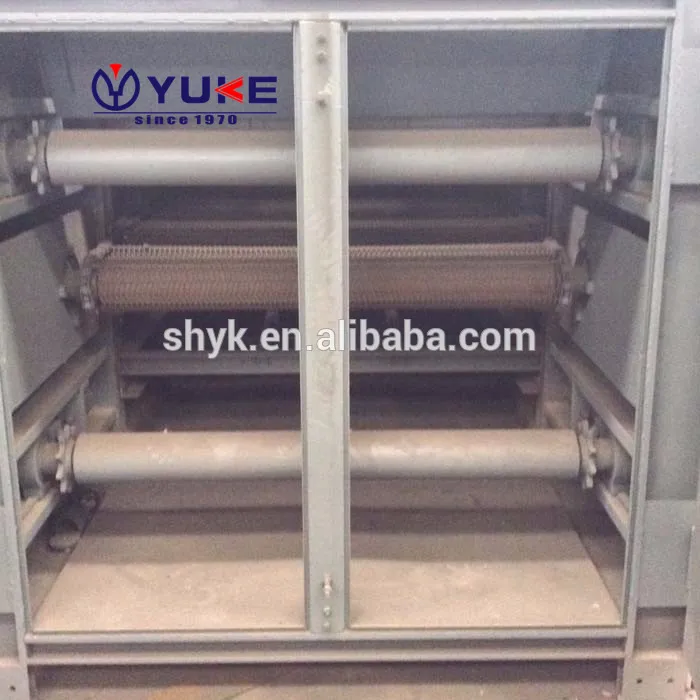

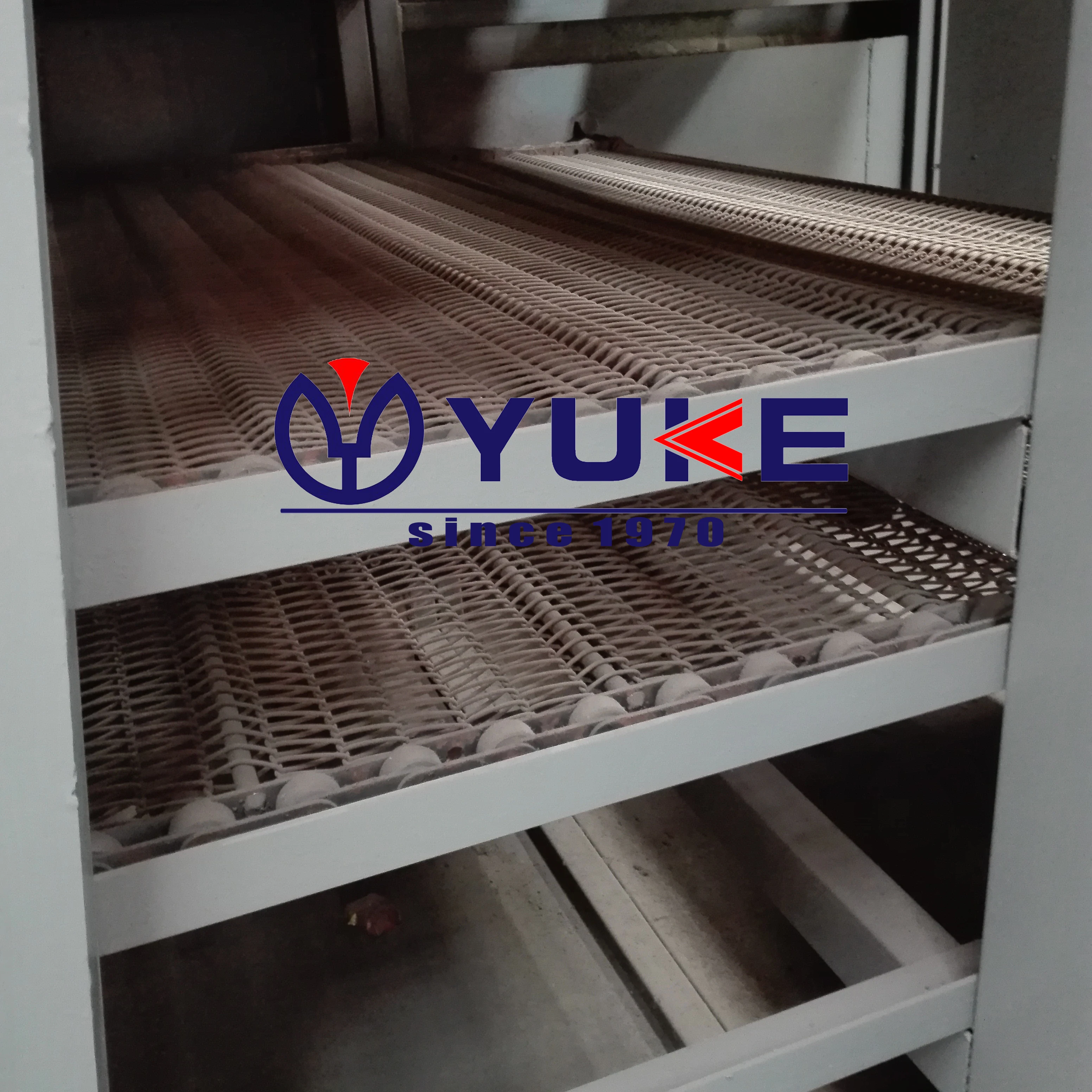

Name: Mesh belt
Brand: YUKE
Original: SAHNGHAI, China(Mainland
Material be convey by the belt
Main Features

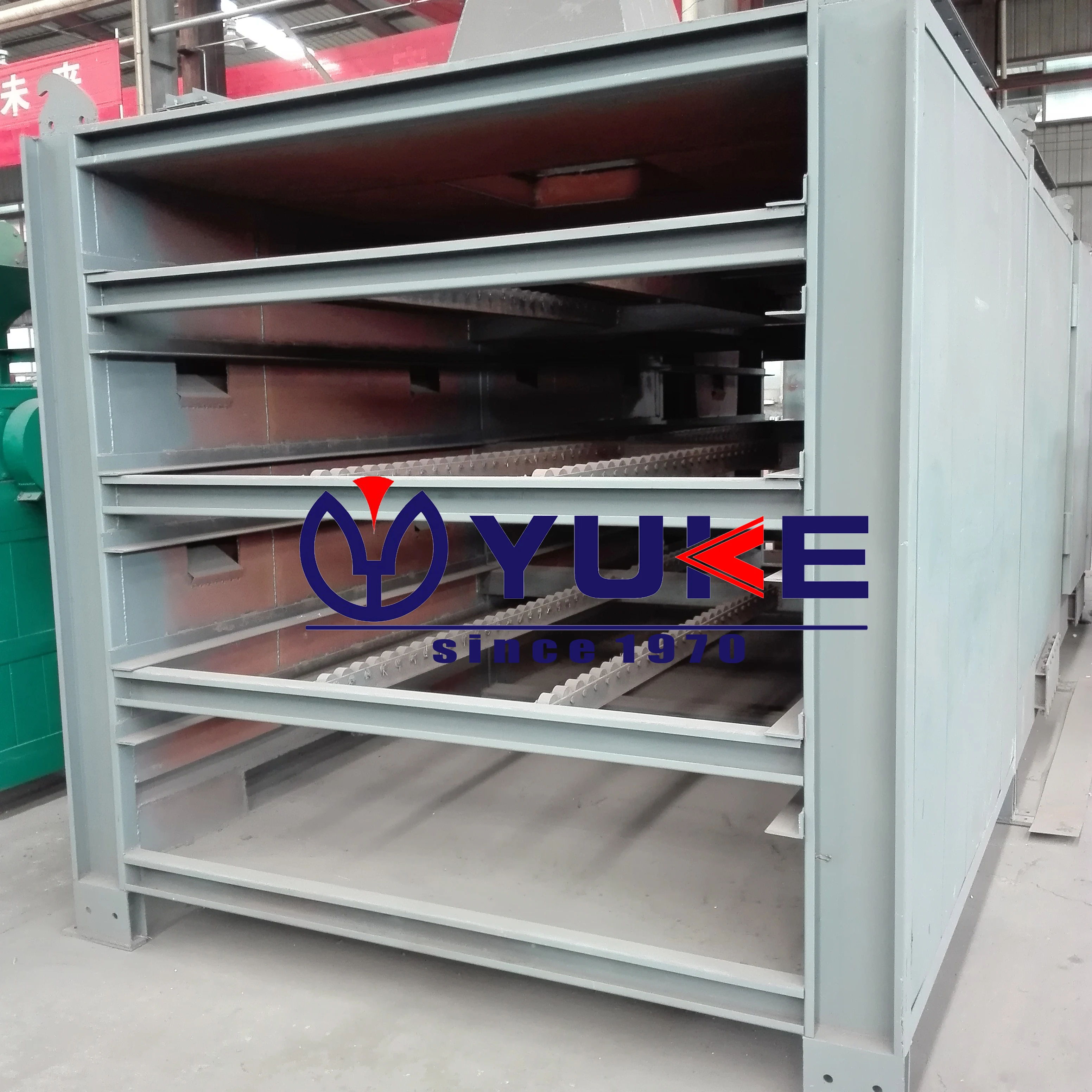

Name: Frame
Brand: YUKE
Original: SHANGHAI, China(mainland)
Although it occupy of big footprint, it has high drying effciency..
Certifications
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Our Company
Company Detail
Shanghai YUKE Industrial CO.Ltd, is a trustworthy and speciallist designer and manufacturer of briquetting machine, briquetting press, industrial dryer.etc.
Following strictly the standards of ISO9001, we have established a perfect quality test system for products and ourselves.now our prouducts have obtained the certificates of CE, GOST,and other international authority bodies.
YUKE adheres to concept that "Love our customer,Create weath and fun to them".
Our Customer
Customer Detail
Owing to our powerful sales team and overseas market development team, YUKE products have been a national hot sale, and exported to various countries and regions around the world such as India, Malaysia, Vietnam, Philippines, Indonesia, Thailand, Russia, Afric, South America, Europe, etc.
