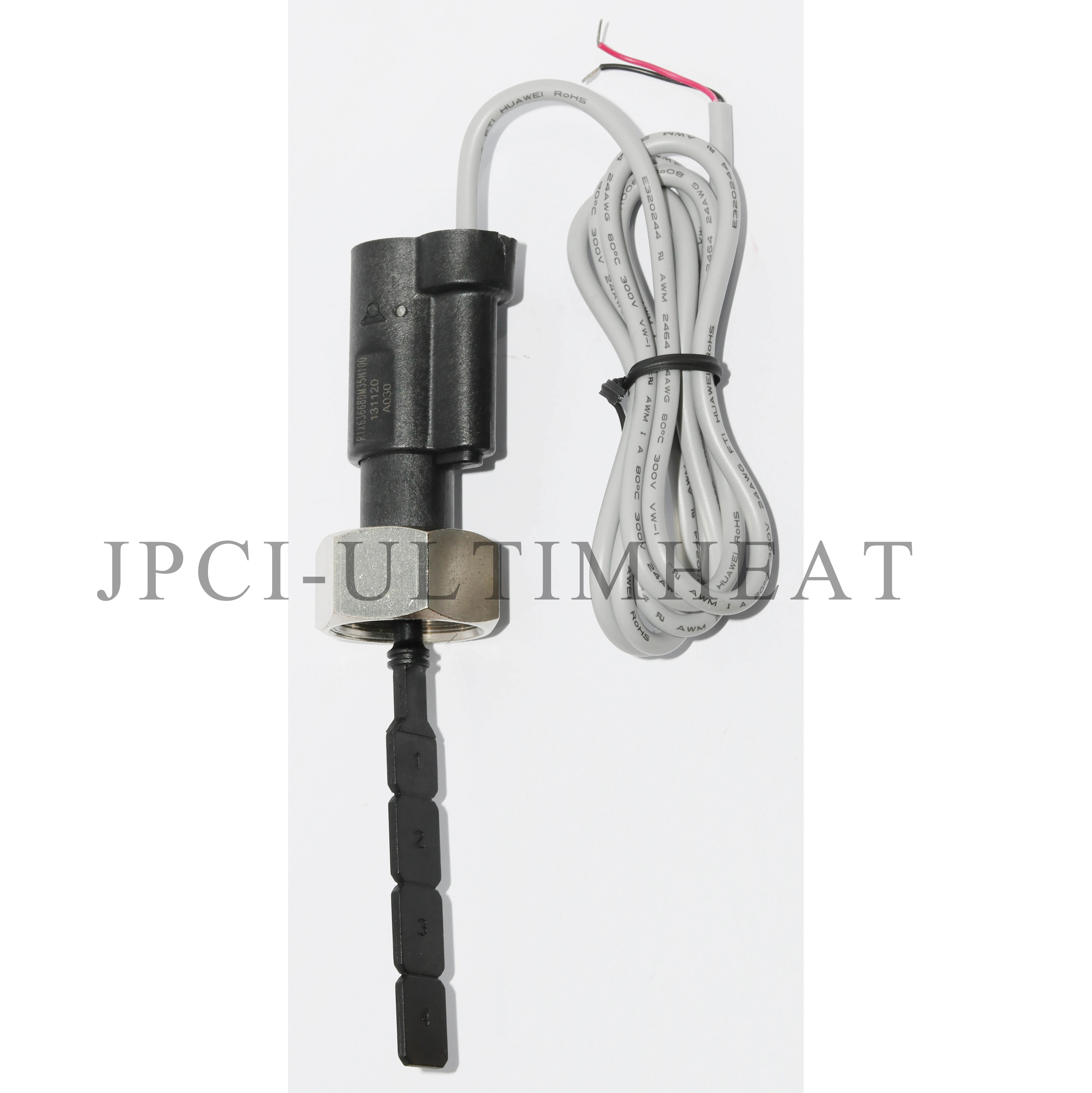

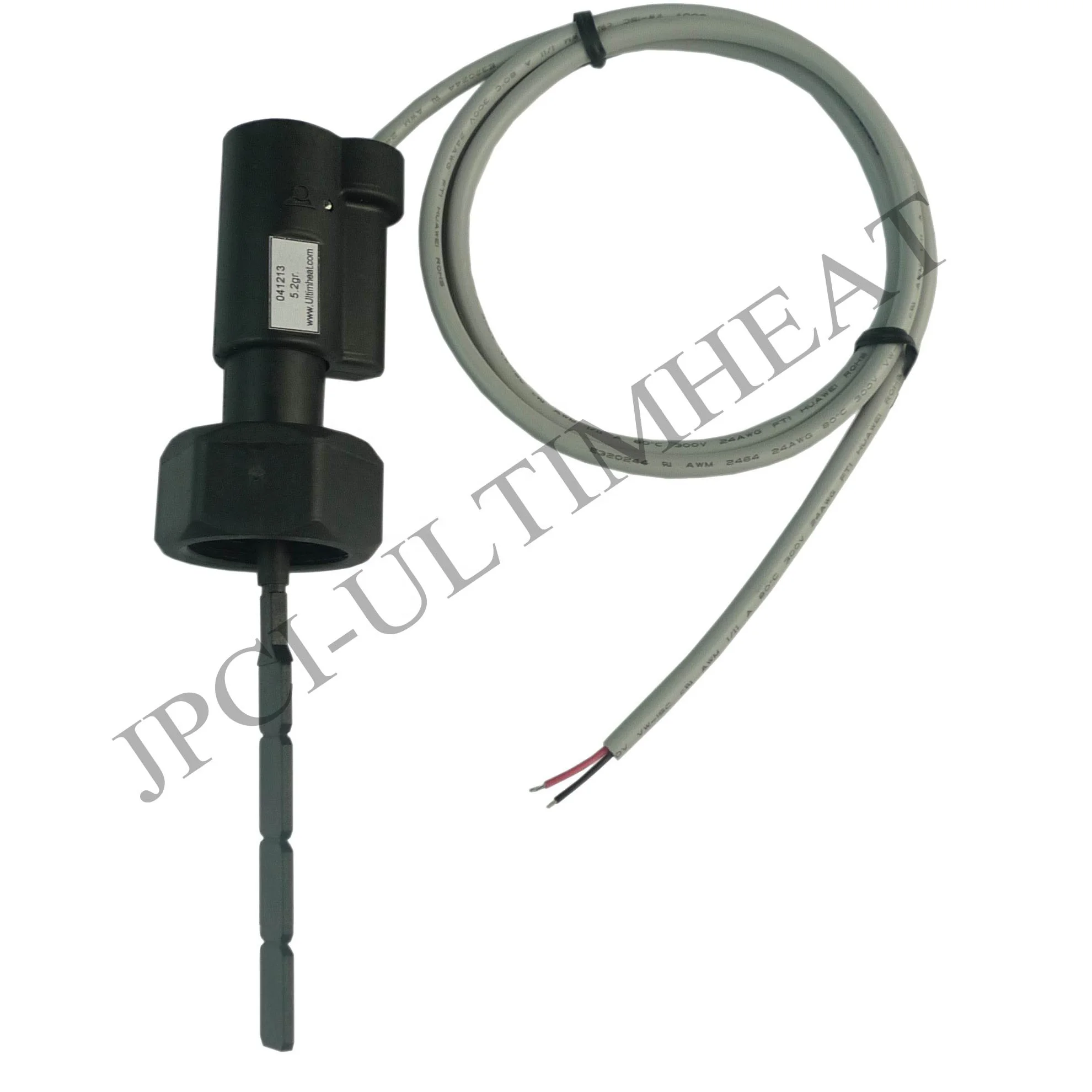

Язычковый переключатель типа R1X датчики потока воды лопастные

Adjustment:

- By cleaving the paddle

- Fine adjustment by screw driver on internal dial (on models with connection box only)

Paddle shaft: Titanium, providing an outstanding corrosion resistance, and improved mechanical live. Suitable for corrosive water pools and spas and salination chlorination and bromination systems

Main housing material: PPO, fiber glass reinforced for improved pressure resistance, usable with potable water.

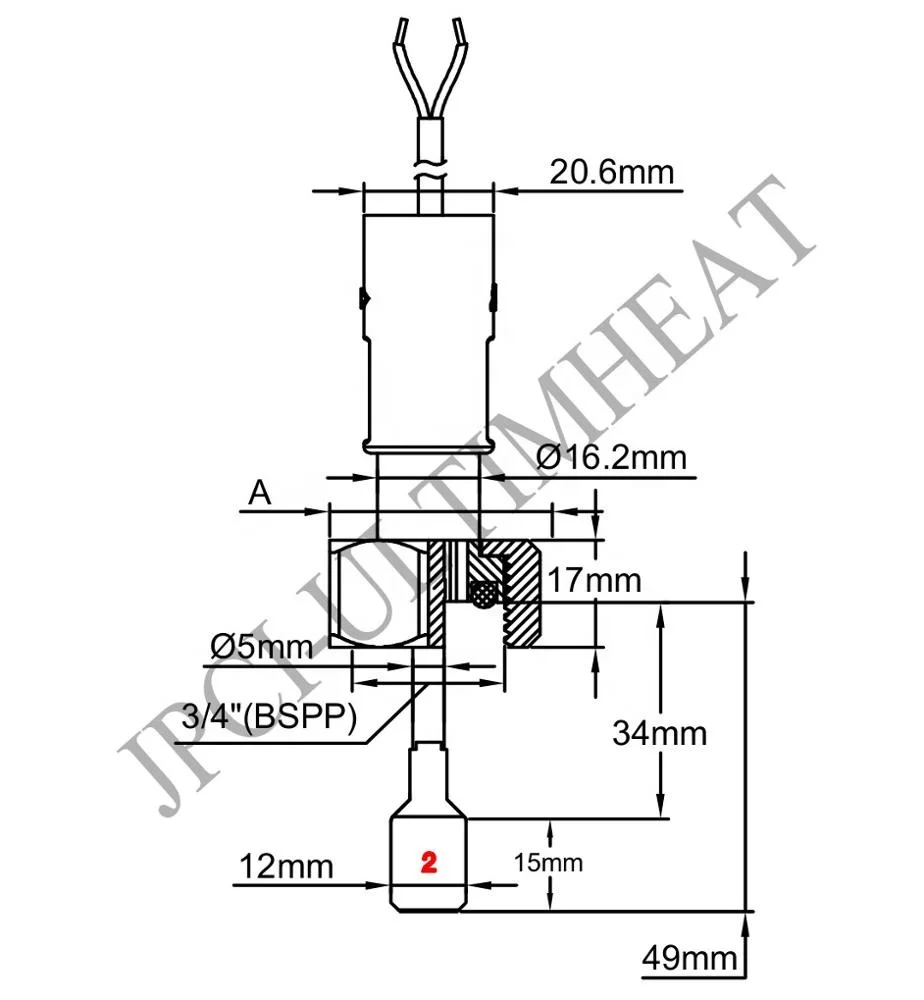

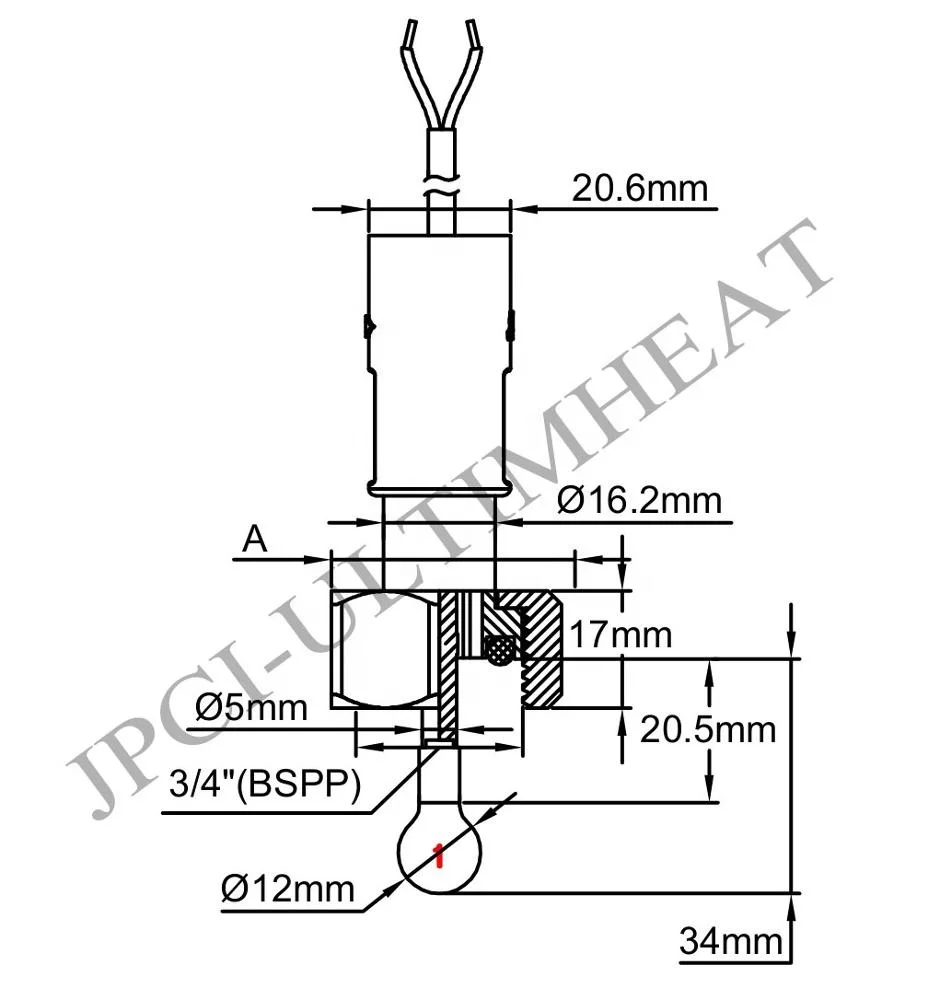

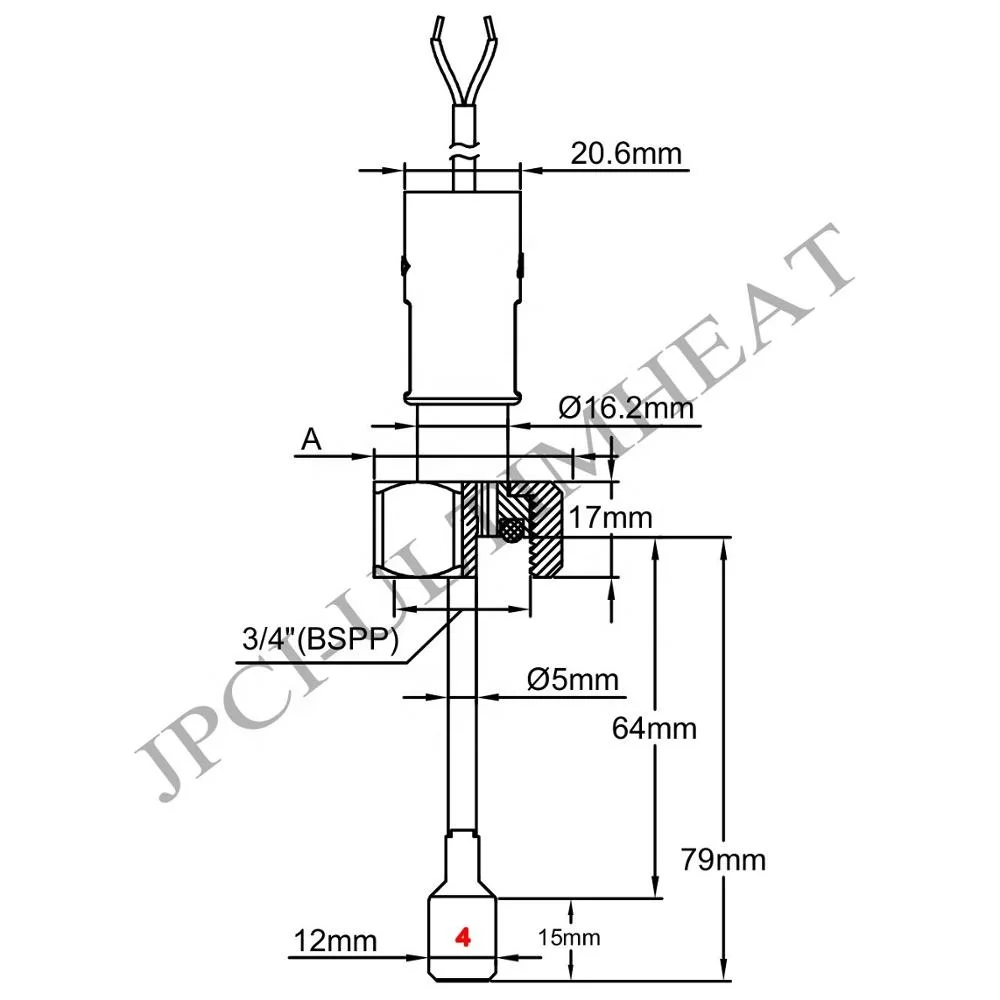

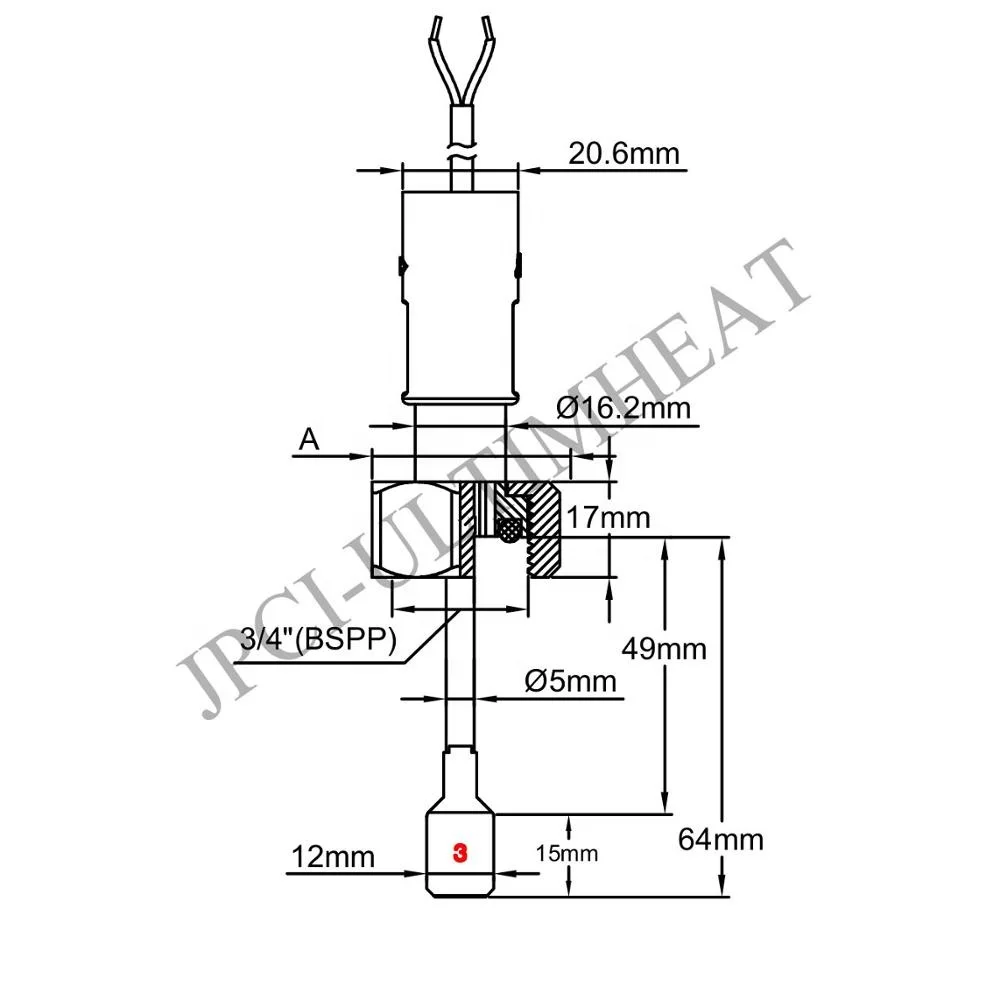

Paddle: PPO, 12 mm width, can be cleaved into 4 sections numbered 1 to 4 for pipe diameter adjustment

Pipe mounting: Fiber glass reinforced union nut,¾” BSPP, mounting on ¾” BSPP male fitting with gasket. Recommended torque: 7±1 Nm

Gasket: NBR

Electrical rating: Max 1A, Max 70W, Max 250V, resistive load. Use on inductive circuits reduces electrical rating. We recommend to protect the reed switch with contact protection device when used in inductive loads

Electric contact type: Normally open, closes by flow rise

Liquids compatibility: For use with clean water and liquids without magnetic particles and without chemical incompatibility with PPO and titanium

Nominal pressure at 20°C: 1MPa (PN10)

Liquids temperature range: 5 to 100°C

Ambient temperature range: 5 to 80°C

Ingress protection: IP65

Calibration tolerances: +/-15% (on paddle operating force at end of paddle 1)

Electrical connection:

4 possible models:

- 2 x AWG24 (0.2mm²) cable, PVC insulation, T80°, style UL2464.

- Waterproof connection box with 2.5mm² connection block, M16x1.5 cable gland

- Waterproof connection box with EN17530-803-A (DIN43650-A) connector (MOQ apply for this model)

- Waterproof connection box with IEC947-5-2, M12x1, 4 terminals connector(MOQ apply for this model)

Installation instructions:

- Check carefully the paddle orientation: The arrow on housing must be exactly parallel to the pipe

- A 5 mm minimum gap must be respected between end of the paddle and tube wall opposite to the fitting.

- We recommend the use of nozzles of length less than or equal to 18mm between the gasket seat and the inside of the tube and with an inner diameter greater than or equal to 13.5 mm, to avoid blocking of the paddle.

Accessories: 3/4” male PVC saddles for DN40 to DN100 (OD) PVC pipes, and other fittings: see last section of this catalogue

Options(MOQ apply): cable with connector or terminals, other cable length, nickel plated ¾” BSPP union nut

Important notice: In the case of plastic pipes (PVC, PE), the DN (nominal diameter) corresponds to the outside diameter and wall thickness is variable depending on the application. This must be taken into account to avoid blocking the paddle. In the case of metal pipes, the inner diameter corresponds to the DN. Flow values data are for tubes whose internal diameter corresponds to DN.
