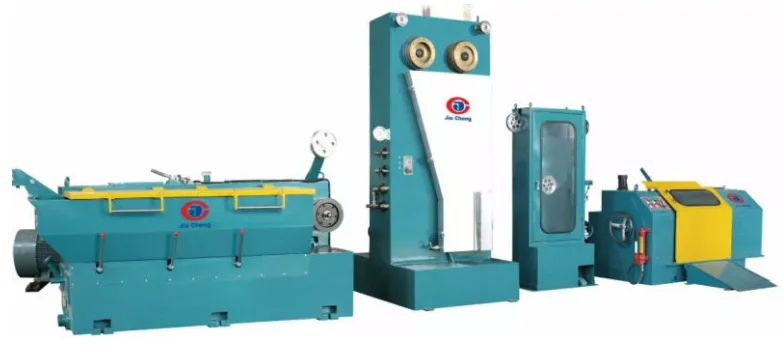

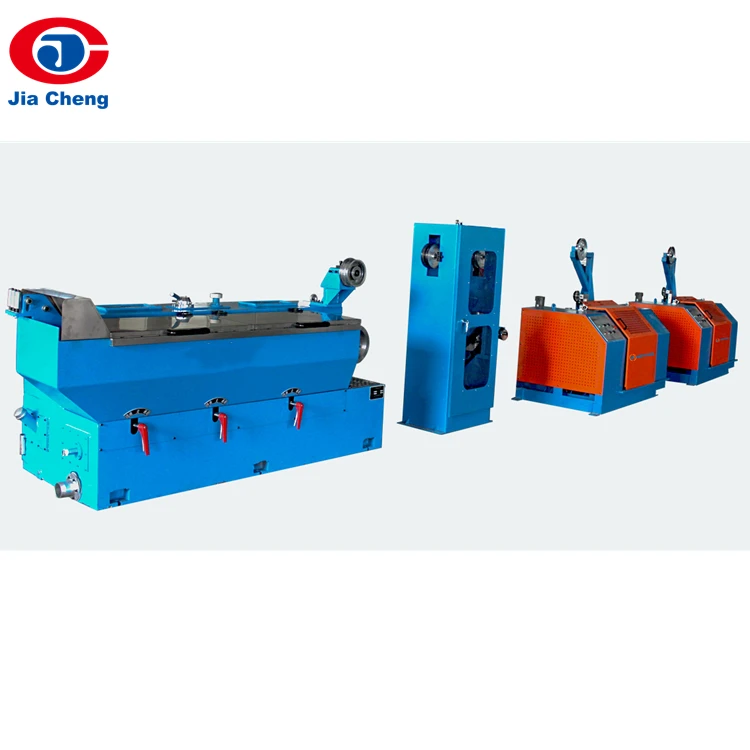

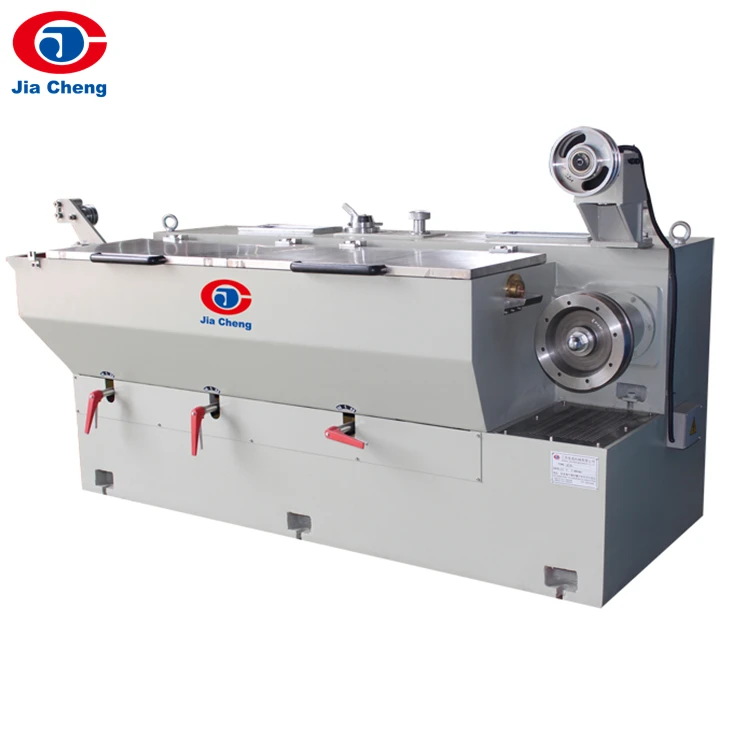

Два провода промежуточной проволоки волочильная машина для
- Категория: Wire Drawing Machines >>>
- Поставщик: Jiangsu,Jiacheng,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 21420.59 $* | 22491.78 $* |
| Aug-20-2025 | 21240.22 $* | 22302.84 $* |
| Jul-20-2025 | 17820.2 $* | 18711.91 $* |
| Jun-20-2025 | 20880.71 $* | 21924.55 $* |
| May-20-2025 | 18180.28 $* | 19089.31 $* |
| Apr-20-2025 | 20520.36 $* | 21546.81 $* |
| Mar-20-2025 | 20340.86 $* | 21357.34 $* |
| Feb-20-2025 | 20160.47 $* | 21168.61 $* |
| Jan-20-2025 | 19980.66 $* | 20979.66 $* |
Характеристики
Product Description
![00IC]6GFU)T4G{)PDJW{~CR.png](http://sc02.alicdn.com/kf/HTB1LNr9a.D1gK0jSZFG762d3FXai/208863/HTB1LNr9a.D1gK0jSZFG762d3FXai.png)
1. Application:
This type is used for drawing and annealing two copper wires from 2.6-3mm to 0.4-2.8mm.
2-Parameters:
Double Intermediate Wire Drawing Machine | |||
Machine type | JCJX-9DH-2 | JCJX-13DH-2 | JCJX-17DH-2 |
Drawing Wire No. | 2 Wires | ||
Inlet Dia.(mm) | Φ2.5~Φ3.5 | ||
Outlet Dia.(mm) | 2*Φ1.0~Φ1.8 | 2*Φ0.68~Φ1.2 | 2*Φ0.4~Φ1.0 |
1*Φ2.8 Max. | 1*Φ2.8 Max. | 1*Φ2.0 Max. | |
Max. Die No. | 9 | 13 | 17 |
Max.Line Speed(m/min) | 1200 | 2000 | |
Body Structure | Ironed cast | ||
Drawing Capstan | Carbon fiber and tungsten plasma capstan | ||
Main Motor Power(KW) | 75 | ||
Take-up Motor(KW) | 15 | ||
Capstan Dia.(Max.)(MM) | Φ300 | Φ280 | Φ250 |
Fix Speed Capstan Dia.(mm) | Φ300 | Φ280 | Φ250 |
Transmission Type | By gear | ||
Lubrication Type | Full immersion | ||
Tension Control | Air pressure type | ||
Take-up Type | shalfless type | ||
Take-up bobbin size(mm) | Φ500( bore Φ127) | ||
Φ600( bore Φ127) | |||
Traversing Type | Gear motor type | ||
Brake | Disc Brake | ||
On-line Continuous Annealing Device | ||
Machine Type | 350T-2 | 250TB-2 |
Annealing Structure | Hprizontal | Vertical |
Annealing WIre Dia.(mm) | 2*Φ0.8~Φ1.8 | 2*Φ0.4~Φ1.2 |
1*Φ2.8 Max. | 1*Φ2.0 Max. | |
Annealing Voltage(V) | 0~60 | |
Annealing Current(A) | 0~4000A | 0~3000A |
3-Details:
4-Advantage:
1). Manpower saving, space saving, electricity saving.
2).Wear-resistant capstan can keep long life.
3). Fully immersed lubrication, lubrication tank body is seperated with gear box without oil mixed.
4).Longer annealing section with tension ensure good and stable elongation.
5).Unify 250 cast-iron main frame, precision machinery, no shock.
5-Delivery time: 60 working days
6-After-sell service:
Engineer will be dispatched at needed.
The buyer provides engineer’s roundtrip flight tickets, board and lodging, the security as well as each person of daily wage.
7-Gurantee: 12 months since shipping date(exclude easily wearing part)
Packaging & Shipping
![[]%LOKL~VP401KFN5$OK~V.png](http://sc02.alicdn.com/kf/HTB1A9P8a1L2gK0jSZPh761hvXXav/208863/HTB1A9P8a1L2gK0jSZPh761hvXXav.png)
Company Information
Our company was founded in1990,we have 30 years experience in manufacturingall kinds of wire and cable machines, from drawing to exdruding.
We have our own factory, we can control the quality and the delivery time. We welcome your visit!
Our main products:
drawing machine, annealer,extruder, bunchingmachine,tapingmachine,wrapping machine,tinning machine.etc.
