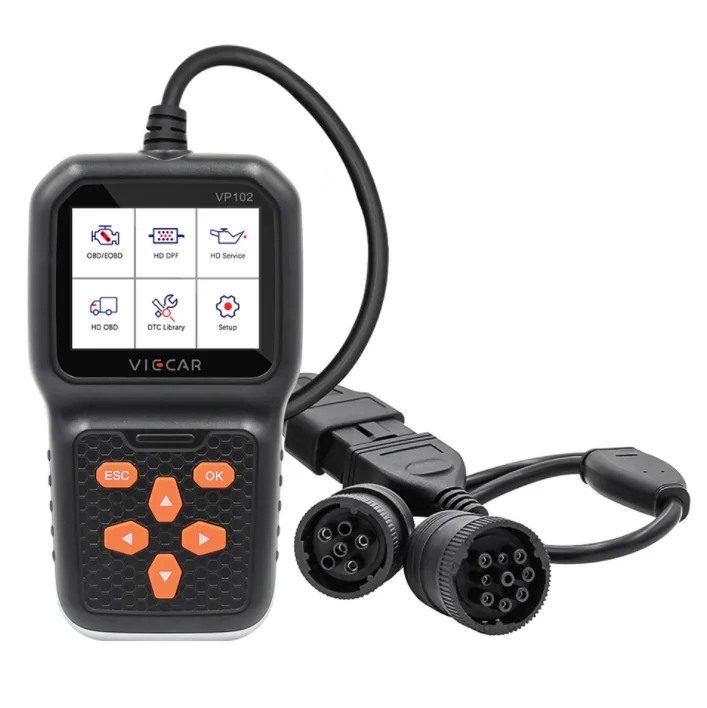

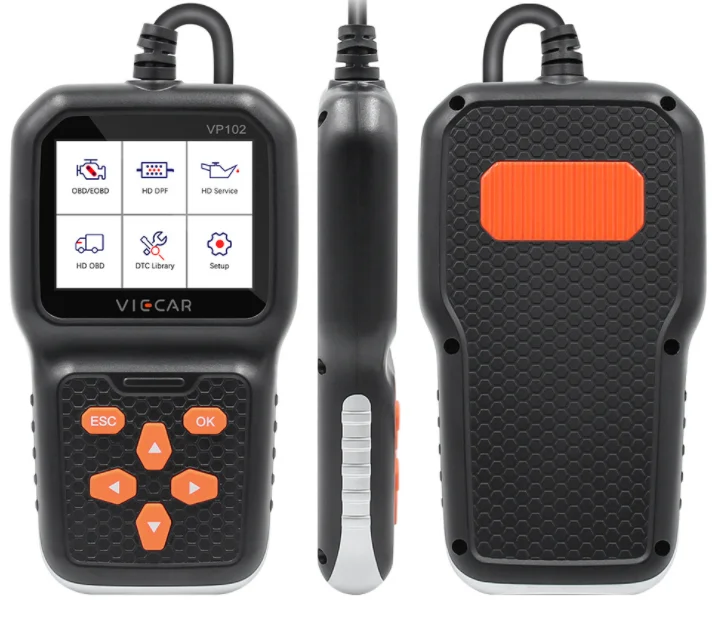

Диагностический инструмент Viecar VP102 для грузовиков считыватель кодов 12 В/24 В и тяжелых

The VP102 is a fault diagnosis tool for trucks that supports several common truck protocols, such as SAE J1939/ISO1708, and is compatible with several standard protocols commonly used in cars.

Supported agreement

uSAE J1850 PWM (41.6 Kbaud)

uSAE J1850 VPW (10.4 Kbaud)

uISO 9141-2 (5 baud init, 10.4 Kbaud)

uISO 14230-4 KWP (5 baud init, 10.4 Kbaud)

uISO 14230-4 KWP (fast init, 10.4 Kbaud)

uISO 15765-4 CAN (11bit ID, 500 Kbaud)

uISO 15765-4 CAN (29bit ID, 500 Kbaud)

uISO 15765-4 CAN (11bit ID, 2500 Kbaud)

uISO 15765-4 CAN (29bit ID, 250 Kbaud)

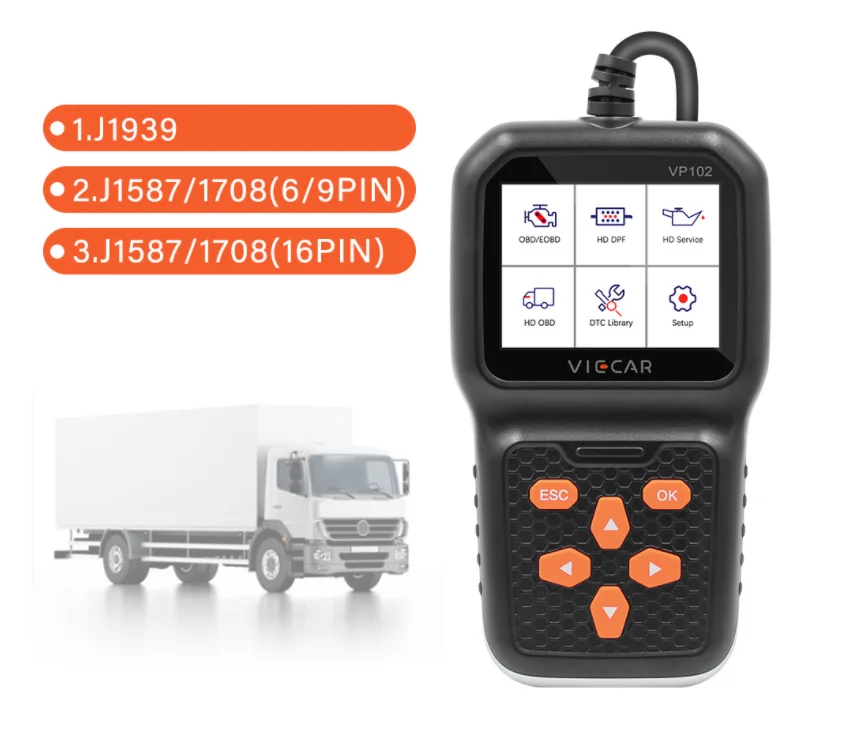

uSAE J1939

uISO 1708

Supported vehicle data

uRead the error diagnosis code

uClear the fault code (clear the error code and turn off MIL)

uEngine revolutions per minute (RPM)

uCalculated load value

ucoolant temperature

uFuel system status

  Speed

uShort-term fuel situation

ulong-term fuel situation

uintake manifold pressure

uInjection advance time

uintake air temperature

uAir flow rate

uthrottle valve absolute position

  Oxygen detection voltage associated with short-term fuel state

uFuel system status

ufuel pressure

uFuel consumption monitoring, etc.

Remarks: The number of data items supported by the model year is also different, subject to actual support.
