Высокотемпературные
Высокотемпературные

Высокотемпературные


Поделиться:


Цена:11,30 $ - 14,11 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Aug-19-2025 14.72 $* 14.87 $*
Jul-19-2025 11.69 $* 11.58 $*
Jun-19-2025 14.9 $* 14.54 $*
May-19-2025 14.94 $* 14.1 $*
Apr-19-2025 11.24 $* 11.31 $*
Mar-19-2025 13.93 $* 13.5 $*
Feb-19-2025 13.19 $* 13.57 $*
Jan-19-2025 13.94 $* 13.99 $*

Характеристики


Product Description
\t
                                 Specifications
\t

Electrical
\t
Electrical Rating
\t
25A,125/250VAC; 1HP,125VAC 2HP,250VAC
\t
Temperature Rating
\t
105℃ Std.(150℃ and 200℃ optional)
\t
Flammability Rating
\t
UL94--V0
\t





Materials
\t
Case
\t
General Purpose Phenolic
\t
Actuating Button
\t
Thermpplastic Nylon
\t
Common Terminals
\t
Silver-Plated Brass
\t
NO and NC Terminals
\t
Silver-Plated Brass
\t
Moving Blade
\t
Silve-Plated Beryllium Copper
\t
Spring
\t
Stainless Steel
\t
Auxiliary Actuators
\t
Cold-Rolled Steel (Nickel-plated）
\t
Roller
\t
Sintered Stainless Steel
\t
Contacts
\t
Silver-Cadmium Oxide
\t
                                 Features
\t
5 Current ratings
\t
Choice of actuator stypes
\t
3 terminal types (optional screw terminals available---consult factory)
\t
3 contact arrangements
\t
Long-life coil spring mechanism
\t
High-temperature 150℃ and 200℃ available on select models (consult factory)
\t
                               Definitions of Operating Characteristics
\t
OF
\t
Operating Force
\t
PT
\t
Pretravel
\t
RF
\t
Releasing Force
\t
MD
\t
Movement Differential
\t
TT
\t
Total Travel
\t
OP
\t
Operating Position
\t
OT
\t
Over Travel
\t
\t
\t
Note#1:
\t
2NO OR2NC is available as request, please add '1' or '2' after the model.
\t
Example: S-20E1:2NO
                  S-20E2:2NC
\t
Note#2:
\t
With respect to operating sequence, pole 1 or 2 may operate first (vitually same time).
\t
If pole 1 or 2 must always operate in a particular sequence please contact us.

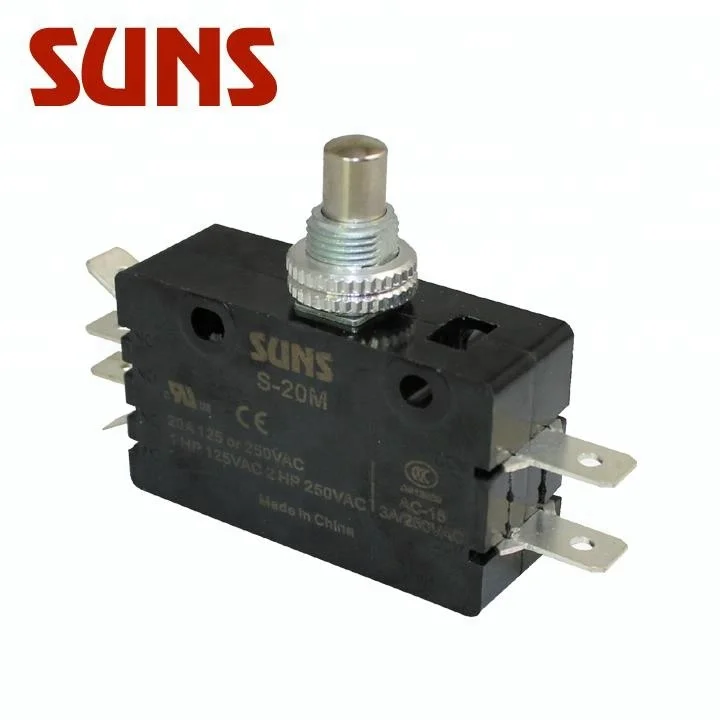

Detailed Images
Packing & Delivery





FOB Port: XIAMEN

Payment Terms: TT or L/C

Minimum Order Quantity: 100 Piece/Pieces

Delivery Time: 2-4weeks

Our Service
\t
Our Service
\t
Advantage
\t
•\tProvide wide variety of Limit Switch, Foot Switch, Micro Switch, Industrial Switch,etc.

•\tOffer customized solution to clients based on various situations

•\tSatisfactory delivery service to domestic and international clients

•\tPromote extended after-sale service

\t
•\tReliable supplier/partner for dozens of world leading manufacturers

•\tProvide value added service and flexible

•\tMaintain leading-edge technology through continuous innovation

•\tProvide most reliable products and services

•\tOffer the most complete switch portfolio

•\tStable work force with people-oriented management style

Certifications
FAQ


1. A:Where is your company?

Q:We are a USA company and have our own manufacture factory in Fujian China.

2. A:Do you have any certifications?

Q: We have TUV, CSA, UL, UR, CE, CCC approved, and RoHs, REACH compliance

3. A:What is your payment term ?

Q:T/T, L/C

4. A:Could I have some samples for testing ?

Q:Samples(Depends) can be sent per request on your express cost.

5. A:What is your delivery time ?

Q:Delivery lead time 2-4 weeks normally
