LINK-MI 4x1 2x1 многофункциональный бесшовный 4K @ 30 Гц HDMI переключатель аудио переключение PIP 13 режимов отображения
- Категория: Прочее домашнее аудио- и видеооборудование >>>
- Поставщик: Shenzhen,LINK-MI,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 291.19 $* | 297.43 $* |
| Jul-16-2025 | 236.69 $* | 241.25 $* |
| Jun-16-2025 | 286.3 $* | 292.92 $* |
| May-16-2025 | 284.0 $* | 290.31 $* |
| Apr-16-2025 | 227.22 $* | 232.93 $* |
| Mar-16-2025 | 279.28 $* | 285.84 $* |
| Feb-16-2025 | 277.97 $* | 283.11 $* |
| Jan-16-2025 | 275.16 $* | 281.66 $* |
Характеристики
Description

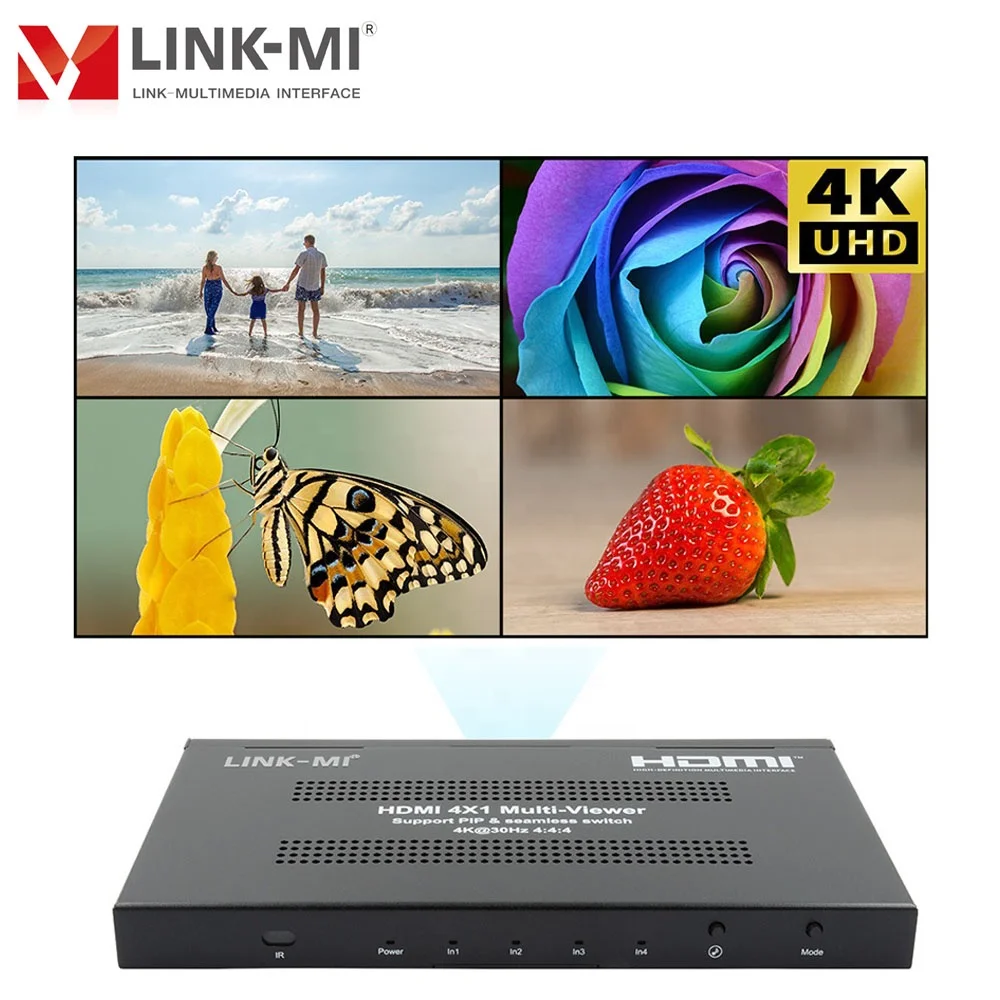

LINK-MI LM-MVS02 HDMI 4x1 Multi-viewer supports four UHD screen segmentation and seamless switching. It can display 4 UHD digital video signal on the same screen, and has a variety of video segmentation, seamless switching 4 UHD input signal synchronously. The control methods of the switch is flexible, it can be switched via Button and IR control. It's a very practical and stable switch and easy to install, can be used in the major projects, meeting halls and other places.
Features
1. HDMI 4 in 1 out
Support 4x HDMI inputs, 1x HDMI output; 4 channels HDMI signal seamless switching

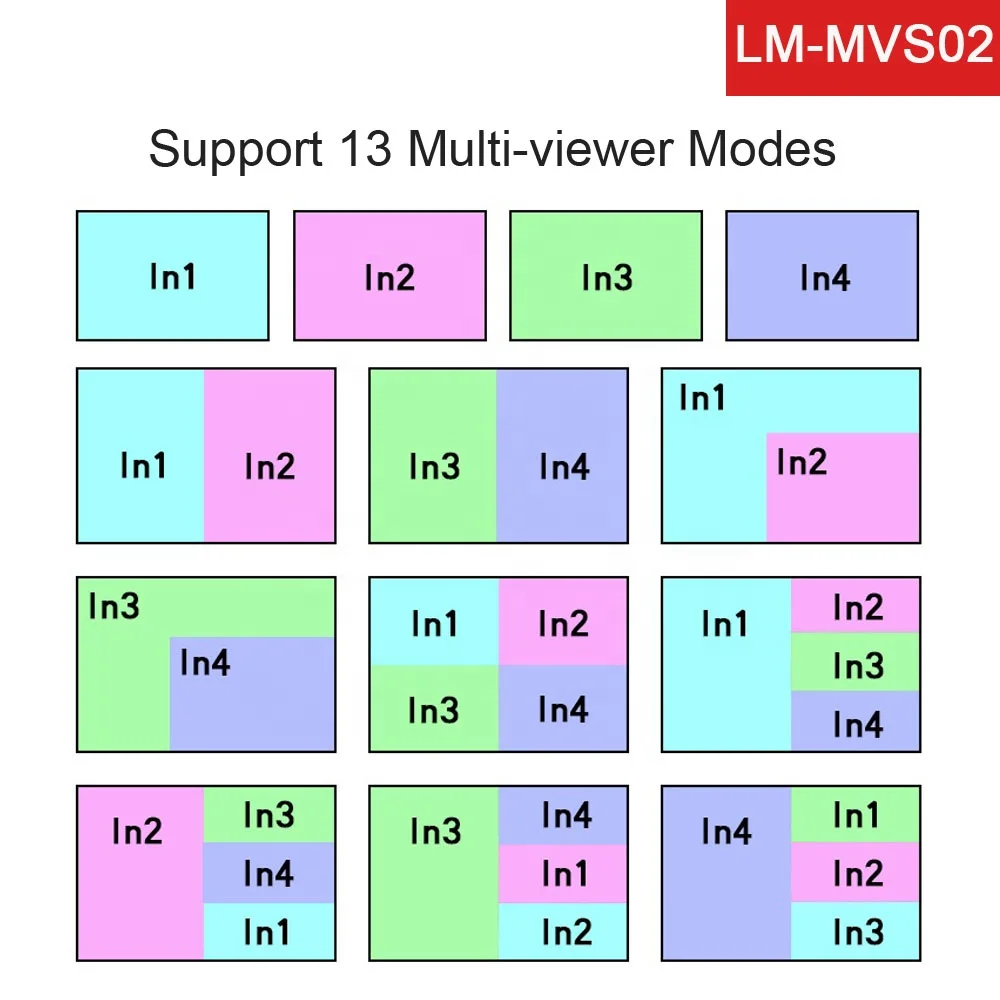

2. Multiple Display Modes
Support 4 channels HDMI signal screen segmentation; 4 frames can be combined into 13 modes, and switches in the following order (with power-down memory function) :

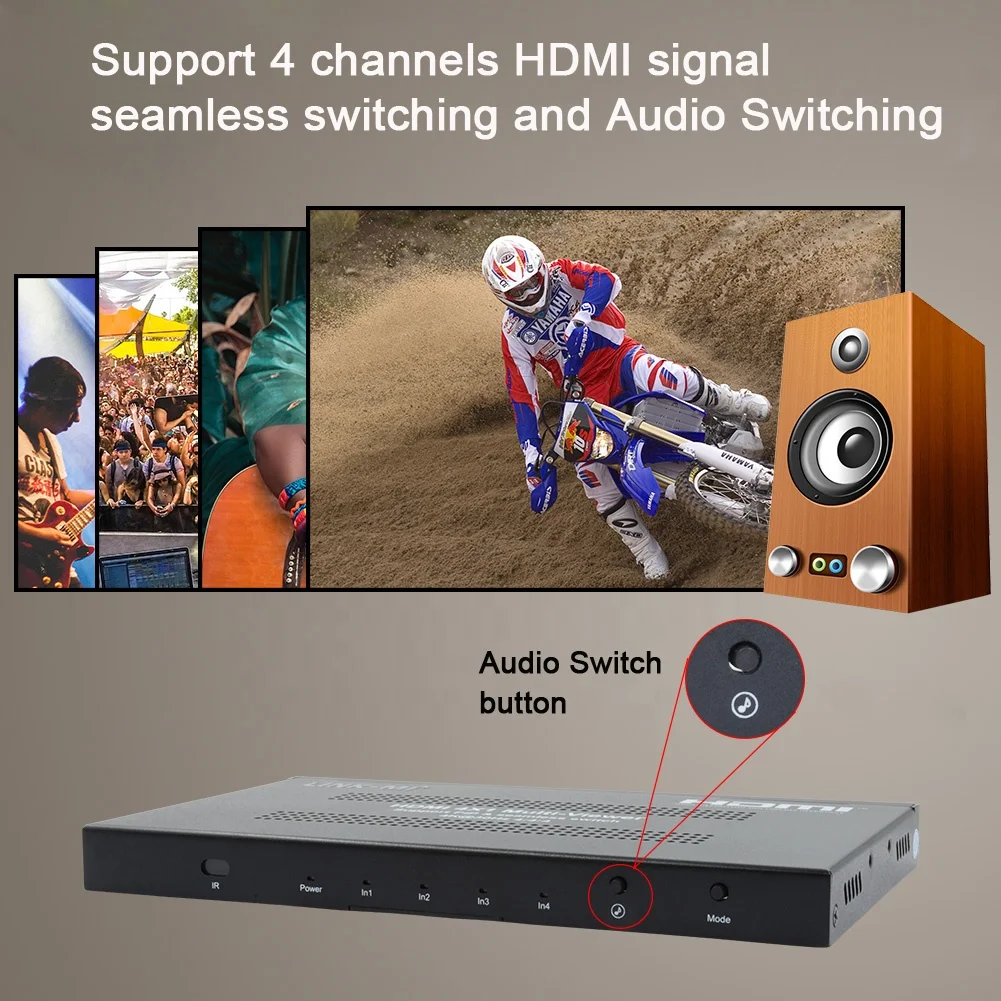

3. Audio Switching
Support Audio Switching, press the audio switch button on the front panel and switch by default 1→2→3→4→mute→1;
Support maximum audio sampling rate of 48kHZ
4. Ultra High 4K Resolution
Support resolution up to 4K@30Hz YUV4:4:4
5. Multiple Control Ways
Support IR Control and Panel Button Control
Interfaces

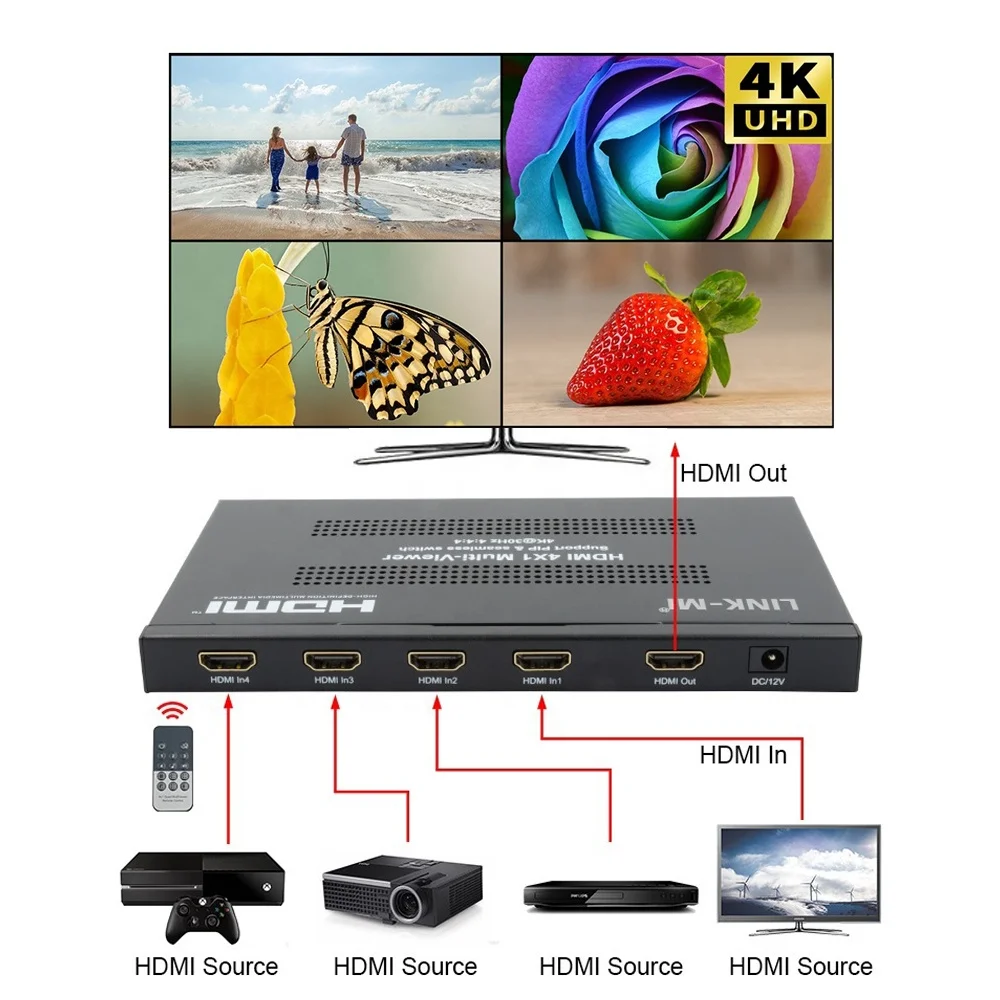

Connection
Specification
| Model No. | LM-MVS02 | |
| Interfaces | ||
| Input Ports | 4x HDMI inputs (female) | |
| Output Ports | 1x HDMI output (female) | |
| Technical | ||
| Bandwidth Frequency | 6.75Gbps | |
| TV Resolution | 50Hz | 576i; 576P; 720P; 1080i; 1080P |
| 60Hz /59.94Hz | 480P; 720P; 1080P | |
| 30/29.97/24/25Hz | 720P; 1080P; 4K/3840x2160@30Hz YUV4:4:4 | |
| Audio Sampling Rate | 48kHZ | |
| Transmission Distance | Input 8m, Output 10m (Maximum) over standard HDMI cable/26AWG | |
| Function | ||
| Control Ways | IR Remote, Panel Buttons | |
| Video Switching | 13 Display Modes (4x1 Switch, 2x1/4x1...Multiviewer) | |
| Audio Switching | Switch by default 1→2→3→4→mute→1 | |
| Seamless Switching | Support | |
| Mechanical | ||
Operating Temperature Range | 0 to +40℃ (32 to +104℉) | |
| Operating Humidity Range | 5 to 90% RH (No Condensation) | |
| Power Consumption | 8W (MAX) | |
| Power Supply | DC 12V 1A | |
| Housing | ||
| Dimension (LxWxH) | 190.4x113x17mm | |
| Net Weight | 480g | |
| Note: Specifications are subject to change without notice | ||
Package Contents
1) 1x Main Unit (4x1 Quad 4K HDMI Multiviewer)
2) 1x Power Adapter (DC 12V)
3) 1x Remote Control
4) 1x Mouting Ears Kits
5) 1x User Manual
