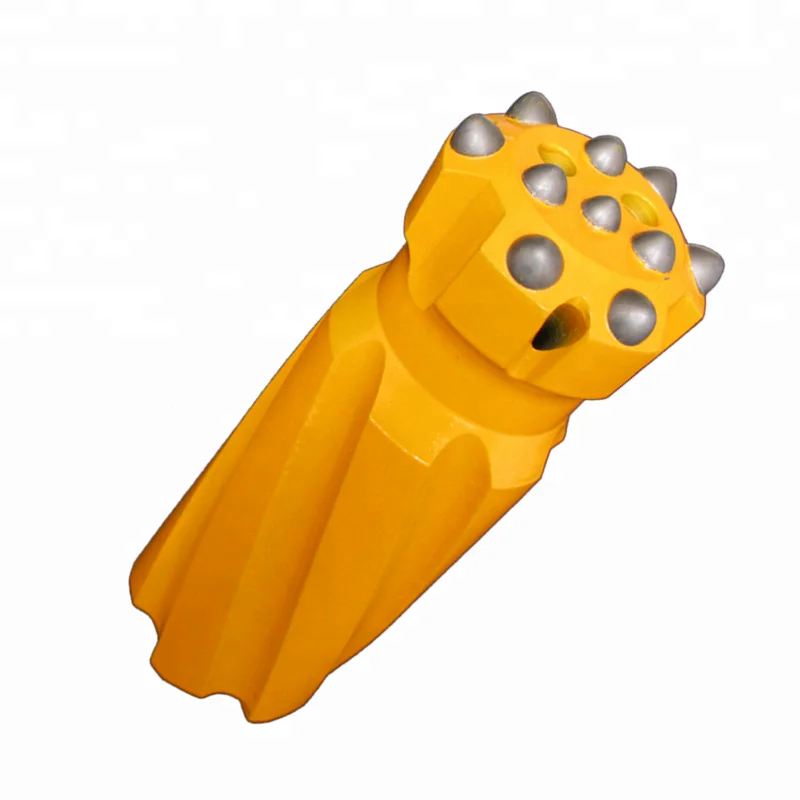

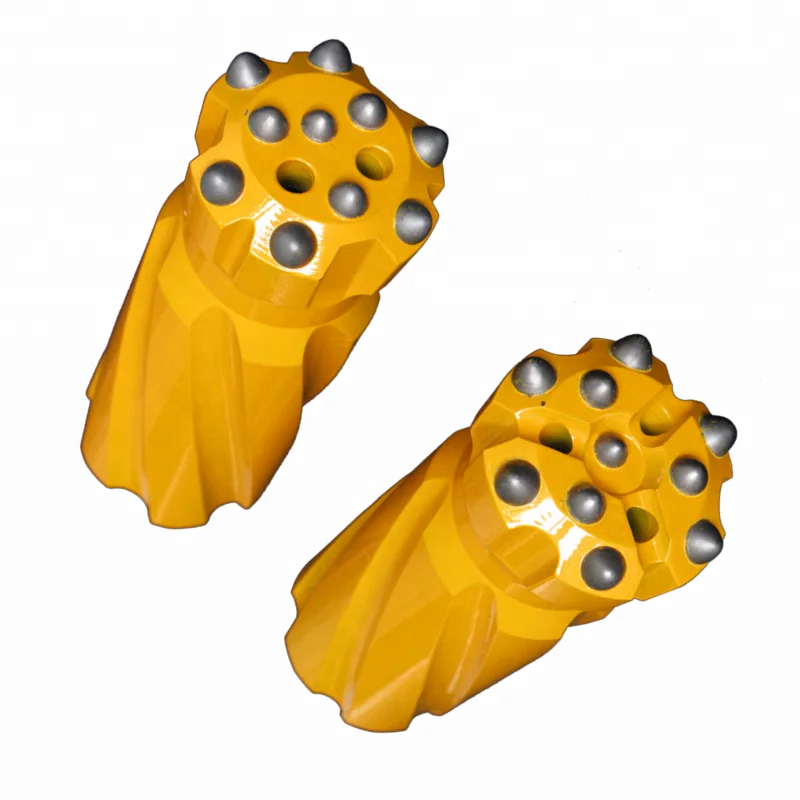

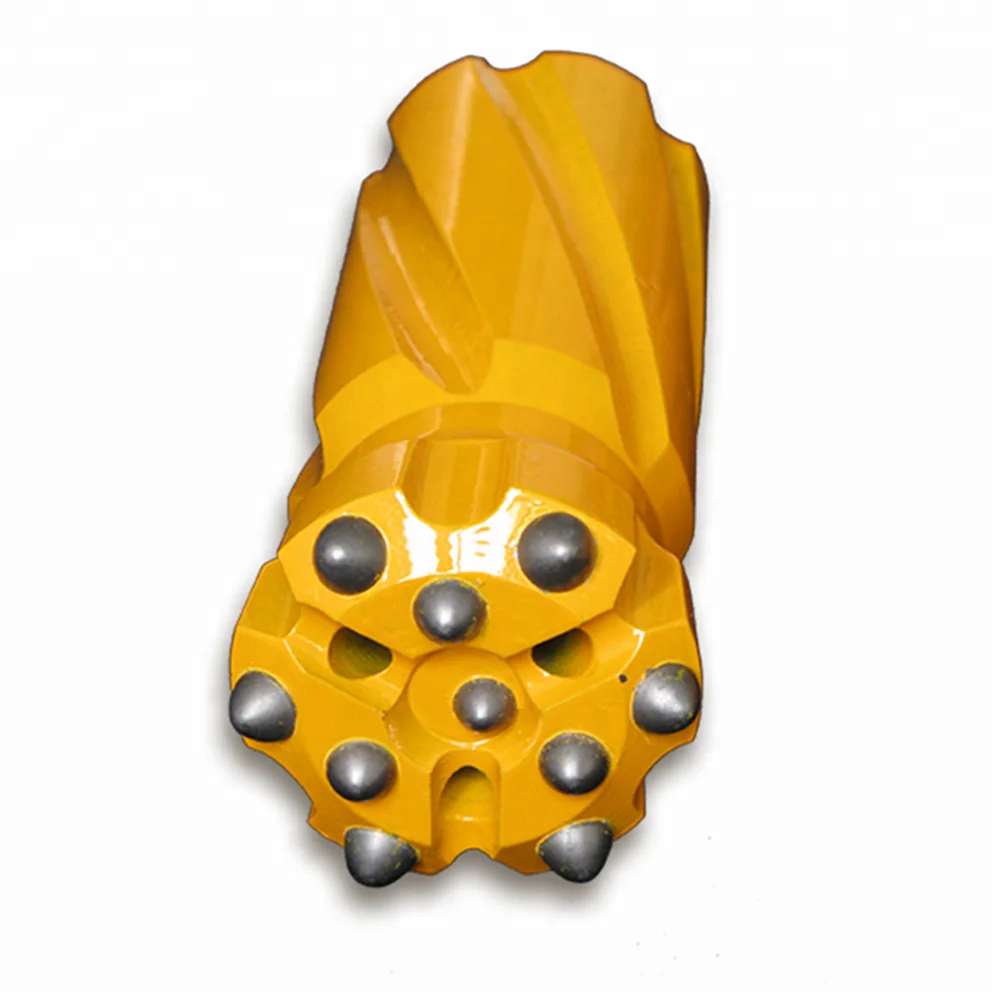

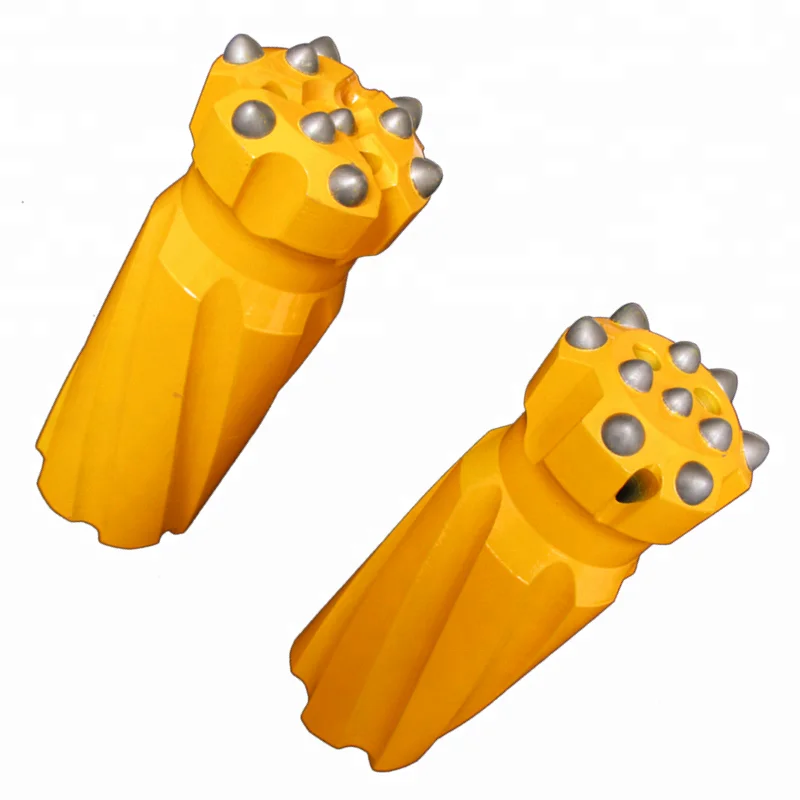

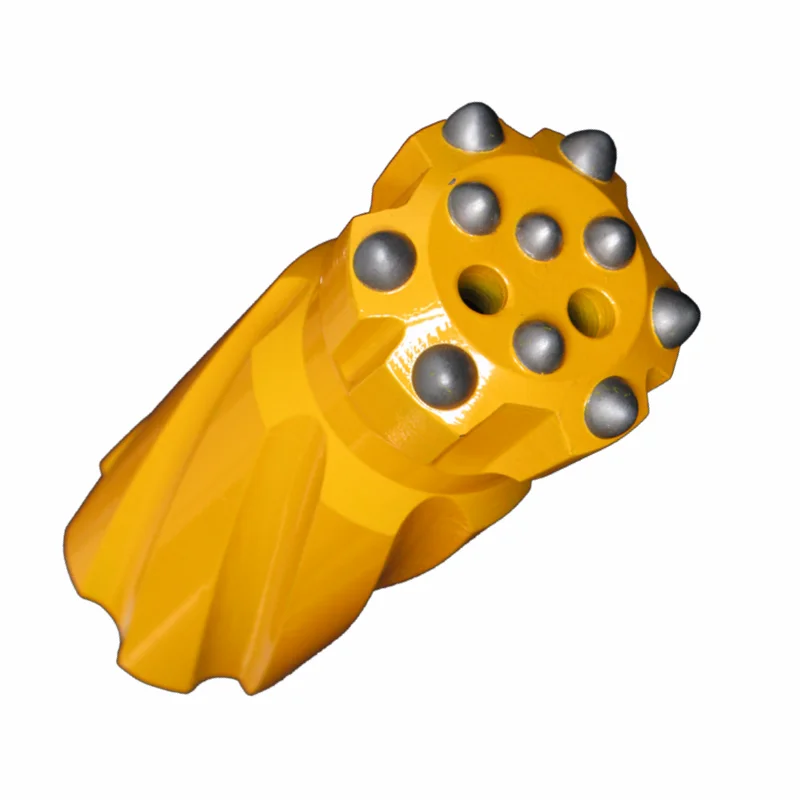

Cold Press 15 Buttons Round T6 Alloy Inserts Discount Rock Drill Bit 127mm T51 Retractable Drill Bits





As part of Acedrills' stratagem that to make best effort to be the cost-effective leader for the drilling industry, we have a complete line of fast penetration and rock pulverization threaded bits for the worldwide drilling industry, which are suitable for any type of drilling application including, rock drilling, water well, quarries, open pit and underground mining, construction, and blasting and so on.

All Acedrills' bits are computer aided designed and engineered, CNC manufactured and multiple heat-treated, to extend the product life for maximum wear and performance in the toughest of drilling conditions. Moreover, they are produced from premium steels and fitted with tips made from high quality tungsten carbide for superior penetration while maintaining high cleaning action at the face of the bit, to ensure maximum service life and impact strength. In addition, we have available full range of skirt shapes, front designs and cutting structures configuration for various rock formation as well as different penetration need.

Continuous field testing of our products have been arranged to our own or contracted drilling companies, to meet our stringent quality supervision requirements. In addition, Acedrills' bits are packed in cases with protective cushion, thus abating cracks during transportation.

The combination of good design, excellent manufacturing techniques, exact heat treatments, high quality steels and special grade carbides, Acedrills yield optimum drill bits capable of performing well in all kind of drilling conditions from soft to the toughest.



	Skirt Shape
	Straight
	Retract
	Straightrac
Bits Type
Button Bit
Cross Bit
X-Type Bit
	Thread R22,R25,R28,R32,R35,R38 T38,T45,T51,T60 ST58,ST68



PRODUCT SPECIFICATION

Button Bit:

Skirt Shape	Straight (Normal)	Retract	Straightrac
Bit Diameter	35~152mm (1 3/8 ~ 6”)	45~127mm (1 25/32” ~ 5”)	64~102mm (2 1/2” ~ 4”)
Thread	R22, R25, R28, R32, R35, R38, T38, T45, T51, T60, ST58, ST68.	R25, R28, R32, R35, R38, T38, T45, T51, T60, ST58, ST68.	R38, T38, T45, T51, T60, ST58, ST68.
Face Design	Flat, Convex or Drop Center;	Flat, Convex or Drop Center;	Flat, Convex or Drop Center;
Inserts Configuration	Domed (Spherical), Hemi-spherical, Ballistic, Parabolic or Conical;	Domed (Spherical), Hemi-spherical, Ballistic, Parabolic or Conical;	Domed (Spherical), Hemi-spherical, Ballistic, Parabolic or Conical;



Cross Bits & X-Type Bits:

Bits Type	Cross Bits		X-Type Bits
Skirt Shape	Straight (Normal)	Retract	Straight (Normal)	Retract
Bits Diameter	35~127 mm (1 3/8” ~ 127”)	64~102 mm (2 1/2” ~ 4”)	64~127 mm (2 1/2” ~ 5”)	64~102 mm (2 1/2” ~ 4”)
Thread	R22, R25, R28, R32, R38, T38, T45, T51,	T38, T45, T51	T38, T45, T51	T38, T45, T51

Note: Special sizes may be available upon request.







Notes: Special sizes may be available upon request.     How to order? Button Bit: Diameter + Thread + Skirt Shape + Face Design + Insert Configuration Cross & X-Type Bit: Diameter + Thread + Skirt Shape
