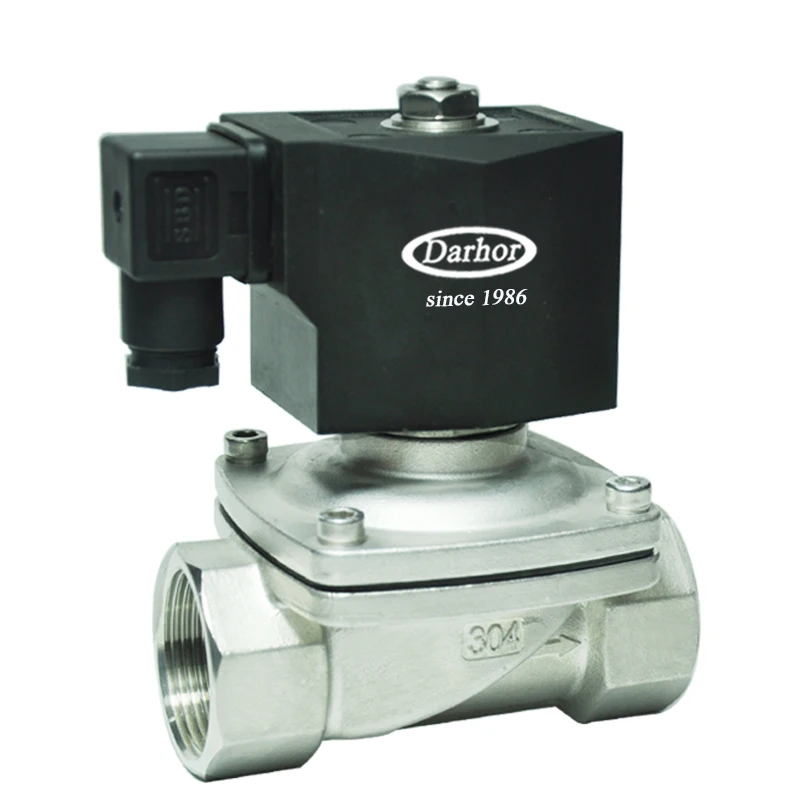

2W21-S-32 DN32 1 1/4 дюймовый водяной электромагнитный клапан из нержавеющей стали

2W21-S-32 DN32 1 1/4 дюймовый водяной электромагнитный клапан из нержавеющей стали

Цена:*

Количество:

Product Description

1. Direct lifting diaphragm construction;
2. Open from zero bar for low pressure system use;
3. High frequency of flying lead coil.

Body-Brass,Stainless steel
Seal- NBR, EPDM or VITON
Armature Tube-Stainless Steel 304
Plunger- Stainless Steel 430F

Stop- Stainless Steel 430F
Springs- SS304
Shading Rings- Copper

Medium:	Air, Gas, Water, Light oil, etc.
Temperature:	NBR Seal:-10℃ to 80℃ EPDM Seal: - 10℃ to 120℃ VITON Seal: -10℃ to 150℃
Pressure:	0-1.0 MPa
Port Size:	3/8'',1/2'',3/4'',1'',1 1/4'',1 1/2'',2''
Port Thread:	G, BSP, NPT, Flange
Orifice(mm):	12,15,20,25,32,40,50
Voltage:	DC -6V,12V,24V AC -12V,24V,120V,240V/60Hz'110V,22V/50Hz Tolerance:+/-10%
Coils:	S51B,30VA(AC),24W(DC),IP65,100%ED SD01B,28VA(AC),36W(DC),IP65,100%ED

Related Products

Specifications

2W21 series stainless steel solenoid valve, with Coil S51B/SD01B,DIN
Valve Body	Port Size	Orifice	Cv	Min Pressure (MPa)	Max Pressure(MPa)			Seals Material	Body Material
Valve Body	Port Size	Orifice	Cv	Min Pressure (MPa)				Seals Material	Body Material	AC(30VA)	DC(24W)
2W2112XXX	3/8''	12	4.5	0.0	1.0	1.0	NBR, EPDM, or VITON	Brass,or Stainless steel
2W2115XXX	1/2''	15	4.5	0.0	1.0	1.0
2W2120XXX	3/4''	20	9.3	0.0	1.0	1.0
2W2125XXX	1''	25	12	0.0	1.0	1.0
					AC(28VA)	DC(36VA)
2W2132XXX	1 1/4''	32	24	0.0	1.0	1.0
2W2140XXX	1 1/2''	40	29	0.0	1.0	1.0
2W2150XXX	2''	50	48	0.0	1.0	1.0
