Датчик дифференциального давления с фланцем и дисплеем 4 ~ 20

Датчик дифференциального давления с фланцем и дисплеем 4 ~ 20

Категория: Pressure Transmitters >>>
Поставщик: Shandong,Friend,Control,System,Co.,Ltd.

Цена:279,00 $ - 310,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Aug-16-2025	354.88 $*	361.57 $*
Jul-16-2025	287.98 $*	293.42 $*
Jun-16-2025	349.25 $*	356.28 $*
May-16-2025	346.82 $*	353.21 $*
Apr-16-2025	276.41 $*	282.73 $*
Mar-16-2025	340.97 $*	347.49 $*
Feb-16-2025	338.1 $*	345.79 $*
Jan-16-2025	335.31 $*	342.54 $*

Характеристики

Products Description

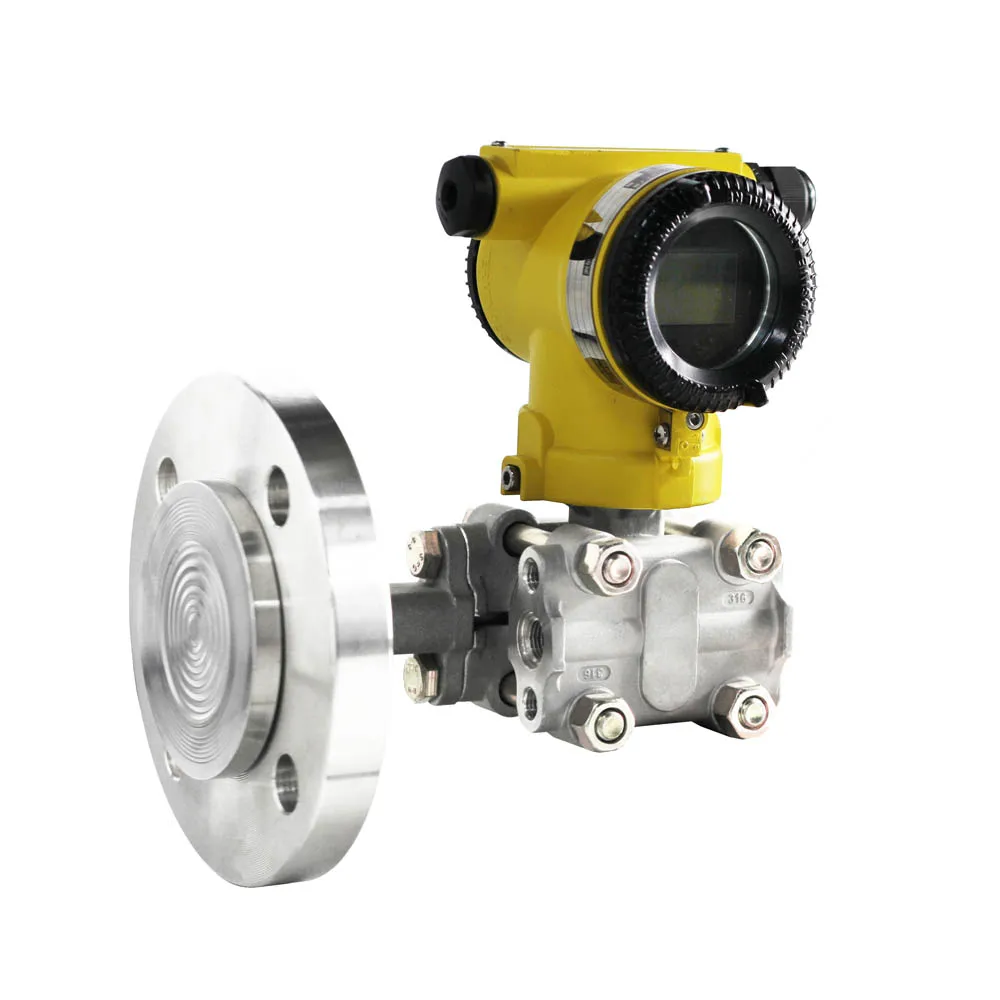

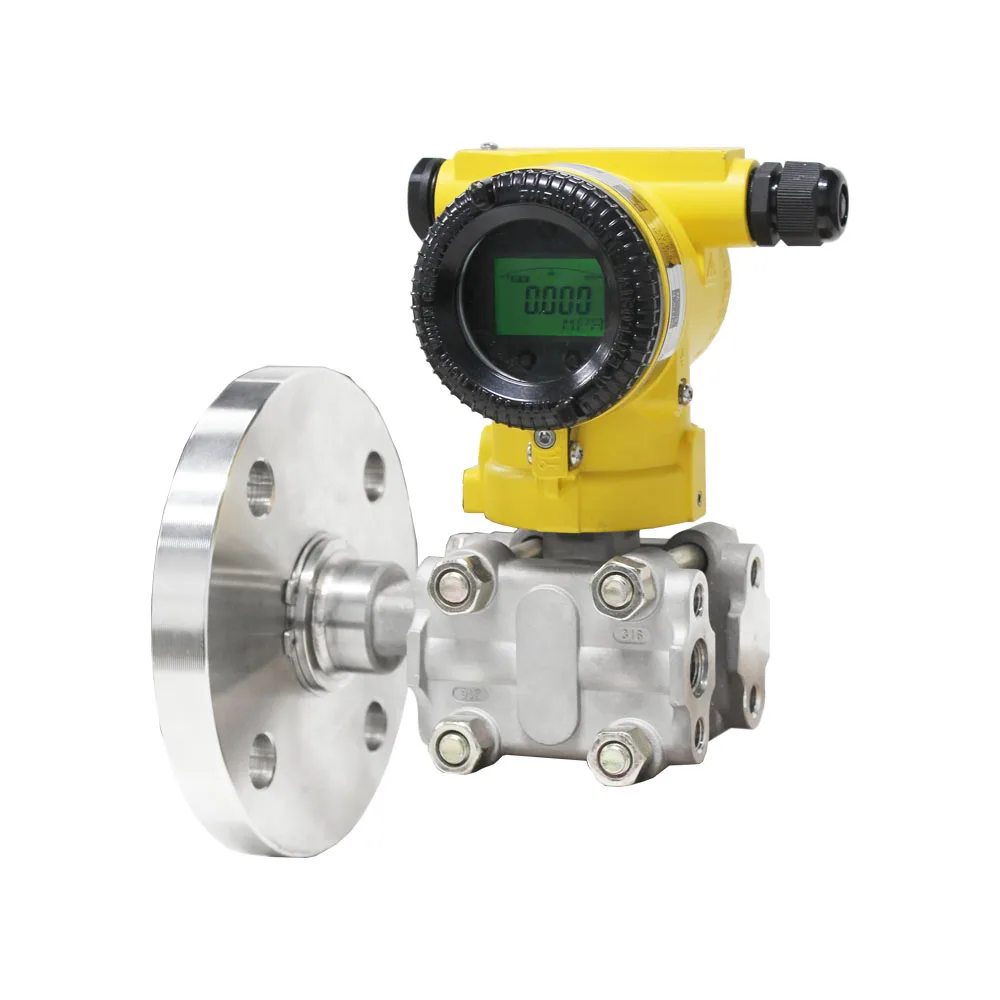

FD3051S LT High Performance Differential Pressure Level Transmitter

Flange Intelligent Differential Pressure Level Transmitter Description
FD3051S LT differential pressure level transmitter is suitable to measure liquid, gas, or steam flow as well as liquid level,density and pressure. FD3051S LT outputs a 4~20mADC signal corresponding to the measured differential pressure. Its highly accurate and stable sensor can also measure the static pressure which can be shown on the integral indicator or remotely monitored via HART communications. Other key features include quick response, remote set-up using communications, self-diagnostics and optional status output for pressure high/low alarm.

Technical Parameters

Model	FD3051S LT Pressure Level Transmitter
Pressure Range	-5Bar...-0.06Bar...~0~0.006Bar...0.4Bar..1Bar....30Bar(optional).
Pressure Type	Pressure/Differential pressure
solating Diaphragm	SS316L,Hastelloy C,Tantalum
Output Signal	Two Wire 4~20mADC, 4~20mADC with HART
Output Signal	15-36V DC,24V DC
Accuracy	≤ 0.25%,0.5%
Working Temperature	-30 to 180°C Optional
Storage Temperature	Max 85℃
Overload pressure	150% FS
Burst Pressure	200% FS
Electrical Connection	Standard: 0.2%/year
Standard: 0.2%/year	0.003%FS/℃(≤100kPa), 0.002%FS/℃(>100kPa)
Insulation Resistance	>100M Ω @50V
Electrical Connection	M20x1.5,1/2''NPT Cable entry
Process Connection	Flange DN 50/2",DN 80/3",DN 4".
Indicator	LCD Display
Housing Material	Aluminum with Epoxy Resin Coat
Process Material	316/304 Stainless Steel
Fill fluid	Silicone oil/Fluorinated oil
Configuration	Digital communication or local key adjustment.
Explosion Protection	NEPSI : Ex dⅡC T6, Ex iaⅡC T4
Protection Level	IP65,IP67
Weight	5-12KGS

Products Details

FAST DELIVERY 3-5 WORKING DAYS FOR STANDARD MODEL

Door to Door Services

Realated Products

Company Profile

ABOUT US

FRD is a high-technology manufacturer factory,founded in year 2002,the company is mainly engaged in research,development of Pressure ,Level,Temperature Measuring Instruments & Meters,Flowmeter in China.
