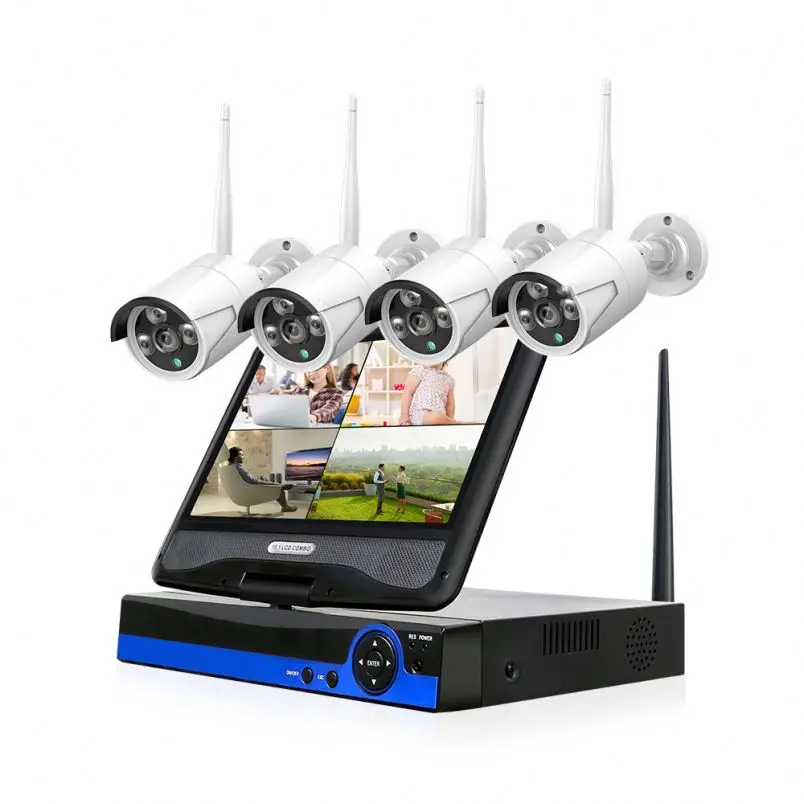

4CH 720P 10 1 дюймов HD ЖК-экран Mornitor Беспроводной NVR комплект системы безопасности Wifi

Описание и отзывы

Трекер стоимости

Характеристики





Feature
Build in 10.1 inch difinition  LCD Screen (resolution:1024*600)

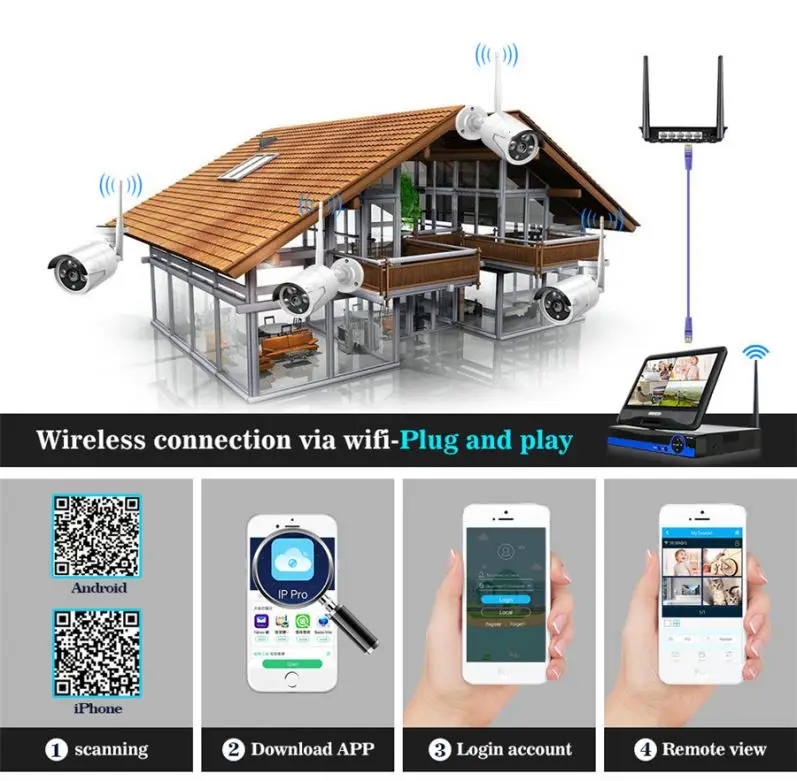

Step on the Internet: With eseecloud  service,easy to achieve a variety of network penetrations one step to remote monitoring,getting rid of various complicated networksettings, easy and simple to operate.
Mobile monitor: Support various mobile monitoring(iPhone,  Android)

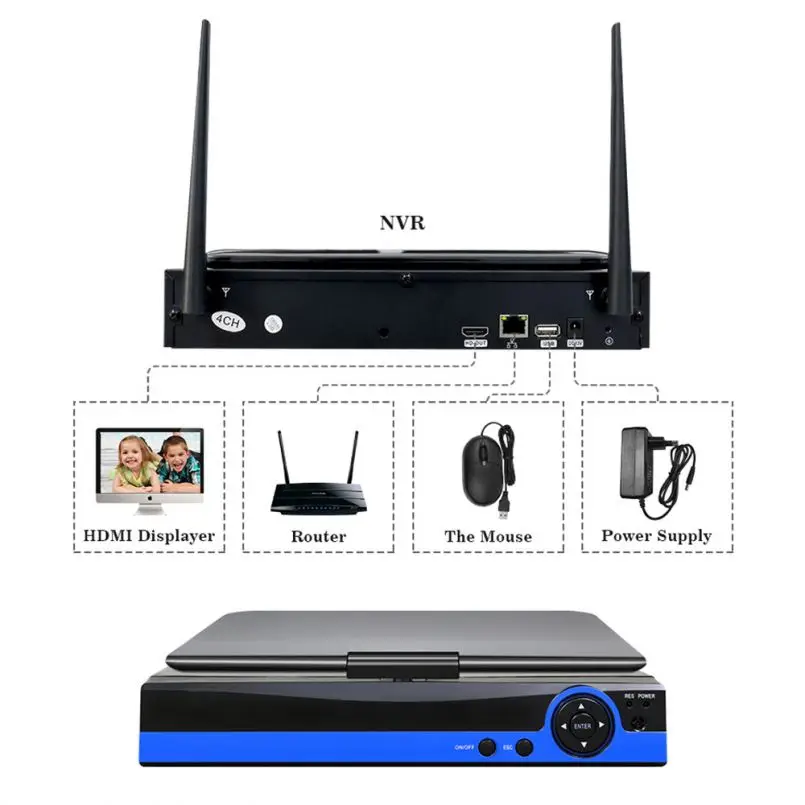

Display:support  HDMI HD output.
Compression algorithm ideal: H.264 High Profile compression  algorithm,
wireless nvr		4CH		Model	720P  CAMERA	960P  CAMERA	1080P  CAMERA
	Network Video	4CH		Sensor	1/4” Progressive Scan Sensor	1/3” Progressive Scan Sensor	1/3” Progressive Scan Sensor
	Video input	4ch 720P/960P/1080P		S/N Ratio	> 39.1 dB	> 39.1 dB	> 39.1 dB
AV (audio/video) output	HDMI output	1ch,resolution:1024x768,1366x768,1440x900,1920x1080p		Resolution	1280 x 720 16 : 9	1280 x 960  4 : 3	1920 x 1080 16 : 9
				Minimum illumination	Color: 0.1 Lux  B/W: 0.01 Lux	Color: 0.1 Lux  B/W: 0.01 Lux	Color: 0.1 Lux  B/W: 0.01 Lux
AV CODEC Specification	Video Resolution	D1/720P/960P		Lens	3.6mm	3.6mm	3.6mm
	synch-playback	4CH		OSD	Date Time & Title	Date Time & Title	Date Time & Title
Video Control	Video/Capture mode	Maual,Time,Motion,Alarm		Day & Night	Auto / Color / BW	Auto / Color / BW	Auto / Color / BW
	Playback mode	Real time,Routine,Event		3D-DNR	Auto	Auto	Auto
	Backup	USB backup		Mirror/Flip	On / Off	On / Off	On / Off
Hard Disk	Type	1*SATA interface		Privacy Regional Shelter	4 Zone Selectable	4 Zone Selectable	4 Zone Selectable
	Max Capacity	4 TB at most for each		smart stream	Dual-stream:	Dual-stream:	Dual-stream:
External Interface	Network Interface	1 adaptable RJ45 10M/100M, 1 WIFI interface			1280x720@15fps	1280x960@15fps	1920x1080@12fps
	USB Interface	2 USB 2.0			640x360@15fps	640x360@15fps	640x480@15fps
Network Control	Protocol	UPnP (play&plug)/SMTP (email survice)/PPPoE (dial-up)		Power	DC12V-1A	DC12V-1A	DC12V-1A
		DHCP (Automatically obtain an IP address), etc…		Power consumption	≤6W	≤6W	≤6W
Others	Power Supply	DC12V3A		Port	RJ45 / WIFI 802.11b/g/n	RJ45 / WIFI 802.11b/g/n	RJ45 / WIFI 802.11b/g/n
	Power Consumption (W)	≤5W(Without HDD)		Audio	Audio tail line output (Optional)	Audio tail line output (Optional)	Audio tail line output (Optional)
	Operate Temperature (°C)	-10℃~+55℃		working temperature/ humidity	-10℃ to +50℃ / 30% to 80% RH	-10℃ to +50℃ / 30% to 80% RH	-10℃ to +50℃ / 30% to 80% RH
	Working Humidity (%) RH	10%~90%		Storage temperature/humidity	-20℃ to +60℃ / 20% to 90% RH	-20℃ to +60℃ / 20% to 90% RH	-20℃ to +60℃ / 20% to 90% RH
