Зарядное устройство для свинцово-кислотного литий-ионного аккумулятора lifepo4 240 Вт 12 В 14 4 6 24 36 48 60 в 72 3 А а
- Категория: Аксессуары и запчасти >>>
- Поставщик: Shenzhen,Tengshun,Power,Supply,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-17-2025 | 29.91 $* | 30.7 $* |
| Jul-17-2025 | 24.59 $* | 24.71 $* |
| Jun-17-2025 | 29.32 $* | 30.50 $* |
| May-17-2025 | 29.31 $* | 30.56 $* |
| Apr-17-2025 | 23.15 $* | 23.28 $* |
| Mar-17-2025 | 28.65 $* | 29.2 $* |
| Feb-17-2025 | 28.81 $* | 29.4 $* |
| Jan-17-2025 | 28.45 $* | 29.91 $* |
Характеристики
Product Description
CE FCC KC PSE listed 240W 12v 14.4v 14.6v 24v 36v 48v 60v 72v 3a 4a 5a lead acid li-ion lifepo4 power supply charger adapter
| Input | 100-240Vac 47-63Hz desktop type | Input plug | EU US UK AUS JP Korea Italy Brazil India South Africa |
| Output |
Li-ion battery charger 12.6v 15a; 29.4v 8a 42v 5a; 54.6v 4a 67.2v3a; 84v 2.5a
Lifepo4 battery charger 12v/14.6v 15a; 24v/29.2v 8a 36v/43.8v 5a; 48v/58.4v 4a 60v/73v 3a;
lead acid battery charger 12v 15a; 24v 8a; 36v 5a; 48v 4a 60v 3a; 72v 2.5a | Charge mode | Li-ion/lifepo4 battery charger: CC--CV Mode
Lead acid battery charger: CC--CV--Float mode |
| Led Indicator | Red--charging; Green--full charge | Protection | Over-current, Over-voltage, Short-circuit, Polarity reverse |
| Suitable Battery | Lifepo4 battery | Efficiency | >82% |
| Output connector | customized(as below) | Size & Weight | 174*93*48 mm 1.0kg |
| Hi-Pot | 3000Vac/60S | MTBF | 50000hrs |
| Operating Temperature | -20℃~ +50℃ | Storage Temperature | -40℃~ +80℃ |
| Certification | CE FCC GS CB UL PSE KC SAA | Lead time | sample: 3-5 days Order: 12-15 days |
| Warranty | 3 Years | Package | 43*37*30cm 10pcs/ctn |

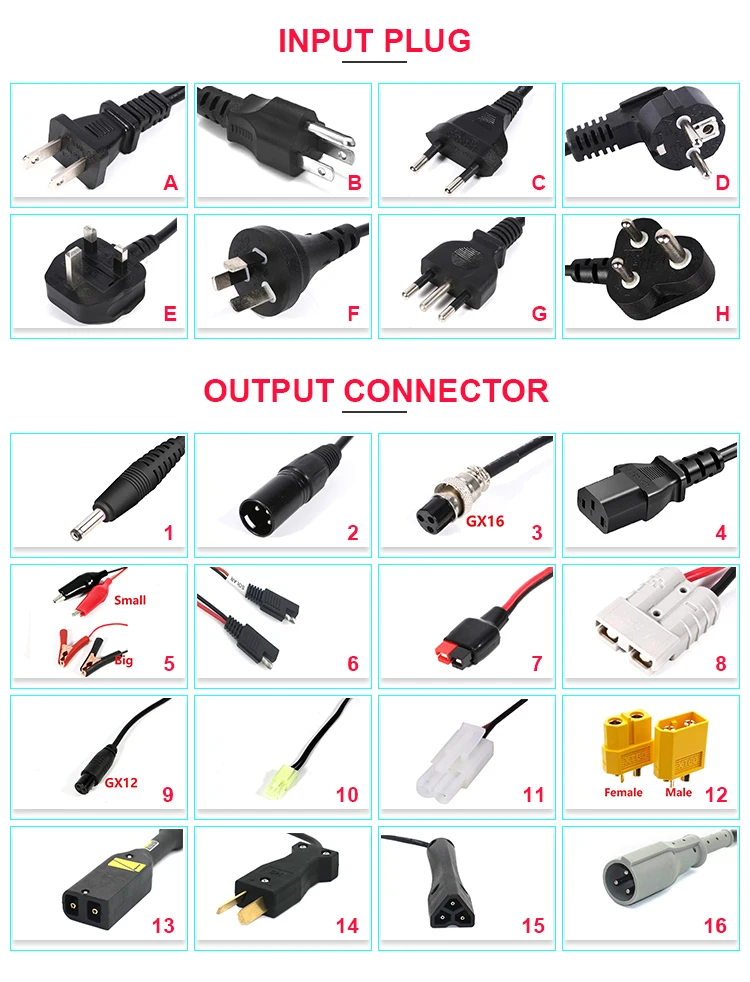

| Caution:Pick up the input plug and output connector from the below photo | |||
Pls pick up the input plug & output connector.
If you have any special requirement, please contact us!
If you have any special requirement, please contact us!
| Part No. | Max Power | Main Chargers | |||
Li-ion CC--CV 4.2v/cell | Lifepo4 CC--CV 3.65v/cell | Lead acid CC--CV--Float | size & weight (mm & kg) | ||
| 1 | 6W | 4.2v0.5-1a 8.4v0.5a | 3.65v0.5-1a 7.3v0.5a | 6v0.5a 12v0.5a | 58*25*41 0.08kg |
| 2 | 15W | 4.2v1.5a 8.4v1.2a 12.6v1a 16.8v0.5a | 3.65v1.5a 7.3v1.2a 10.95v1a 14.6v0.5-1a | 6v1-1.5a 12v0.8a | 74*29*32 0.11kg |
| 3 | 18W | 4.2v2a 8.4v1.5a 25.2v0.5a 29.4v0.5a | 3.65v2a 7.3v1.5a 14.6v1a 29.2v0.5a | 6v2a 12v1a 24v0.5a | 75*42*29 0.12kg |
| 4 | 24W | 4.2v3a 8.4v2a 16.8v1a | 7.3v2a 14.6v1.5a | 12v1.5a 24v0.8a | 83*44*31 0.13kg |
| 5 | 30W | 8.4v3a 12.6v2a 16.8v1.5a 25.2v1a 29.4v1a | 7.3v3a 10.95v2a 14.6v2a | 12v2a 24v1a | 94*47*33 0.16kg |
| 6 | 60W | 12.6v3a 16.8v2a 25.2v2a 29.4v2a 42v1.5a | 10.95v3a 14.6v2.5a 29.2v2a 43.8v1a | 12v3a 24v2a 36v1.5a | 119*60*35 0.32kg |
| 7 | 90W | 12.6v5a 16.8v4a 25.2v3a 29.4v3a 42v2a 54.6v1.5a | 12V/14.6v4a 24V/29.2v3a 36V/43.8v2a 48V/58.4v1.5a | 12v4a 24v3a 36v2a 48v1.5a | 139*62*35 0.40kg |
| 8 | 120W | 12.6v6a 16.8v5a 25.2v4a 29.4v4a 42v3a 54.6v2a 67.2v1.75a | 12V/14.6v6a 24V/29.2v4a 36V/43.8v3a 48V/58.4v2a 60V/73v1.5a | 12v6a 24v4a 36v3a 48v2a 60v1.5a | 172*72*40 0.58kg |
| 9 | 150W | 12.6v10a 25.2v5a 29.4v5a 42v3a 54.6v2.5a 67.2v2a | 12V/14.6v10a 24V/29.2v5a 36V/43.8v3a 48V/58.4v2.5a 60V/73v2a | 12v10a 24v5a 36v3a 48v2.5a 60v2a | 118*76*48 0.65kg |
| 10 | 240W | 12.6v15a 25.2v8a 29.4v8a 42v5a 67.2v3a 84v3a | 12V/14.6v15a 24V/29.2v8a 36V/43.8v5a 48V/58.4v4a 60V/73v3a 72V/87.6v2.5a | 12v15a 24v8a 36v5a 48v4a 60v3a 72v2.5a | 174*93*48 1.0kg |
| 11 | 360W | 12.6v20a 25.2v10a 29.4v10a 42v8a 54.6v5a 67.2v4a 84v4a | 12V/14.6v20a 24V/29.2v10a 36V/43.8v8a 48V/58.4v5a 60V/73v4a 72V/87.6v3.5a | 12v20a 24v10a 36v8a 48v5a 60v4a 72v3.5a | 174*93*63 1.2kg |
| 12 | 600W | 12.6v30a 25.2v20a 29.4v20a 42v12a 54.6v10a 67.2v8a 84v6a | 12V/14.6v30a 24V/29.2v20a 36V/43.8v10-15a 48V/58.4v10a 60V/73v8a 72V/87.6v8a | 12v30a 24v20a 36v12a 48v10a 60v8a 72v6a | 214*120*70 2.5kg |
| 13 | 900W | 12.6v50a 25.2v30a 29.4v30a 42v20a 54.6v15a 67.2v12a 84v10a | 12V/14.6v50a 24V/29.2v30a 36V/43.8v20a 48V/58.4v15a 60V/73v12a 72V/87.6v10a | 12v50a 24v30a 36v20a 48v15a 60v12a 72v10a | 240*150*90 3.5kg |
| 14 | 1200W | 12.6v60a 25.2v40a 29.4v40a 42v25a 54.6v20a 67.2v15a 84v12a | 12V/14.6v60a 24V/29.2v40a 36V/43.8v25a 48V/58.4v20a 60V/73v15a 72V/87.6v12a | 12v60a 24v40a 36v25a 48v20a 60v15a 72v12a | 260*175*95 5.5kg |
| 15 | 1500W | 12.6v80a 25.2v50a 29.4v50a 42v30a 54.6v25a 67.2v20a 84v15a | 12V/14.6v80a 24V/29.2v50a 36V/43.8v30a 48V/58.4v25a 60V/73v20a 72V/87.6v15a | 12v80a 24v50a 36v30a 48v25a 60v20a 72v15a | 290*175*95 7.5kg |
Related Products
About US
Exhibition
Certifications
Packaging&Shipping
FAQ
Q1. What are your main products?
Power Supply: 0-150W with 3V 4.5V 5V 6V 7V 9V 10V 12V 15V 18V 19V 20V 24V 25V 30V 36V 48V 60V Outputs
Battery Chargers within 1500W
Lithium/Lipo battery charger
Lifepo4 battery charger
Lead acid battery charger
Nimh/Nicd battery charger
Q2. What is the warranty of your products?
A: 2 years. we can offer the new ones to replace that defective products under warranty.
Q3: What certifications you have?
A: CE ROHS CB GS FCC UL SAA KC KCC PSE CCC for most of products
Q4. What is the lead time?
A: 2-5 days for samples, 12-15 days for mass order. 14 days for new designing.
Q5. What is the shipping way?
A: samples by air, mass order by air or sea. air shipment always choose Fedex,TNT, UPS, DHL with 4-5 days arrival.
Q6. What is the charging mode for your battery chargers?
CC--CV mode for Lithium ion/Lifepo4 Battery charger
CC--CV--Float mode for lead acid battery
CC--CV--Trickle mode for nimh battery
