Электическая Бетономешалка
US $109.12
Автоматический дизельный двигатель konkret смеситель строительное оборудование бетономешалка Электрический раствор цемента
- Категория: Concrete Mixers >>>
- Поставщик: Zhengzhou,Yize,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 500.27 $* | 525.6 $* |
| Aug-16-2025 | 496.52 $* | 521.43 $* |
| Jul-16-2025 | 416.8 $* | 437.70 $* |
| Jun-16-2025 | 487.24 $* | 511.26 $* |
| May-16-2025 | 424.28 $* | 445.65 $* |
| Apr-16-2025 | 479.4 $* | 503.28 $* |
| Mar-16-2025 | 475.96 $* | 499.31 $* |
| Feb-16-2025 | 470.43 $* | 494.77 $* |
| Jan-16-2025 | 466.82 $* | 489.1 $* |
Характеристики
Product Description
1.Brief introduction of cement concrete mixer machine:
Concrete mixer is the cement, sand aggregate mixed with water and stir to make concrete mixture of the machinery. Mainly including mixing canister, charging and discharging institutions, water supply system, prime mover, a transmission mechanism, frame and supporting equipment etc.

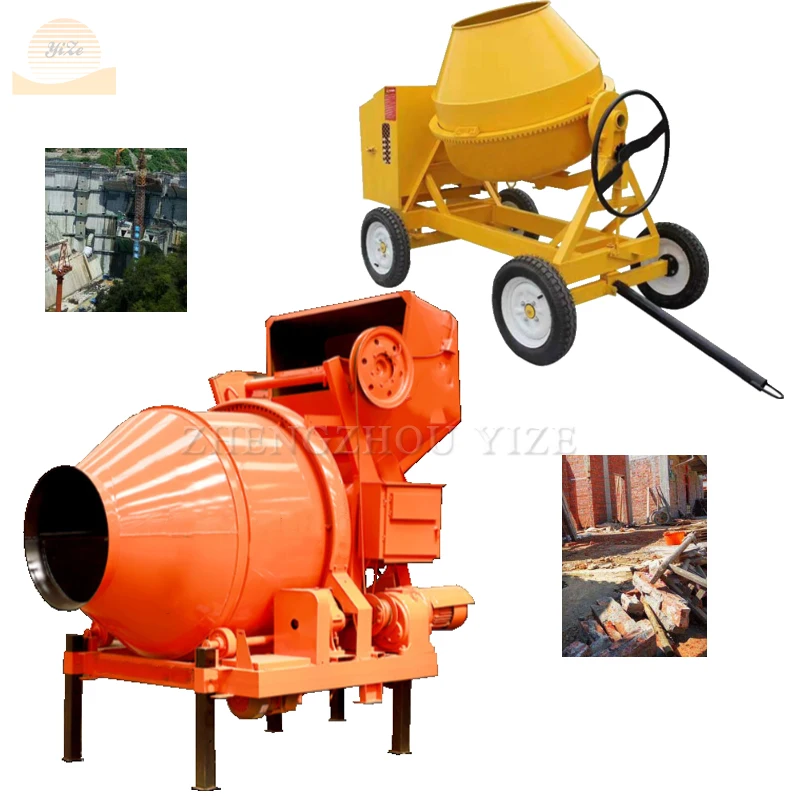

2.Different type of cement concrete mixer machine for you choose:
(1)Electric type:

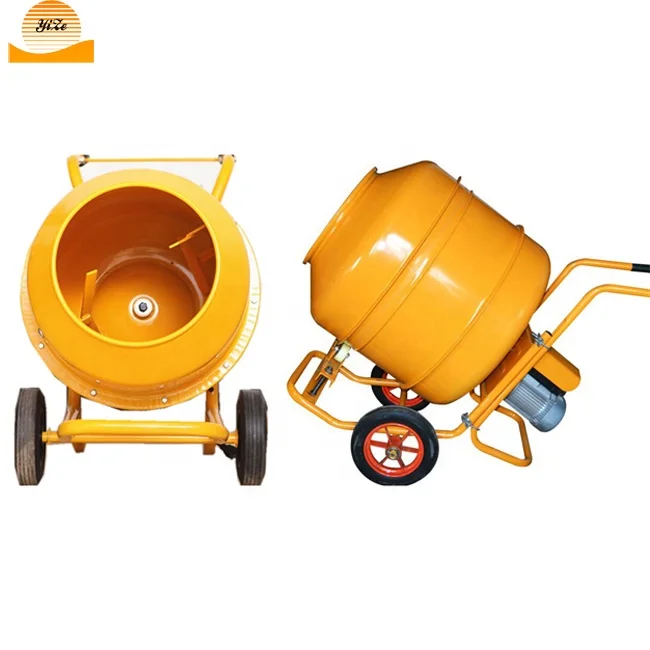

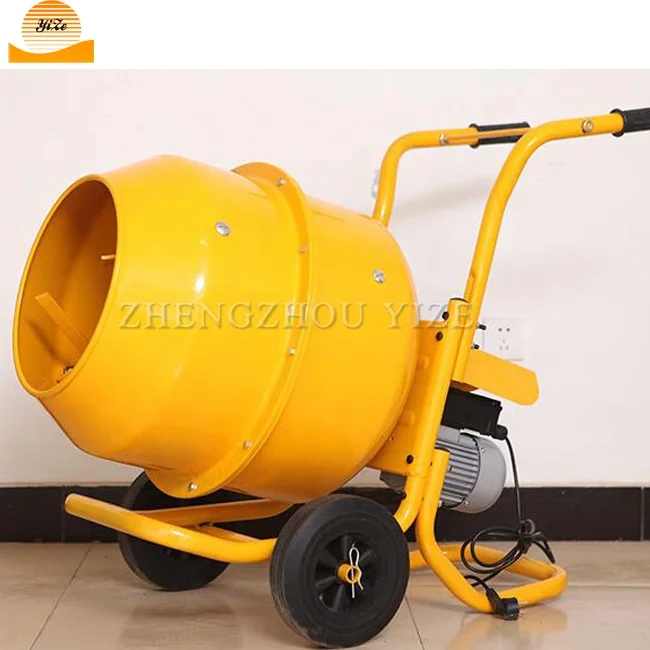

Small size portable electric cement concrete mixer:
Model | JZC160 | JZC250 | JZC350 | |||
Capcity | 160L | 250L | 300L | |||
Material | thicken steel plate | |||||
Cylinder diameter | 60CM | 60CM | 75CM | |||
Voltage | 220v, 50hz | |||||
Motor Power | 1500W | 1500W | 1500W | |||
Rotate speed | 40RPM | |||||
Operating type | continuous operation | |||||
Machine weight | 65 | 75 | 95 | |||
Machine packing size | 67*67*80cm | 92*63*67cm | 95*79*76cm | |||
More models and different capacity, just feel free to contact me. | ||||||

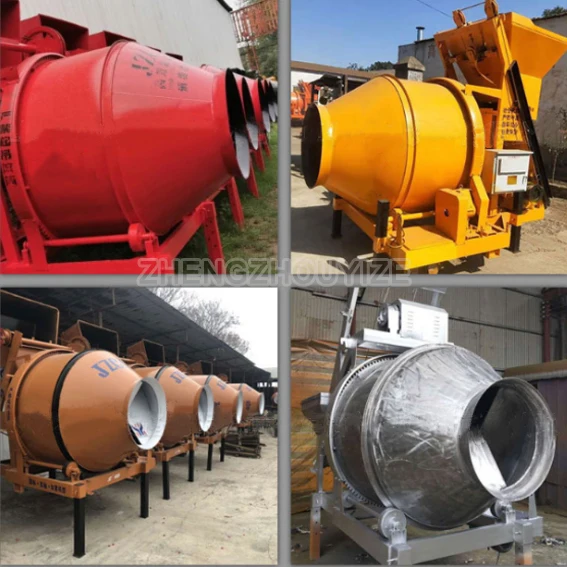

3.More pictures of Small size portable electric cement concrete mixer:
4. Machine structure:
5.Enlarged pictures about the Small size portable electric cement mixer:
Internal Structure:
Stir the blades internally Inertial agitation mode mix it more evenly.Material integrity is better.
Pure copper motor:
Pure copper motor power strong, high efficiency.
Roller riding wheel:
Effective bearing, support the front of rollerHigh strength wheelHardness does not damage the barrel.
6.Installation steps:
Motor waterproof bezel:
The upper end of the motor is equipped with waterproof baffle, which can effectively protect the motor and make it more reliable to use.High quality rubber walking:
wheel
Strong support, Proof Pressure,Abrasion ResistanceNo road conditions will affect the use
Strong support, Proof Pressure,Abrasion ResistanceNo road conditions will affect the use
(2)Diesel type:
Middle size portable diesel cement concrete mixer:
Model | YZ-2CP 260 | YZ-2CP 400 | YZ-2CP 550 |
Volume (L) | 260 | 400 | 550 |
capacity(m/h) | 3.5 | 5.3 | 7.5 |
Power(HP) | 6 | 6 | 6 |
weight(KG) | 300 | 320 | 350 |
Dimension(mm) | 1860×860×1000 | 1960×960×1200 | 2100×1060×1250 |
Large size portable diesel cement concrete mixer:
Model | JZC350 | JZC300 | JZC250 |
The expected capacity | 350L | 300L | 250L |
Feed capacity | 560L | 480L | 400L |
Productivity | 10-14 m3/h | 9-12m3/h | 7-10 m3/h |
Maximum aggregate size (pebble / gravel) | 60mm | 60mm | 60mm |
Mixing and elevating power | 5.5kw | 4kw | 4kw |
Water pump power | 0.55-0.75kw | 0.55kw | 0.55kw |
Overall dimension(mm) | 2766*2140*3000 | 2260*1990*2750 | 2250*1980*2750 |
Dragged speed (three roads) | 10-15km/h | 10-15km/h | 10-15km/h |
Machine weight | 1950kg | 1650kg | 1500kg |
7.Product use of cement concrete mixer machine:
Related production
Packing & Delivery
Our Service
Workshop & Company & Customer
Transanction & Feedback
FAQ & Contact
