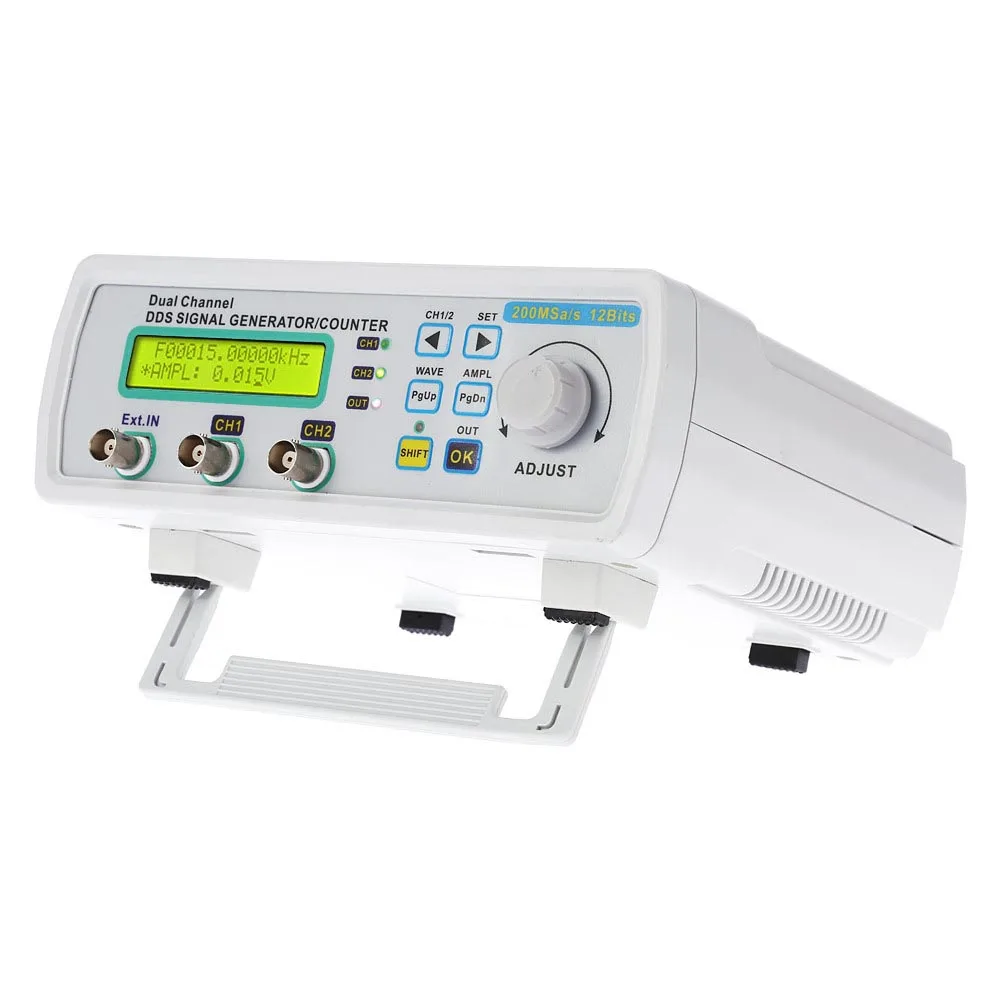

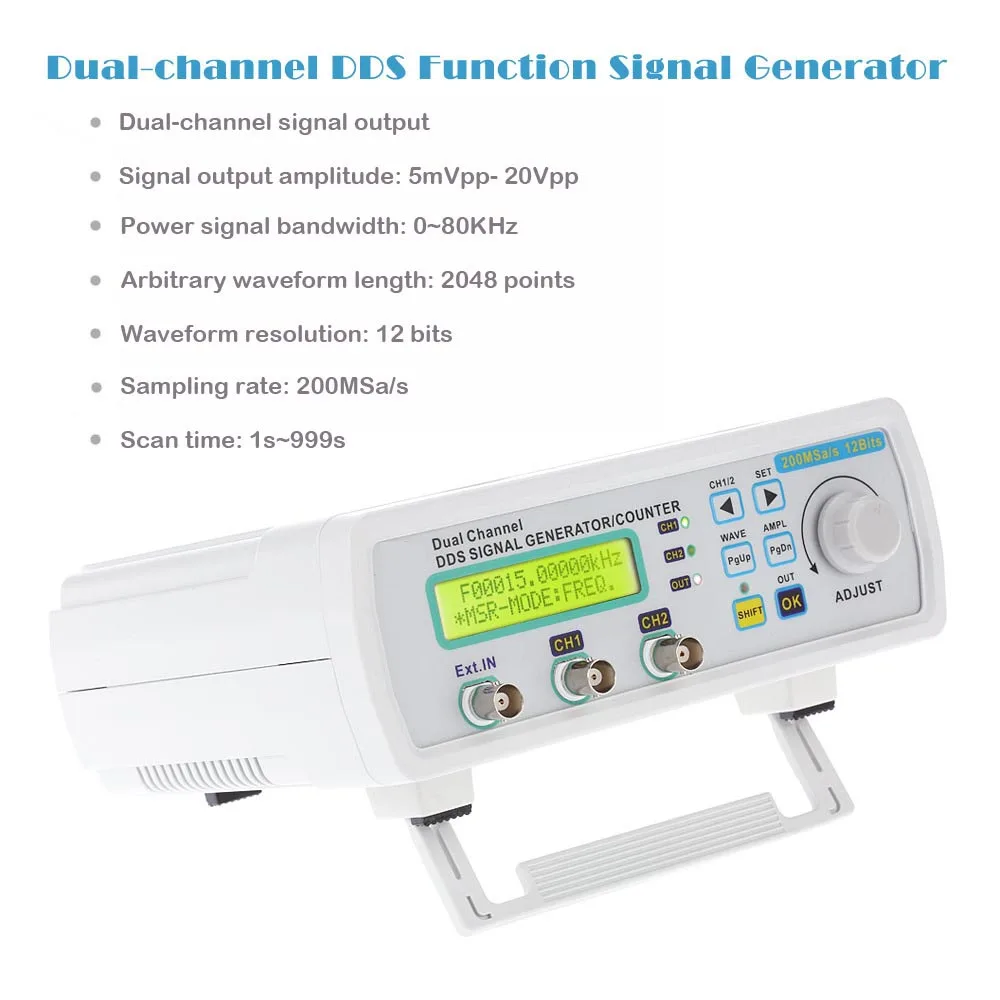

200MSa/s 20 МГц 2 канала функции DDS генератор сигналов произвольной формы цифровой
200MSa/s 20 МГц 2 канала функции DDS генератор сигналов произвольной формы цифровой
200MSa/s 20 МГц 2 канала функции DDS генератор сигналов произвольной формы цифровой
200MSa/s 20 МГц 2 канала функции DDS генератор сигналов произвольной формы цифровой
200MSa/s 20 МГц 2 канала функции DDS генератор сигналов произвольной формы цифровой

200MSa/s 20 МГц 2 канала функции DDS генератор сигналов произвольной формы цифровой


Поделиться:


Цена:113,00 $ - 115,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Aug-15-2025 144.31 $* 147.23 $*
Jul-15-2025 116.67 $* 118.22 $*
Jun-15-2025 141.57 $* 144.57 $*
May-15-2025 140.49 $* 143.3 $*
Apr-15-2025 112.11 $* 114.7 $*
Mar-15-2025 138.74 $* 141.85 $*
Feb-15-2025 137.46 $* 140.4 $*
Jan-15-2025 136.33 $* 139.47 $*

Характеристики


Product Description
Features:
Using DDS direct digital synthesis technology to generate precise, stable, low distortion output signal.
CH1 and CH2 completely symmetrical two channels, each channel can be independently set the parameters.
Supports user-defined waveform, each arbitrary waveform memory depth 2048*12bits, 200MSa/s sampling rate.
With pulse trains burst output function, allow the unit output 1~1048575 arbitrary pulse trains.
Measurement functions: 60MHz frequency meter and counter function.
Signal output amplitude range is 5mVpp- 20Vpp(front panel), DC offset adjustment range is -120% to 120%, the resolution is 1%.
Built-in precise -20dB attenuator, achieve a minimum amplitude resolution 1mV.
Digital signal output function, CMOS output range 0~10V.
Waveform resolution up to 12 bits wide, the output waveform is more delicate, waveform distortion is low.
With full CNC functions, display and adjust of current output signal parameters, such as the amplitude, offset, frequency, duty cycle, and the phase difference of two signals.
After connected with computer, user can control signal generator functions and parameters, and can edit and download arbitrary waveform.
High frequency accuracy and resolution: frequency accuracy up to 10^(-6) magnitude, total range frequency resolution is 10mHz.
Tracking function: built-in frequency, amplitude, offset, duty cycle, waveform and other parameters follow function, easy to use.
Scanning features: frequency linear sweep and logarithmic sweep function, start and end points of scanning can be set freely.
Storage features: can store 10 groups parameters set by the user(arbitrary wave can prestore 16 groups).
When connected to a PC, the PC can be used to control the instrument, and can be edited on a PC to download arbitrary waveform output waveform to the instrument.
With output short circuit protection and input over voltage protection.
.
Product Paramenters
Specifications:
Power Signal Bandwidth: 0KHz~80KHz

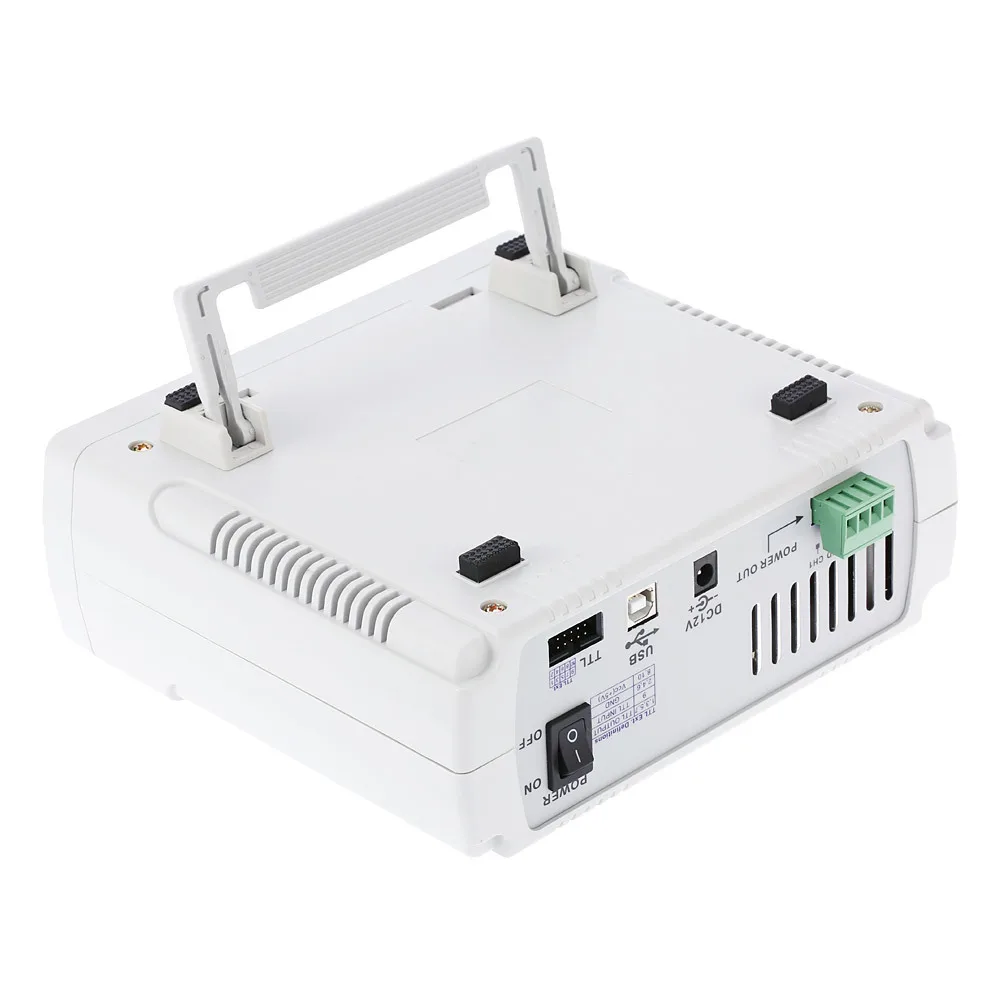

Output Signal Amplitude: 30mVp-p~30Vp-p(Rear Panel)
Maximum Output Current: 1A
Maximum Power Output: 15W*2(Dual-Channel Power Amplifier)
Output Short Circuit Protection: Have(Limiting)
Output Impedance: ≤1Ω
Output Phase: In phase with the signal terminal
Distortion: <1%
Output Signal Flatness: ±1dB
