Характеристики
Product Description
High Quality SUS304 commercial vegetable cutting machine
Description of vegetable cutting machine:
CHD-80 digital vegetable cutting machine is a new type of vegetable cutting machine developed by our factory using digital technology. This machine can cut leaf vegetables (cabbage, spinach, lettuce etc) into shreds and cut stem vegetables (celery, lemon, grass etc) into sections.
The machine adopt a rotating cutter disc to cut vegetable into sections or slices, good quality cut surface, fresh and no damage to fibrous of cut product, the cutting thickness and size uniform.
The machine is high in efficiency, easy to operate, low in energy consumption, hygienic, safe and efficient, and is an ideal
equipment for the fresh and dehydrated vegetables processing industry.
Advantage of vegetable cutting machine
1. Suitable for cutting, slicing and dicing root and stem vegetable, also suitable for cutting leafy vegetables into different
size length.
2. Full machine with SUS304, cutter head and plate made with aluminium magnesium alloy.
3. Variable frequency control the cutting and belt moving speed.
4. High efficiency, equals to 10 workers.
The machine is high in efficiency, easy to operate, low in energy consumption, hygienic, safe and efficient, and is an ideal
equipment for the fresh and dehydrated vegetables processing industry.
Advantage of vegetable cutting machine
1. Suitable for cutting, slicing and dicing root and stem vegetable, also suitable for cutting leafy vegetables into different
size length.
2. Full machine with SUS304, cutter head and plate made with aluminium magnesium alloy.
3. Variable frequency control the cutting and belt moving speed.
4. High efficiency, equals to 10 workers.
Technical Parameter
Model | CHD80 |
Power/Voltage | 2.2Kw/220V/50HZ or Customized |
Capacity | 200-2000Kg/H |
Weight | 155Kg |
Size | 1200*660*1000Mm |
Cutting Size (Length) | 1-30Mm(Adjustable) |
Cutting Size (Slices) | 1-20Mm(Adjustable) |
Cutting Size (Shreds) | 1-30Mm(Adjustable) |
Function | Leafy And Stem Vegetable Cutting Length, Root Vegetable Slicing and Shredding Change Blade Molding. |
Details Images

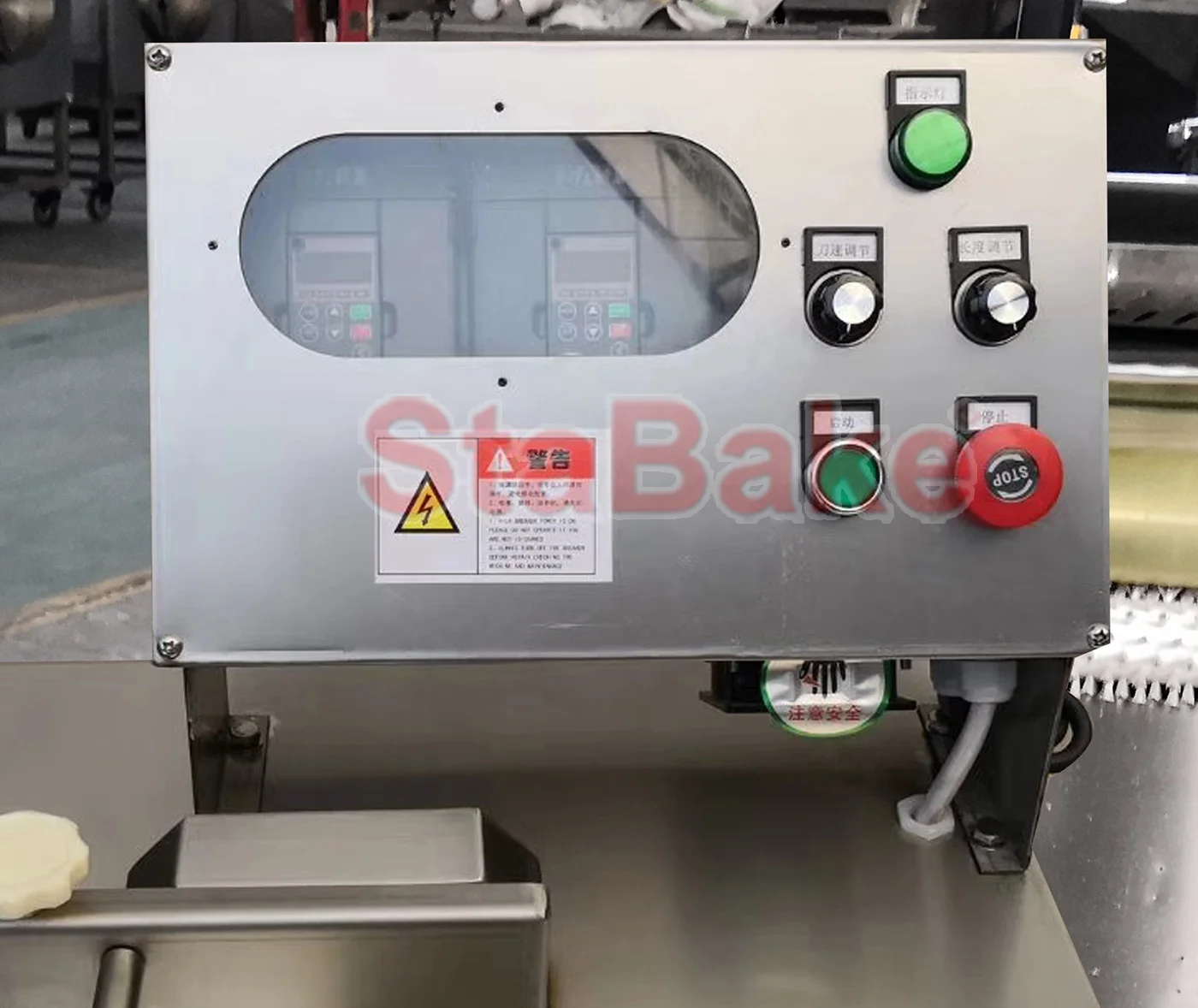

Advanced Digital Control Box
Advanced digital adjustable system for easy operating;
Dual Frequency converter for better speed regulation of both blade and belt;
Cutting size1-40mm can be finished by adjusting the blade and belt speed;

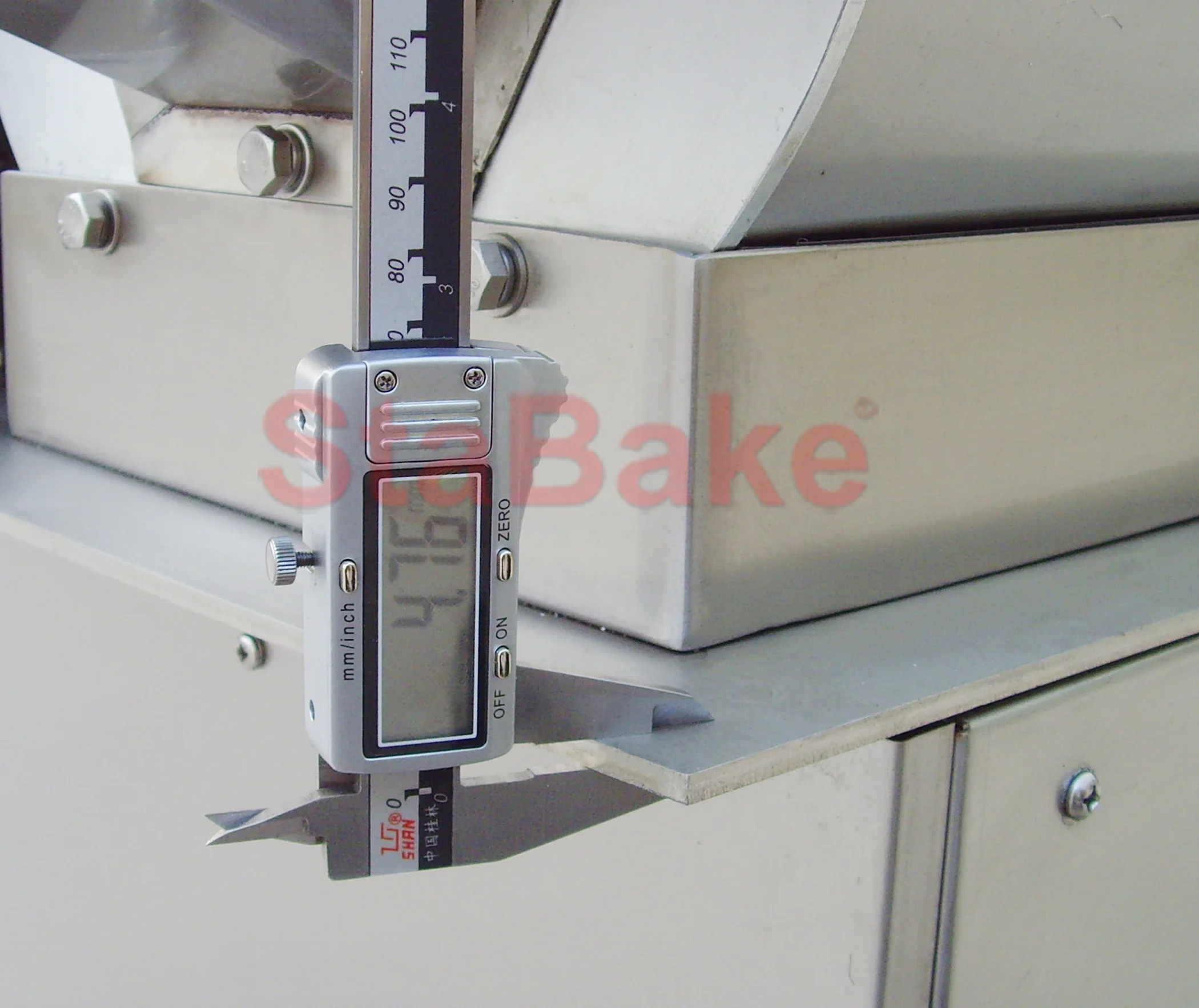

Input Cutting Belt Adjusting System
With height adjustor, more accurate and easier to adjust feeding port height.
Input belt height upto 10cm, increase capacity and efficiency;More convient to operate for the users.
Patent Juice Outlet Design
Patent design, no other suppliers with it;
Juice and water during cutting flow out;
More clean and sanitation for cutted product;
Waterproof and protection of the machine.
Residue Cleaning Port Design
Patent designing;
Humanized design;
More easier and convenient to clean the belt.
SS304 Stainless Steel Bearing
SS304 Stainless steel bearing;
Bearing waterproof design;
Prolong bearing lifetime.
Water Feeding Port
Water feeding for blade clearing;
Input water during high salinity vegetable cutting;
High Precision Blade Disc
High precision and complex process for the blade disc;
Final belt port front design;
More accurate for vegetable cutting.
Whole machine SS304 stainless steel, ensure hygiene and durability;
Adopt GB copper clad aluminum four-wire cable, with ground wire.
Other Relate Machine
Model | Power(Kw) | Capacity(Kg/h) | Weight(Kg) | Dimension(mm) | Cutting Size |
CHD20 | 0.55 | 120-350 | 55 | 715*455*580 | Length/Slices/Shreds:1-30mm |
CHD40 | 0.75 | 200-500 | 75 | 590*660*1150 | Slices/Shreds/Cubes: 2mm, 3mm or Customized |
CHD60 | 1.5 | 200-500 | 90 | 720*550*1100 | Length/Slices/Shreds: 1-20mm |
CHD80 | 2.2 | 500-3000 | 155 | 1200*660*1000 | Length/Slices/Shreds: 1-30mm |
CHD80II | 3.75 | 500-3000 | 230 | 1320*680*1200 | Length/Slices/Shreds: 1-30mm Cubes:5mm,10mm,15mm or customized |
CHD200 | 3 | 200-3000 | 168 | 1230*680*1280 | Length/Slices/Shreds:1-40mm |
Company Profile
Our Service and Strength
Pre-sales service:
♦ Inquiry and consulting support. ensure each inquiry quick response competitive offer within 24 hour.
♦ Project Design. Assist you to choose equipment, design project flow chart according to the actual production environment and production requirements.
♦ Sample testing support in our factory. And view our factory.
♦ Full document. all necessary document will be provide.
Service in ordering:.
♦ Provide machine’s details and video to help you use the machine more better
♦ Installation Training. Provide online guidance for equipment installation and debugging; or send technician to install and debug machine and train your workers if needed.
After-sale service
♦ One year warranty. Lifetime maintenance and technical support;
♦ 24 hours online for technical consulting service;
♦ Once Problems on equipment, provide phone or on-site troubleshooting fault response plan.
♦ Oversea service. Engineers available to service overseas.
♦ Large amount of spare part in-stock ensure that your machine in service in shortest time possible.
♦ Inquiry and consulting support. ensure each inquiry quick response competitive offer within 24 hour.
♦ Project Design. Assist you to choose equipment, design project flow chart according to the actual production environment and production requirements.
♦ Sample testing support in our factory. And view our factory.
♦ Full document. all necessary document will be provide.
Service in ordering:.
♦ Provide machine’s details and video to help you use the machine more better
♦ Installation Training. Provide online guidance for equipment installation and debugging; or send technician to install and debug machine and train your workers if needed.
After-sale service
♦ One year warranty. Lifetime maintenance and technical support;
♦ 24 hours online for technical consulting service;
♦ Once Problems on equipment, provide phone or on-site troubleshooting fault response plan.
♦ Oversea service. Engineers available to service overseas.
♦ Large amount of spare part in-stock ensure that your machine in service in shortest time possible.
Customer Photos
FAQ
1. Q: Are you the factory? and the factory location? A: Yes. we are the original factory in Jinan of China. 2. Q: What is the warranty A: One year warranty, except of wear part. From the date when machine was received, any fault, not the reason of wrong operation during warranty period could be repaired freely. But the travel and hotel expenses should be paid by buyer. 3. Q: What is the after sale service A: We could offer full manual book and 24 hours on-line trouble shooting service if any operation problem or break down. 4. Q: What about the shipping methods Ocean freight, air freight, land freight and express. Delivery service to the port or to door available. 5. Q: How long is your delivery time? A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity. 6. Q: What is your terms of payment ? A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance ,balance before shippment. If you have another question, pls feel free to contact us as below: 7. Q: What kind of payment ways can you accept? T/T, L/C, Western Union. Trade Assurance Order on Alibaba. | ||||||
