Однополюсная лампа управления и капиллярный термостат тип 8


Поделиться:


Цена:*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-15-2025 0.31 $* 0.85 $*
Aug-15-2025 0.40 $* 0.91 $*
Jul-15-2025 0.35 $* 0.96 $*
Jun-15-2025 0.85 $* 0.20 $*
May-15-2025 0.68 $* 0.25 $*
Apr-15-2025 0.11 $* 0.88 $*
Mar-15-2025 0.77 $* 0.12 $*
Feb-15-2025 0.34 $* 0.68 $*
Jan-15-2025 0.87 $* 0.30 $*

Характеристики



Product Description

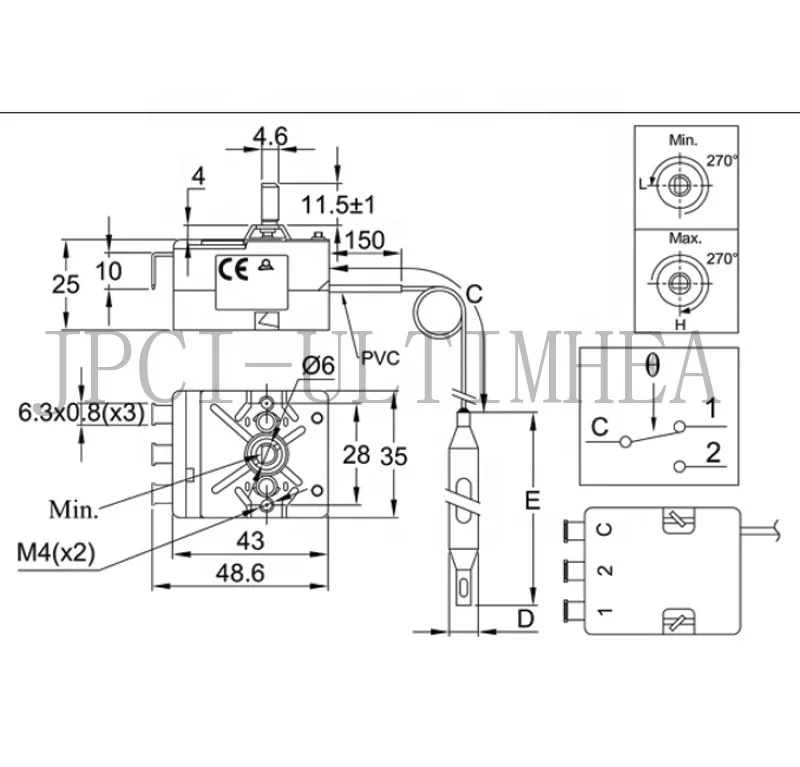

TECHNICAL FEATURE

Housing dimension ; 43*35*29 mm(without terminal )

Bulb and capillary :stainless steel . capillary length 250mm or 1500 mm,150mm long PVC sleeve on capillary , capillary minimum bending radius 5mm.

Temperature sensing element: liquid filled bulb and capillary.

Terminals: 6.35 X0.8 quick connect terminals (M4 screws also available on request )

Adjustment: Dia 6mm shaft with 4.6mm flat ,length 11.5mm other lengths,screw drive adjustment or fixed setting available on request

Mounting : Front bracket with 2XM4 threads 28MM distance

Rating : 16A(4) 250VAC

Contacts : SPDT (snap action contact )

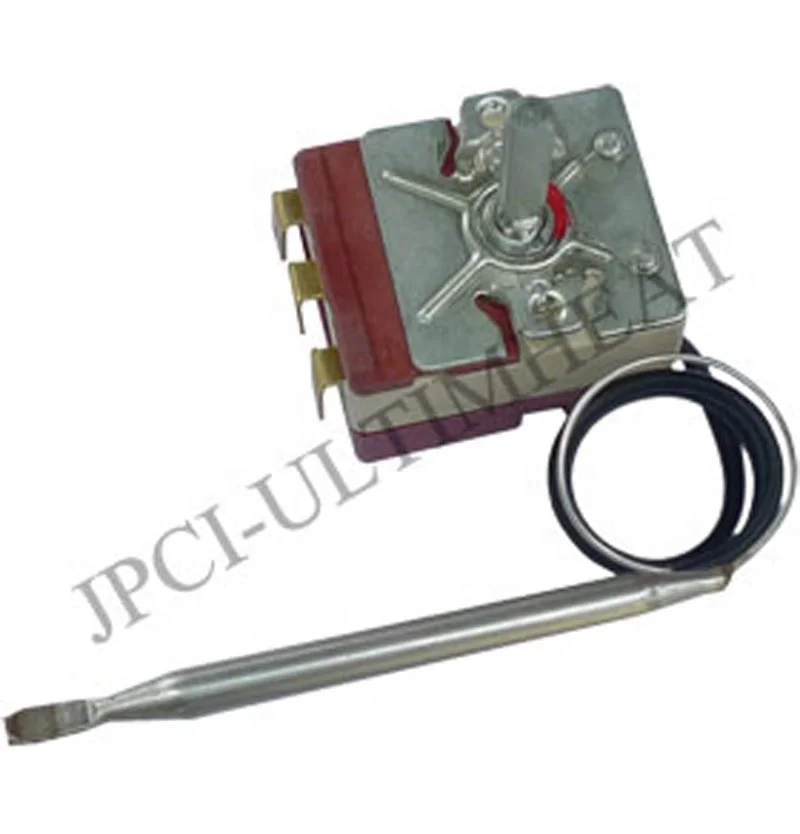

Detailed Images




Packing&Shipping




Company Introduction


Company profile:

Established in China since 2000, with French technology and investment, our company is proud to have more than 60 years experience in manufacturing electromechanical components and 30 years experience in manufacturing safety component for Spas, swimming pools and hot tubs. This experience, combined with high tech equipment and high tech raw materials let us develop the new components needed by rapid expansion of Asian and Chinese market.
In our new factory, on more than 8000 square meters production lines, we have two manufacturing divisions:
Division one is producing components:

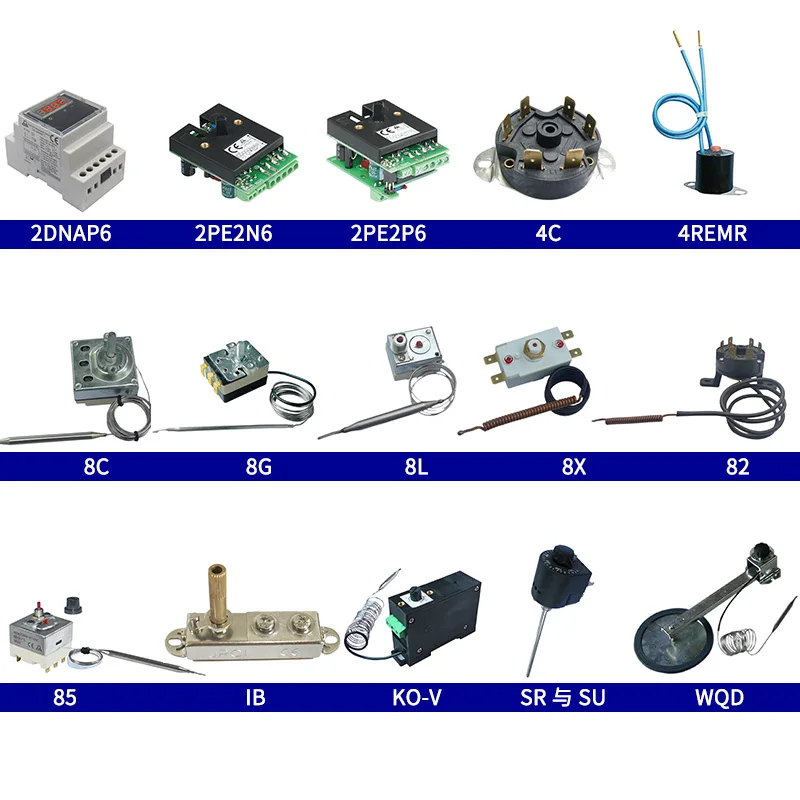

Thermostats, energy regulators pressure switches, level switches, flow switches, fire detection fusible links, heating elements and ceramic connection blocks.
Division two is producing complete assemblies and sub assemblies on customer specifications:

Swimming pools heaters, heat pumps backup heaters, spas heaters, small water heaters, immersion heaters, aluminum foils heaters, baseboard and convection heaters sub assemblies
Our R&D team develops new products upon customer specification, taking care of international safety standard (UL, CE, etc.).
We produce our own stamping, bending, plastic injection, zinc alloy injection, and machining.
We are equipped with up to date automatic and CNC TIG welding and laser welding equipment and ultrasonic welding checking.
We have our own climatic room, corrosion testing loops, salt spray testing, and more than 30 specific equipments for products life testing.
Our income quality control laboratory is equipped to check raw material (plastics, metals) physical characteristics and dimensions.
Our finished product control laboratory has more than 200 machines to calibrate and check temperature, pressure, level and flow controls.
From the raw material to the finished product we control every production step. Meet your control equipment demand rapidly and safely is our consistent promises.






Basic Information
Product/Service Sell: Flow switches, level switch,pressure switch, thermostat,heating elements, back up heaters for heat pumps
Number of Employees:200 to 300 People
Main Markets:North America/South America/Eastern Europe/Southeast Asia/Africa/Oceania/Mid East/Eastern Asia/Western/Europe/Northern Europe/Southern Europe/Domestic Market
Total Annual Sales Volume: US$2.5 Million - US$5 Million


Exhibition




Domestic : China Heat Pump Exhibition ,Shanghai city , 15th-17th March every year
Oversea : It depends,normally in Europe,


Contact


Winnie Lee
JPCI Controls Co., Ltd

Member of Ultimheat alliance

(JPCI has been awarded High and new technology certificate by Chinese government.)

Tel: +86(0)757 8881 3287   Fax: +86(0)757 8868 1850
E-mail: sale@jpci.cn
Http://www.jpci.cn  / Http://www.ultimheat.com
