Прямая поставка с китайской фабрики электролитический выпрямитель постоянного тока высокой мощности 1500 А/36 В Регулируемый источник

Описание и отзывы

Трекер стоимости

Характеристики

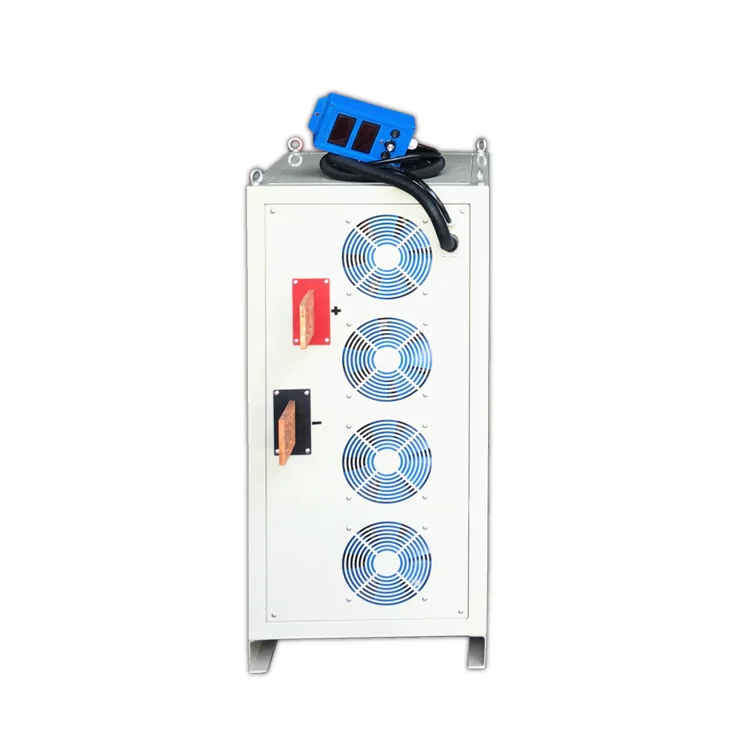

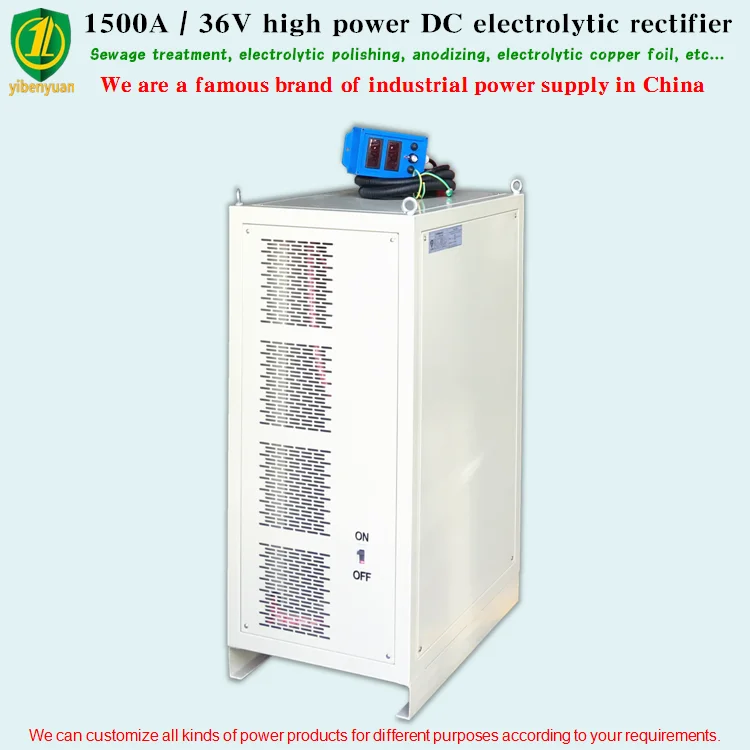

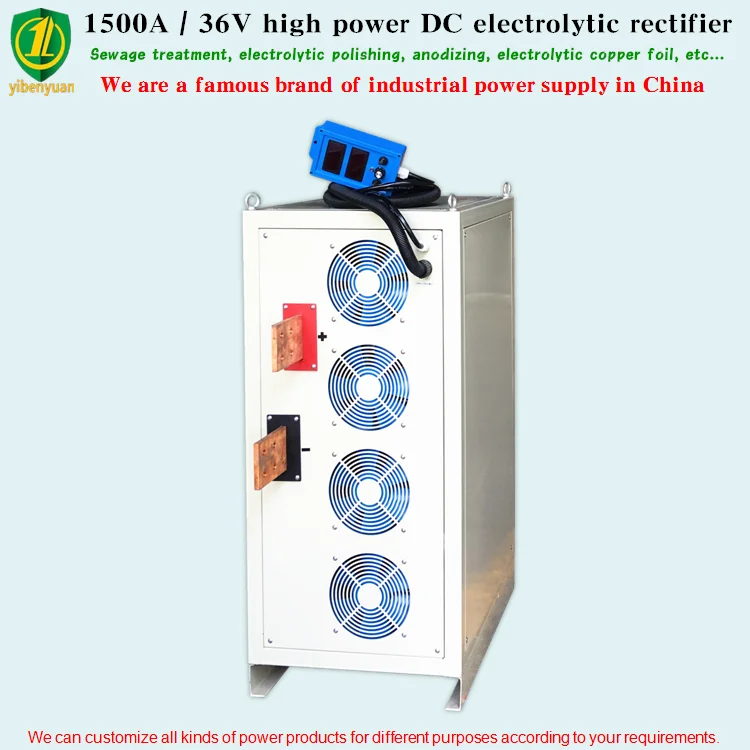

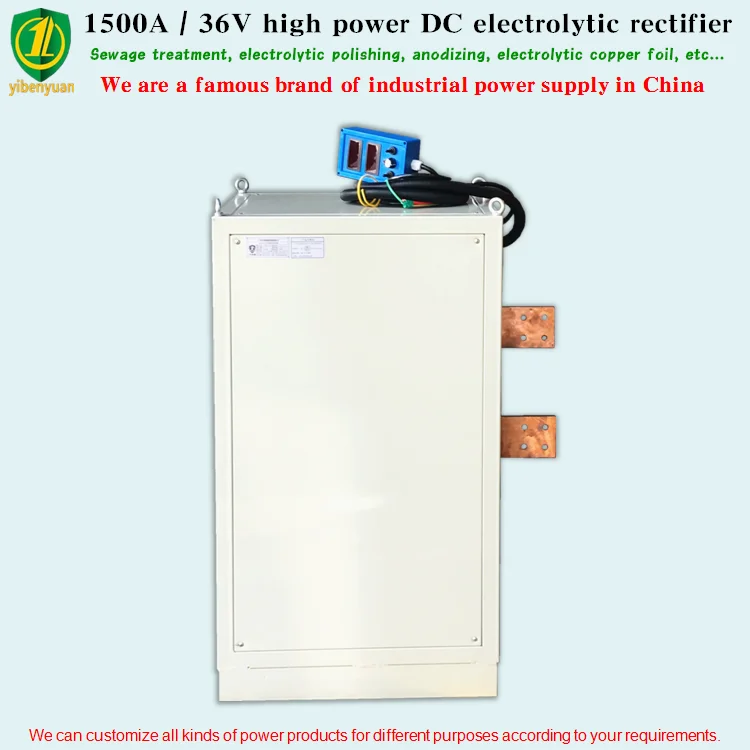

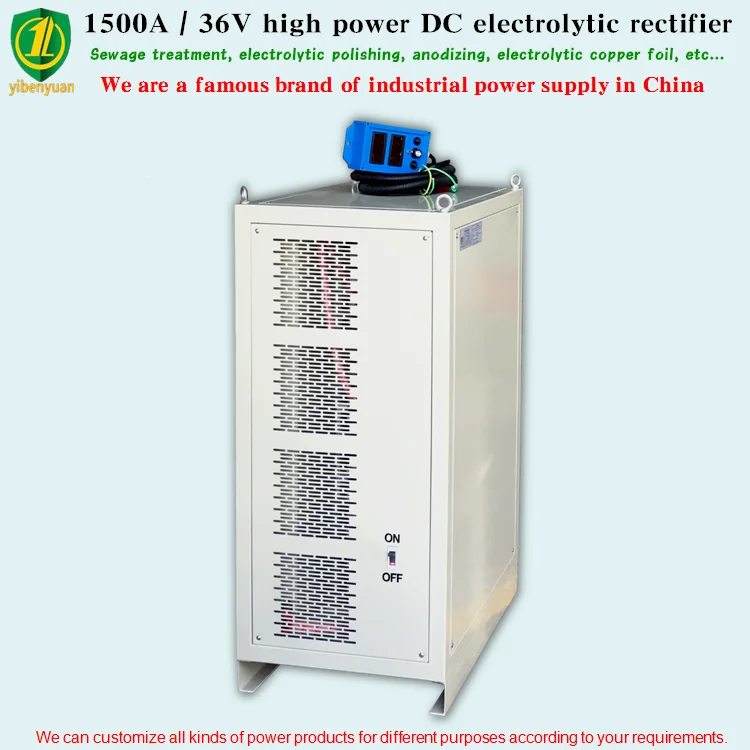

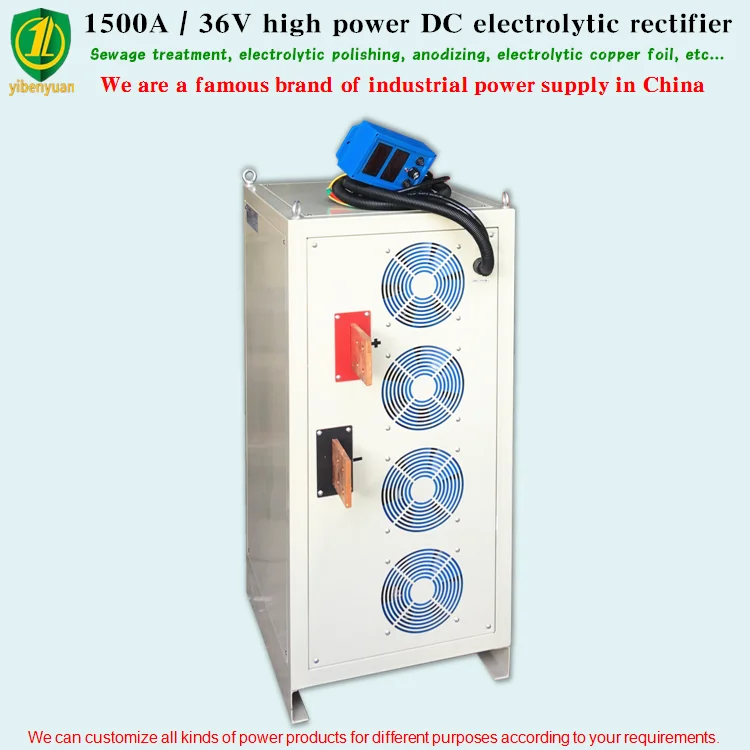

Chinese factory direct 1500A / 36V high power DC electrolytic rectifier, adjustable DC power supply





































1500A 36V high power programmable DC power supply, 600KW super high power electrolytic power supply

1. This is a high-powerDC power supply. The voltage and current are continuously adjustable, and constant voltage or constant current can be selected. The voltage is stable, the current output range is large, and the application range is wide: electrolytic copper foil, non-ferrous metal electrolysis, ore electrolysis, rare earth ore smelting, water electrolysis, urban sewage treatment, industrial wastewater electrolysis, seawater desalination, etc...
2. This power supply adopts the control circuit of the world's advanced control system PWM technology and stable and reliable circuit topology design, and is equipped with Infineon brand module (IGBT), high frequency transformer and LC filtering technology produced in Germany. High work efficiency, low power factor and good energy saving effect.
3. The internal control circuit board is completely sealed, strictly isolated from the environment, preventing acid mist or dust pollution, preventing the short circuit caused by the entry of small insects, greatly improving the safety and service life of the product; all the circuit boards After assembly and debugging, the second dipping treatment is adopted to prevent moisture, dust and corrosion.
4. electronic components and important components leave a large design margin, to ensure that the equipment can maintain continuous operation in the long run.
