Customize dies for TDP series and ZP series tablet press machine according to your picture or design to customize production
TDP single punch tablet press

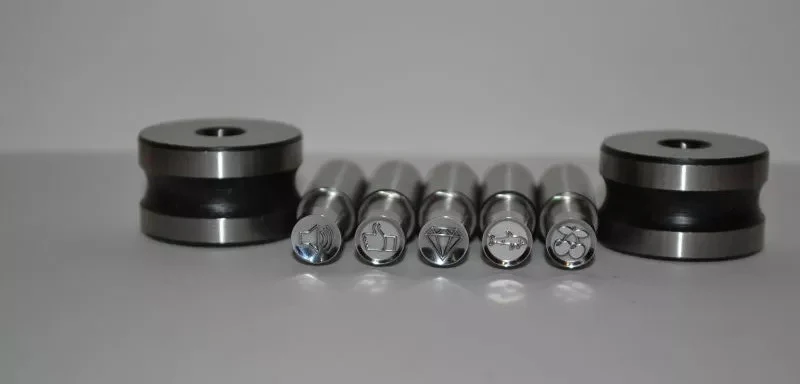

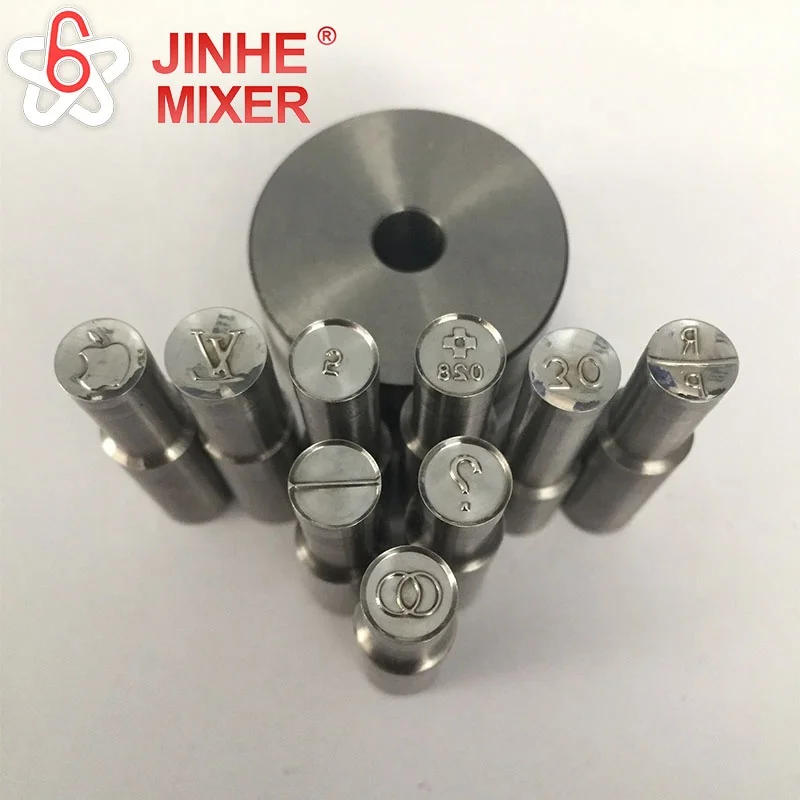

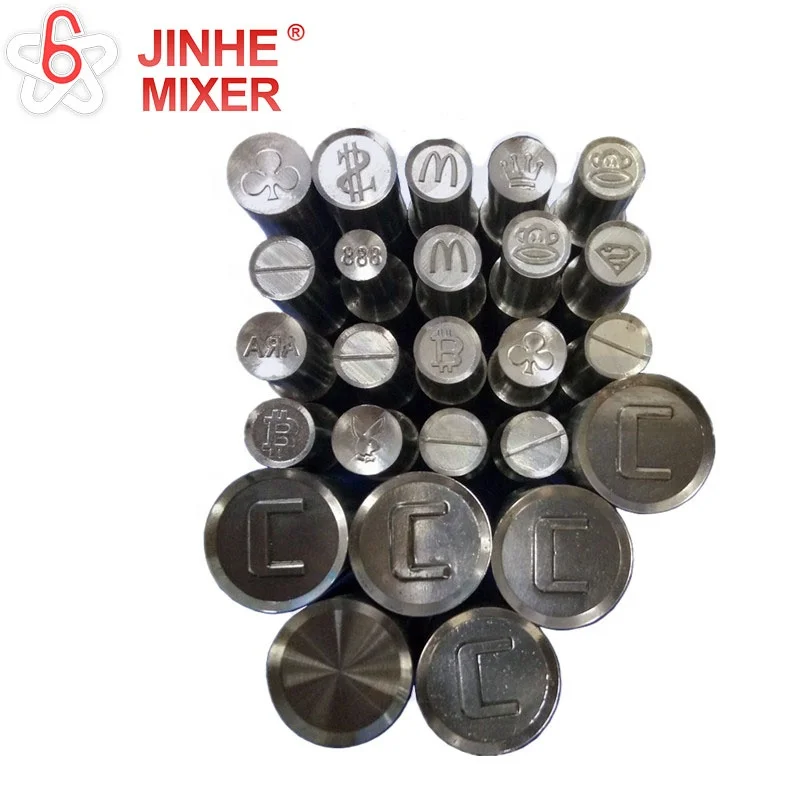

The tablet press mold is an important part of the tablet press and is also known in the industry as a tablet press die. The die of a tablet press is divided into three parts: upper punching die, medium punching die and lower punching die. In the process of material, heat treatment, grinding, polishing, etc., it has many years of technical experience. Especially in the selection of materials, imported steel is especially used to improve the quality of the mold. In terms of technical specifications, we always adhere to manufacturing standards. The tablet press mold is assembled on the tablet press for pressing Chinese and Western medicine tablets, nutrient tablets, lozenges, spirulina tablets, milk tablets, vitamin C effervescent tablets, effervescent tablets, seasoning blocks, camphor balls (health balls), Aromatic balls, disinfectant tablets, fertilizer tablets, bath salt balls, button batteries, electronic components, metallurgical powder ceramics.
Technical Parameters:
Model
TDP-1.5T
TDP-1.5L
TDP-1.5W
TDP-5T
TDP-6T
Max.Pressure(KN)
15
15
15
50
60
Max.dia.of table(mm)
12
12
12
18
25
Max.Depth of fill(mm)
12
12
12
16
16
Thickness of largest table(mm)
6
6
6
6
6
Production capacity(pcs/h)
6000
6000
6000
6000
5000
Motor(KW)
0.55
0.37
0.37
0.75
1.5
Overrall size(mm)
570×380×630
530×360×590
550×470×550
650×440×650
750×380×700
Net weight(kg)
95
45
40
128
165
Pictures:
Features:
1. Glossy finished stainless steel belt cover, as clean as a whistle, no pollution, meets the GMP standard. 2. Only a pair of punch and die can be erected on this machine, both filling depth
of materials and thickness of tablet are adjustable.
3. Larger diameter tablets up to 25mm (TDP-6T).

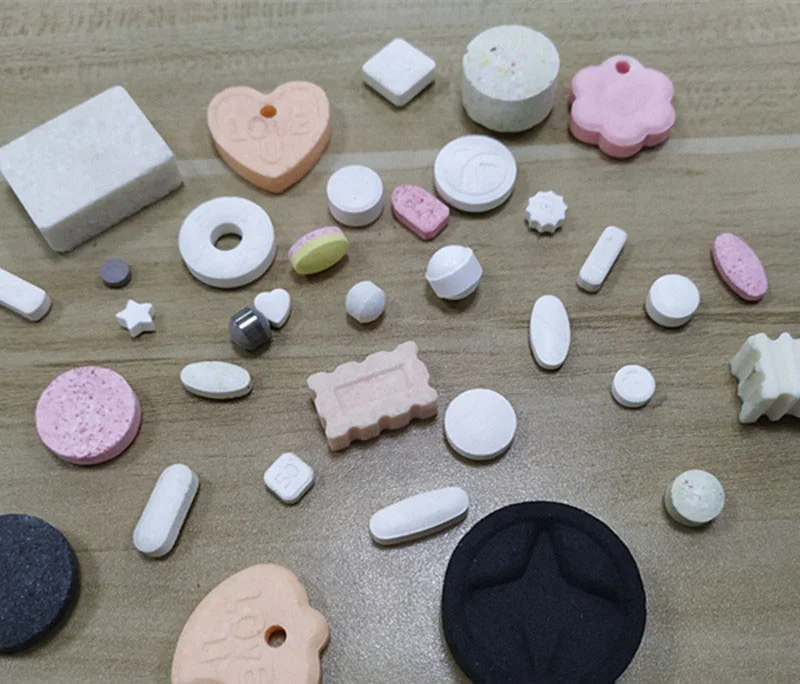

4. Press both round and irregular tablets. 5. Power supply: AC, 220V/50HZ or 110V/60HZ 1 phase or customization. 6. Free with a pair of punch and die. 7. High precision of filling, lower consumption of materials, the minimum consumption of lab materials is just 200 g. 8. Small volume, light weight, works smoothly and low noise.
Applicable industry examples:
1. Pharmaceutical industry: medicine tablets, nutrient tablets, etc.
—>
—>
—>
—>
—>
—>
