Серии DD /CA45DD /CA45DD010-300 / CA45DD010-305 /CA45DD000-301 Тип Компрессионный фитинг трубы клапанов реактивного сопла импа
- Категория: Электромагнитные клапаны >>>
- Поставщик: Ningbo,Baotian,Automation,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 19.73 $* | 20.12 $* |
| Aug-19-2025 | 19.25 $* | 20.6 $* |
| Jul-19-2025 | 16.99 $* | 17.18 $* |
| Jun-19-2025 | 19.44 $* | 20.63 $* |
| May-19-2025 | 16.50 $* | 17.38 $* |
| Apr-19-2025 | 18.99 $* | 19.73 $* |
| Mar-19-2025 | 18.49 $* | 19.51 $* |
| Feb-19-2025 | 18.26 $* | 19.87 $* |
| Jan-19-2025 | 18.25 $* | 19.49 $* |
Характеристики
Products Description

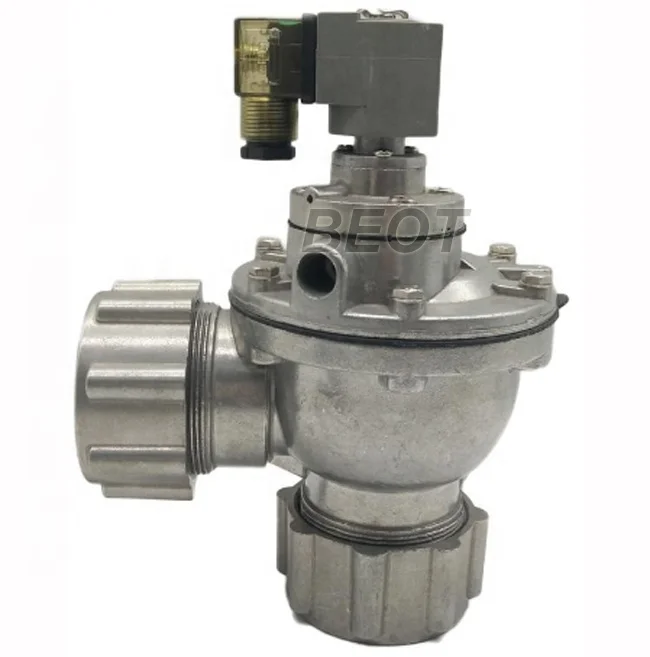

CA45DD type compression fitting pipe pulse jet valve
CA45DD /CA45DD010-300 / CA45DD010-305 /CA45DD000-301 type pulse jet valves . It is compression fitting pipe version, there are fixed nut at both ends which make it easy to install and use the valve.
It is also right angle with the 90o angle between the inlet and outlet, & solenoid control, 2-way dust collector valve used for pulsing large volumes of air into filter bags for particulate removal.
It is also right angle with the 90o angle between the inlet and outlet, & solenoid control, 2-way dust collector valve used for pulsing large volumes of air into filter bags for particulate removal.
We produce series pulse jet valve: CA20T , CA25T , CA35T , CA45T , CA50T , CA62T , CA76T , CA25DD , CA45DD ,CA25FS, CA45FS , CA50MM, CA62MM, CA76MM, CA89MM
RCA20T , RCA25T , RCA35T , RCA45T , RCA50T , RCA62T , RCA76T , RCA25DD , RCA45DD , RCA25FS, RCA45FS , RCA50MM, RCA62MM, RCA76MM, RCA89MM
Technical Data | ||
Working pressure | 0.3~0.8Mpa | |
Relatively humidity | <85% | |
Working medium | Clear Air | |
Voltage | AC110V/AC220V/DC24V | |
Ambient Temperature | for -5~50°C | |
Diaphragm material | NBR(Nitrile) or VITON (NBR for -5~80°C; VITON for -5~230°C) | |
Diaphragm life cycles | can work more than 1 million cycles | |
Spring material | stainless steel | |
Body material | die-cast aluminium | |
