Биопленочный реактор с движущейся платформой k1 mbbr
- Категория: Фильтр для воды >>>
- Поставщик: Guangzhou,Dahui,Aquaculture,Limited
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-18-2025 | 32191.23 $* | 32835.61 $* |
| Jul-18-2025 | 26107.80 $* | 26629.85 $* |
| Jun-18-2025 | 31684.79 $* | 32318.19 $* |
| May-18-2025 | 31430.7 $* | 32059.94 $* |
| Apr-18-2025 | 25094.64 $* | 25596.3 $* |
| Mar-18-2025 | 30923.47 $* | 31541.59 $* |
| Feb-18-2025 | 30670.44 $* | 31283.53 $* |
| Jan-18-2025 | 30416.8 $* | 31024.72 $* |
Характеристики

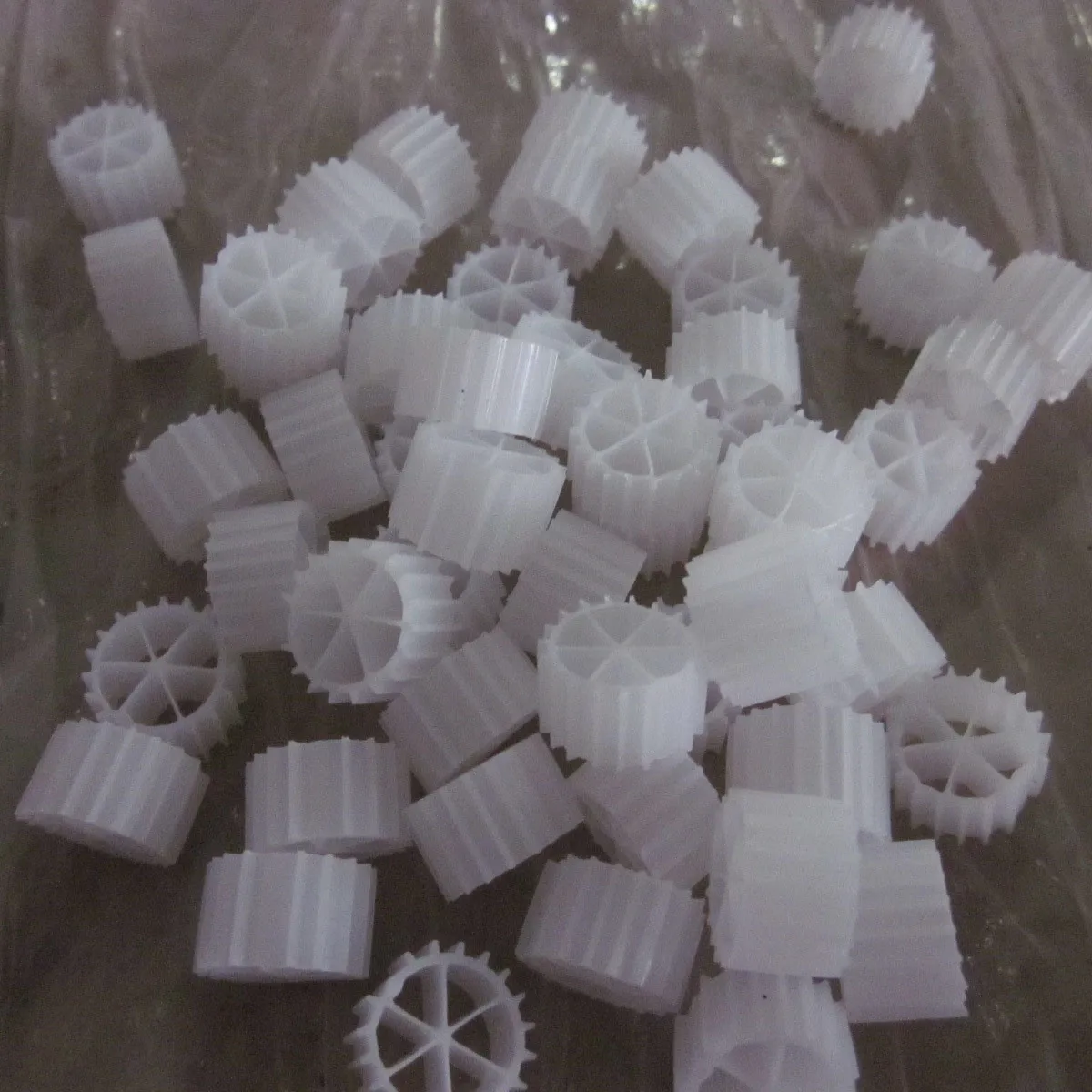

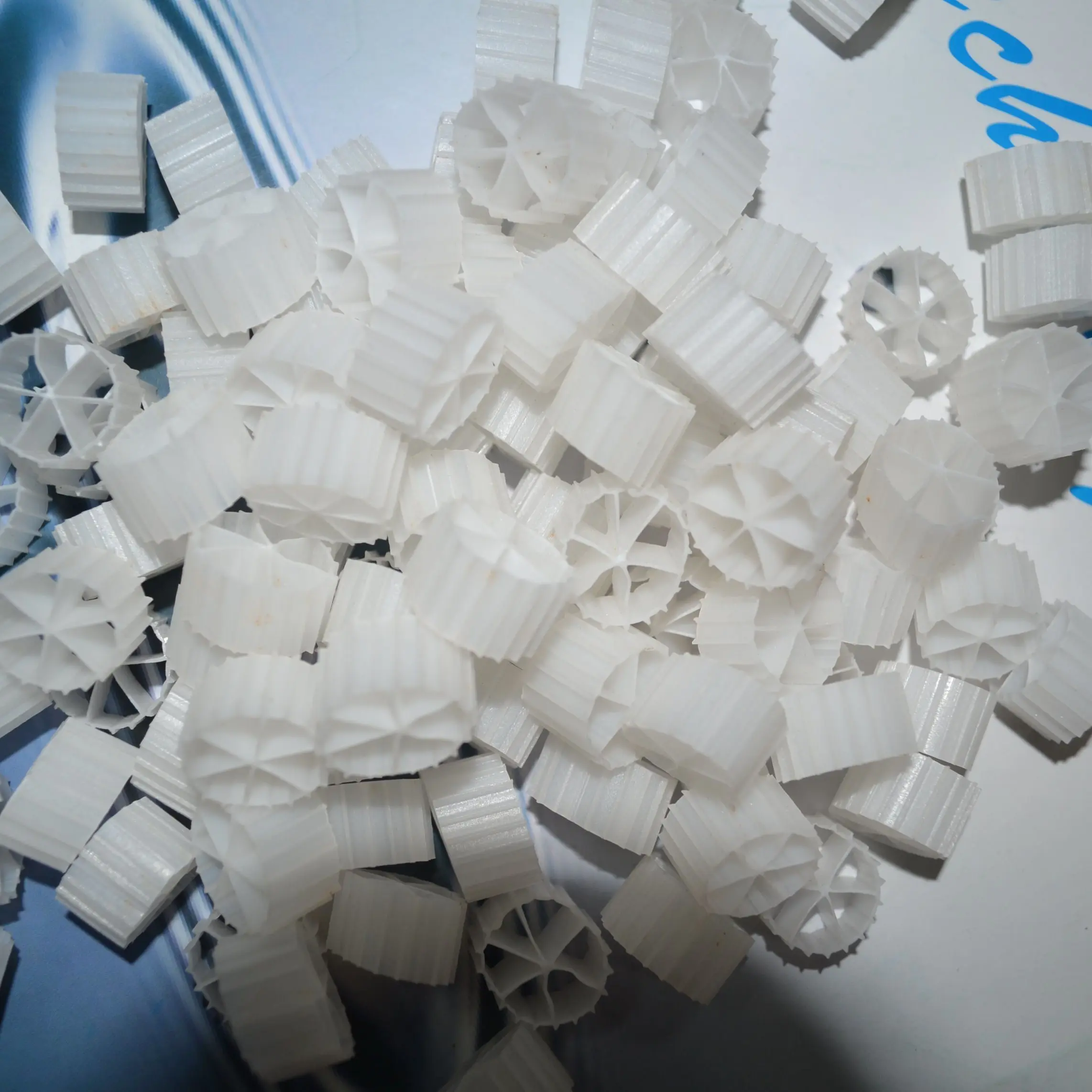

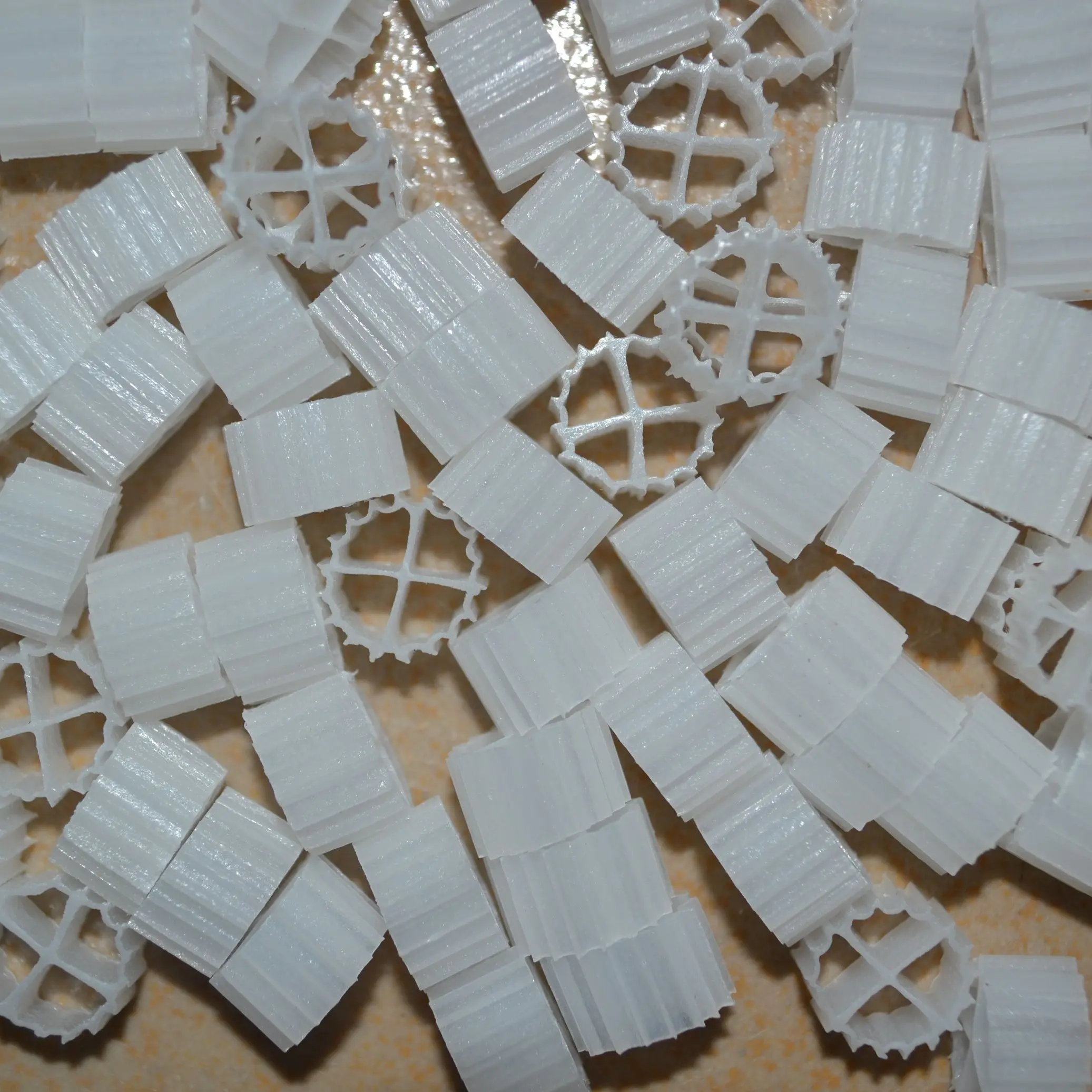

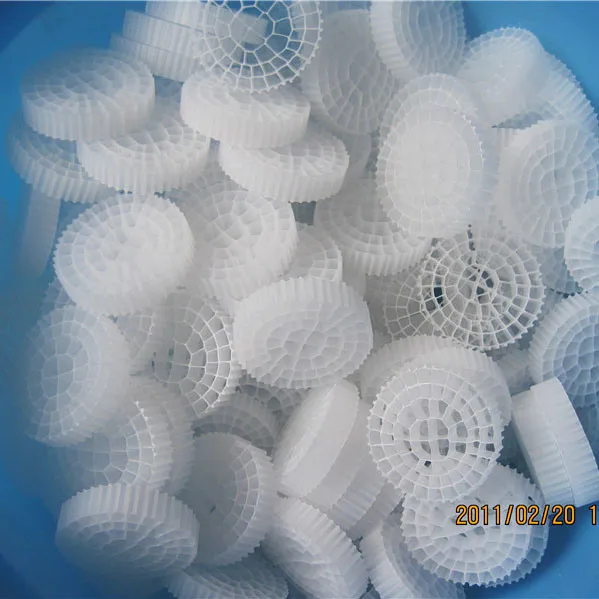

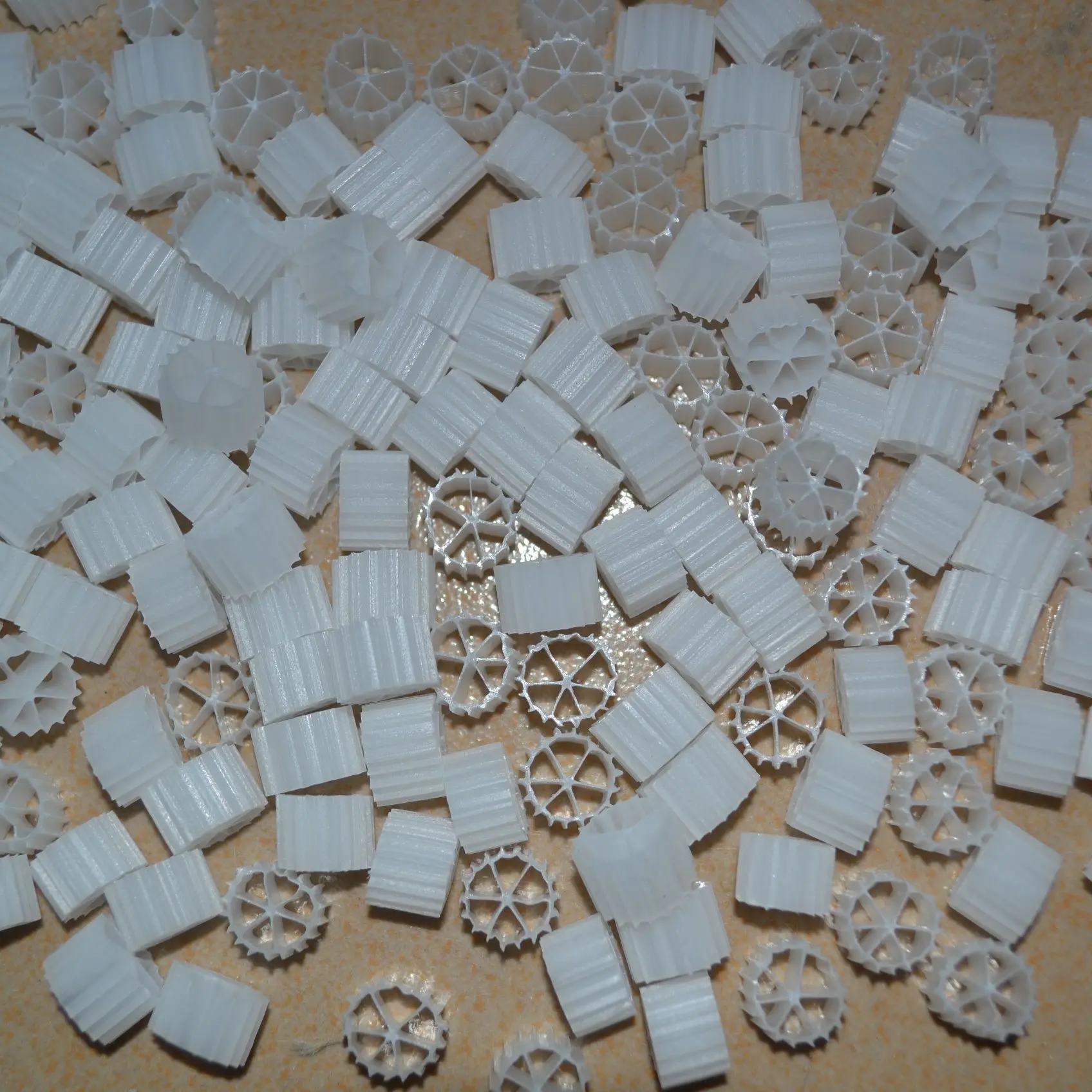

Moving Bed Biofilm Reactor Bio Filter k1 mbbr media
MBBR media ( Moving Bed Biofilm Reactor )
The Moving Bed Biofilm Reactor or MBBR process is the biofilm carrier elements that are made from polyethylene that provide a large protected surface area for the biofilm and optimal conditions for the bacteria culture to grow and thrive. The biofilm also provides a more stable "home" for the bacteria to grow, so there is less space required compared to other biological systems and far less controls. MBBR can be designed for new facilities to remove BOD/COD from waste water streams or for nitrogen removal.
| No. | Diameter (mm) | Height (mm) | Cells | KG/m3 | Surface area (m2/m3) | Void ratio (%) | Dosing ratio (%) | Material |
| 1 | 5 | 10 | 230 | >3000 | 60-70 | 15-55 | HDPE | |
| 2 | 7 | 6 | 4 | 160 | >850 | 60-70 | 15-55 | HDPE |
| 3 | 10 | 7 | 4 | 140 | >850 | 75 | 15-55 | HDPE |
| 4 | 12 | 8 | 6 | 125 | >800 | 84.4 | 15-65 | HDPE |
| 5 | 15 | 10 | 6 | 120 | >700 | 88 | 15-70 | HDPE |
| 6 | 25 | 12 | 19 | 95 | >600 | 90 | 15-65 | HDPE |
| 7 | 25 | 23 | 19 | 100 | >600 | 93 | 15-65 | HDPE |
| 8 | 25 | 4 | 64 | 120 | >1000 | 60-70 | 15-65 | HDPE |
MBBR Media used for industry water and aquaculture water treatment
