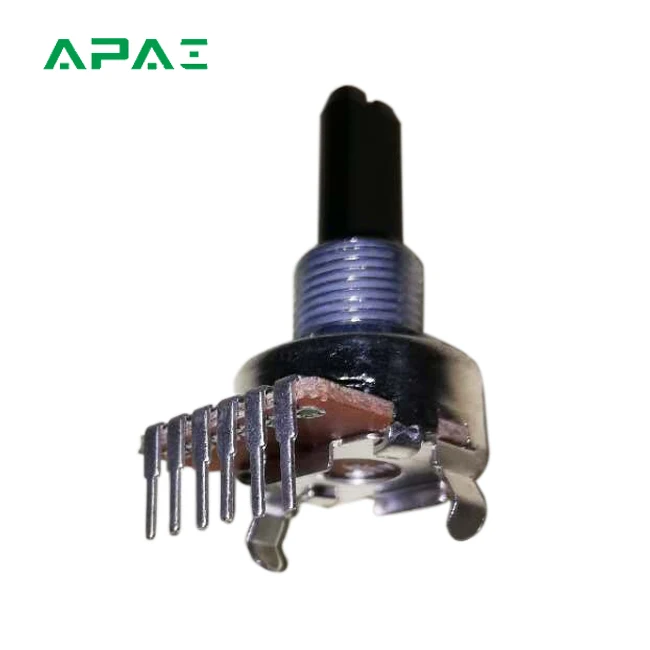

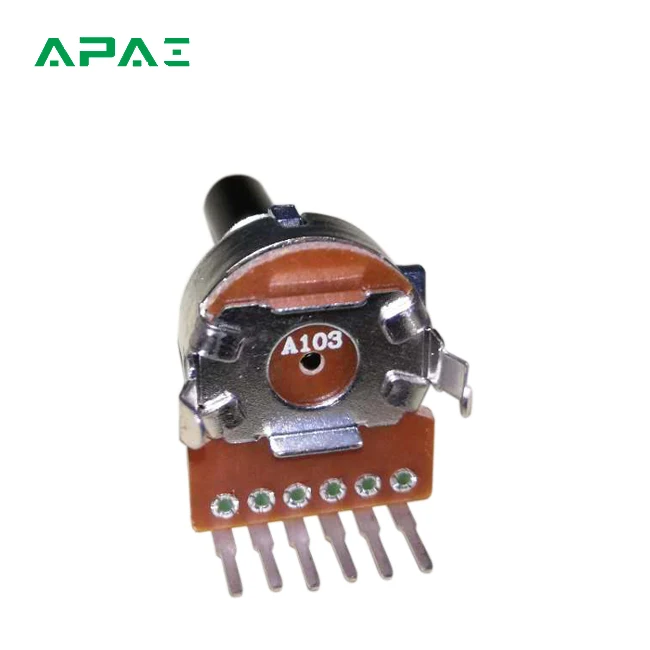

Потенциометр RK1613G 16 мм Двойной Банды 6 терминал с тонкой
- Категория: Potentiometers >>>
- Поставщик: Foshan,Apai,Electronics,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.11 $* | 0.80 $* |
| Aug-17-2025 | 0.34 $* | 0.11 $* |
| Jul-17-2025 | 0.9 $* | 0.37 $* |
| Jun-17-2025 | 0.31 $* | 0.68 $* |
| May-17-2025 | 0.87 $* | 0.44 $* |
| Apr-17-2025 | 0.86 $* | 0.15 $* |
| Mar-17-2025 | 0.98 $* | 0.4 $* |
| Feb-17-2025 | 0.94 $* | 0.21 $* |
| Jan-17-2025 | 0.71 $* | 0.49 $* |
Характеристики
NEW
| Operating temperature | -10 ℃ ~ +70 ℃ |
| Manual soldering | 300 ℃ Max 3sec |
| Total resistance | 1K~1M |
| Resistance tolerance | ±20% |
| Resistance taper | A B C |
| Sliding noise | Less than 100 mV |
| Residual resistance | ≤ 20 ohm (R>10K) ≤ 10 ohm(R≤10K) |
| Insulation resistance | More than 100 MΩ at DC 250 V |
| Rated power(W) | Linear (B) taper : 0.1 W Other taper : 0.05 W |
| Max. Operating voltage | Linear (B) taper : AC 100 V Other taper : AC 50 V |
| Withstand voltage | 1 Minute at AC 250 V |
| Gang error | - 40 dB~0 dB≤3 dB |
| Total rotational angle | 300 °±5 ° |
| Rotational torque | 30~250 gf.cm |
| C.C torqu e | 30~300gf.cm |
| Rotational stopper strength | 6 Kgf.cm Max. |
| Shaft push-pull strength | 8 Kgf.cm Max. |
| Rotational life | 15,000 Cycles |
