Подвеска для вызова медсестры с кабелем 4 м и стереоразъемом

Описание и отзывы

Трекер стоимости

Характеристики

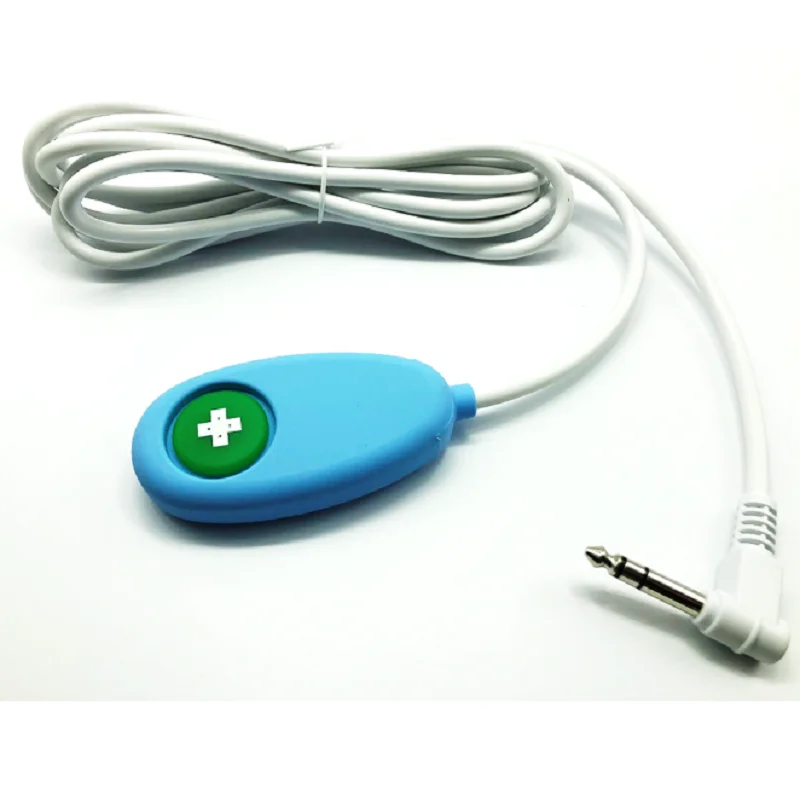

One button Nurse call controller with single button is a single button stereo plug pendant with 3 mtr length. It provides the patient with nurse call and enables patients to make a call from the comfort of their bed, armchair or any other position within 4 meters of a fixed call point.

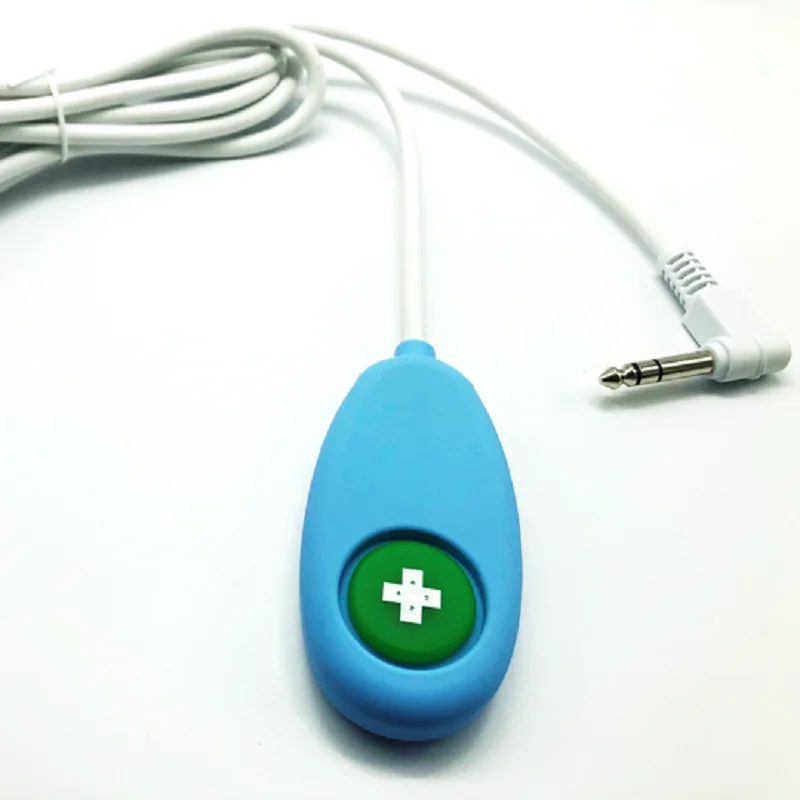

A call is made by pressing the green push button with noctilucence. The design of the call pendant provides an ergonomic left or right hand grip.

The pendant has a standard mould right angle 6.5mm stereo jack plug. Infection control is a necessity in the healthcare environment so the pendant has been constructed out of anti bacterial materials. It can also be dip sterilised. The Pendant can be submersed in up to 1 meter of water in case of a spillage or to wash the pendant.

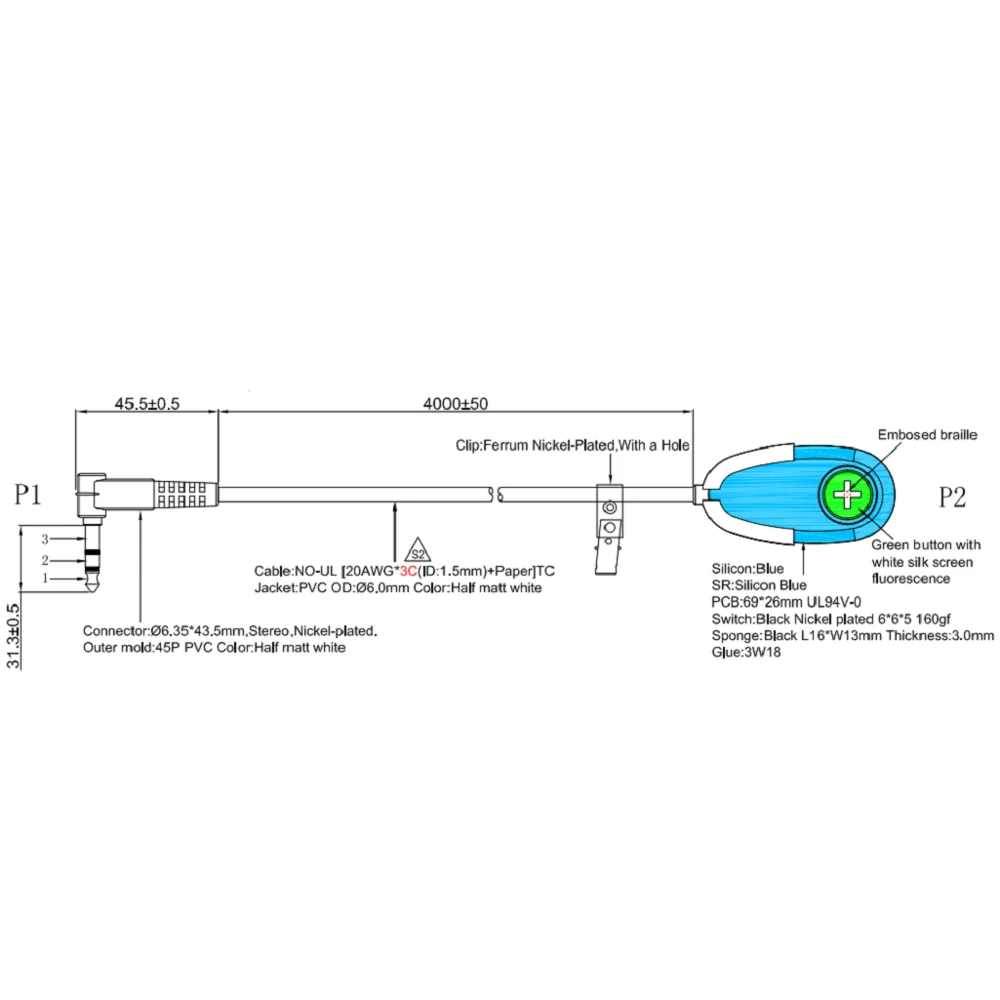

BOM

Cable:NOUL 20AWG*1.5*3C+PAPER TINNED OD6.0 HALFMATTWHITEPVC;

Connector: 6.35 stereo phone jack L43.5mm

Shell: Anti bacterial silicon rubber

Clip:Stainless steel

Pendant: ABS plastic

PCB: FR4

Tact switch

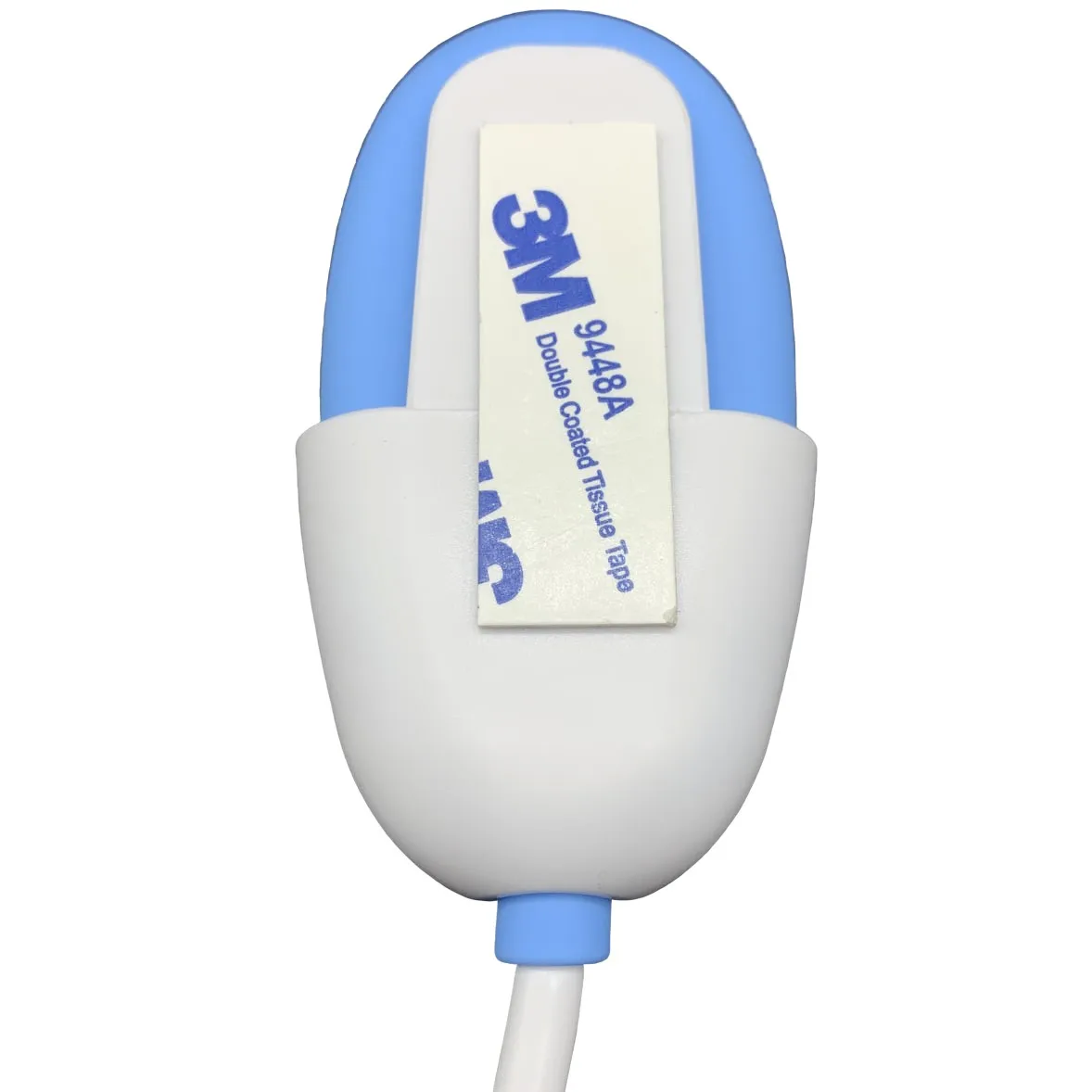

3M Paster







Silicone Pendant Body Size	97.5*20mm
Properties	Anti-bacterial, Easy grip, Soft feel design
Silicone Body Color	Blue or Respect customer requirement
Protection Degree	IP67
Button	With Noctilucence, Braille for the visually impaired

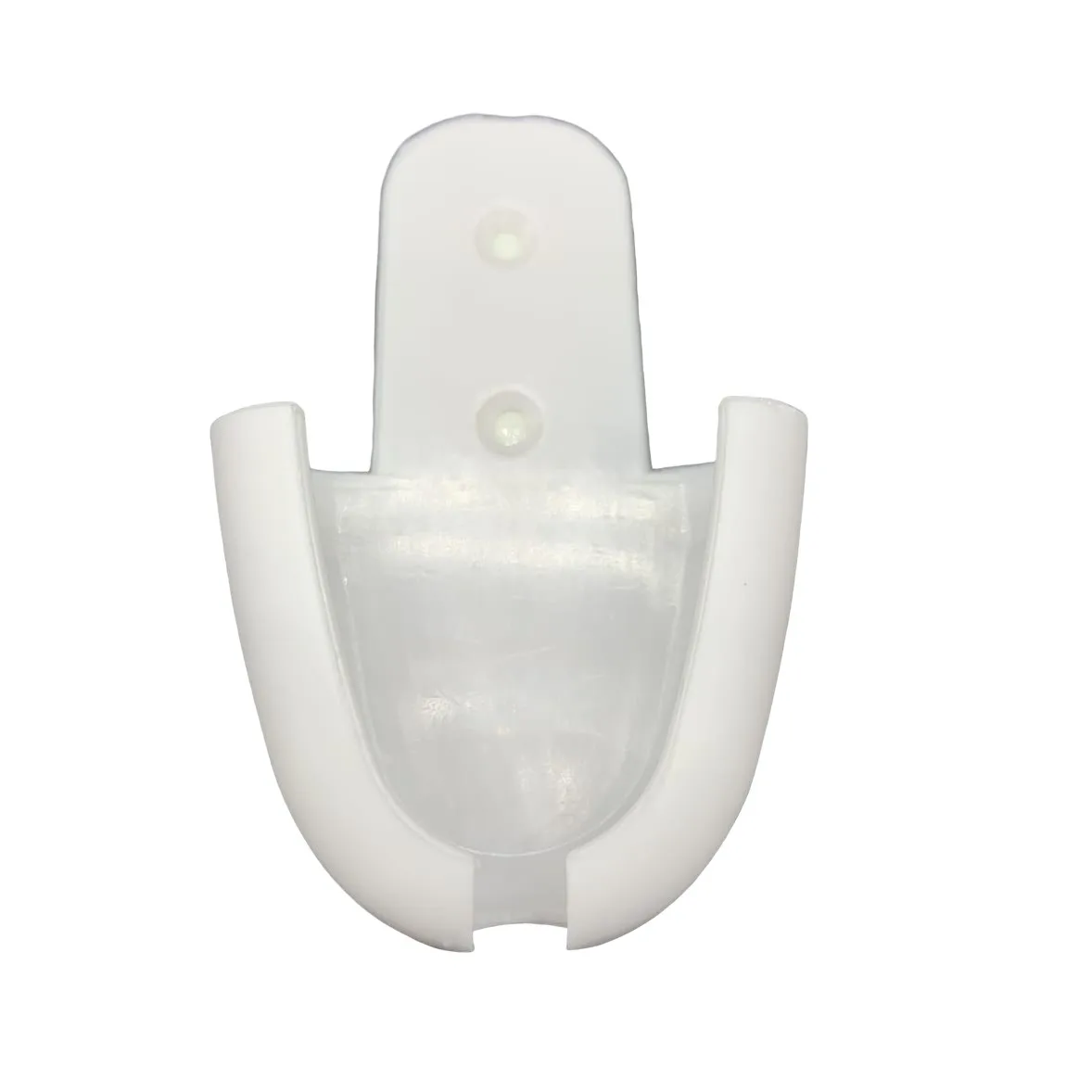

Hook	White ABS Plastic with 3M Adhesive tape
Connector	6.35mm Stereo Plug or Respect customer requirement
Connector Orientation	Right Angle or Straight
Application	Nurse call system
Electrical	Nurse Call Switch to ring
Operating Temperature Range	-30 → +80 (Fixed) °C, -5 → +80 (Flexible) °C
Cable Jacket Material	PVC
Cable spec	OD6.0mm, 20AWG*2C or 20AWG*3C
Cable Length	3 Meters or Respect customer requirement
Cable Color	White or Respect customer requirement
