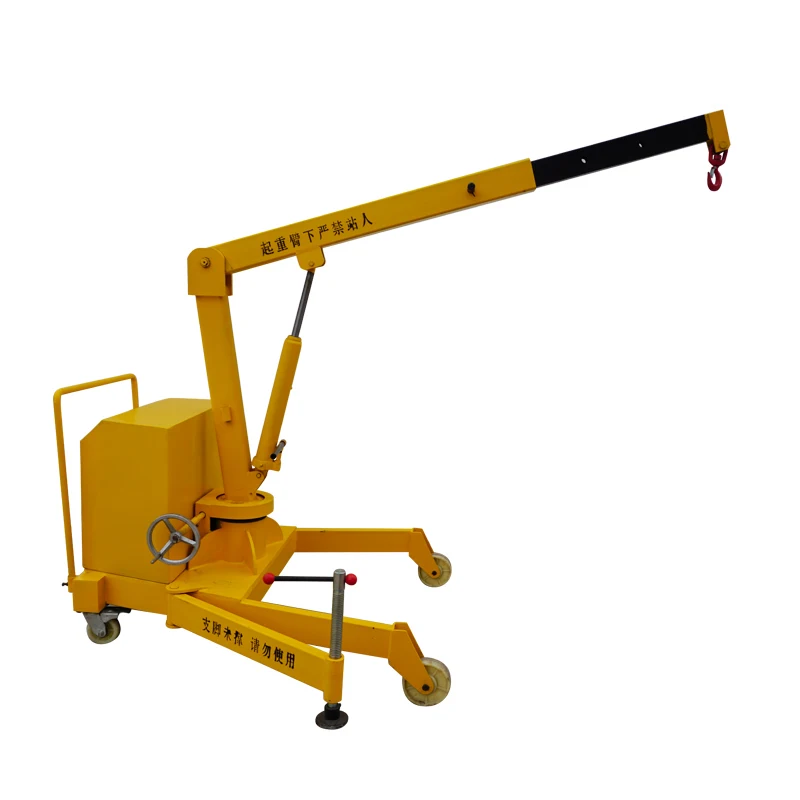

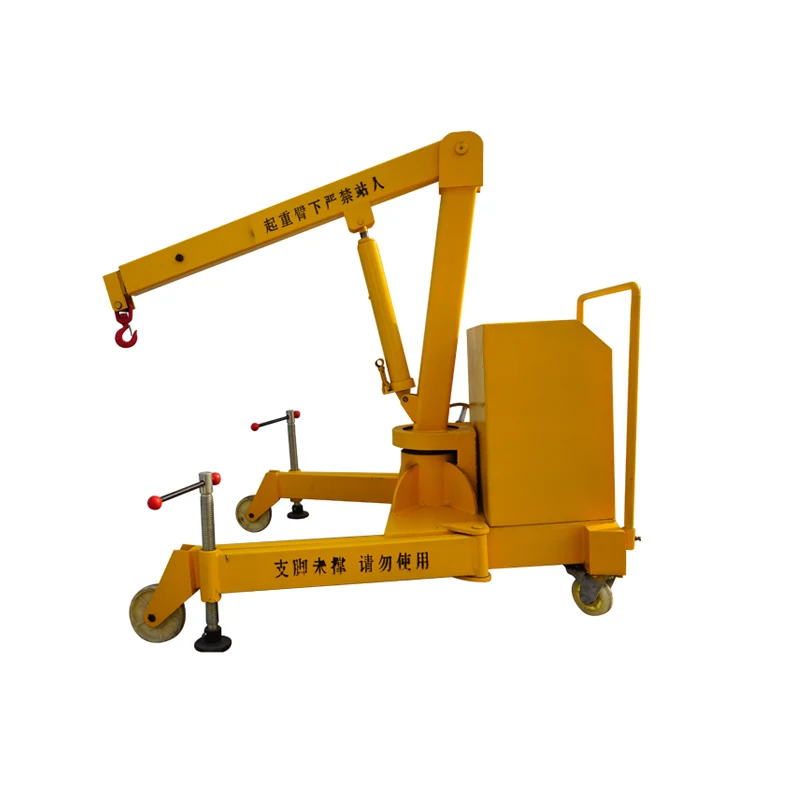

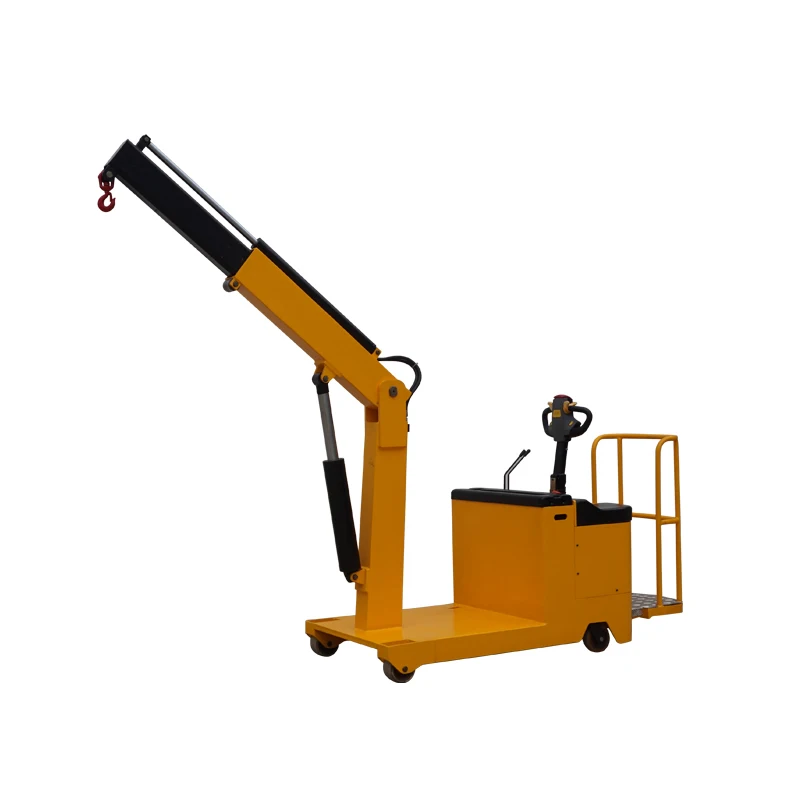

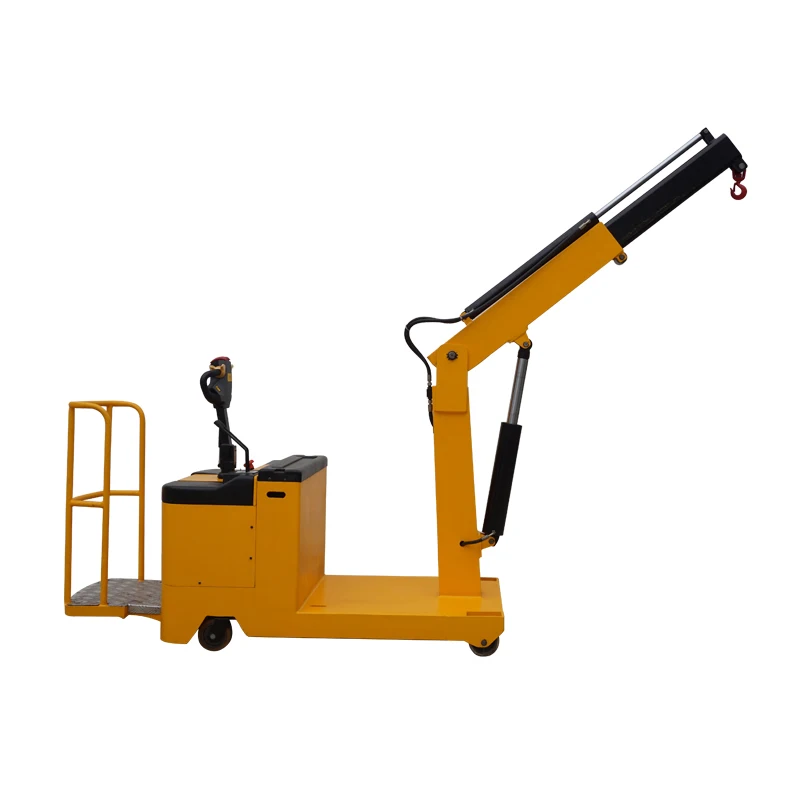

1 тонна подъемник портативный аккумулятор вагонетки Электрический мини-кран для подъемного
- Категория: Другие краны >>>
- Поставщик: Taizhou,Amity,Care,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 8806.26 $* | 9246.53 $* |
| Aug-16-2025 | 8732.43 $* | 9169.95 $* |
| Jul-16-2025 | 7326.64 $* | 7692.93 $* |
| Jun-16-2025 | 8584.98 $* | 9013.27 $* |
| May-16-2025 | 7474.92 $* | 7848.37 $* |
| Apr-16-2025 | 8436.95 $* | 8858.92 $* |
| Mar-16-2025 | 8362.48 $* | 8780.48 $* |
| Feb-16-2025 | 8288.4 $* | 8702.32 $* |
| Jan-16-2025 | 8214.71 $* | 8625.80 $* |
Характеристики
Product Description
Model | SDC0530-C | SDC1025-C | SDC1030-C |
Order Number | 8.03001 | 8.03002 | 8.03003 |
Capacity (kg) | 500 | 1000 | 1000 |
Lifting Height (mm) | 3000 | 2500 | 3000 |
Battery (V/Ah) | 24/80 | 24/80 | 24/80 |
Charger (V/A) | 24/15 | 24/15 | 24/15 |
Lifting motor (Kw) | 2.5 | 2.5 | 2.5 |
Driving motor (Kw) | 0.75 | 0.75 | 0.75 |
Min. Arm Extending Distance from Outriggers (mm) | 1200 | 1100 | 900 |
Weight (Kg) | 660 | 690 | 710 |
Overall size(mm) L*W*H | 2930*850*1800 | 2980*850*1600 | 2980*850*1800 |
Turning Aisle (mm) | 3200 | 3200 | 3200 |
Passing Aisle (mm) | 1100 | 1100 | 1100 |
Driving wheel (mm) | 1*¢250*80 | ||
Auxiliary Wheels (mm) | 2*¢150*50 | ||
Front Wheels (mm) | 2*¢150*75 | ||
Climbing slope (%) | 4/6 | ||
Travel Speed (km/h) | 4/6 Loaded/Unloaded | ||
Lifting Speed (mm/s) | 45/50 Loaded/Unloaded | ||
Falling Speed (mm/s) | 45/40 Loaded/Unloaded | ||
Service Brake | Electromagnetic braking | ||
1:Imported Germany advanced technology, arm with no rotation, complete machine rotate’
2:Non-outrigger design could pass across obstacles like machine tool to catch material and lift, widely
used in more areas;
3:Standing operation, operator moves with machine, easier and convenient; Arm extend and return
electrically at 600mm, easy and simple to catch and lift material;
4:American Curtis electric controller, continuously variable driving speed, 24v battery power, recharge
battery in night, crane could work for 5-8hours in day time;
5:Electric trolley crane could be used to lift device, emergency, machine lifting and rescue.
Company Profile
Taizhou amity care international co.,ltd is regarded as the foreign trade department of Taizhou xurui
machinery manufacturing co;, all abroad (overseas) tasks and international businesswill be
undertaken by "amity care ".
We Focus on Pallet stacker, Paper Roll Lifter, pallet truck, Electric floor crane, stacker truck ,
drum lifter,car mover,tow tractor,trolley crane ect,we have imported overseas countries
