Высокоскоростная машина для производства бумажных трубок

Описание и отзывы

Трекер стоимости

Характеристики

35-50 m/min. High Speed Paper Straw Machine:



This Machine is suitable for producing different sizes of paper straws and very small paper tubes, such as 5mm, 6mm, 8mm, 10mm, etc.

[1] It adopted with PLC controller; main motor is equipped with variable frequency speed regulation; touch screen man-machine interface. Easy for parameters setting & operating.

[2] Cutting section adopted with numerical multi-blades cutting system. Servo synchronous tracking cutting system makes it higher precision and multi-blades cutting makes it higher efficiency.

[3] Machine body and main spare parts made by stainless steel instead of painting. Ensure the hygiene and environmental protection of the products.





Main Parameter:



Paper Layer	3 Layers
Straw inner diameter	4.7-12mm
Straw thickness	0.5-2mm
Stable running speed	35-50 m/min.
Cutting Method	Multi-blades cutting system
Cutting System	Servo Motor synchronous tracing,  multi-blades cutting
Glue Way	One Side or Double Side
Power	380V 3 Phase 50Hz
Operation Staff	1-2 persons
Paper frame / Glue frame	3 layer
Blet	3 pieces
Core	2 sets
Overall Dimensions	3500*1500*1200mm
Weight	1300kgs
Operation Area Size	About 7000*5000mm
Main Motor	1.5kw * 2 pieces

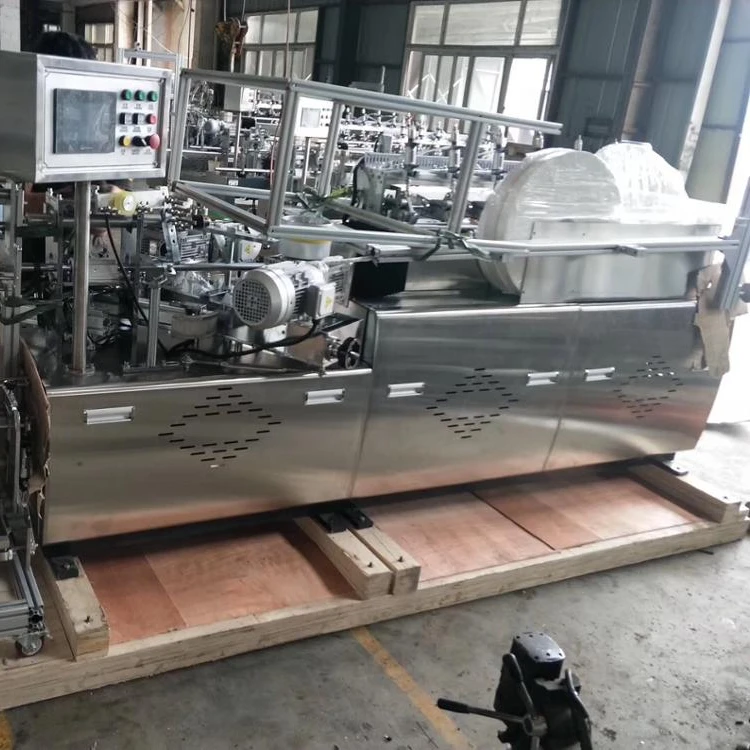

Machine Photo:

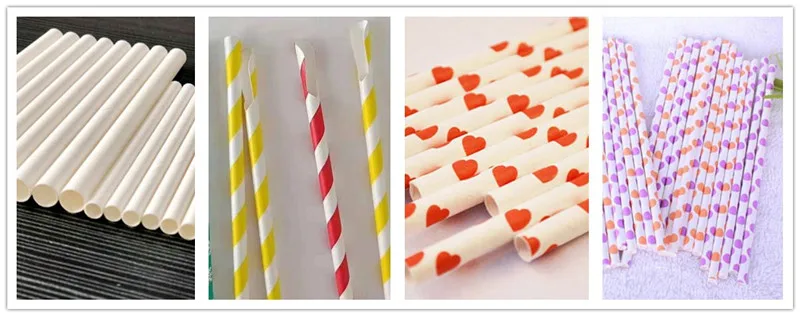

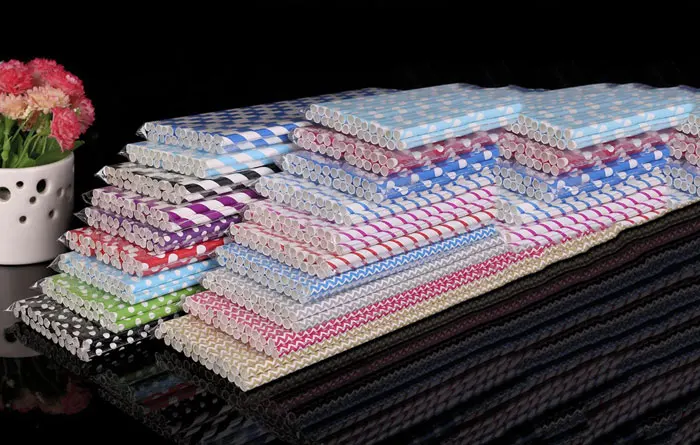

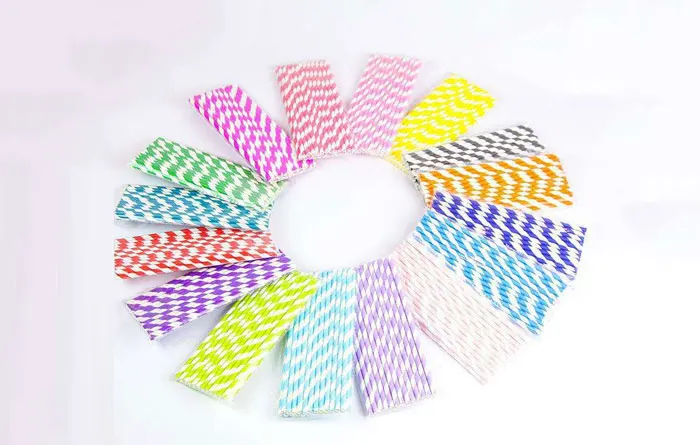

Samples:

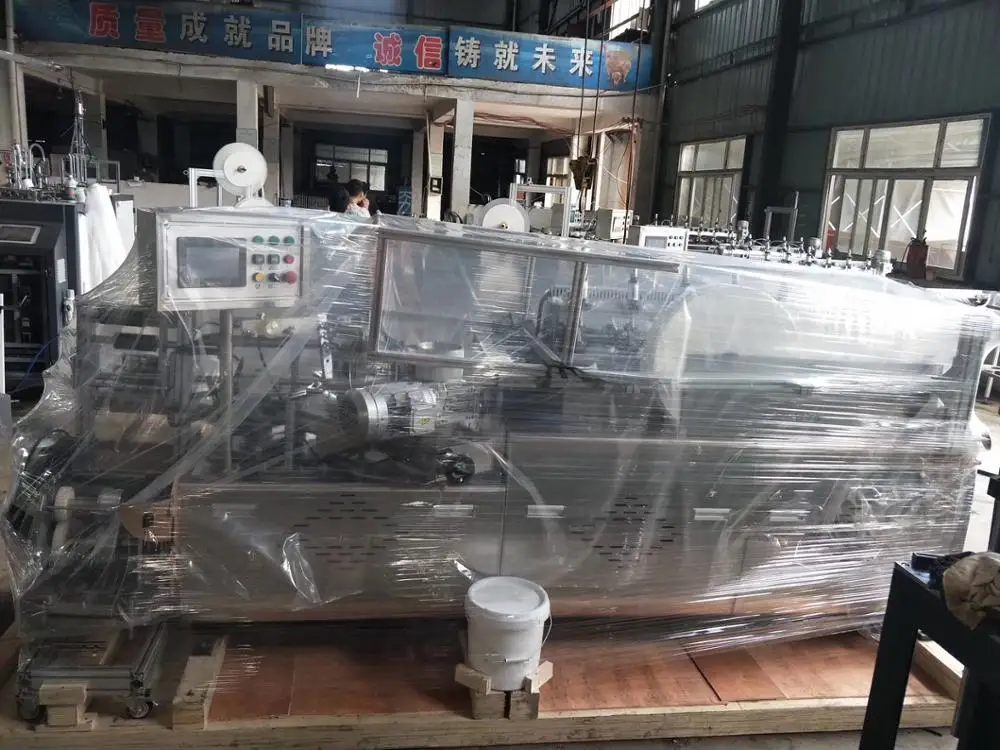

Machine Package:

The 35-50 m/min high Speed Paper Straw Machine will be packed by standard woodcase package, suitable for sea shipment, like follows:

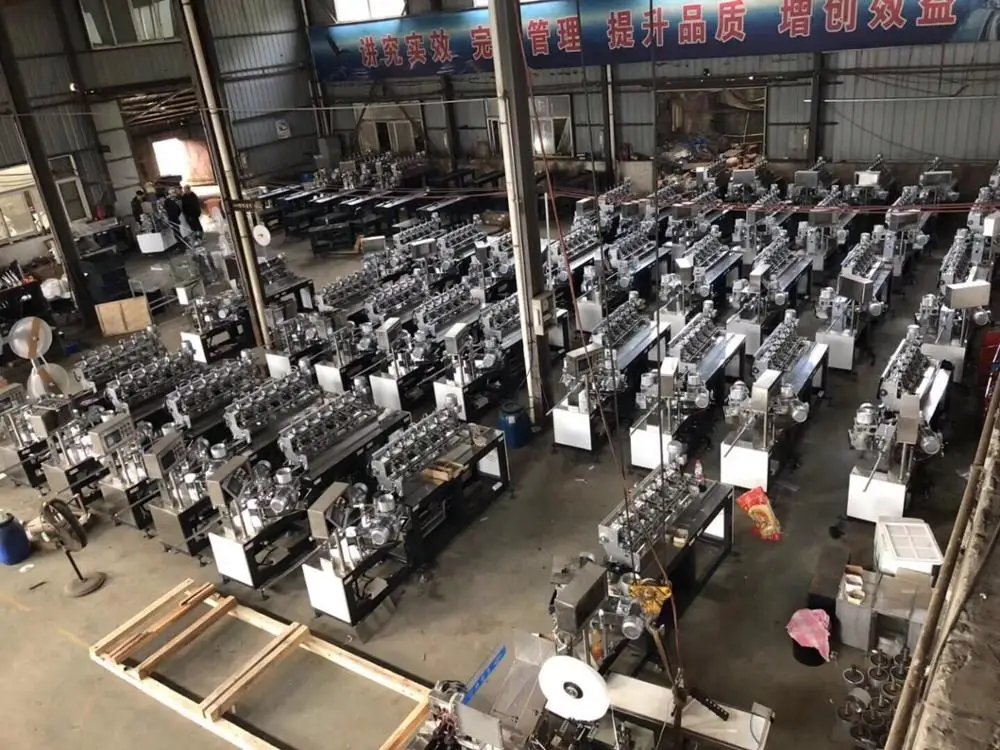

Workshop View:
