Dynamic frequency scanning from 2.0 to 12.0MHz, 4 multi-frequency scanning
THI
yes
Display mode
B, 2B, 4B, B/M, M
Image process technologies
controllable frame correlation, Gamma correction, edge enhancement, image smoothing, image denoisiong, automatical gain adjustment, up/down, left/right and black/white conversation.
Image magnification
stepless magnification, dynamic real-time PIP local zoom functions
Cine loop
512 frame auto/manual cine loop; multi screens cine loop (4B, 9B); auto/manual cine loop under B/M and M mode.
Image management system
the functions of pigeonholing, browsing, comparing, saving, printing and transferring images; as many as hundreds of thousands of images and thousands of cine loop could be saved; saved images could be operated by full-screen browse under slide mode.
Measurement and calculation
measure perimeter and area by distance or ellipse method; measure perimeter and area by track method; measure body surface area and volume by ellipse method. 4 measure sticks; rate measure; linear stenosis ratio, area stenosis ratio, angle measure. All calculations are automatic.
Assist tools
puncture guide, histogram, sectional drawing.

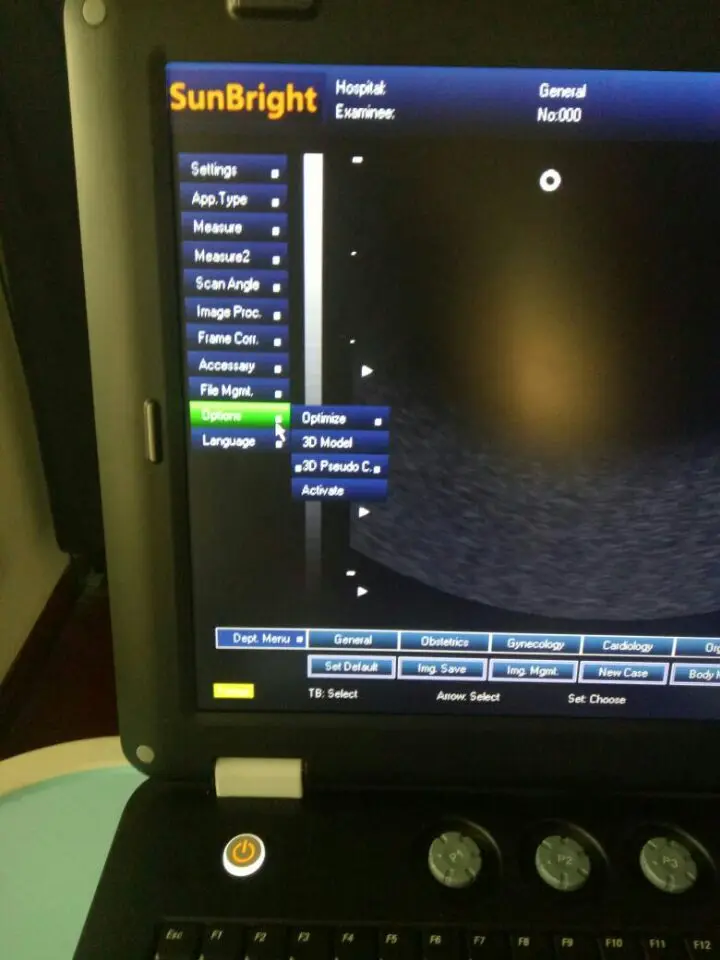

Menu manage interface
real time online support and navigation clew system, image fore-set and one-key optimization functions.
Body marks
Multi-tens
Patient cases database system
All the data could be saved, searched and managed. Multiple kinds of OB. measurement reports, fetus physiological grades and reports and fetus growth curve.
Presetting Formulas
Presetting system for diagnosis and measurement formulas. Different formulas could be set according to different races.
Auto-measure software of OB., Gyn., small organs, cardiac, urology and others
OB.: BPD, CRL, GS, HA, AC, HC, FL, APAD, TAD, FTA, HUMERUS, OFD, THD, TIBIA, ULNA, AFI, LIMP, BBT, FBP Gyn.: uterus diameter, intima thickness, ovary colume, regnant ovarian follicle, length of cervix long-diameter, uterine. Small organs: thyroid gland, hip joint. Cardiac: AOD, LAD, IVSTd, LVIDd, AA, LAD/AOD, LVPWd, LVIDs, EF, EF SLP, CA/CE, MVCF, CO, CI, LVMWI, AVSV, FS, ACV, ET, SV, SI, LVMW, QMV Urology: remained urine sample, prostate,PSAD. Patient cases database systems. All the data could be saved, searched and managed. Multiple kinds of OB. measurement reports, fetus physiological grades and reports and fetus growth curve.

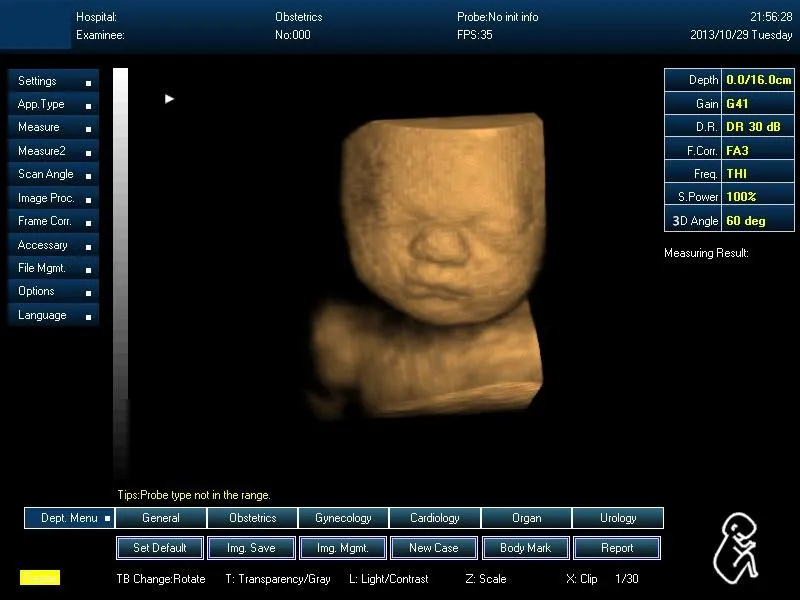

3D software
yes
4D software
yes, optional

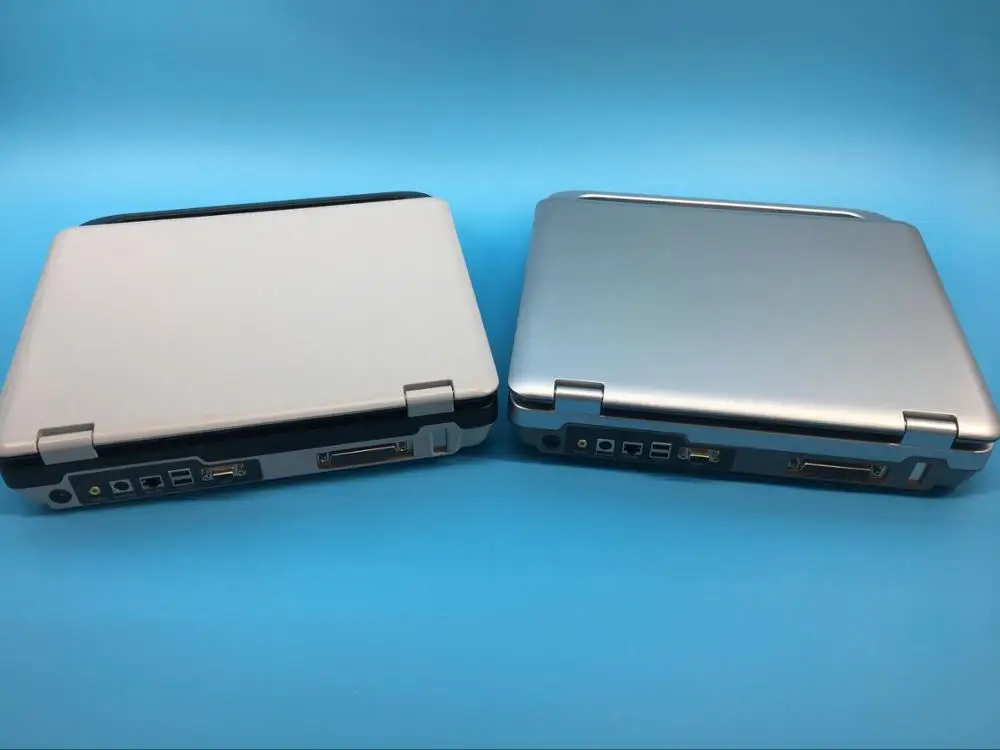

Relative extended ports
VGA, S-Video, TV video port USB2.0 port, 2G saving card RJ-45 network port Multiple kinds of saving modes are all supported, containing soft disk, hard disk, flash disk, CF card, SD card and others. Compatible of jet printer, laser printer, video printer and video recorde
Probes
3.5MHz R60/R50 convex probe; multi-frequency from 2.0MHz to 5.0MHz
7.5MHz L40 linear probe; multi-frequency from 5.0MHz to 10.0MHz
6.5MHz R10/R13 transvaginal probe; multi-frequency from 5.0MHz to 8.0MHz
3.5MHz R20 cardiac probe; multi-frequency from 2.0MHz to 5.0MHz
Detalied Images
Recommend Products
Packing & Delivery
1. Package: double carton boxes 2. Port: Shenzhen China, Shanghai China 3. Delivery time: 3-5 working days after receipt of payment 4. Payment term:T/T in advance, MoneyGram, Trade Assurance, Western Union, Escrow, Paypal, Credit Card!
