Погружной водяной насос SEAFLO 12 В 103GPM DC для орошения и удаленной
- Категория: Pumps & Parts >>>
- Поставщик: Fujian,Aidi,Electric,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 62.4 $* | 63.14 $* |
| Jul-16-2025 | 50.58 $* | 51.31 $* |
| Jun-16-2025 | 61.65 $* | 62.53 $* |
| May-16-2025 | 61.27 $* | 62.6 $* |
| Apr-16-2025 | 49.10 $* | 50.97 $* |
| Mar-16-2025 | 60.46 $* | 61.96 $* |
| Feb-16-2025 | 59.20 $* | 60.66 $* |
| Jan-16-2025 | 59.89 $* | 60.90 $* |
Характеристики
SEAFLO Profile
Product Description
| Features & Benefits |
1.Up to 1.0GPM [3.8LPM] at 230ft [70m] 9.Accepts a variety of jacketed cables | 2.Internal bypass for pump protection 4.Multi Viton O-rings sealing 6.Thermal protection at 239 °F [115° C] 8.Apply in livestock watering, irrigation, ponds, islands, remote homes and cabins |
| Product Name | SEAFLO 12V 103GPM DC Solar Submersible Water Pump Kit For Irrigation And Remote Cabin |
| Pump Type | 3 Chambers Positive Displacement Diaphragm Pump |
| Max Flow Rate | 103 GPH [390 LPM] |
| Working Flow Rate | 1.0 GPM [3.8 LPM] at 230 ft [70 m] |
| Max Lift | 230' [70 m] |
| Max Diving | 100' [30 m] |
| Voltage | 12 VDC, and 24V, other voltage are available |
| Max Amp | 12.0 A |
| Fuse | 18.0 A |
| Switch Type | By Pass |
| Diameter | Fit 4" or larger wells |
| Inlet Port | 50 mesh stainless steel filter |
| Outlet Port | 1/2" [12.7 mm] Barb |
| Diaphragm Material | Santoprene |
| Valve Material | Viton or EPDM |
| Housing Material | 304 stainless steel for better sealing from leaking and anti aging |
| Thermal Protection | Yes |
| Max Fluid Temp | 140 °F [60 °C] |
| Lead | 6.7' [2 m] 16 AWG or OEM |

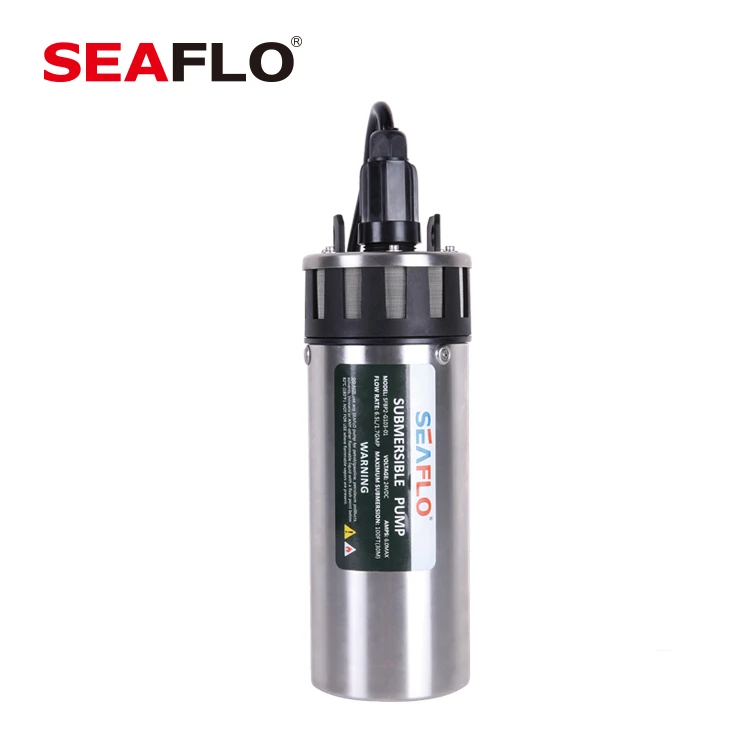

The SEAFLO submersible solar deep well pump is a positive displacement diaphragm type 12 and 24VDC pump of high efficiency. The pump offers a solution to your remote water pumping needs. It’s rugged, durable and built to last. This pump delivers approximately 1.0 GPM (3.8 LPM) at 230 feet (70.1 meter) total lift. It incorporates a unique, water-blocked cable connector that is impervious to water leakage and condensation problems preventing water wicking. Typical applications are in livestock watering, irrigation, ponds, islands, remote homes and cabins.
| Product Show |
| Dimensions |
| Performance |
| Product Details |
Lacking
STANDARD PUMP CONFIGURATIONS
| Model | Voltage | Open Flow GPH [LPH] | Max Draw | Fuse | Max Lift | Max Diving |
| SFBP1-G103-01 | 12 V | 103 [390] | 12.0 A | 18.0 A | 230 ft [70 m] | 100 ft [30 m] |
| SFBP2-G103-01 | 24 V | 103 [390] | 6.0 A | 9.0 A | 230 ft [70 m] | 100 ft [30 m] |
OEM/ODM service: Pls contact us for more open flow, max lift, max diving and material etc.
Application

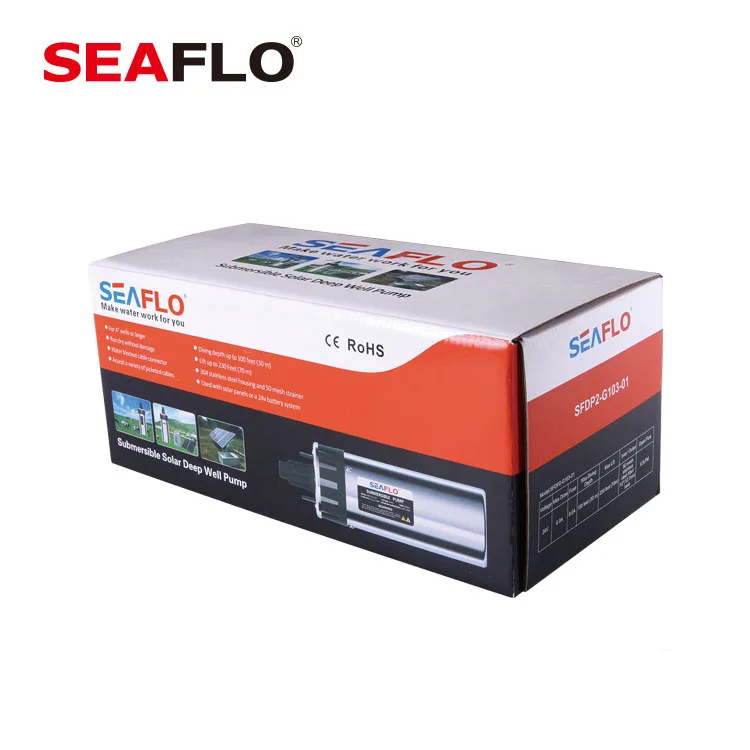

Packaging & Shipping
Package Infomation
 | Unit Pump Weight | 8.15 lbs [3.70 kg] |
| Selling Unit Size (L x W x H) | 12.72" x 5.70" x 5.31" [32.3 x 14.5 x 13.5 cm] | |
| Selling Unit Weight | 9.48 lbs [4.3 kg] | |
| Master Carton Qty | 4 pcs / carton | |
| Master Carton Size (L x W x H) | 13.42" x 12.60" x 12.00" [34.1 x 32.0 x 30.5 cm] | |
| Master Carton Weight | 41.89 lbs [19.0 kg] |
Company Information
FAQ
Q: What is your MOQ?
A: 100 pieces in general, but no MOQ requirement for sample testing.
Q: Do you accept OEM/ODM service?
A: Yes. We are also the OEM/ODM supplier for many famous companies, such as Volvo, Bunnings etc.
Q: How can I pay for my order?
A: Please send order details to us. We will issue an order on Alibaba Trade Assurance, and send you the payment link.
Q: What is your terms of payment?
A: Payment≤3000USD, 100% in advance. Payment≥3000USD, 30% T/T in advance, balance against the copy of B/L. If you have another questions, pls feel free to contact us.
Q: What is the delivery time?
A: It depends on the order quantity. It usually takes 15-25 days upon receipt of your 30% deposit by T/T. Sample can be delivered within 7 days.
Q: Can I buy different products in one container?
A: Yes, you can mix different models of pumps in one container.
Q: What is your warranty?
A: 1 year, and within 24 hours reply will be provided to solve customers' problems.
Q: What is your port of loading?
A: Xiamen port.
Q: Do you have oversea agents?
A: We dont have oversea agents for Agriculture and Industrial. But for SEAFLO pumps applied in Marine & RV, we have agents in USA, UK, Denmark, Spain, Australia, Turkey, Yemen, Lebanon etc.
Q: Can I get more info?
A: Please visit www.seaflo.com or www.seafloin.en.alibaba.com for more information.
