Тяжелый мост тройной Прямой Угловой кабельный ролик
US $7.00-$80.00
Наземный ролик для вытягивания кабеля нейлоновый или алюминиевый
- Категория: Шкивы >>>
- Поставщик: Ningbo,Donghuan,Power,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.31 $* | 0.73 $* |
| Aug-16-2025 | 0.65 $* | 0.35 $* |
| Jul-16-2025 | 0.19 $* | 0.26 $* |
| Jun-16-2025 | 0.85 $* | 0.48 $* |
| May-16-2025 | 0.86 $* | 0.26 $* |
| Apr-16-2025 | 0.65 $* | 0.35 $* |
| Mar-16-2025 | 0.25 $* | 0.70 $* |
| Feb-16-2025 | 0.23 $* | 0.69 $* |
| Jan-16-2025 | 0.35 $* | 0.2 $* |
Характеристики
Product Description

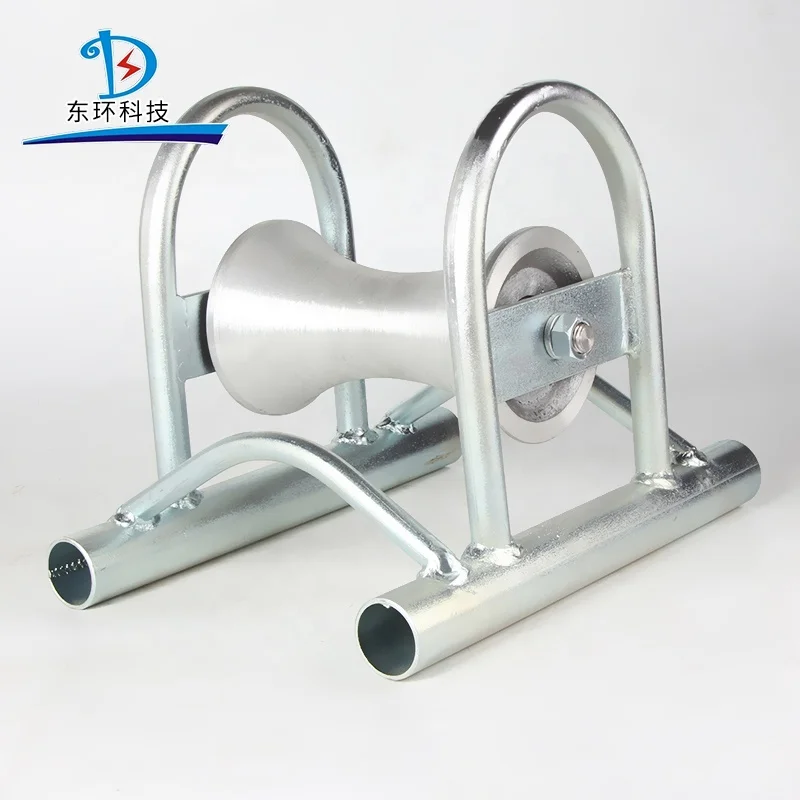

Ground Cable Roller Nylon Sheave Cable Pulling Pulley
Cable rollers should always be used when pulling cables.Straight cable runs are pulled in using straight cable rollers suitably placed in the cable trench to prevent the cable being dragged on the trench bottom or in mud-cable roller spacing is dependent on cable type being laid and the cable pulling tension along the route. Leading cable rollers are used to support the cable over the entire drum width immediately before being pulled into the trench.
Cable laying applications with bends in the route require skid plates of a radius greater than the cables minimum dynamic bending.
Apply to cable diameter is less than 200mm,Nylon sheaves are represented by N letters.The rest are aluminum sheaves.

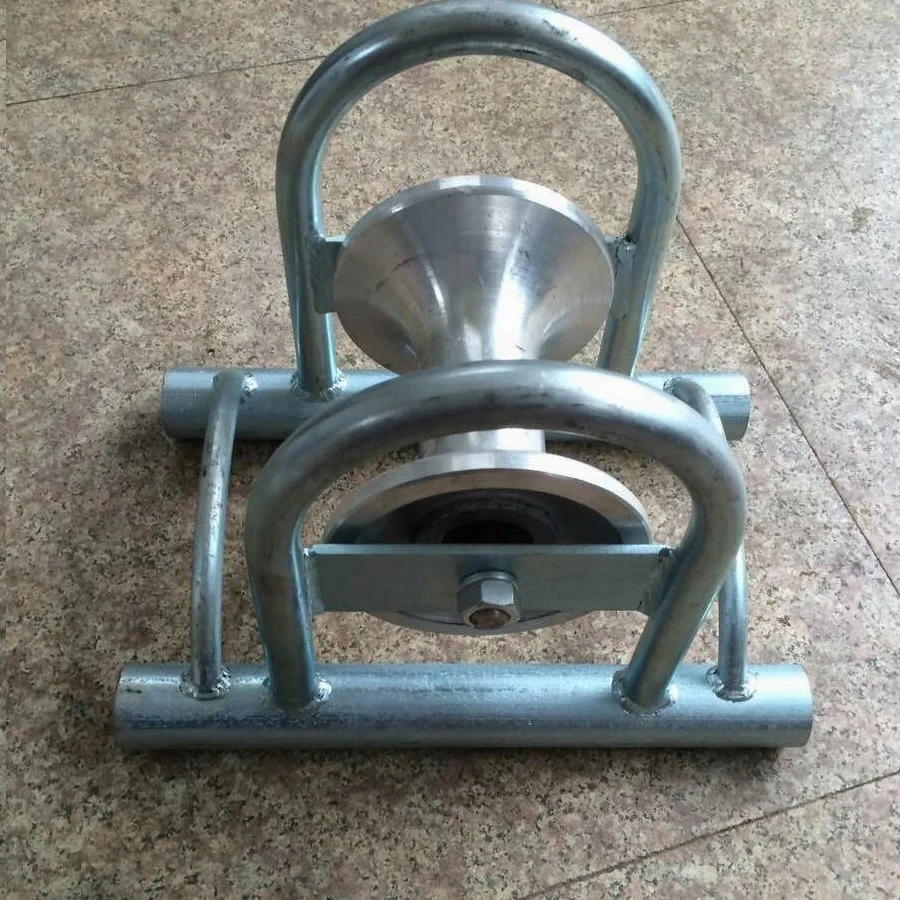

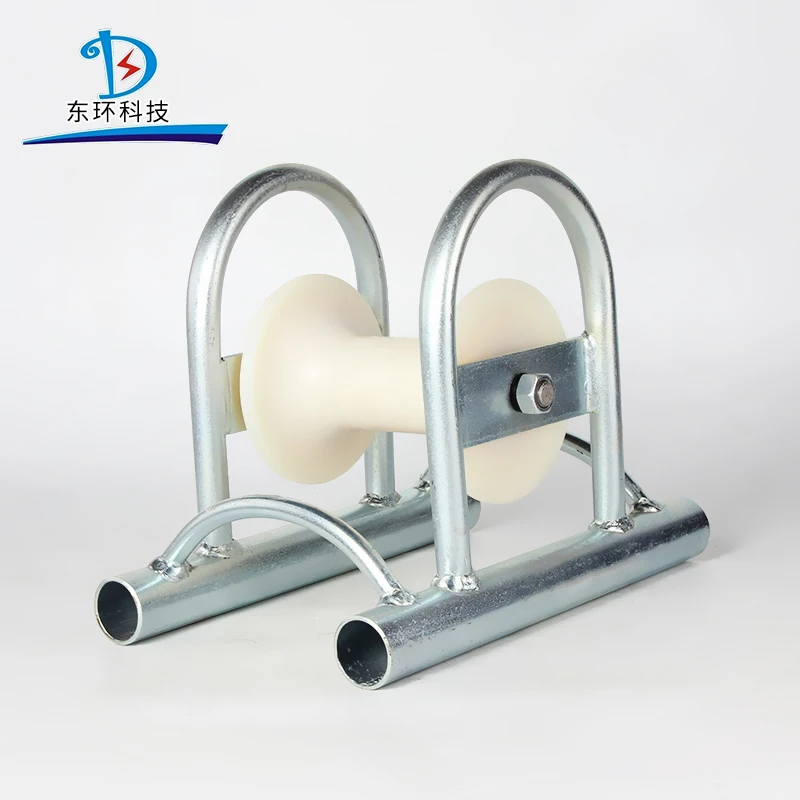

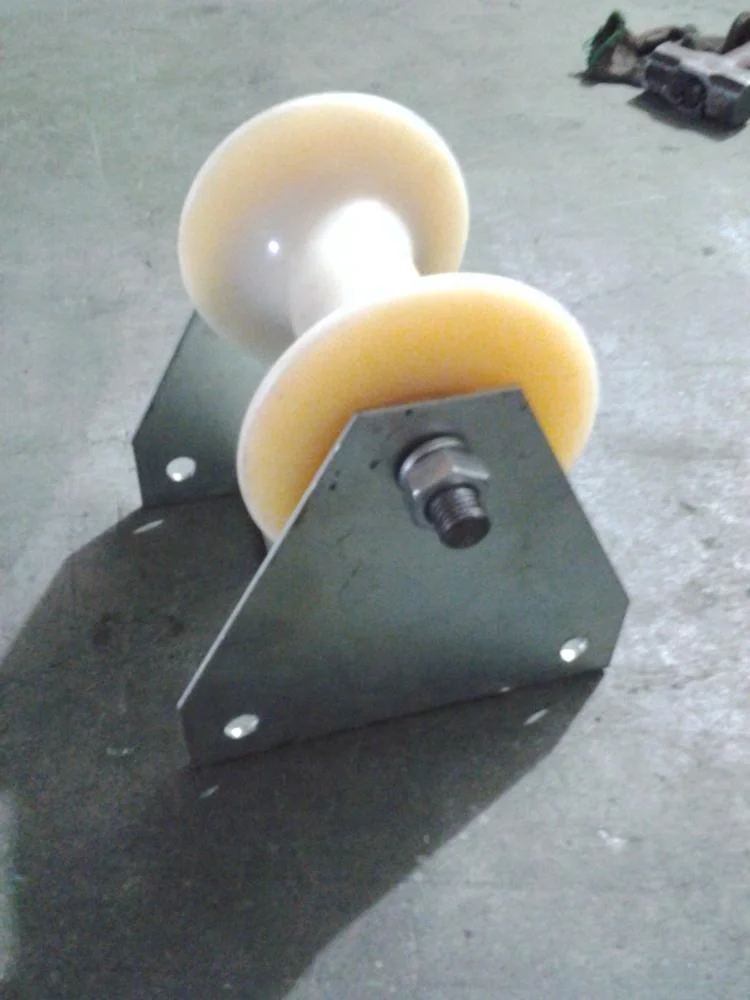

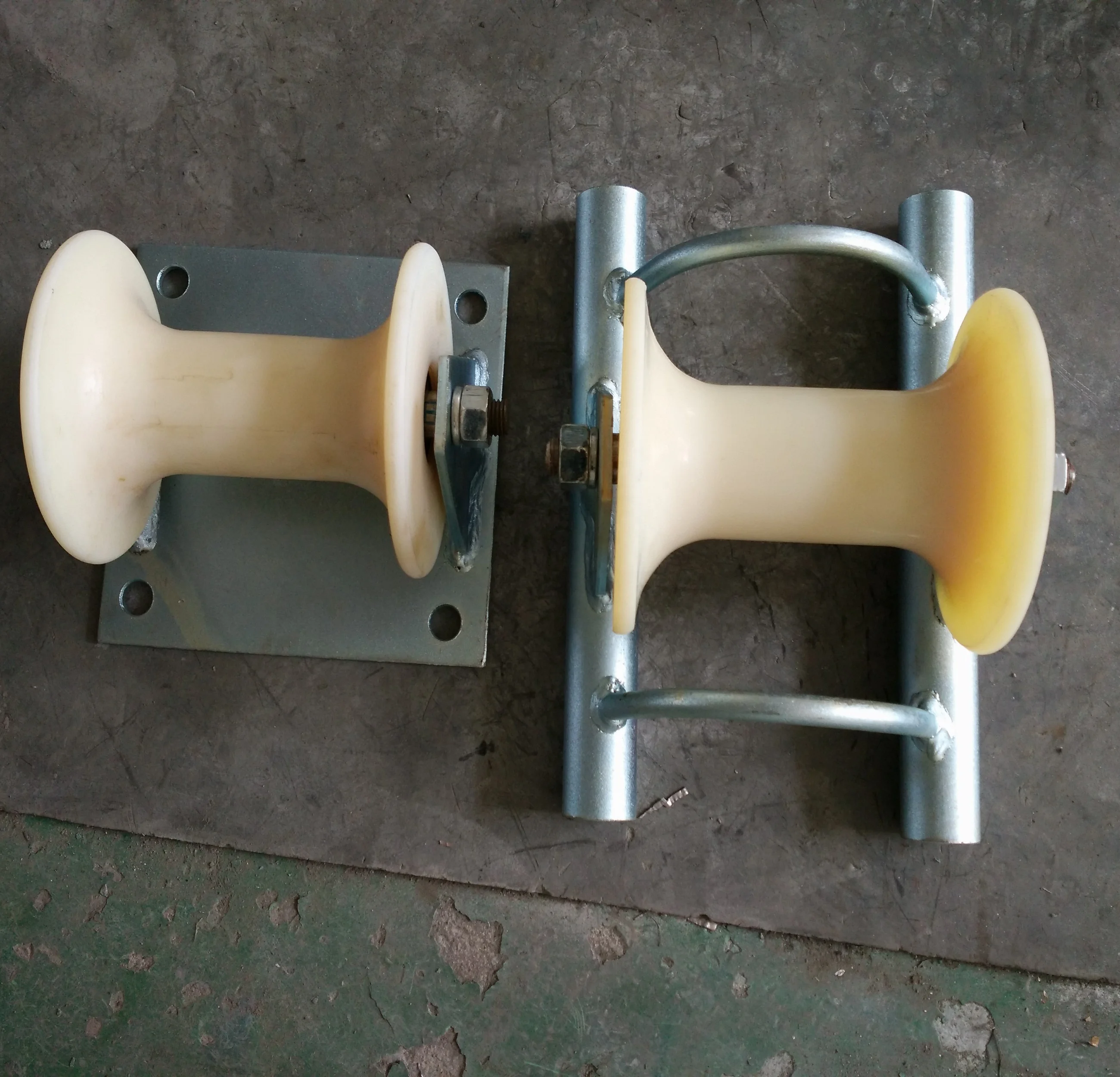

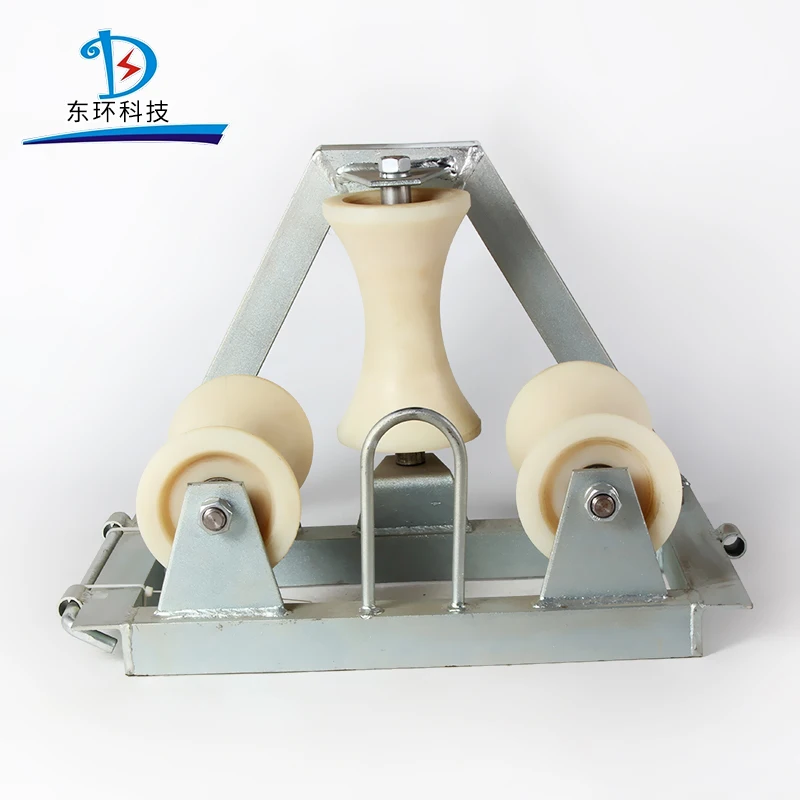

Detailed Images
Product Specifications
Item number | Model | Applicable Cabe（MM） | Rated load (kN) | Carrier Structure | Weight (kg) |
21171 | SHL1 | ≤ Φ150 | 5 | Casting Aluminum Carrier | 5.4 |
21172 | SHL1N | 5 | 3.6 | ||
21181 | SHL1B | ≤ Φ150 | 5 | Steel Plate Carrier | 5.5 |
21182 | SHL1BN | 5 | 3.7 | ||
21183 | SHL2BN | ≤ Φ160 | 5 | 5.5 | |
21184 | SHL3BN | ≤ Φ200 | 5 | 8.0 | |
21191 | SHL1G | ≤ Φ150 | 5 | Steel Pipe Carrier | 5.1 |
21192 | SHL1GN | 5 | 3.3 | ||
21193 | SHL2GN | ≤ Φ160 | 5 | 6.5 | |
21194 | SHL3GN | ≤ Φ200 | 5 | 8.5 |
