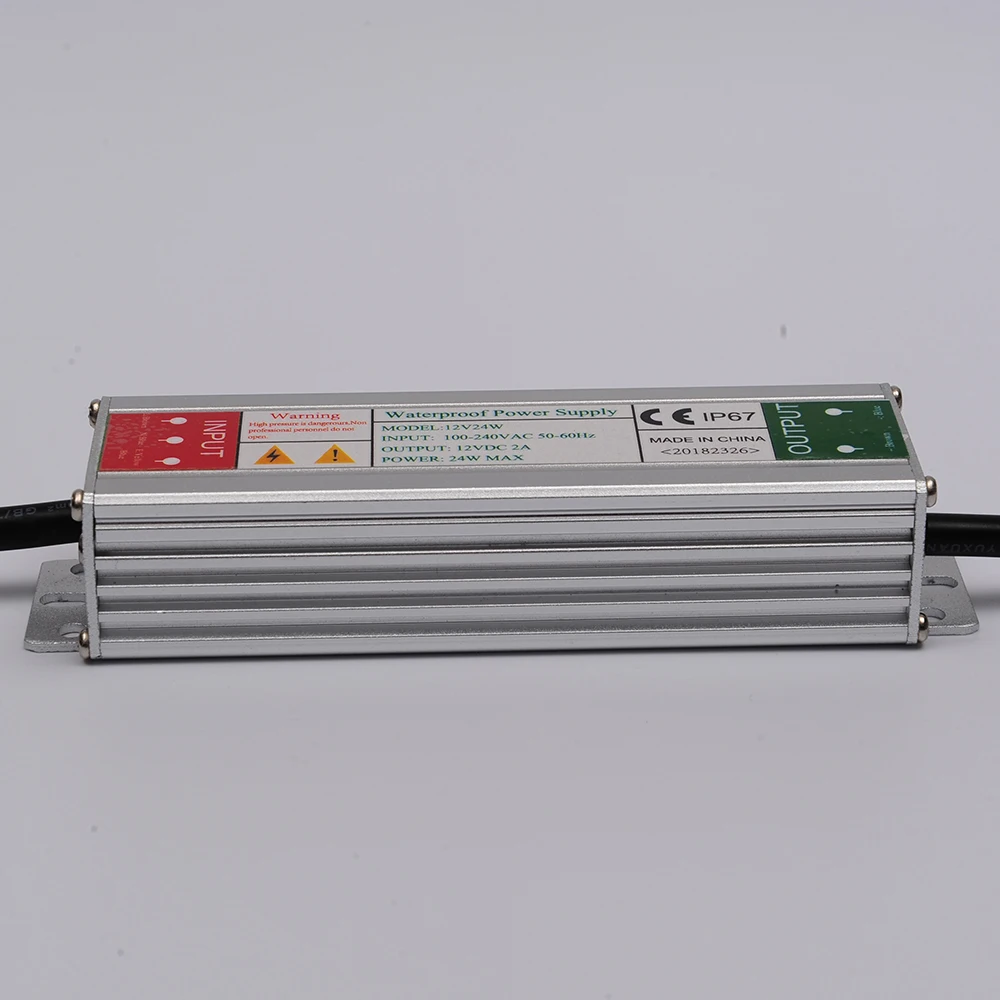

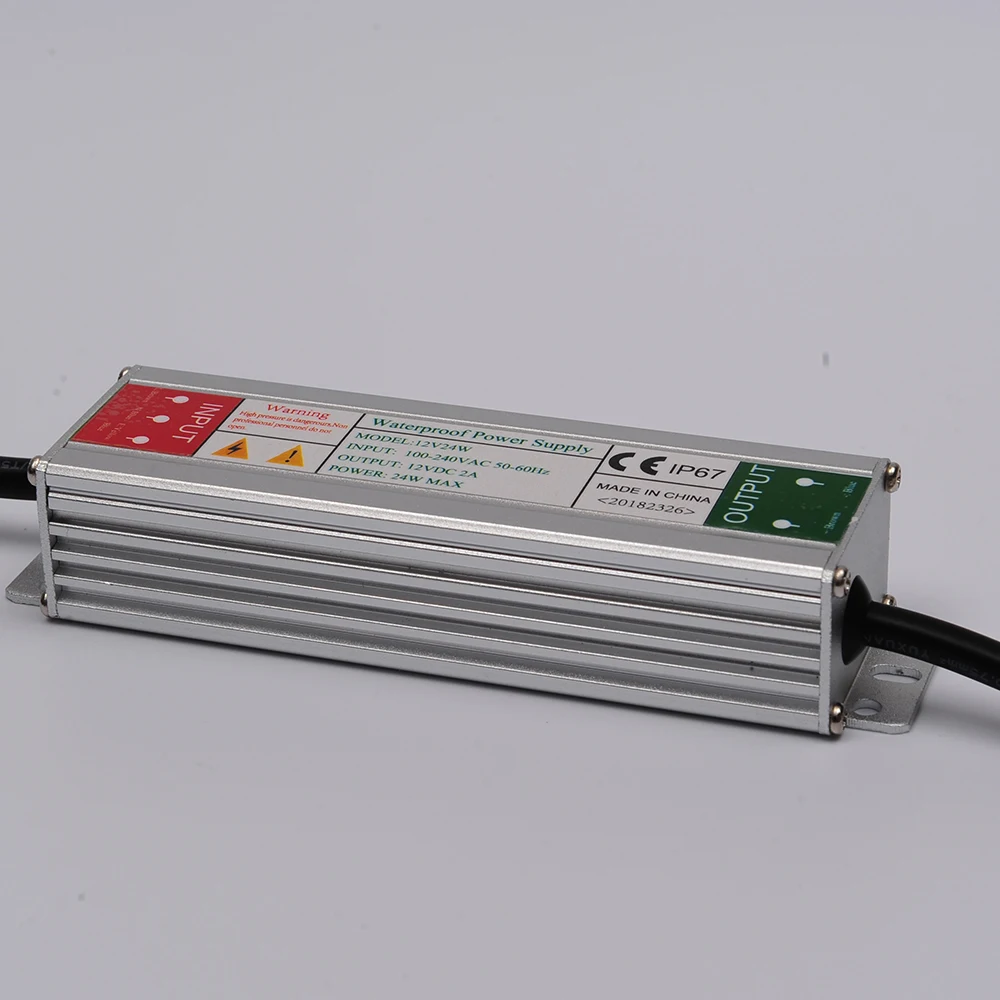

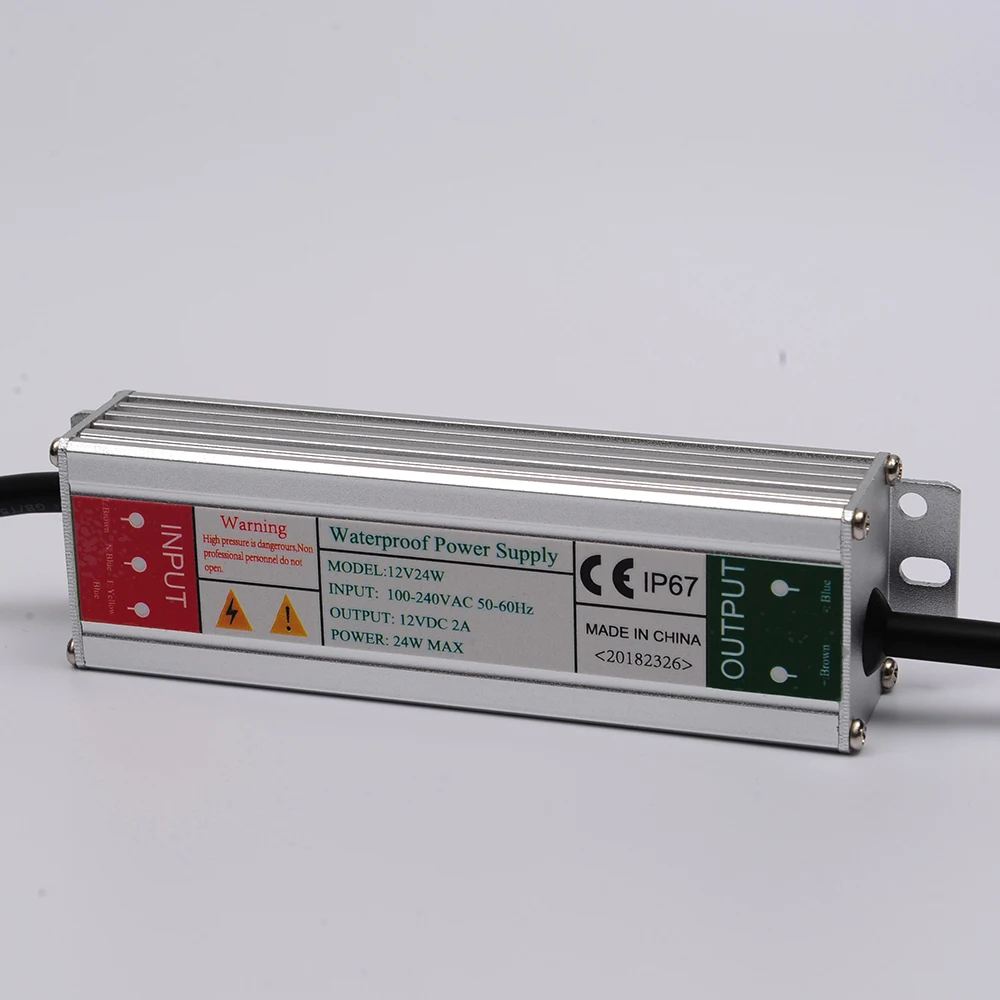

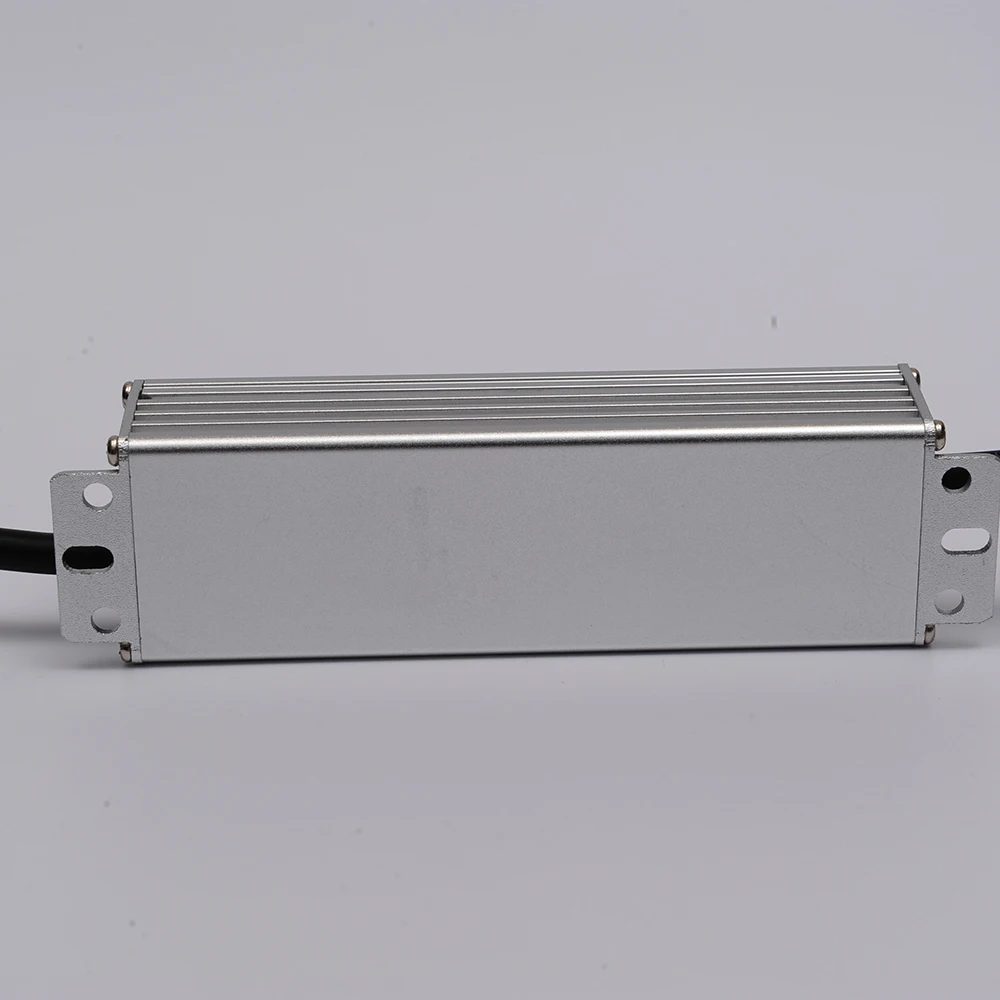

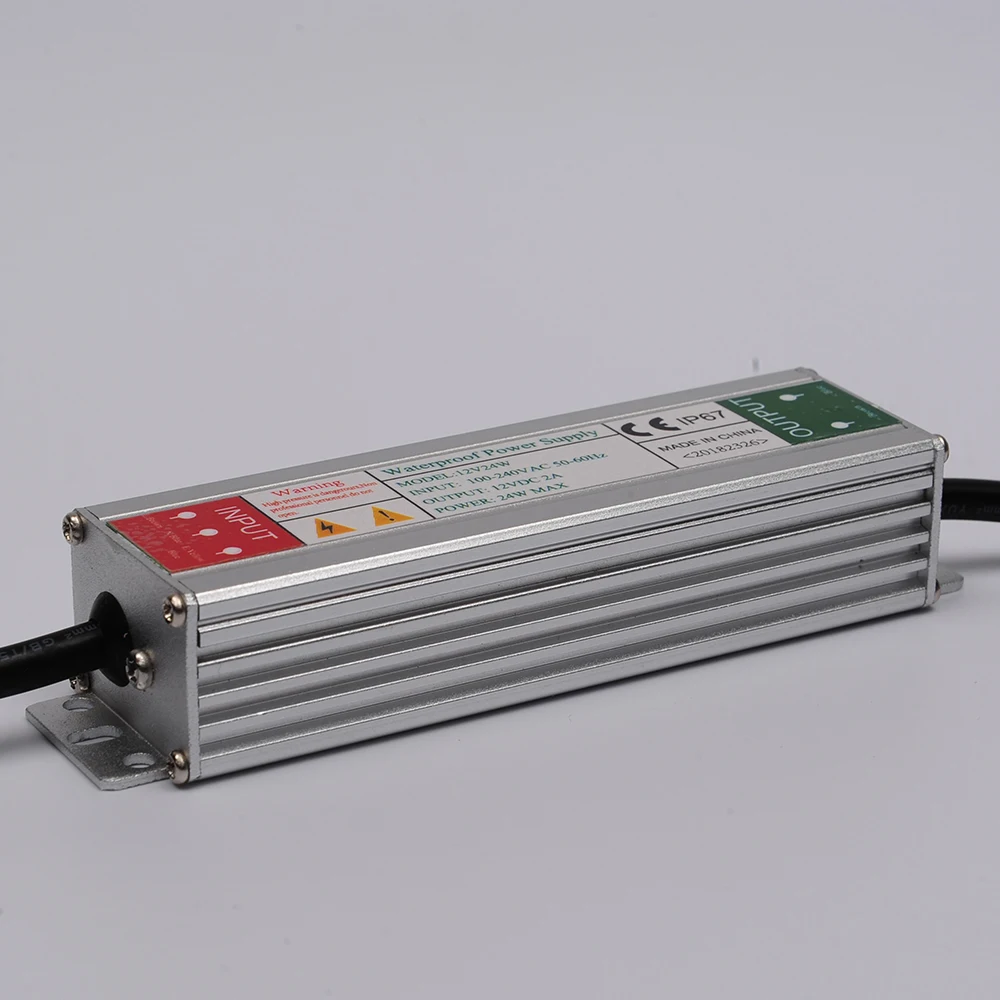

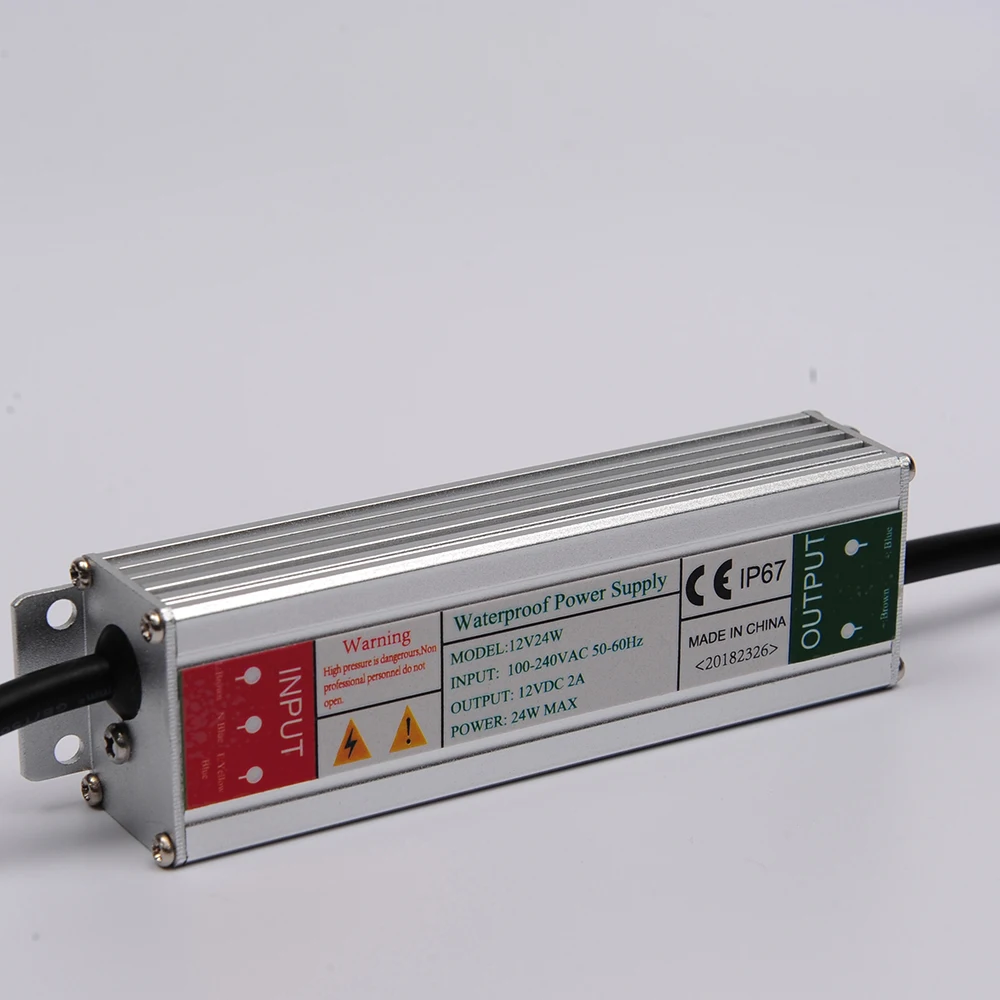

Водонепроницаемый источник питания 12 В
- Категория: Switching Power Supply >>>
- Поставщик: Shenzhen,Hagors,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 4.43 $* | 4.96 $* |
| Jul-16-2025 | 3.45 $* | 3.92 $* |
| Jun-16-2025 | 4.64 $* | 4.87 $* |
| May-16-2025 | 4.3 $* | 4.41 $* |
| Apr-16-2025 | 3.66 $* | 3.94 $* |
| Mar-16-2025 | 4.85 $* | 4.19 $* |
| Feb-16-2025 | 4.40 $* | 4.74 $* |
| Jan-16-2025 | 4.20 $* | 4.38 $* |
Характеристики
Product Description
There are 3 physical pictures (1 front +1 side +1 bottom or top) +1 product anatomy +1 product functional effect illustration +3 decoration case effect pictures in total 8
实物图3张（1张正面+1张侧面+1张底部or顶部）+1张产品解剖+1张产品功能效果说明图+3张图装修案例效果图 总计8张
Project case
装修案例图
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
OUTPUT | DC VOLTAGE | 24V |
RATED CURRENT | 6.25A | |
CURRENT RANGE | 0-6.25A | |
RATED POWER | 150W | |
RIPPLE AND NOISE | <500MV | |
VOLTAGE ADJ. RANGE | ±5% | |
LINE REGULATION | ±1% | |
LOAD REGULATION | ±2.5% | |
SETUP | <1300ms/230VAC | |
RISE TIME | <50ms/230VAC | |
HOLD UP TIME(Typ.) | >10ms/231VAC | |
INPUT | VOLTAGE RANGE | 110～264VAC |
FREQUENCY RANGE | 47～63Hz | |
EFFICIENCY(Typ.) | 83% | |
AC CURRENT | 2.0A/230VAC | |
INRUSH CURRENT | <30A/230VAC | |
LEAKAGE CURRENT | <5mA/240VAC | |
PROTECTION | OVER LOAD | 130～150% rated output power |
SHORT CIRCUIT | Protection type : Hiccup Mode, Shut down o/p voltage, re-power on to recover | |
OVER VOLTAGE | Protection type : Hiccup Mode, Shut down o/p voltage, re-power on to recover | |
IEC IP | IP67 | |
ENVIRONMENT | WORKING TEMP. | -30℃～60℃ |
WORKING HUMIDITY | 20～90% RH | |
STORAGE TEMP. | 40℃～80℃ | |
STORAGE HUMIDITY | 10～95% RH | |
TEMP. COEFFICIENT | ±0.05%/℃(0～50℃) | |
VIBRATION | 10～500Hz, 5G 10min./1cycle, period for 60min. each along X, Y, Z axes | |
SAFETY | SAFETY STANDARDS | IEC60950-1 |
WITHSTAND VOLTAGE | I/P-O/P:1.5KVAC,I/P-FG:0.5KVAC O/P-FG:0.5KVAC | |
ISOLATION RESISTANCE | I/P-O/P-FG,O/P-FG:100M Ohms/500VDC | |
OTHERS | MTBF | ≥50000hrs， |
ACKAGE | Carton Box |
Certificate
Related Products
Company Introduction
企业介绍文案+企业图片配置4张Shenzhen onetouch trading company is a wholesale company that manufactures good & high quality knitting wear and woven wear, starting from 2006. The company provides the customized products and OEM service. Various new collections and design are coming out each month with the current styles and fabrics. The factory own the proficient skill and updated machine
Packing&Shipping
FAQ
1,How many voltage can you supply?
-- 5V, 6.5V,9V 10V,12V, 13.5V, 15V, 18V, 19V, 24V 36V, 48V (depend on items)
2,How many current can you supply?
-- 0.5A, 1A,1.25A, 1.5A, 2A, 2.5A,3A, 3.42A,4A, 5A, 6A, 10A, 15A 20A, 30A, 40A, 50A, 60A
3,How about the quality?
-- We have the best professional and experienced engineer and strict QA and QC system. Repair rate under 1.1%-0.2%
4,Can we be your distributor?
-- We are looking for distributor and agent all over the world for switching power supply. Should you any interest, please feel free to send your message or inquiry.
5,What’s kind of payment you accept?
-- T/T, L/C, Paypal, Western Union,ect
6,What’s your MOQ?
-- 3000pcs, except for sample order or trial order.
