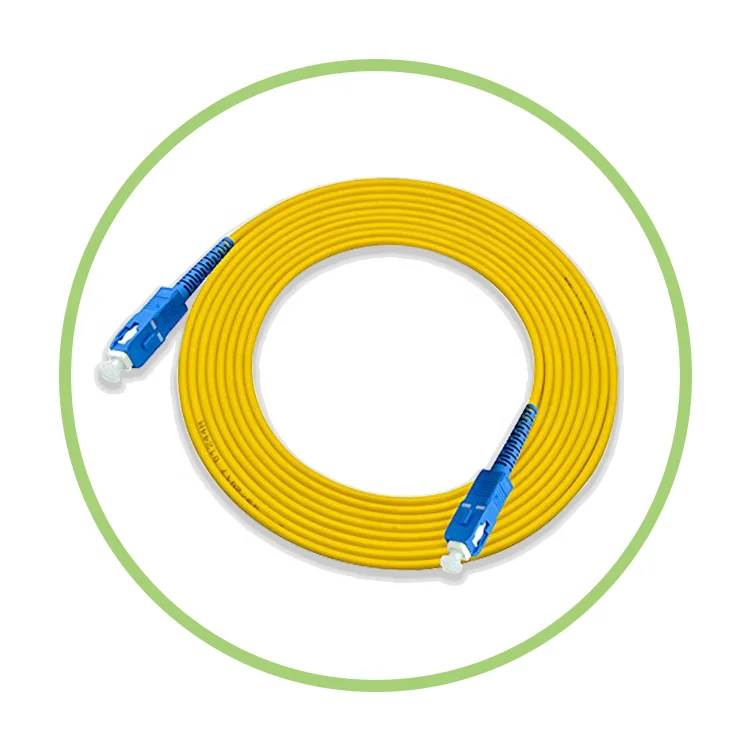

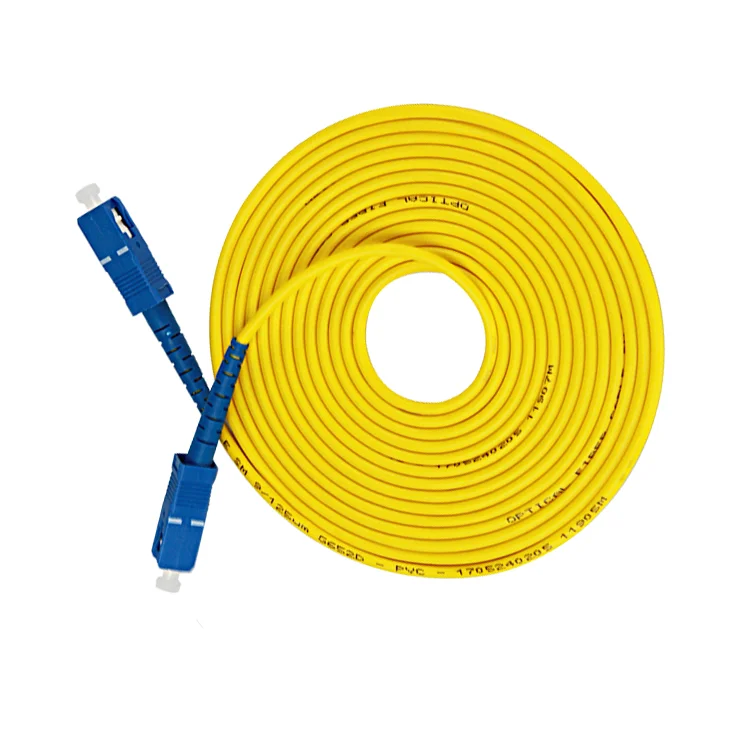

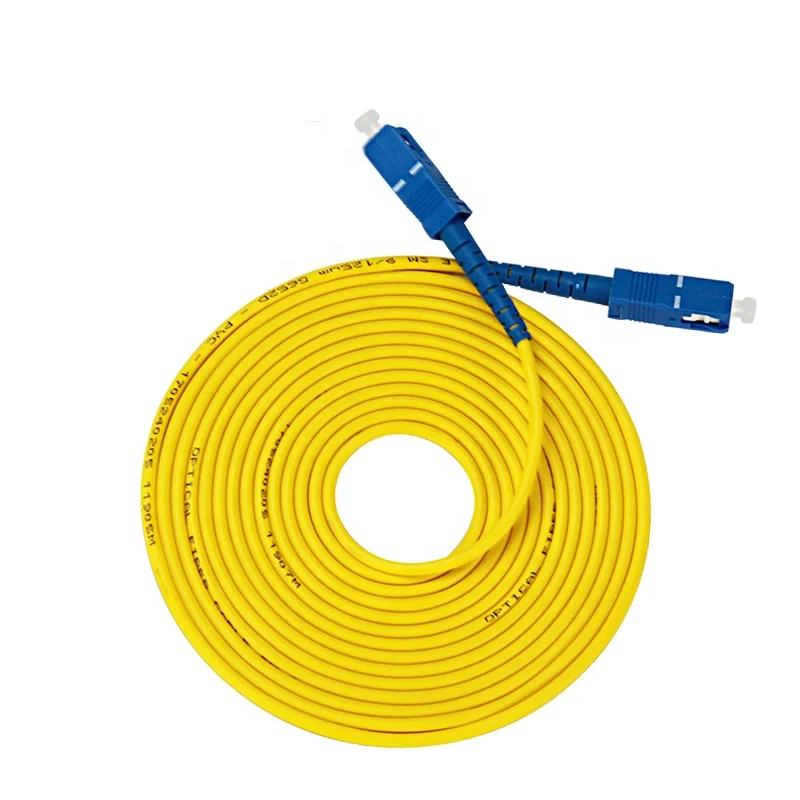

Оптоволоконный кабель 3 м патч-корд оптоволоконный
- Категория: Оптоволоконное оборудование >>>
- Поставщик: Shanghai,Tanghu,Optical,Fiber,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.47 $* | 0.84 $* |
| Aug-16-2025 | 0.64 $* | 0.88 $* |
| Jul-16-2025 | 0.74 $* | 0.91 $* |
| Jun-16-2025 | 0.53 $* | 0.15 $* |
| May-16-2025 | 0.15 $* | 0.32 $* |
| Apr-16-2025 | 0.30 $* | 0.2 $* |
| Mar-16-2025 | 0.24 $* | 0.35 $* |
| Feb-16-2025 | 0.72 $* | 0.6 $* |
| Jan-16-2025 | 0.6 $* | 0.20 $* |
Характеристики
Product Description
Item | Unit | LC/SC/FC/ST Fiber Patch Cord | |||||||||
SM | MM | ||||||||||
Fiber Diameter | UM | 9/125 | 65.5/125 | 50/125 | |||||||
Polishing | PC | UPC | APC | PC | PC | ||||||
Insertion Loss | dB | ≤0.2 | ≤0.15 | ≤0.2 | ≤0.1 | ≤0.1 | |||||
Return Loss | dB | ≥55 | ≥50 | ≥60 | ≥35dB | ≥35dB | |||||
Insert-pull Test | dB | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.15 | ≤0.15 | |||||
Interchangeability | dB | ≤0.1 | ≤0.1 | ≤0.15 | ≤0.1 | ≤0.1 | |||||
Temperature Range | ℃ | -40~+80 | |||||||||
Durability(1/Matings) | ≥1000 | ||||||||||
Tensile Strength (N) | ≥90 (Φ3.0), ≥70 (Φ2.0), Φ0.9 | ||||||||||
Fiber | 9/125um, 50/125um,62.5/125um,ect | ||||||||||
Diameter | 0.9mm 2.0mm, 3.0mm etc | ||||||||||
Cores | Simplex, duplex, 4cores, 6cores, 8cores, 12cores etc | ||||||||||

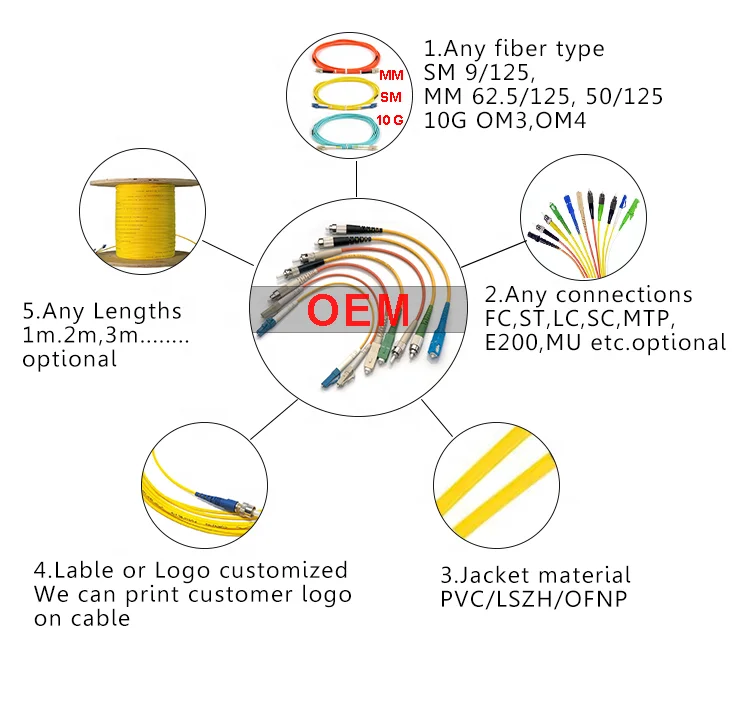

Support Ordering Parameters

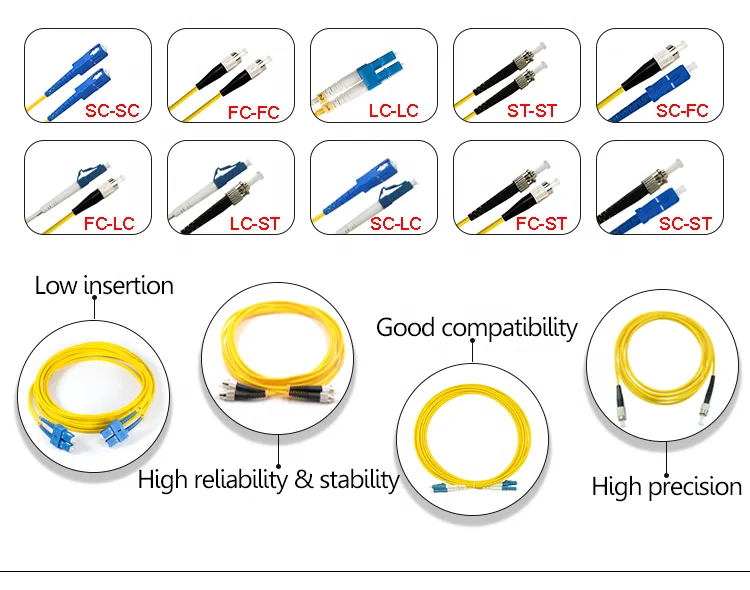

1) Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA
2) Ferrule End-face: PC, UPC,APC
3) Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)
4) Cable Quantity: Simplex, Duplex, 6cores ,12corns, 16cores, 24cores, 36cores, 48cores...
5) Cable Diameter: φ3.0mm,φ2.0mm, φ0.9mm
6) Cable Length: 1, 2, 3 meter or customized
7) Cable type: PVC, LSZH, OM3, OFNR, OFNP, Plenum ,Armored
8) Patch cord/pigtail
Features
Low insertion loss and back reflection loss
Good echangeabilityGood Durability
High temperature stability
CE,ROHS,FCC
Superior quality standard PC/UPC/APC polishing
Applications
Cabling system, ODF
Optical fiber communication systems
Optical fiber data transmission
Telecom net
Optical fiber sensor
Optical fiber test equipment
Optical fiber communication system
FTTH, LAN,PON & Optical CATV
1) Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA
2) Ferrule End-face: PC, UPC,APC
3) Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)
4) Cable Quantity: Simplex, Duplex, 6cores ,12corns, 16cores, 24cores, 36cores, 48cores...
5) Cable Diameter: φ3.0mm,φ2.0mm, φ0.9mm
6) Cable Length: 1, 2, 3 meter or customized
7) Cable type: PVC, LSZH, OM3, OFNR, OFNP, Plenum ,Armored
8) Patch cord/pigtail
Features
Low insertion loss and back reflection loss
Good echangeabilityGood Durability
High temperature stability
CE,ROHS,FCC
Superior quality standard PC/UPC/APC polishing
Applications
Cabling system, ODF
Optical fiber communication systems
Optical fiber data transmission
Telecom net
Optical fiber sensor
Optical fiber test equipment
Optical fiber communication system
FTTH, LAN,PON & Optical CATV
