2-24-контактный разъем Molex 43025/43045 3 0
- Категория: Connectors and Accessories >>>
- Поставщик: Shenzhen,Scondar,Electronic,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.61 $* | 0.21 $* |
| Aug-16-2025 | 0.37 $* | 0.39 $* |
| Jul-16-2025 | 0.24 $* | 0.66 $* |
| Jun-16-2025 | 0.6 $* | 0.52 $* |
| May-16-2025 | 0.13 $* | 0.67 $* |
| Apr-16-2025 | 0.53 $* | 0.45 $* |
| Mar-16-2025 | 0.68 $* | 0.15 $* |
| Feb-16-2025 | 0.57 $* | 0.60 $* |
| Jan-16-2025 | 0.14 $* | 0.51 $* |
Характеристики
Product Description
Molex 43025/43045 Series 3.0mm Pitch PicoBlade Wire to Board & Wire to Wire Crimp Type Connector .
Scondar has been offering customers high-quality wire harness, both with advanced technology and over 20 years of experience, Scondar ensures to meet each customer's demands. If you are searching for wire harness, please feel free to contact us.
Scondar has been offering customers high-quality wire harness, both with advanced technology and over 20 years of experience, Scondar ensures to meet each customer's demands. If you are searching for wire harness, please feel free to contact us.

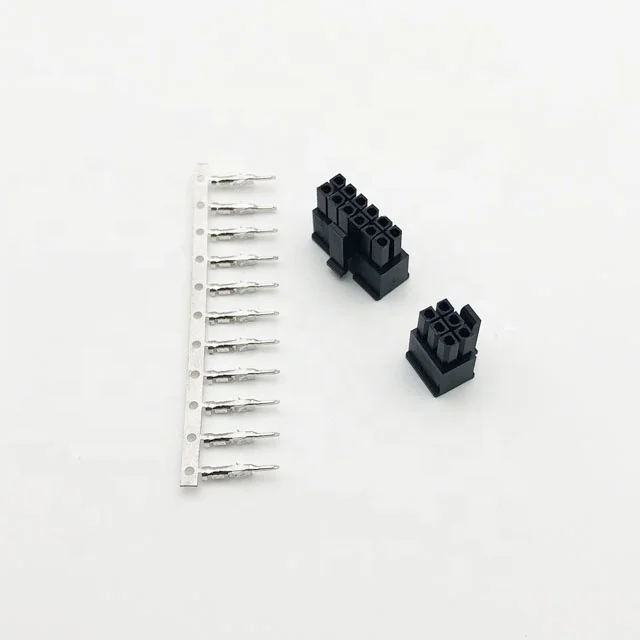

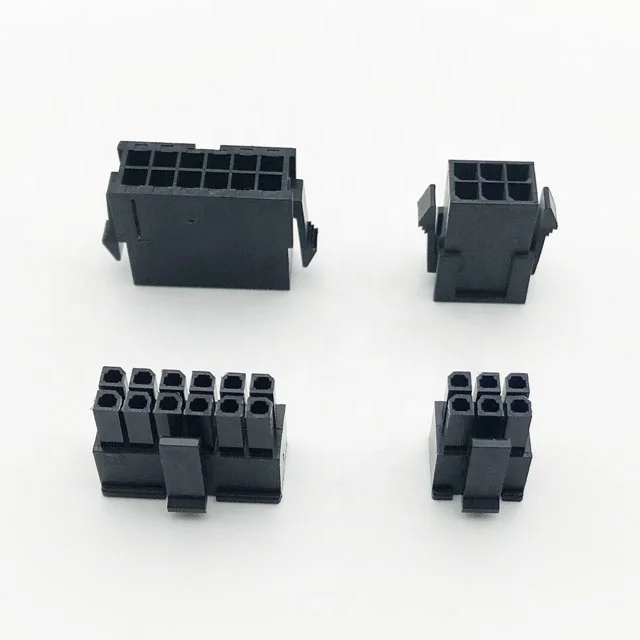

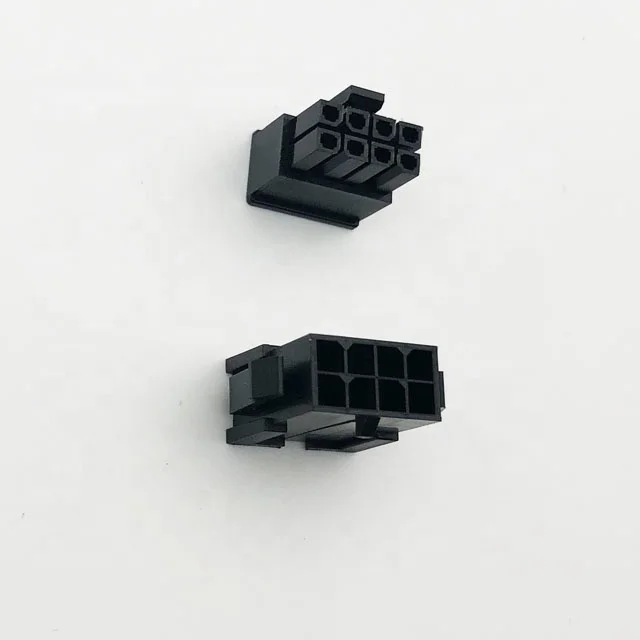

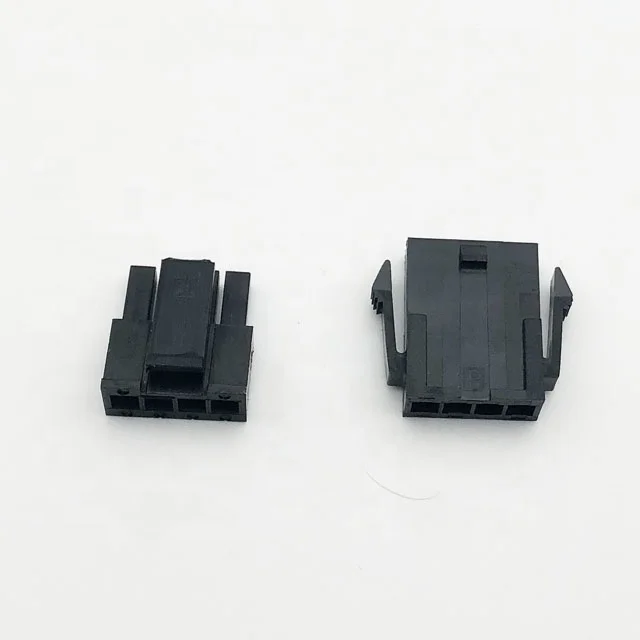

Molex 43025/43045 3.0mm Pitch Connector
SCT3001 Series are replace of Molex 43025/43045 connector. 3.0mm pitch, wire to board crimp terminal style with low contact resistance.
Compatible: Molex 43025/43045 Series Connector
Pitch: 3.0mm
Poles: 1-12P, or 2*1P-2*12P
Current rating: 5A (AWG#18-#24)
Items | Specifications |
Part Number: | SCT3001 |
Compatible: | Molex 43025/43045 series connector |
Pitch - Mating Interface: | 3.0mm |
Circuits: | 1-12P, or 2*1P-2*12P |
Applicable wire: | AWG#18-#24 (Max.OD:1.85mm) |
Current Rating: | 5A |
Voltage Rating: | 250V |
Temperature Range: | -40°C~+105°C |
Contact Resistance: | 10M Omega Max |
Insulation Resistance: | 1000M Omega Min |
Withstanding Voltage: | 1500V AC/minute |
Wire & Cable Assemblies: | Customized |
Molex Series connector | ||
Molex 78172 1.2mm Pitch Connector | Molex 5102/5240 2.5mm Pitch Connector | |
Molex 51021 1.25mm Pitch Connector | Molex 2510(6471/2695/7880) 2.54mm Pitch Connector | |
Molex 51022 1.25mm Pitch Connector | Molex 70066/70107 3.0mm Pitch Connector | |
Molex 51146 1.25mm Pitch Connector | Molex 43025/43045 3.0mm Pitch Connector | |
Molex 87439 1.5mm Pitch Connector | Molex 2139/3069 3.96mm Pitch Connector | |
Molex 51004 2.0mm Pitch Connector | Molex 5195 3.96mm Pitch Connector | |
Molex 51005/510062.0mm Pitch Connector | Molex 5557/5559 4.2mm Pitch Connector | |
Molex 5263/5264 2.5mm Pitch Connector | Molex 5.08mm Pitch Connector | |
Why Choose Us
Over 16 years experience on manufacturing connectors, cable assemble, Scondar commit to offer high quality products & service.
We take care for quality from initial production step,under close cooperation of quality management, technical purchasing and suppliers
Our factory with ISO 9001:2015 certificate, and all product with RoHS compliant, meet different markets request, such as UL,CE certificate.
SCONDAR as China based connectors supplier, So we have lower stand-by cost & management cost than many companies.
Our production management & stock management gives us control over your order and we take pride in our delivery to you in time.
Free samples are always available for your quality evaluation, So you can save more and increase your profit without worry about quality.
ABOUT SCONDAR
ABOUT SCONDAR Electronic Co., Ltd.
Scondar is China-Based manufacturer, providing connectors and wire harness,cable assembly for many years.Our factory have full ISO 9001:2005 certification.
Our connectors are compatible to JST,Molex,Dupont,Hirose,JAE and more with well performance even in hard situation. The housing,crimp terminal and socket are mated well & reliable.
Injection machines
Terminal and pin machinese
Stamping machines
Inserting and SMD
Terminal crimping workshop
Wire harness assembly
Connection inspection machine
Terminal inspection machine
Warehouse
Customer
Our Certifications
Packing & Delivery
Packing Details : Housing packed in bag, 1000pcs/bag, SMT type connector packed in reel.
Delivery Details : lead time 5-7 days
Shipping methods: DHL, EMS, UPS, TNT, FEDEX, SF.
FAQ
Q: Are you trading company or manufacturer?
A: We are factory with over 10 years experience in connector industrial.
Q: Delivery time?
A: Generally 5-7 days for standard products within quantity of 10,000 pcs.
Q: Do you provide samples? is it free or charged
A: Free samples are always available for testing or quality evaluation purpose.
Q: What is your terms of payment?
A: Payment terms are flexible, T/T, Paypal, L/C, D/A, D/P, Western Union, Money Gram etc. And you can pay on Alibaba with your credit card.
Q: How to ship the order? Is it Safe?
A: For small package, we will send it by express, such as DHL, FEDEX, UPS, TNT, EMS, which are door to door service.
Q: Is small order less than 100pcs accepted?
A: Yes, please contact with us, we will send you link for small order.
Q: What is your working time?
A: 9AM to 6PM from Monday to Saturday.
Our sales person will check email or Alibaba message time by time even we are not in working time. Always welcome to contact with us. Looking forward to happy conversation with you!
