new design high Isolation Absorber Shielding Signal Box high shielding effectiveness metal plate manual rf shield box

(WELCOME TO CUSTOMIZE YOUR OWN SIZE, CONSTRUCTION AND FILTER TYPE)



Product introduction
          RF shield box that allows engineers to create an affordable automated end-to-end test environment with each UE shielded individually. It enables the user to perform wireless network tests without undesired RF interference by protecting mobile devices from outside network frequencies.
Applied for below DUT:
1)2.4GHz and 5 GHz wireless LAN products: signal block or isolating for the wireless modem, wireless router, wireless LAN card, wireless charger, wireless earphone, wireless headset,
2)GPS products: cellular phones as W-CDMA of 3G, PDC and GSM; the mobile phone with GPS function, RC drone;
3)Smart products: signal block or isolating for smart led, smartwatch, smart security, smart robot, smart lock, smart ring, smart bracelets), TV BOX(set-top box)
4)Measure products: water measure, electricity measure, temperature measurements, etc)

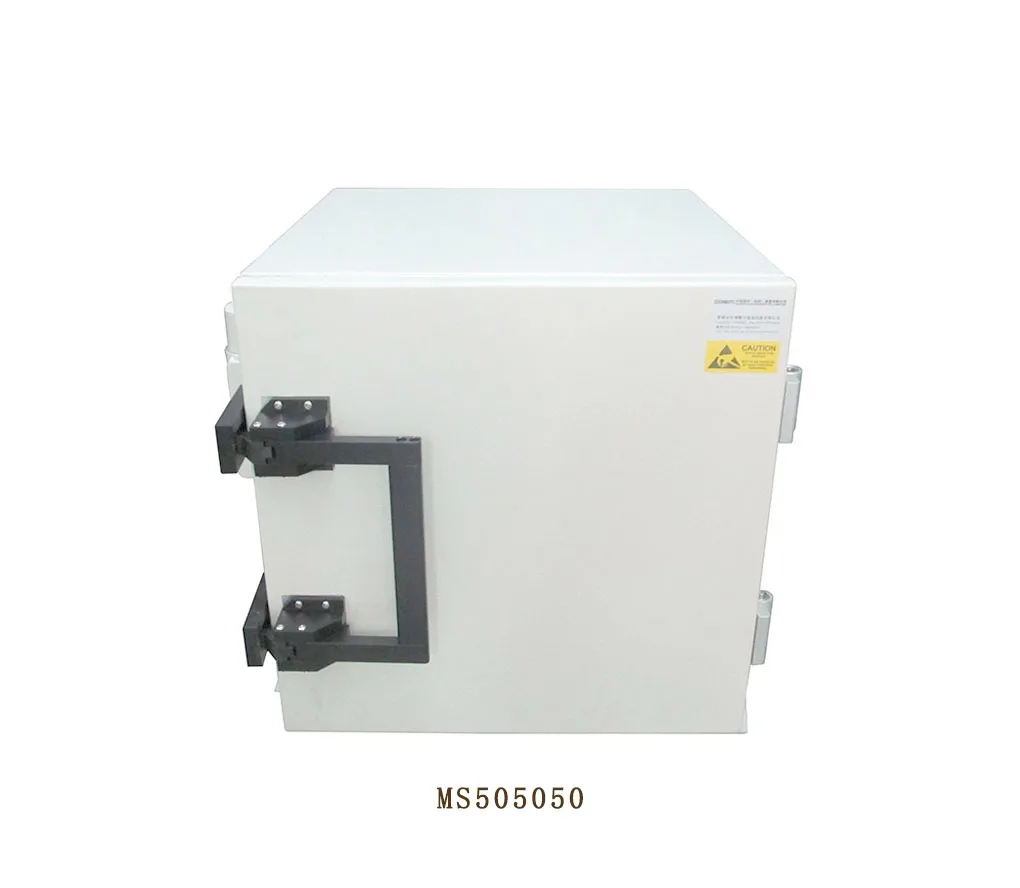

        MS505050 is an economical manual singer-layer shielding box, which is suitable for building the modules and terminal test solution platform in the fields of smart phones,WIFI,smart grid equipment,automotive electronics, unmanned aerial vehicles,smart home and so on.The shielding box is made by the plate laser cutting, sheet metal forming,electroplating,electrostatic spray paint assembling and debugging,aging testing and other processes with the advantages of high shielding efficiency,reliable structure and stable performance.

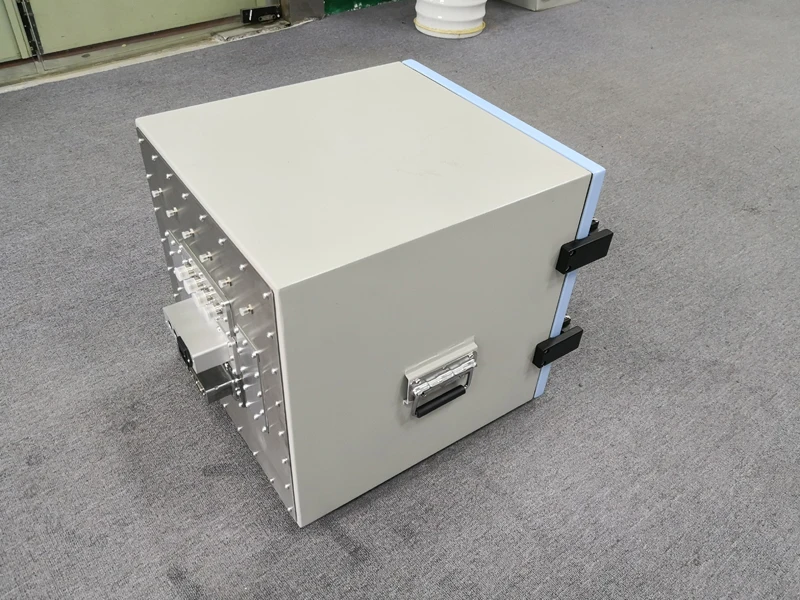

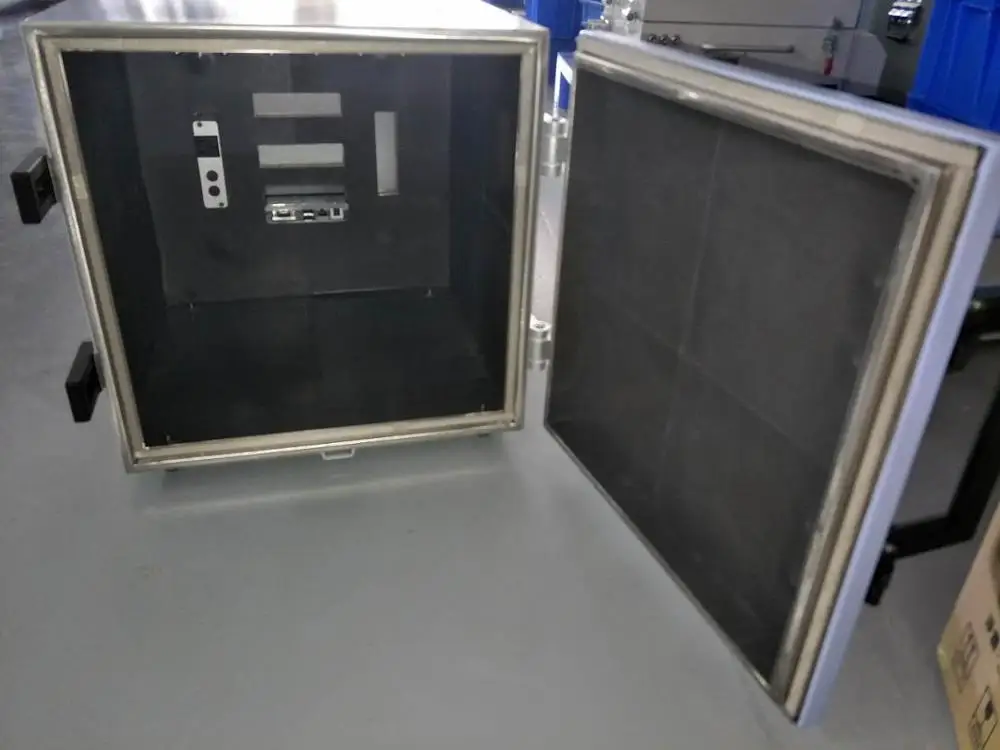

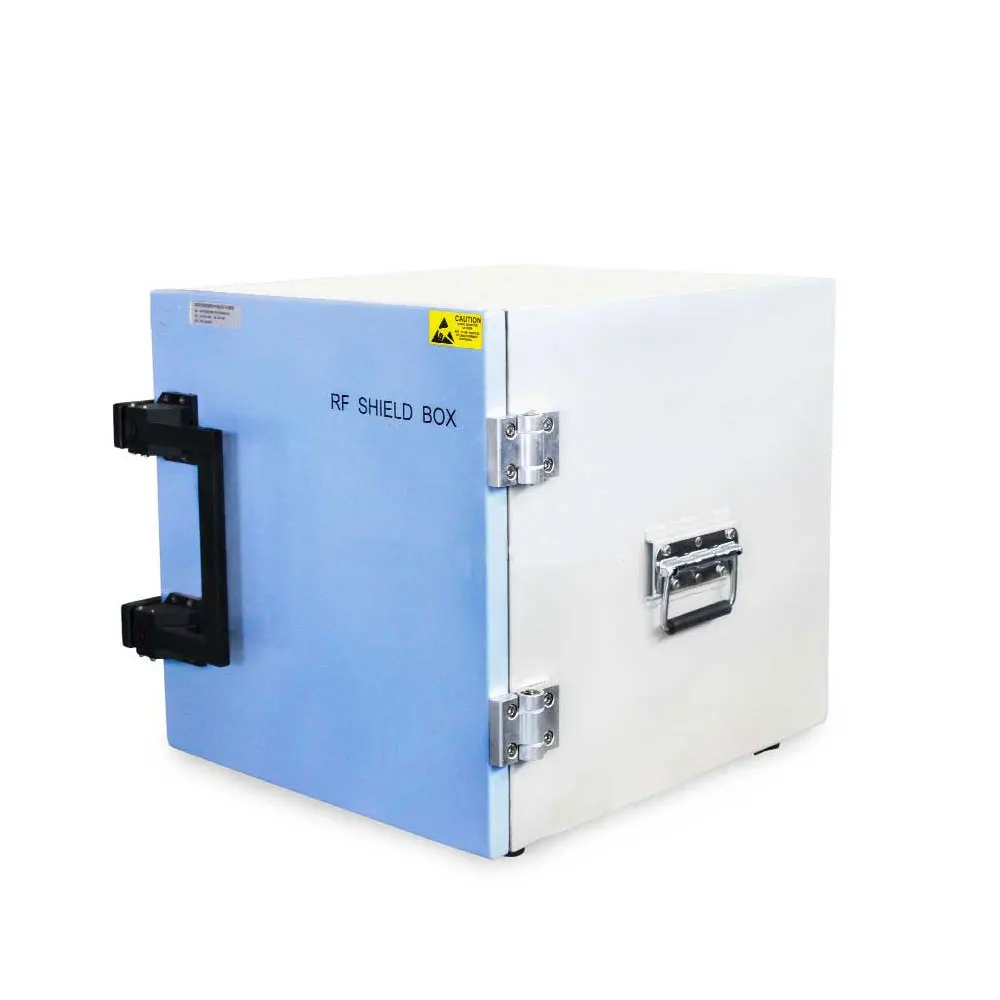

Real photos



Product features

1) 500*500*500mm working size, it can meet most of the test requirement of smart mobile terminal on the market

2) Adopt the new type absorbing material to minimize the reflection signal in the box and reduce the mis measurement caused by environment

3) Complete communication interface design

4) Reliable safety protection measures, double protection of high-sensitivity magnetic ring sensor and photoelectric sensor





Spec

Working frequency(GHz)	100MHz~6GHZ
Shielding effect	≥70 dB at 2.4GHz/5.8GHz
Interface Type	VGA,DB9,DB25,2.0USB,3.0USB,SMA,RJ45,BNC,RCA,DC,AC,HDMI,AV3.5
numbers of filters	4 pcs
working temperature(°C)	Normal temperature
Inner working dimensions	500(W)*500(D)*500(H)
Outside dimensions(mm)	550(W)*633(D)*533(H)
Weight(kg)	60 kg
Appearance of color	White (can be customized)

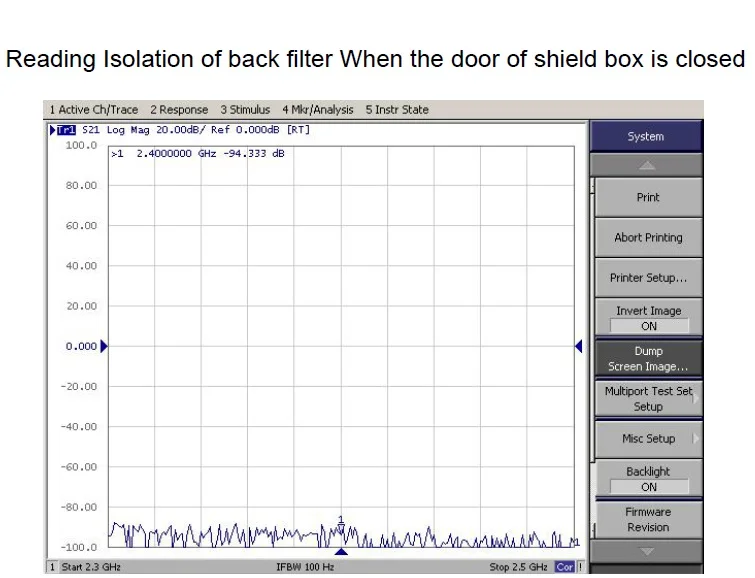

Size Test parameter
