6K электрическая тормозная ось прицепа листовая

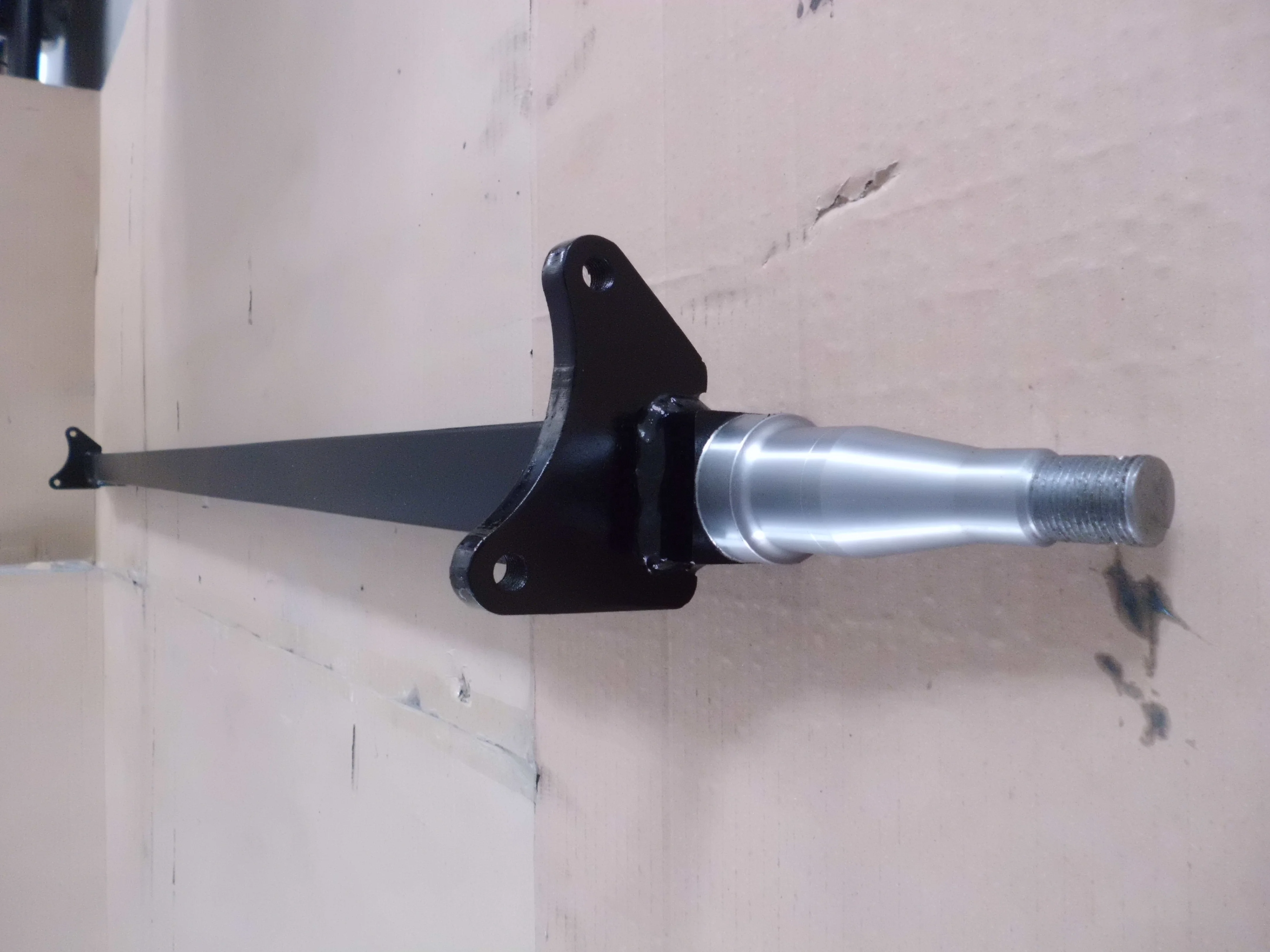

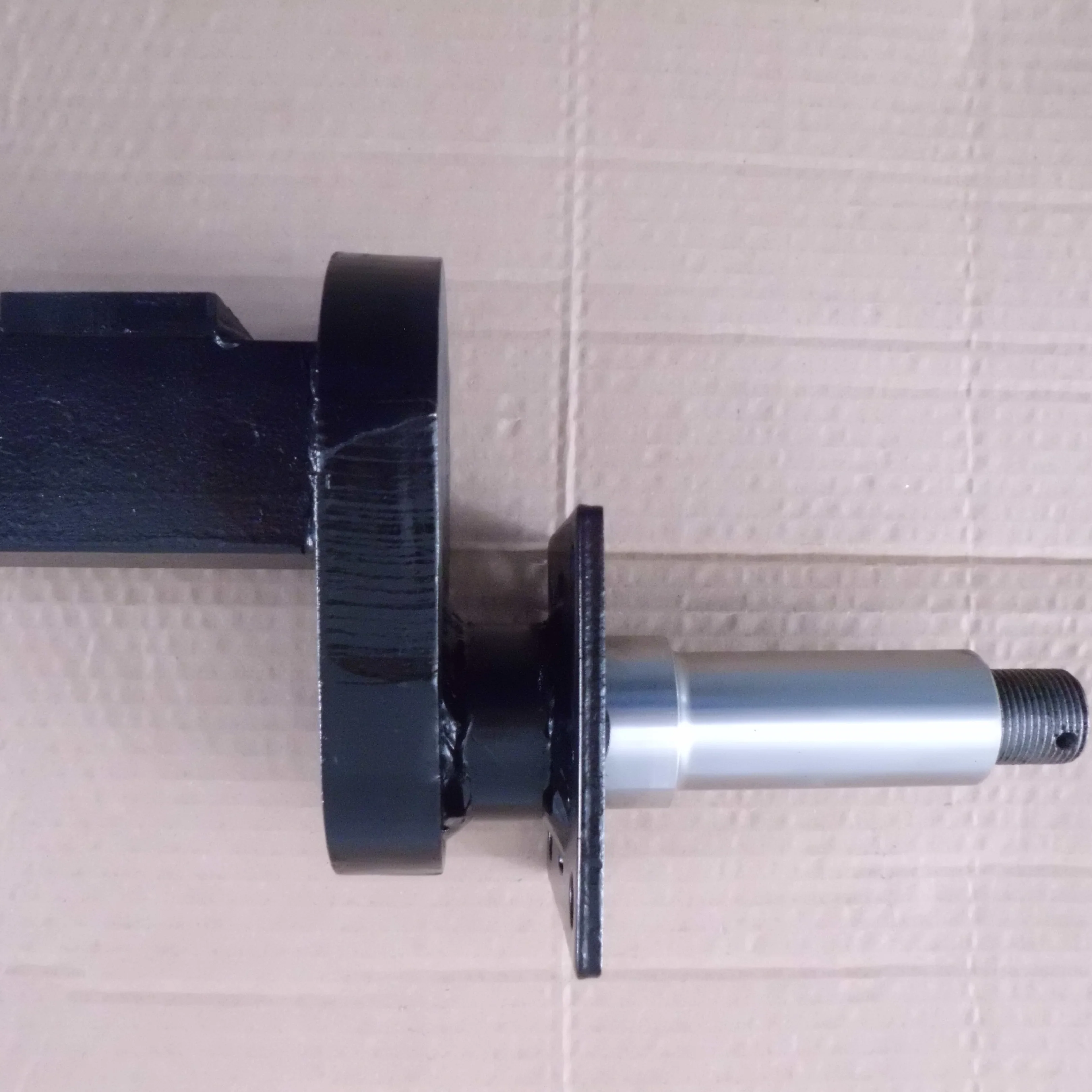

Trailer Axle: 2 3/8" diameter x 3/16" nominal wall round tubing. Hub/Drum: Idler hubs and hub/drums available in a 5-4.5", 5-4.75", 5-5", 5-5.5", or 6-5.5"bolt circle. Lubrication: Grease. Spindle: Type 84 with an inner journal dimension of 1 3/8" and an outer journal dimension of 1 1/16". Includes brake flange - You can add brakes for future use. Trailer Axle price does not include springs, hangers, or u-bolts. Trailer Axles are available in different lengths and hub faces.Maximum Overhang = 17.5" Minimum Overhang = 14" Overhang is the difference between the spring center and the hub face. Exceeding the maximum overhang will result in reduced axle capacity. Minimum Overhang dimensions are based on zero offset wheels and physical clearances; and are determined by suspension type, wheel and tire combination. Axle seats and lug nuts come loose with axle. Trailer axle assembly contains trailer axle beam with pressed in spindles and four bolt mount brake flange, hubs (races pressed), bearings, grease cap, and grease seal, axle seats, and lug nuts.

Guilin Pengyuan Trading Co., Ltd., specialized in producing auto parts,  as a member of GM Automobile Group and Association of Quality Management of Mechanics Industry of China.

 In March 2005, Pengyuan passed TS1699 Quality System Certification. Our products turned out by our enterprise have been selling well in markets at home and abroad, and got high appreciation from overseas buyers.

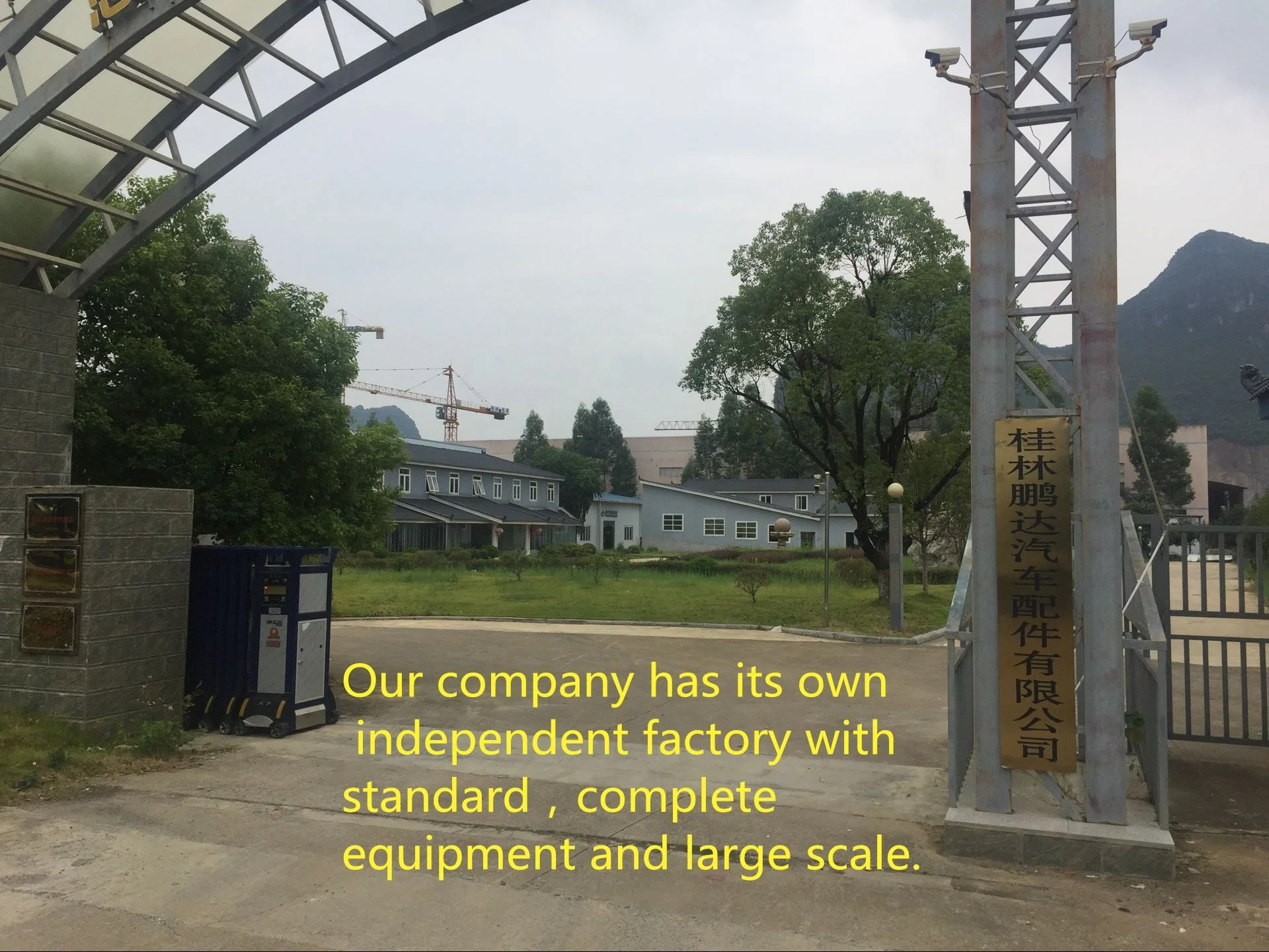

Our factory:

We are capable of producing iron casting, steel casting, nonferrous metal casting, forging, punching and riveting, welding, heat treatment, mechanical processing, etc.

Production Workshop And Equipment :

Pengyuan is well-equipped with all kinds of trailer parts.

We has 487 sets of physical performance, chemical analysis,

metallographic inspection and other testing equipment.

More Details, click here

Exhibition style at home and abroad:

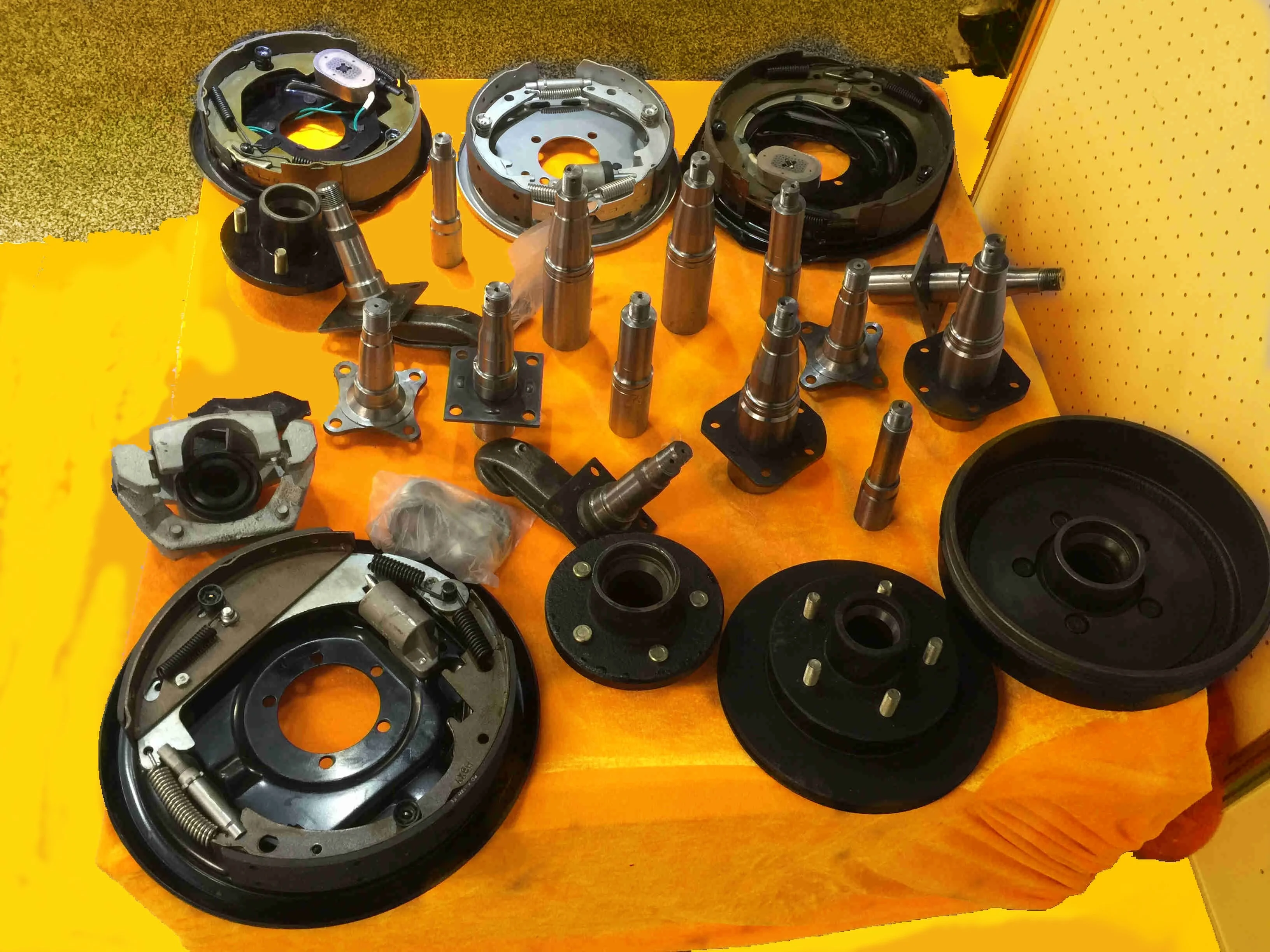

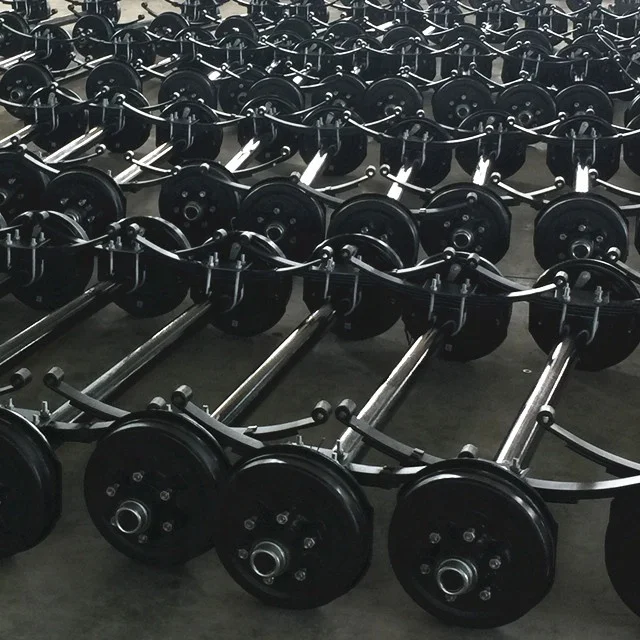

 Product Display:

 As for the transportation of products, our company supports various sea, land and air international transportation. Please confirm the specific transportation plan during the negotiation.

Choose to contact us>>
