MODEL | HFS series Edge crusher |
HFS AAA-BBB HFS:edge crusher AAA:Crushing chamber width(mm) BBB:Material out way Blank = suction box D=Two material proportional valve R=Manual box AJ=Compressed air +I MM recycle BJ=Blowing pump+ I MM recycle | |

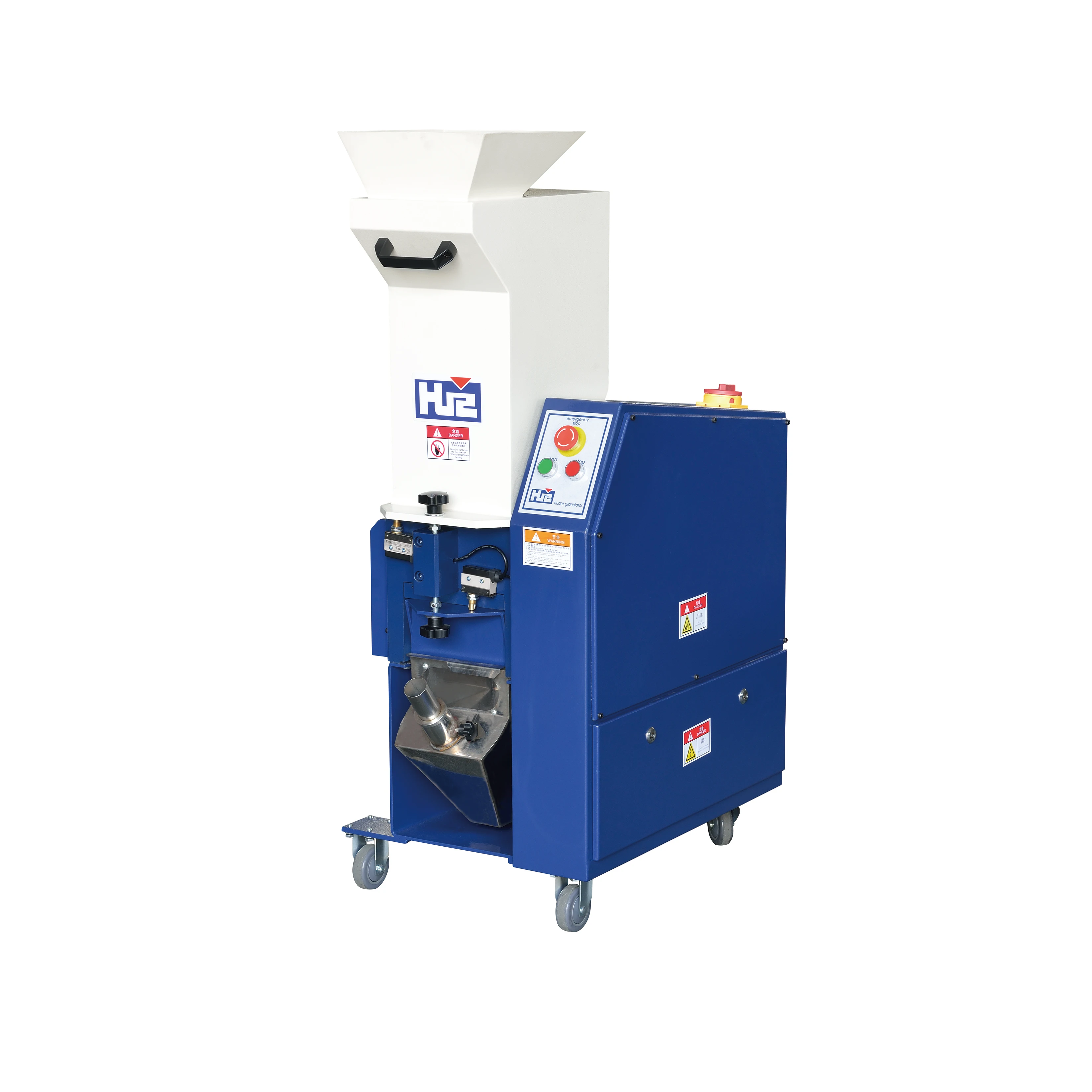

Introduction | HFS series edge crusher, suitable for plastic molding machine with the take-out machine or conveyor belt or a little bad product crushed, compared with the conventional series of crusher with low speed, low noise, resulting in less dust, easy to operate features. |
Special Features | Motor overload protector. The chain safety device can protect the safety of operator and machine. The main power isolated switch. Cutter is made of special steel. so it is sharp, wearable and Crushing granule with little dust. Design for modularized structure, for easy cleaning and Maintenance. Standard cyclone dust collection device, hear and green. Four wheels for easy moving. |
Note | The standard voltage is 3¢,380V, 50Hz. The maximum crushing capacity depends on screen hole, material etc. Have any special needs, please contact us. We reserve right to change specifications without prior notice. |
Type | HFS180 | HFS180-B | |
Power(kw) | 1.5/2.2 | 1.5/2.2 | |
Blower power(kw) | - | 1.3 | |
Rotating speed(rpm) | 355 | 355 | |
Rotor blades(Pcs) | 3 | 3 | |
Fixed blades(Pcs) | 2 | 2 | |
Output(kg/hr) | 70~150 | 70~150 | |
Weight(kg) | 200 | 220 | |
Indeed opening(mm) | 140X180 | 140X180 | |
Crushing rotary size(mm) | φ150 X 180 | φ150 X 180 | |

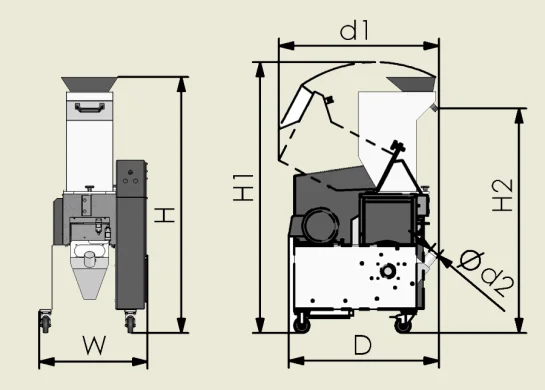

外形尺寸 Dimensions | |||
H(mm) | 1250 | 1250 | |
H1(mm) | 1325 | 1325 | |
H2(mm) | 1070 | 1070 | |
W(mm) | 530 | 795 | |
D(mm) | 710 | 710 | |
d1(mm) | 785 | 785 | |
Φd2(Inch) | 1.5 | 1.5 |
