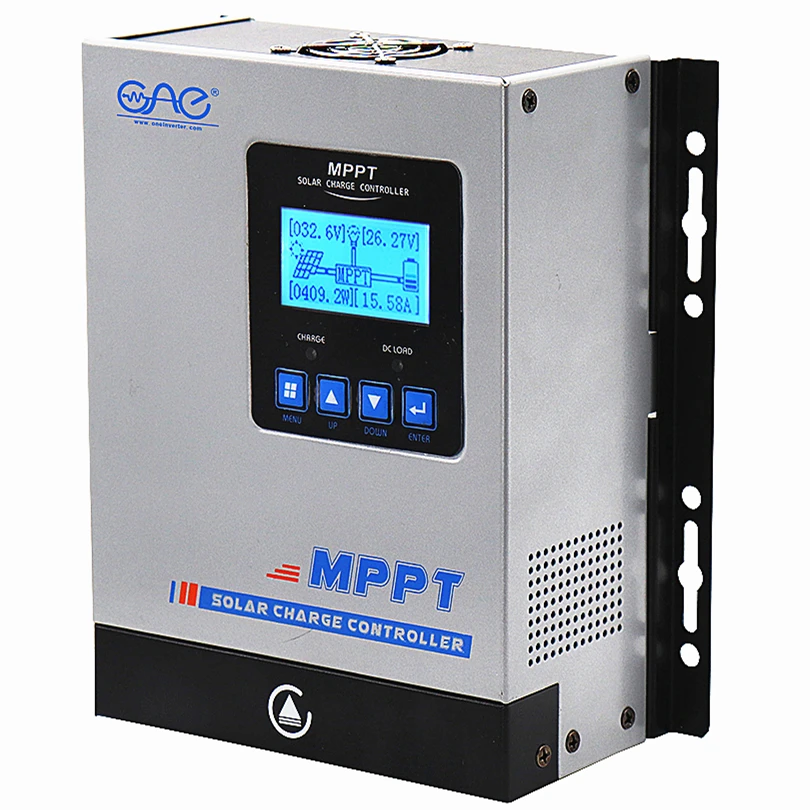

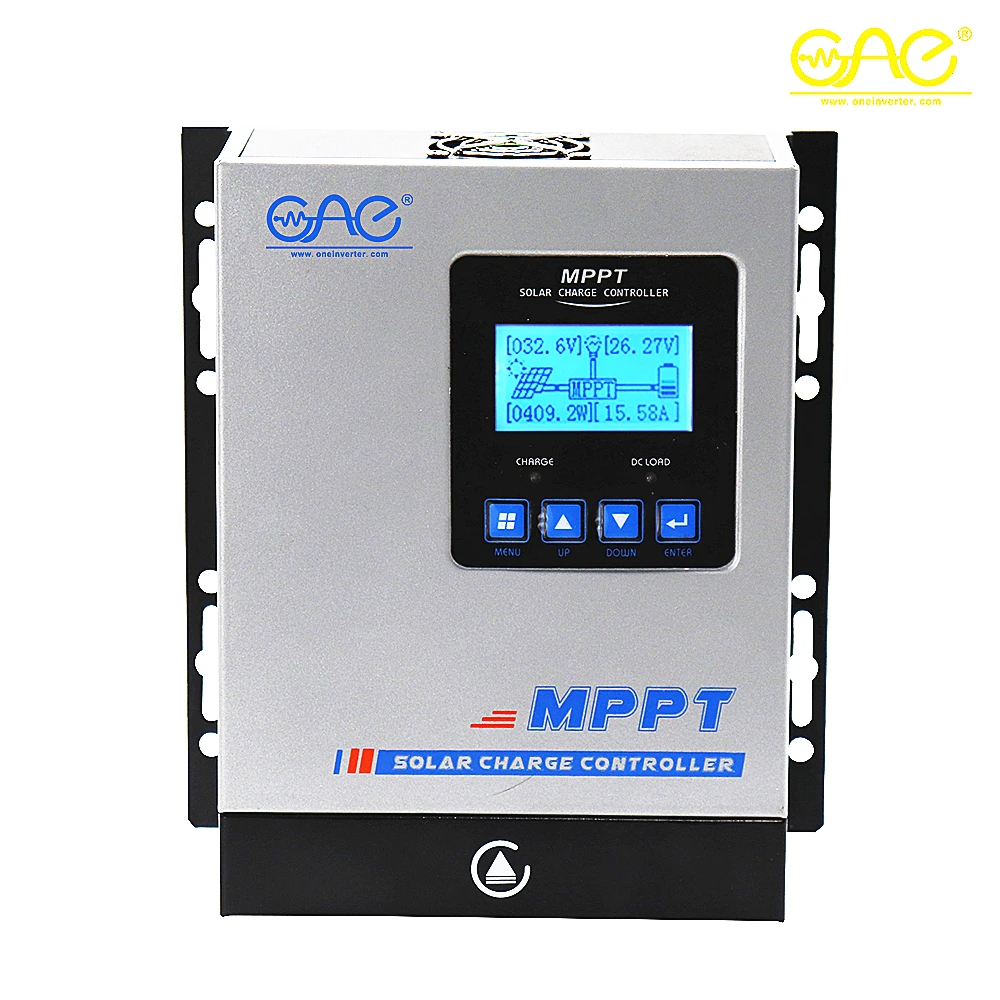

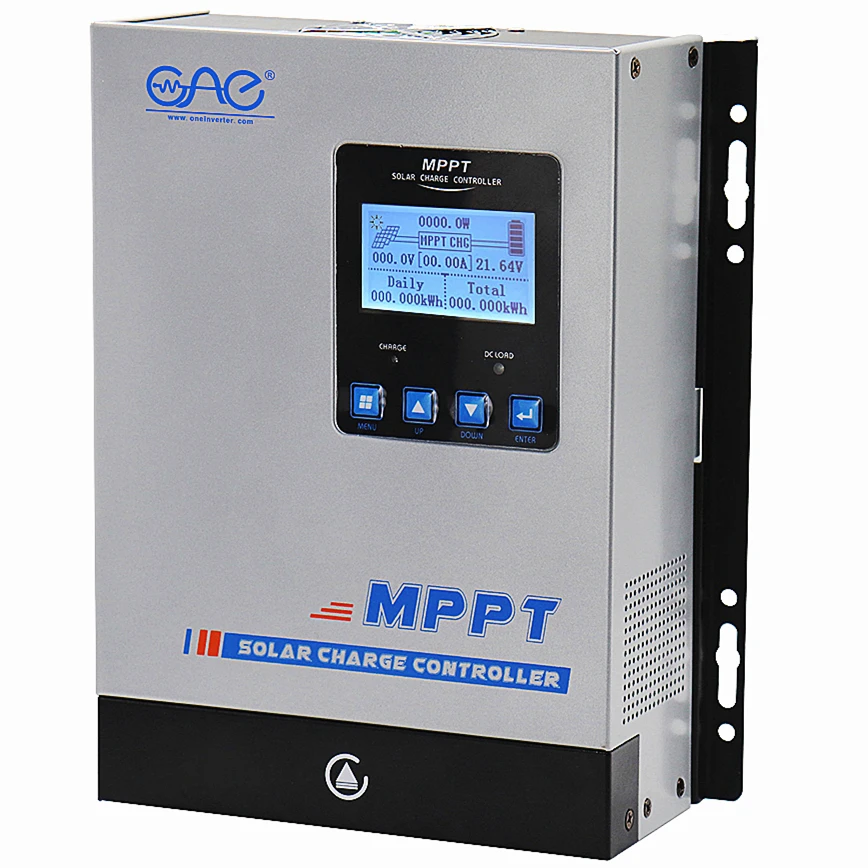

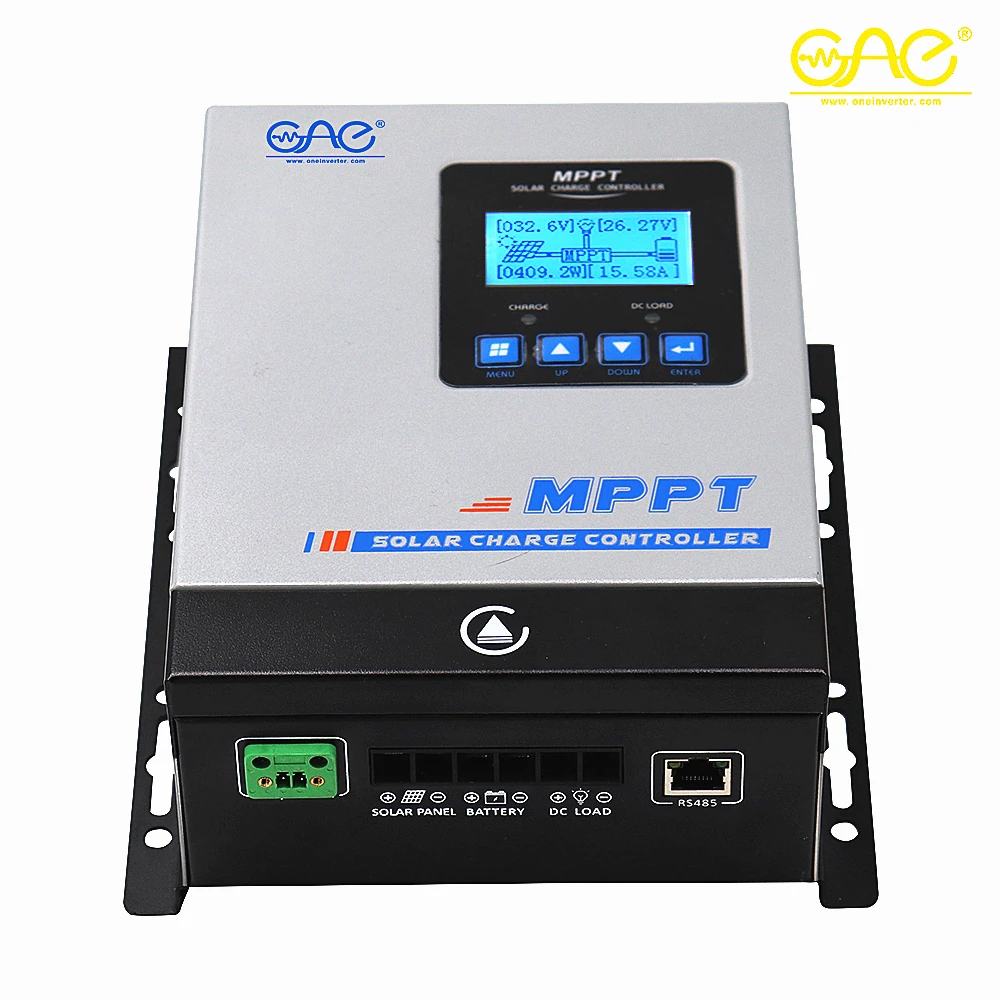

Контроллер заряда солнечной батареи 20A mppt для системы CE FCC

Цена:73,00 $ - 75,00 $*

Количество:

15kw solar charge controller 20a mppt solar charge controller for solar system

Product Description

Details data sheet

MODEL		AP-20	AP-30	AP-40	AP-50	AP-60	AP-80	AP-100	AP-120
RATED CURRENT		20A	30A	40A	50A	60A	80A	100A	120A
MAXIMUM CHARGING CURRENT		22A	32A	42A	52A	62A	82A	102A	122A
MPPT RANGE OPERATING VOLTAGE	12V SYSTEM	18VDC~80VDC
	24V SYSTEM	30VDC~100VDC
	36V SYSTEM	40VDC~100VDC
	48V SYSTEM	60VDC~150VDC
	96V SYSTEM					120VDC~200VDC
MAXIMUM PV ARRAY POWER	12V SYSTEM	280W	420W	570W	700W	900W	1140W	1400W	1800W
	24V SYSTEM	550W	840W	1130W	1400W	1700W	2260W	2800W	3400W
	36V SYSTEM	840W	1260W	1710W	2100W	2700W	3420W	4200W	5400W
	48V SYSTEM	1100W	1650W	2270W	2800W	3400W	4540W	5600W	6800W
	96V SYSTEM					7200W	9120W	11200W	14400W
SUPPORTABLE BATTERY TYPE		SEALED LEAD ACID/GEL/NICAL/LIFEPO4 LITHIUM BATTERY
CHARGING MODE		THREE STAGES: CONSTAND CURRENT(MPPT),EQUALIZING CHARGE, FLOATING CHARGE
MAXIMUM EFFICIENCY		≥99%
COMMUNICATION		RS485
CARTON SIZE		315235150MM			355270135MM			570360200
G.W.		3.5KGS			4.5KGS			13KGS
*PRODUCT SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT FURTHER NOTICE
