100L Hydrogenation explosion-proof uasb autoclave reactor weihai

Recommended products-Click on the picture to enter

Industrial scale             System reactor             Lab scale

Heat exchanger       Glass reactor      Hydrothermal synthesis

Special Customized- Just for you:

All of our reactor are specially made as per customer's request, you could advise below parameter , then we will send you accurate quotation with related drawing:

1. Working volume

2. Working Temperature

3. Working Pressure

4. Reactor Material / contacting components material

5. With the agitator or mixer or not,  and the Mixing Speed

6. With heating device or not.

7. Your other requests

With above information, we will come back to you with special designing just for yourself.



Introduction for 100L Hydrogenation explosion-proof uasb autoclave reactor weihai

100L Hydrogenation explosion-proof uasb autoclave reactor weihai is specially used in high pressure process and hydrocarbon resin process. Our equipment can help reaction in a high pressure while high temperature, some times equip with condenser and collecting tank, for gathering vapor components.

Specifications and Technical Parameters for 100L Hydrogenation explosion-proof uasb autoclave reactor weihai
Type	GSH-0~500L
Volume(L)	0~500L
Working pressure(MPa)	For 0~10L Negative pressure -0.1~45 For 10~500L Negative pressure -0.1~20
Working temperature(°C)	-196~400
Stirring speed(r/min)	0~500
Motor power(KW)	0.245~4
Heating power(KW)	0.8~36
Heating type	Electric heating, far infrared heating, high frequency heating. Water, thermal oil or steam recycling through jacket.
Charging type	Charging from above, discharging from bottom or above.
Shaft	Adopt self-lubricating wear-resistant sleeve, suitable for mixing various media.
Stirring type	Anchor-type, frame-type, blade-type, turbine-type, scraper-type or modular-type.
Seal type	Magnetic seal, mechanical seal, packing seal, gasket seal.
Motor	General DC motor, DC servomotor or explosion-proof motor according to customers’ requirements.
Main material	Kettle material mainly use Stainless Steel 0Cr18Ni9 (SS304), 00Cr17Ni14Mo2 (SS316L), 0Cr18Ni10Ti (SS321), also can be produced by titanium (TA2), nickel, zirconium, hastelloy, etc, or lined with PTFE, PPL, PFA and Ni (Ni6) according to different requirements of reaction media. Or use Cladding plate which combined by two of above material.
Opening port of conventional kettle lid	Gas port and liquid port with needle valve, Bottom insert tube inserting the bottom, Solid charging port with flange or visual glass, Measuring and controlling temperature port with platinum resistance, Security blasting port with safety device and Pressure gauge, as well as cooling coil inlet and outlet inside the reactor with tap.
Controller Device	Equipped with automatic or programmed PID or PLC to achieve:   Temperature display and control, accuracy ± 1 ℃ (or ±0.1 ℃);   Mixing Speed display and control;   Pressure display and control;   Level display and control;   Flow display and control;   Valve open/close control, etc.
Other Accessories	We can design and manufacture various reactors as per customer’s request. If user have other special requirements on kettle cover, kettle body opening, internal structure, stirring paddle, and other supporting device (such as condensate return unit, constant feeding tank, receiver, condenser, etc.), we can help customer to achieve their request, can also equip necessary instruments as request.









Inspection for 100L Hydrogenation explosion-proof uasb autoclave reactor weihai

 We inspect every 100L Hydrogenation explosion-proof uasb autoclave reactor weihai:

 NDT Test for both Reactor Kettle and Reactor Jacket;

 Ray Test (RT)

 Penetrant Test (PT)

 Hydraulic Test under 1.2 Time of Design Pressure

 Leackage Test under Design Pressure

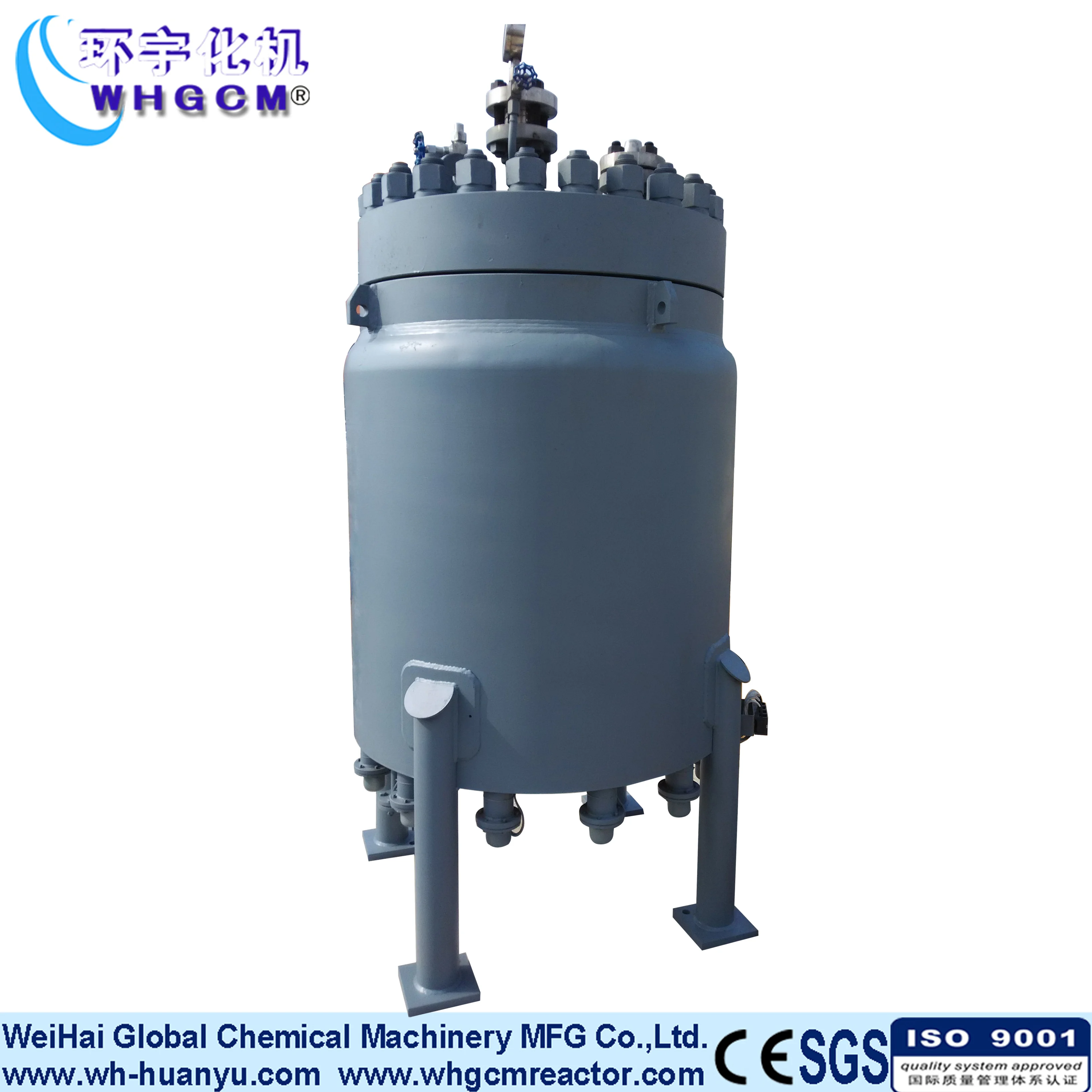

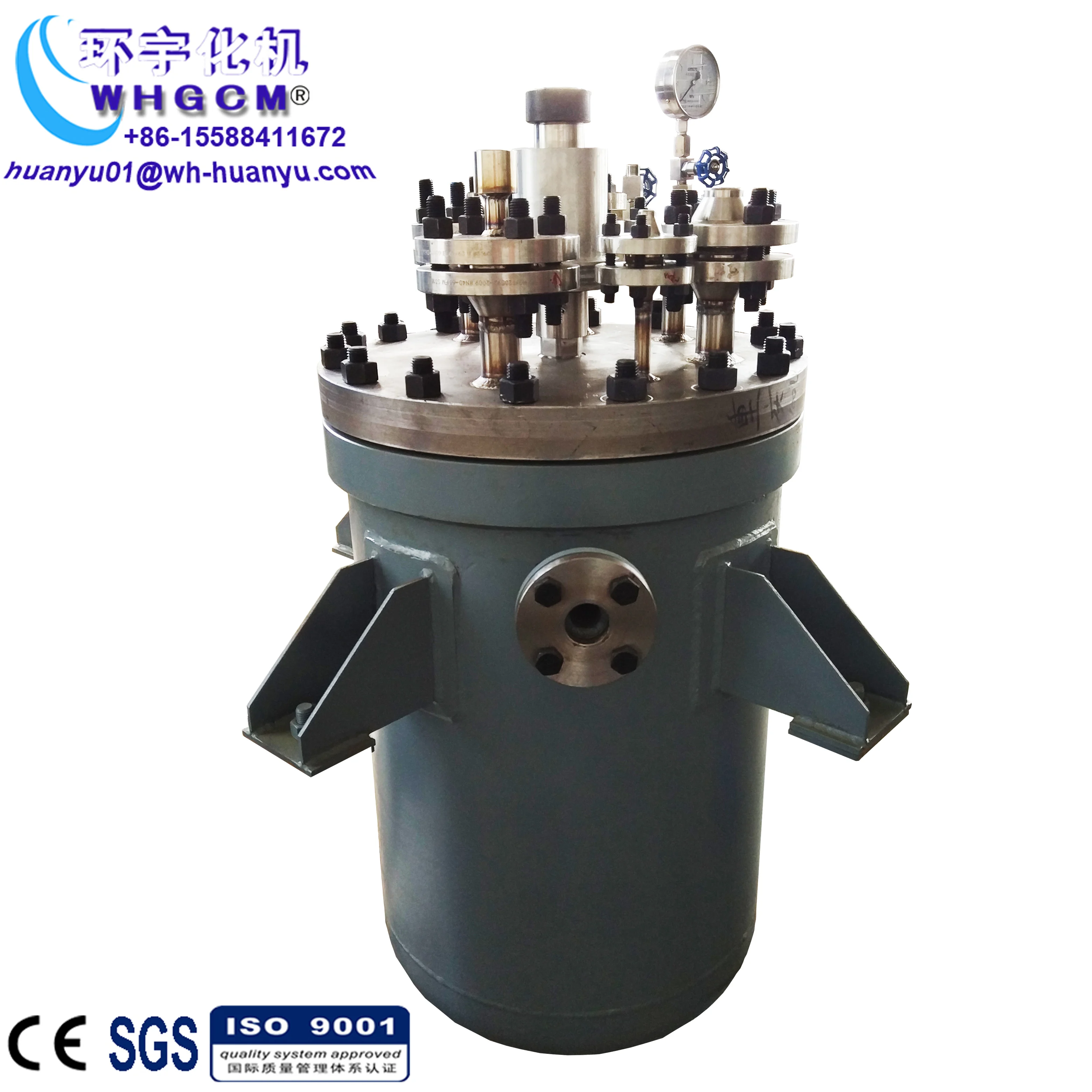

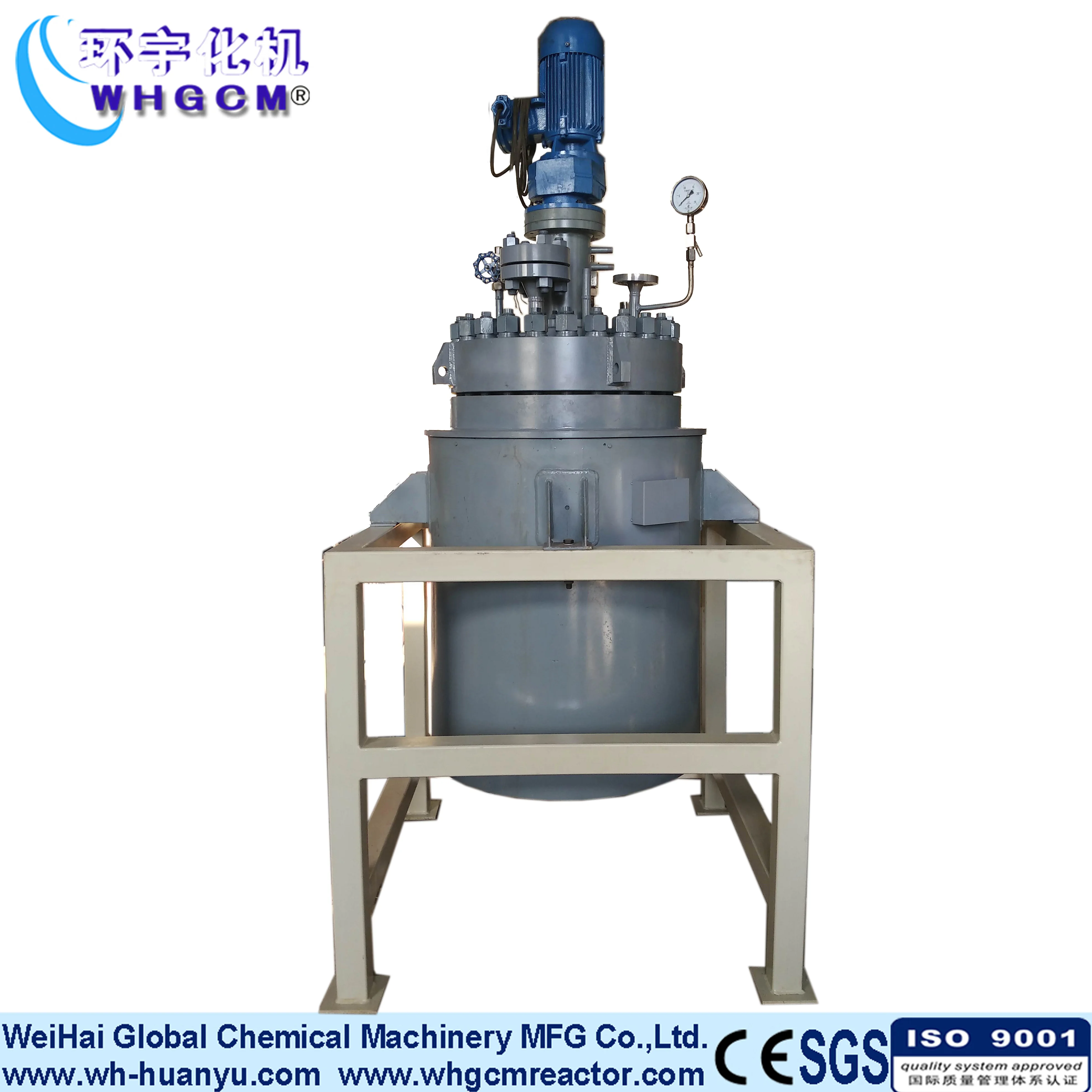

Products Display

 Our factory can manufacture ODM reactors as per customer's request, in various volume, structure and material. With detail technical parameter given by customer (including Working Volume, Working Pressure, Working Temperature, Reactor Material), we will design and quote for customer within one working day.



Package for 100L Hydrogenation explosion-proof uasb autoclave reactor weihai

Standard export package with strong support, suitable for long distance transportation.





Polishing Effect

As per customer request, we can polish both inside reactor kettle and outside jacket to a Mirror Polishing Effect, we can achieve Ra 0.2um.

With great polishing effect, our reactors are widely used for Food Industrial and Pharmaceuticals Industry.



Cooperation Partner

We've cooperated with many famours universities and institutions in both China and Oversea Countries, our reactor equipment help them in various chemical reaction experiment. We also cooperated with big factories in Food, Petroleum, Pharmacy, Material, Mining and Metallurgy areas.











After Sale Service

We will give advices and suggestions to user according to the needs of various industries: provides various product standards, raw materials, inspect and test methods, standard and technology consultation according to user requirements; provides manufacturing according to buyer's requirements, customizing of non-standard product, such as ultra short / long series; provides company qualifications and credit proof etc.



We will provide reactor routine maintenance as well as training service for troubleshooting of common faults; provides remote or on-site reactor review, installation and operation technical guidance; for customer quality complaint, after technical support by telephone, professional customer service personnel will arrived at the scene * if any further service is required; user's technical quality consultation will be replied within 24 hours; 12 months of product warranty period is provided; provide 24 - hour technical support hotline; provide various forms of after sale service for free during the warranty, provide life time after sale service and limited supply of free wearing parts for three years.
