Японская Южная Корея портативная лазерная маркировка резка ювелирных изделий волоконно-лазерная гравировальная машина

Описание и отзывы

Трекер стоимости

Характеристики

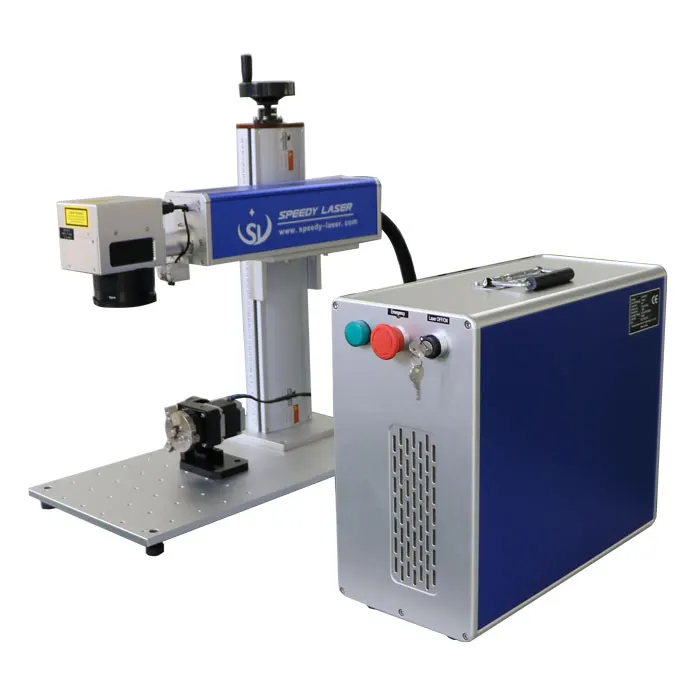

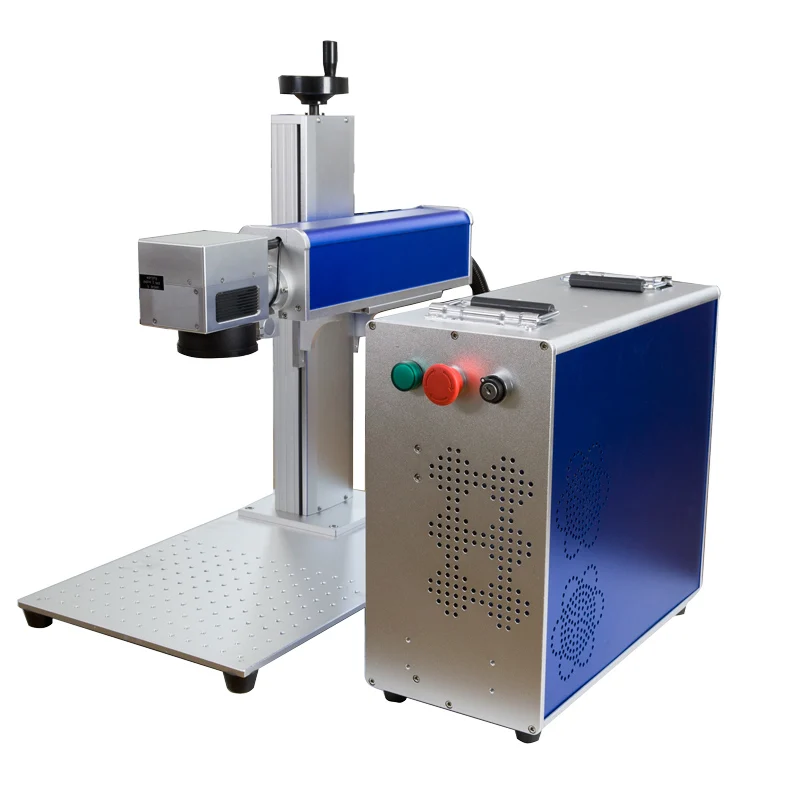

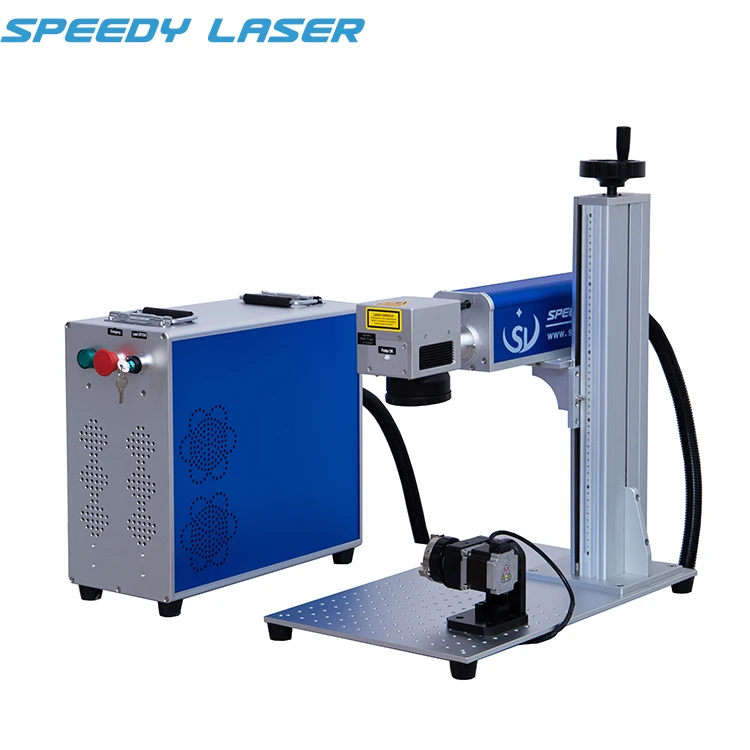

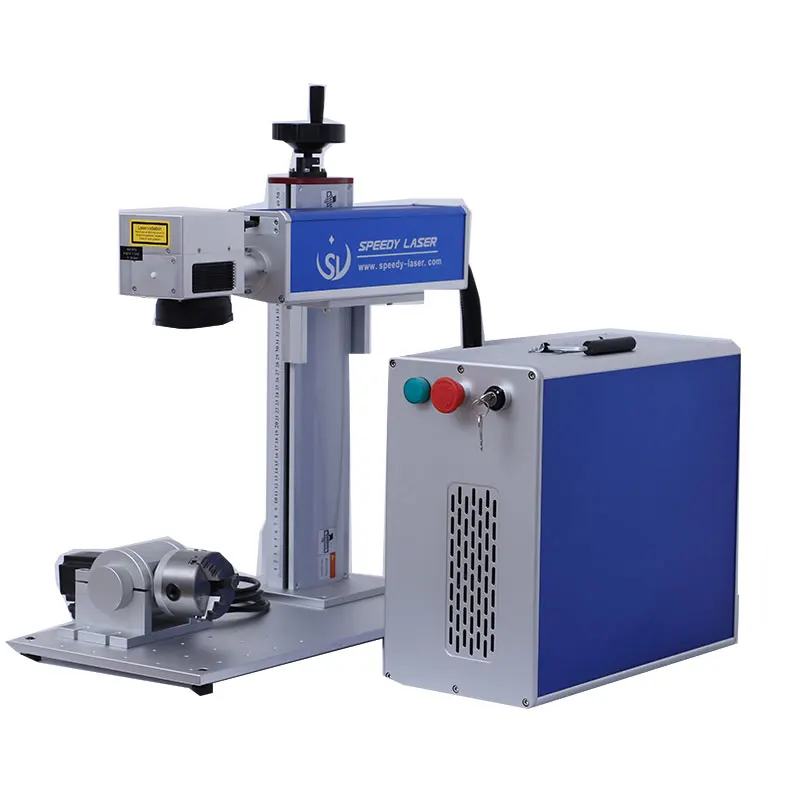

Japan South Korea  Portable Laser Marking Cutting Jewellery Fiber Laser Engraving Machine For Jewelry





Pruduct Introduction



Speedy Laser Fiber laser engraver can be used for marking logo, serial number, bar code and other beautiful patterns on any metallic materials such as stainless steel, titanium, brass, gold, silver, aluminum and lots of engineering plastic products such as mobile cover & charger, consume electronics housing and etc.





Specification



	Technical Parameter
Model NO.	SL-FM 20W	SL-FM 30W	SL-FM 50W
Laser power	20W	30W	50W
Laser wavelength	1064nm
Laser type	Raycus fiber laser
Beam diameter	7mm±1
Repeat frequency	30KHz-60KHz	30KHz-60KHz	50KHz-100KHz
Pulse width	131ns	131ns	135ns
Repeated accuracy	0.01mm
Marking depth	0.01-0.5mm
Marking area	110×110mm/175×175mm/200×200mm
Power consumption	500W	800W	1.2KW
Operating voltage	110V- 240V/50-60 Hz/15A
Carve speed	500 character/s
Cooling	Air Cooling
Packing size	90*45*82 cm (L*W*H)
Gross weight	60 KGS
Package	Standard export wooden case



Features



1.High speed scanner head. (Imported brand optional)

2.High precision with repetition as tiny as 0.2mm.

3.Fiber laser marking machine can make deep marking up to 1.0mm on stainless steel.

4.Fast marking speed.

5.Simple and convenient operation. Easy to learn and handle.



Pruduct Application



All kinds of metal and most of non-metal materials.

Gold and silver, diamond, Stainless steel, Copper, Iron, Aluminum, Plastic, PVC,

Ceramics, PCB, Bamboo, Marble products, almost metal and non-metal materials.



Sample show



 Speedy-Laser Video on Youtube:

https://www.youtube.com/channel/UCdnlifV-6AN3cFlDAva53Mg











Our service



24/7 service is available to each customer. And if any technical questions or problems, our engineers will help you and give you solutions on the phone or by face-to-face communication online.

2 years warranty is provided. (The detailed reference will be written into the final contract.)

Professional staff for installation and training.

Spare parts are supplying on time or doing some inventory if promising certain sales volume.

Faster delivery, we will support our sole agent to do the stock if good sales, then more convenient and helpful.

If the sales are good, we will arrange some famous exhibition fairs in the local or surroundings, and give our full support to our agents at the fair. We will provide our sample machines, catalog, DVD, manuals, etc. All native customers belong to our local agent, which is our basic rule. And we promise the final delivery is the same as displayed prototype.





packing&shipping





1.Durable wooden case or as per required.



2.The delivery lead time would be 5-7 working days after recieving the payment.



3.As for the wholsalers/distributors, we could send the cargo by air, by sea or by railways via reliable forwarder.
