Односторонний пневматический клапан двойного действия VP063DA/SA
- Категория: Пневматические детали >>>
- Поставщик: Jiangsu,Shoulong,Valve,Co.,Ltd.Jiangsu,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 2459.75 $* | 2582.99 $* |
| Aug-15-2025 | 2438.18 $* | 2560.31 $* |
| Jul-15-2025 | 2045.5 $* | 2147.84 $* |
| Jun-15-2025 | 2397.45 $* | 2517.82 $* |
| May-15-2025 | 2087.68 $* | 2191.30 $* |
| Apr-15-2025 | 2355.68 $* | 2473.74 $* |
| Mar-15-2025 | 2335.22 $* | 2452.98 $* |
| Feb-15-2025 | 2314.8 $* | 2430.52 $* |
| Jan-15-2025 | 2293.61 $* | 2408.58 $* |
Характеристики
Product Description

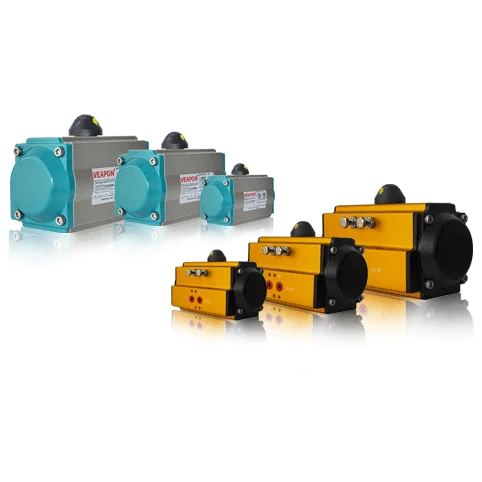

Pneumatic Actuator
@Reliable performance, @Precision & wear resistance @Safety guarantee @Corrosion & rust prevention
item | Description |

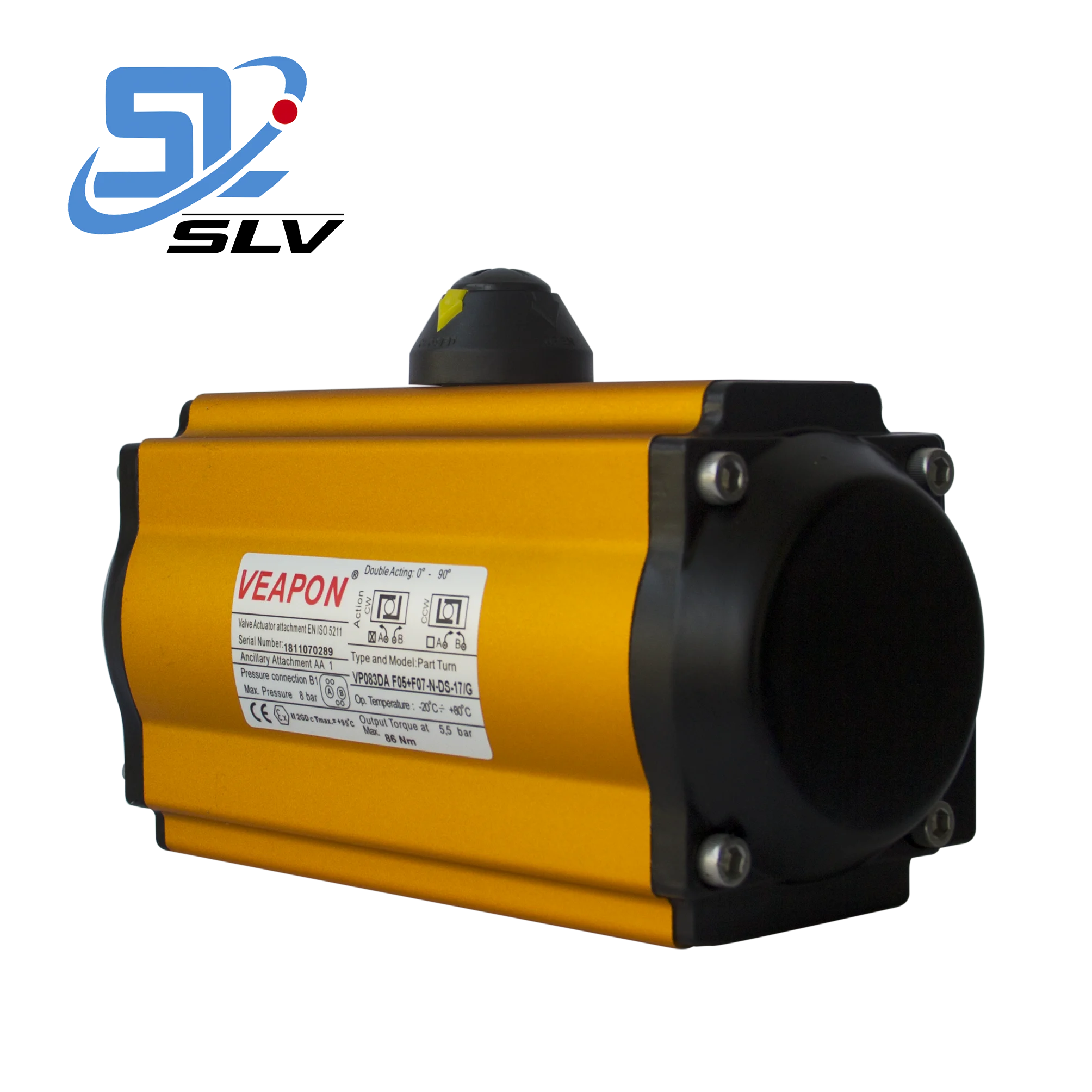

VP063DA, VP063SA | Pneumatic Valve Actuator |
Weight(kg) | 2kg(DA), 2.1kg(SA) |
air consumption (opening) | 0.21L |
air consumption (Closing) | 0.23L |
packing cbm | 0.003cbm |
Prouduct Strength
1. Hard Anodizing Treatment.
The actuator body has been treated with had oxidation, the hardness is higher than normal one. Its durability extends the service life.
2. SS304 Screw
Actuator body screws are made of German Stainless steel. Fine workmanship, guaranteed quality.
3. Hard Anodizing Treatment for Piston
The piston in the cylinder block is also treated by hard oxidation, and the deepening of the plug groove further fixes the screw device, thus avoiding the displacement and loosening of the spring during use.
Description of application effect
1. Production Process
Extrusion manufacturing, extruded aluminum molding in one time.
2. Anti-corrosive & Wear-resistance
The surface of whole cylinder is treated by Alodur + Teflon which is suitable for chemical workshop and seaside condition, etc.
3. Widely Used
Suitable for Petroleum, Metallurgy, Power Sector, Paper Making, New Engergy, Hydraulic etc.
4. Convenient Operation
Easy to use, Rapid on-off.
Operating Conditions
1. Operating media
Dry or lubricated air, or the non-corrosive gases
2. Air supply pressure
The minimum supply pressure is 2.5 Bar
The maximum supply pressure is 8 Bar
3. Operating temperature
standard: -20℃~ +80℃
Low Temperature: -35℃~ +80℃
High Temperature: -15℃~ +15℃
4. Travel adjustment
Have adjustment range of ±5° for the rotation at 0° and 90°
5. Application
Either indoor or outdoor
Mounting Standard
Air supply connection is designed in accordance with NAMUR standard to install solenoid valves.
The NAMUR drive pinion and the NAMUR top mounting connection permit direct installation of accessories such as limit switch box and positioner.
Bottom mounting connection is designed in accordance with ISO5211 and DIN3337 standards for direct mounting with valve gear boxes or mounting brackets.
Torque Output of Double Acting Actuators
Selection of double acting actuator:
The suggested safety factor fo double acting actuators under normal working conditions is 20%-30%.
For example:
The torque needed by valve=100N.m.
The torque considering safety factor=100N.m*(1+30%)=130N.m
Air pressure=5Bar
According to the above table, we can choose the minimum model is VP-105D
Weight & Air Consumption Table

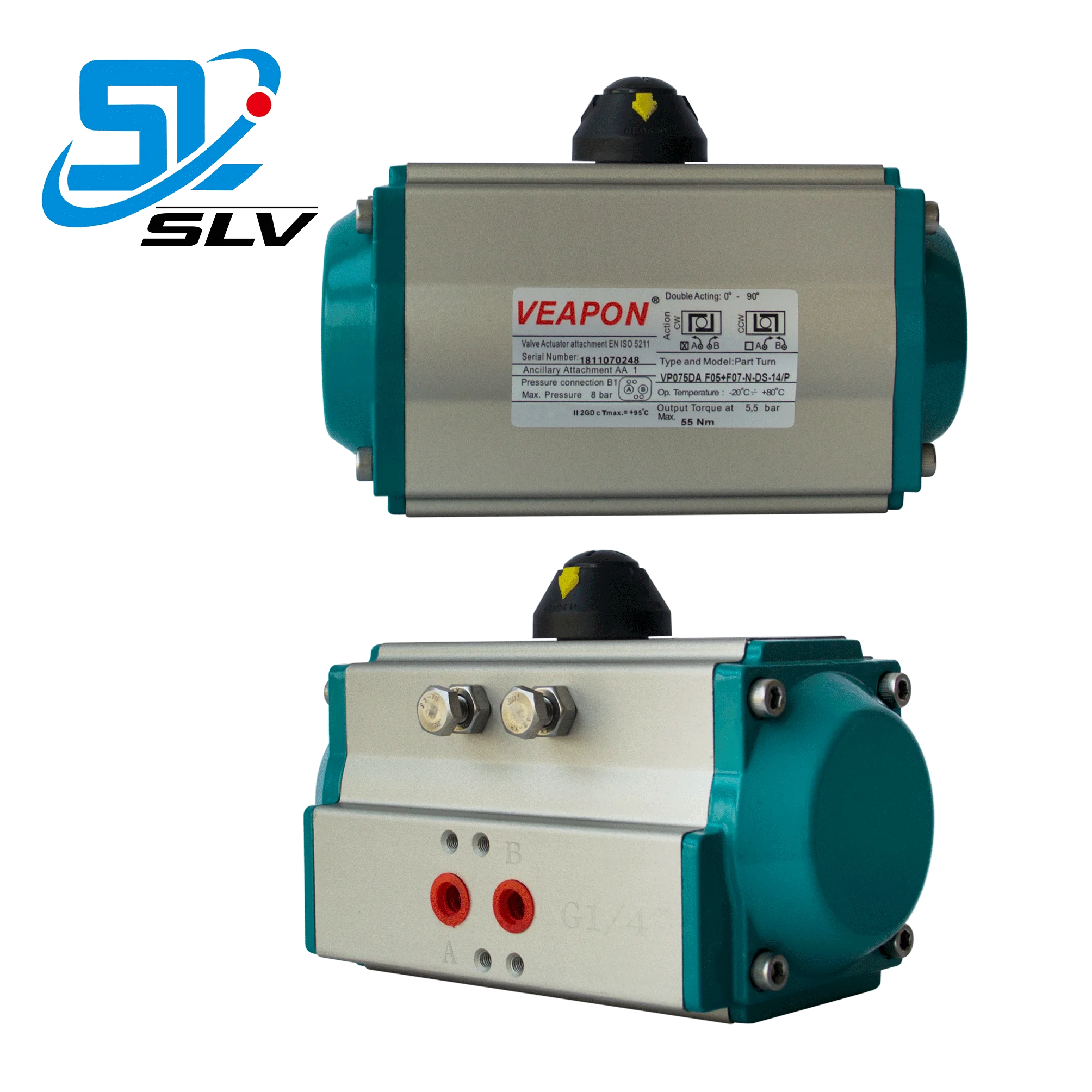

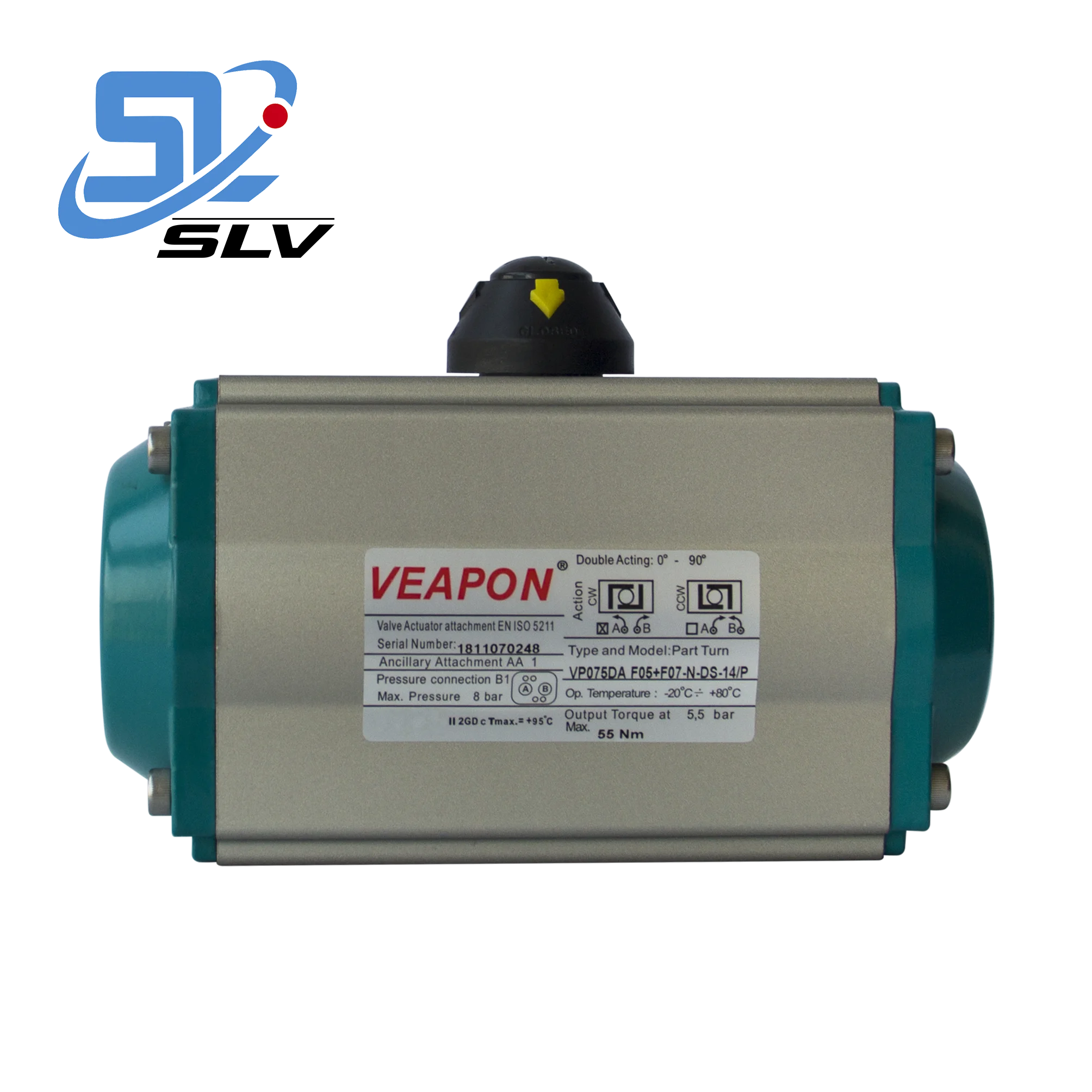

Detailed Images
Related Products
Company Introduction
SLV-Jiangsu Shoulong Valve Co., Ltd is a comprehensive enterprise engaged in research & Development, produciton, sales and import & export of automatic control valves.
Company History
1988-------------- Founded in Taiwan;
2000-2014----- Expanded in 2000 and built more than 30 acres production bases in Nanjing and Wuxi of Jiangsu Province.
2014-2018----- Establishing headquater in Nanjing in 2014, and set up 13 offices all over China.
2018-Future---- Providing much better products and service.
Why Choose Us?
1. Direct Factory: We have our own R&D dept with self-developed mould and our own production line.
2. Full-range Product: Our product suitable for various fields and we can provide diversified choices according to different working conditions.
3. Guaranteed Quality: High quality standards, one purchase with lifetime service, quality assurance is unequivocal.
4. Service Team: Professional service team with timely reply and detailed answer.
5. Rich Experience: Specialized in Automatic Control Valve Production & Sales for 30 years and cooperating with hundreds of large companies.
Certifications
Exhibition
FAQ
Q: Can we visit your factory before placing orders?
A: Yes, sure. Welcome to visit our factory at any time.
Q: How long is your lead time?
A: Normally 5 days with stock, or 15-20 days without stock.
Q: Do you provide free sample?
A: We coul doffer the sample with favorable price, the sample charge will be reduced from the payment of the orders.
Q: What kind of payment term will you accepte?
A: We accept TT, LC, Paypal, VISA, Alibaba......
Q: Do you provide related accessories?
A: Yes, we can provide solenoid valve, limit switch, filter, positioner and so on.....
Q: How long is the warranty period for your product?
A: 18 months from the date leaving the factory or 12months from the date of arrival. The date coming first shall prevail. Atfer the warranty period, we coul dalso provide telephone, email and video guidance for custoemrs.
