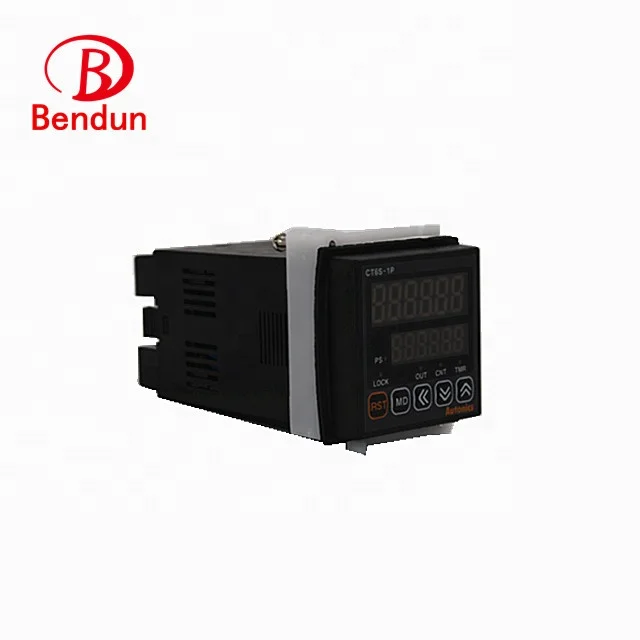

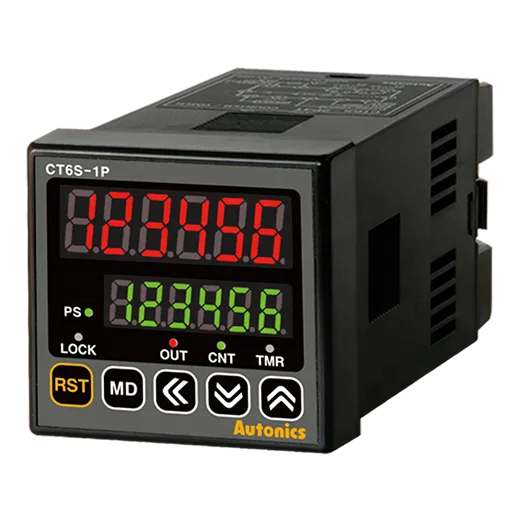

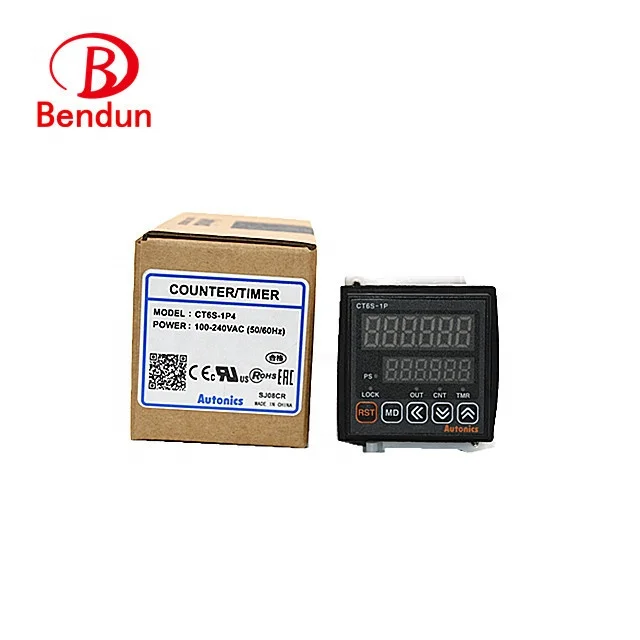

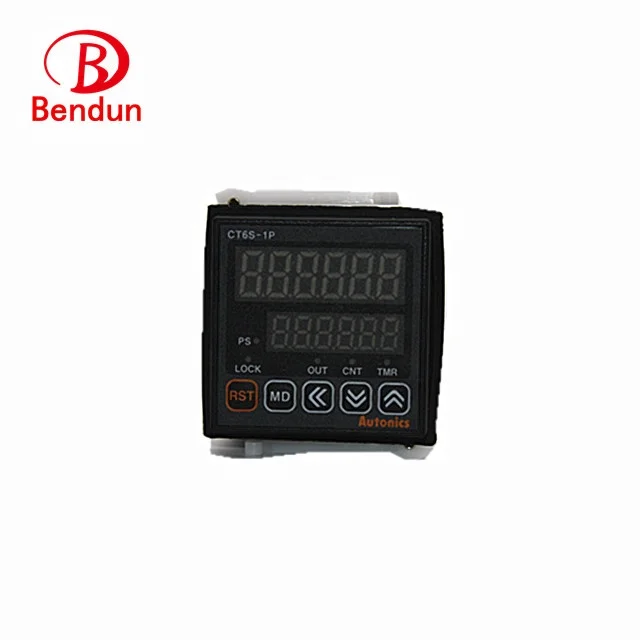

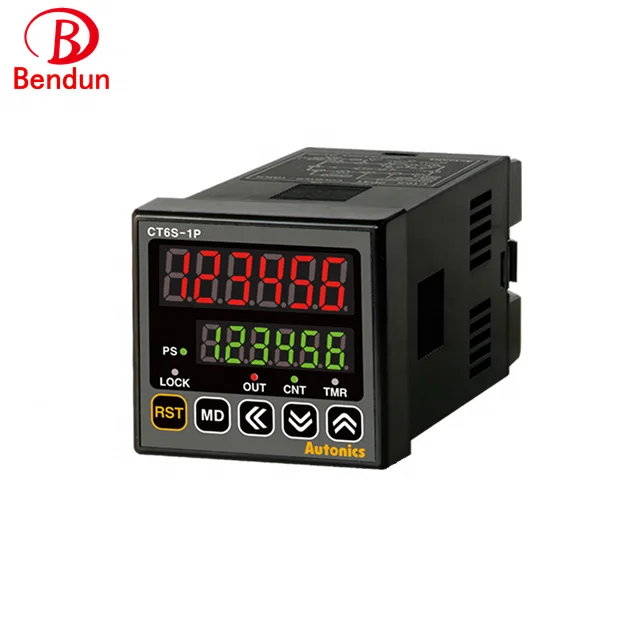

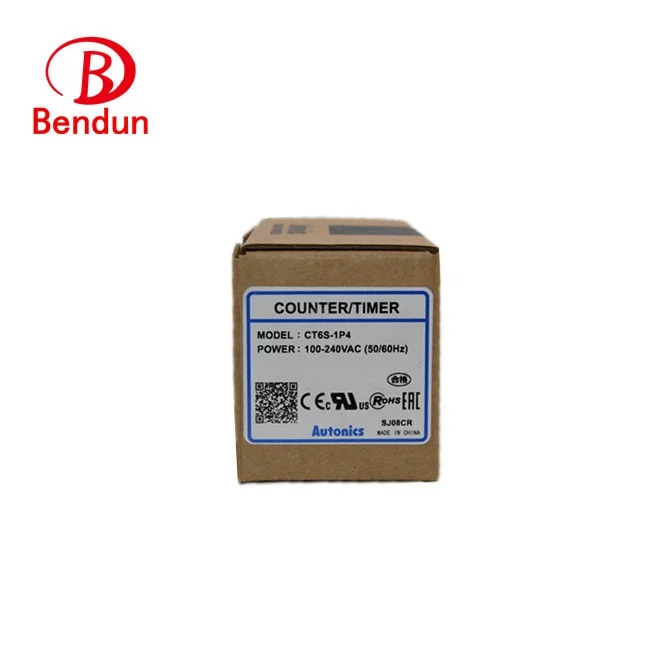

Оригинальный Autonics CT6S-1P4T программируемый цифровой счетчик со светодиодным индикатором с MODBUS RS
- Категория: >>>
- Поставщик: Shanghai,Bendun,Electric,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 52.49 $* | 53.13 $* |
| Jul-16-2025 | 42.64 $* | 43.11 $* |
| Jun-16-2025 | 51.96 $* | 52.96 $* |
| May-16-2025 | 51.8 $* | 52.77 $* |
| Apr-16-2025 | 41.97 $* | 42.57 $* |
| Mar-16-2025 | 50.97 $* | 51.91 $* |
| Feb-16-2025 | 50.25 $* | 51.74 $* |
| Jan-16-2025 | 49.47 $* | 50.37 $* |
Характеристики
Products Description
Display method | 6-digit 7-segment LED |
Operation method | Counter: Count up, Count down, Count up/down Timer: Count up, Count down |
Terminal | Terminal block |
Output Operation | SIGNAL ON DELAY, POWER ON DELAY, FLICKER, INTERVAL, SIGNAL OFF DELAY, ON-OFF DELAY, INTEGRATION TIME |
Power supply | 100-240VAC~ 50/60Hz |
Time operation | POWER ON START SIGNAL ON START |
External Power Supply | Max. 12VDC ±10%, 100mA |
Signal Input Method | Voltage input(PNP), No-voltage input(NPN) |
Max. Counting Speed | 1, 30, 1k, 5k, 10k [cps] |
Min. signal Width | 1ms/20ms |
Memory Protection | Approx. 10 years |
Setting range | 0.001 sec to 9.999 sec, 0.01 sec to 99.99 sec, 0.1 sec to 999.9 sec, 1 sec to 9999 sec, 1 sec to 99 min 59 sec, 0.1 min to 999.9 min, 1 min to 9999 min, 1 min to 99 hour 59 min, 1 hour to 9999 hour |
Control output_Type | 1-stage preset |
Control output_Relay | SPDT (1c): 1 |
Control output_NPN open collector | 1 |
Communication output | RS485 |
Protection structure | IP65(front panel) |
Approval | CE, UR |
Counter_Counting range | -99999 to 999999 |
Counter_Scale | Decimal point up to fifth digit |
Counter_Min. input signal width | RESET: Selectable 1ms/20ms |
Timer_Min. input signal width | INA, INH, RESET: Selectable 1ms/20ms |
Environment_Ambient temperature | -10 to 55℃, storage: -25 to 65℃ |
Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
Weight | Approx. 212g (approx. 159g) |
Main Features
- Integrated counter/timer unit for counting and timing applications RS485 (Modbus RTU) communication (communication models)
- One-shot output time : 0.01s to 99.99s
Counter Functions
- Various input/output modes (9 input modes, 11 output modes)
- Prescale value range
- - 6-digit models : 0.00001 to 99999.9
- - 4-digit models : 0.001 to 999.9
- Batch counting function, set count starting point (value) function
Applications
Rubber Extrusion / Plastic Injection Molding Process
