Product Description
Spiral screw auger conveyor price OEM
Screw conveyor uses revolving screw to move the conveyer material in fixed casing, the bearings of head and tail are moved to shell, hanger bearing adopts sleeve bearing, which have dustproof sealing device, bearing bush usually adopts powder metallurgy,convey concrete adopts felt bushing, hanger shaft and screw shaft are connected by slider.
Model | Spiral diameter (mm) | Screw pitch (mm) | Revolving speed (r/min) | Max transport capacity (m3/h) | Motor power (kw) | Admission biggest gradient ( o ) |
LS100 | 100 | 100 | 140 | 2.2 | 1.1~73.3 | <60 |
LS160 | 160 | 160 | 120 | 7.6 | ||
LS200 | 200 | 200 | 90 | 11 | ||
LS250 | 250 | 250 | 90 | 22 | ||
LS315 | 315 | 315 | 75 | 36.4 | ||
LS400 | 400 | 355 | 75 | 66.4 | ||
LS500 | 500 | 400 | 60 | 93.1 | ||
LS630 | 630 | 450 | 60 | 160 | ||
LS800 | 800 | 500 | 45 | 223 | ||
LS1000 | 1000 | 560 | 35 | 304 | ||
LS1250 | 1250 | 630 | 30 | 458 |
Related product
Main Features
1.The large bearing capacity, safe and reliable.
2.Strong adaptability, easy installation and maintenance, long service life.
3.The machine is small in size, high speed, ensure rapid delivery uniformity.
4.The discharge end is equipped with cleaning device, low noise, strong adaptability, in and out of the mouth position arranged flexibly.
2.Strong adaptability, easy installation and maintenance, long service life.
3.The machine is small in size, high speed, ensure rapid delivery uniformity.
4.The discharge end is equipped with cleaning device, low noise, strong adaptability, in and out of the mouth position arranged flexibly.
5.Good sealing, shell made of seamless steel tube end use flange connection each other as a body, good rigidity.
Our Company
company Name: Xinxiang Dahan Vibrating Machinery Co., Ltd.
Operational Address: West Of Jinlong Copper, West Renmin Rd., Xinxiang, Henan, China (Mainland)
♥ Website on alibaba.com: http://cndahan.en.alibaba.com
Certifications
Detailed Images
Machine Parts

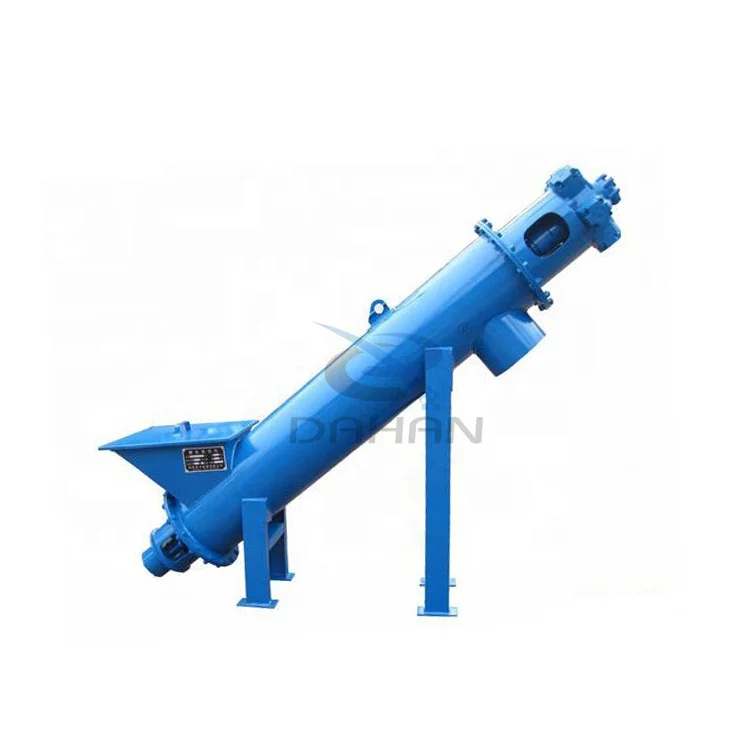

Name: Shaftless screw conveyor
Brand: Daha
Original: China
The shaftless screw conveyor is used for conveying fine grille in the sewage treatment plant. Its grid is 50mm away from the trash gate and filter cake.
Main Features

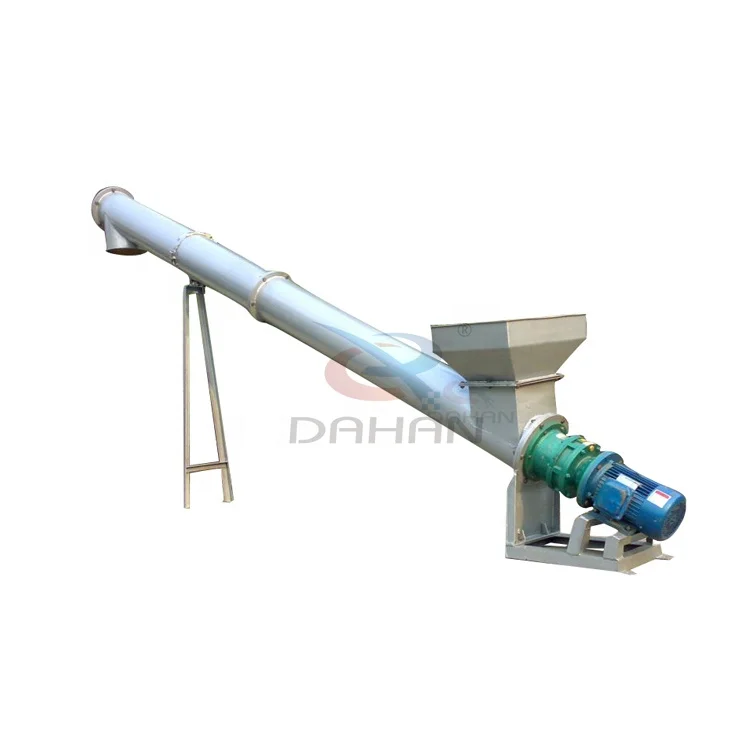

Name: Axle screw conveyor
Brand: Dhan
Original: China
Spiral conveyer, commonly known as hang dragon, is a kind of transportation equipment in mineral, feed, grain and oil and construction industry. From the angle of conveying material displacement direction, the axle screw conveyor is divided into two types, horizontal screw conveyor and vertical screw conveyor, mainly used in all kinds of powdery, granular and small pieces. Horizontal and vertical lifting of loose materials
Machine Parts

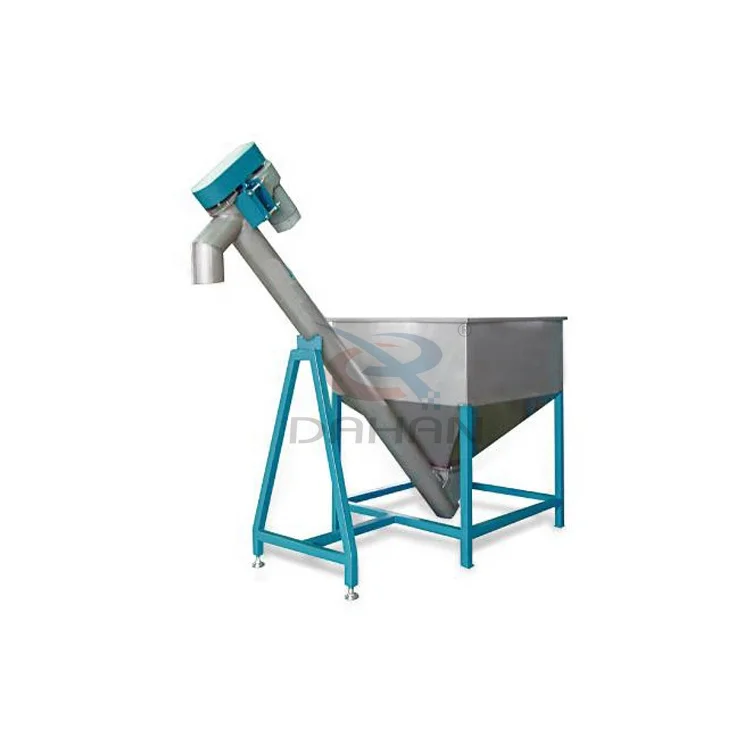

Name: Hopper
Brand: Dahan
Original: China
Main Features

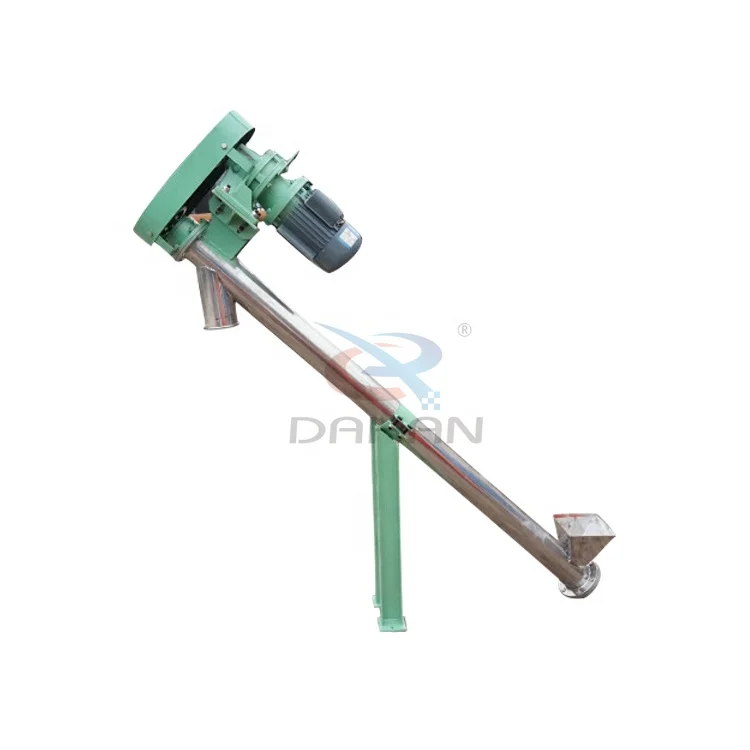

Name: Motor in screw conveyor
Brand: Dahan
Original: China
Powder:1.1-73.3KW
Our Service
Pre-sale services:
a. Professional engineer design the
production line for you
b.Recommend suitable equipment according to your special demand.
During-sale services:
a.Precheck and accept products befor edelivery
b.Send technicians to the jobsite for guiding the installation and adjustment
c.Training operators and finishing
After-sale services:
a.Common problem can be solved through web in 24 hours,complex problem can be reacted immediately in 24 hours and solved as soon as possible
b.To establish long-term friendship, we will regulary contact with our customer
Packing & Delivery
Packaging | ||
Size | According to the model of the screw conveyor | |
Weight | 110-870kgs | |
Packaging Details | The Packed in standard export wooden case packing.If you have special requirements, please just inform us. | |
